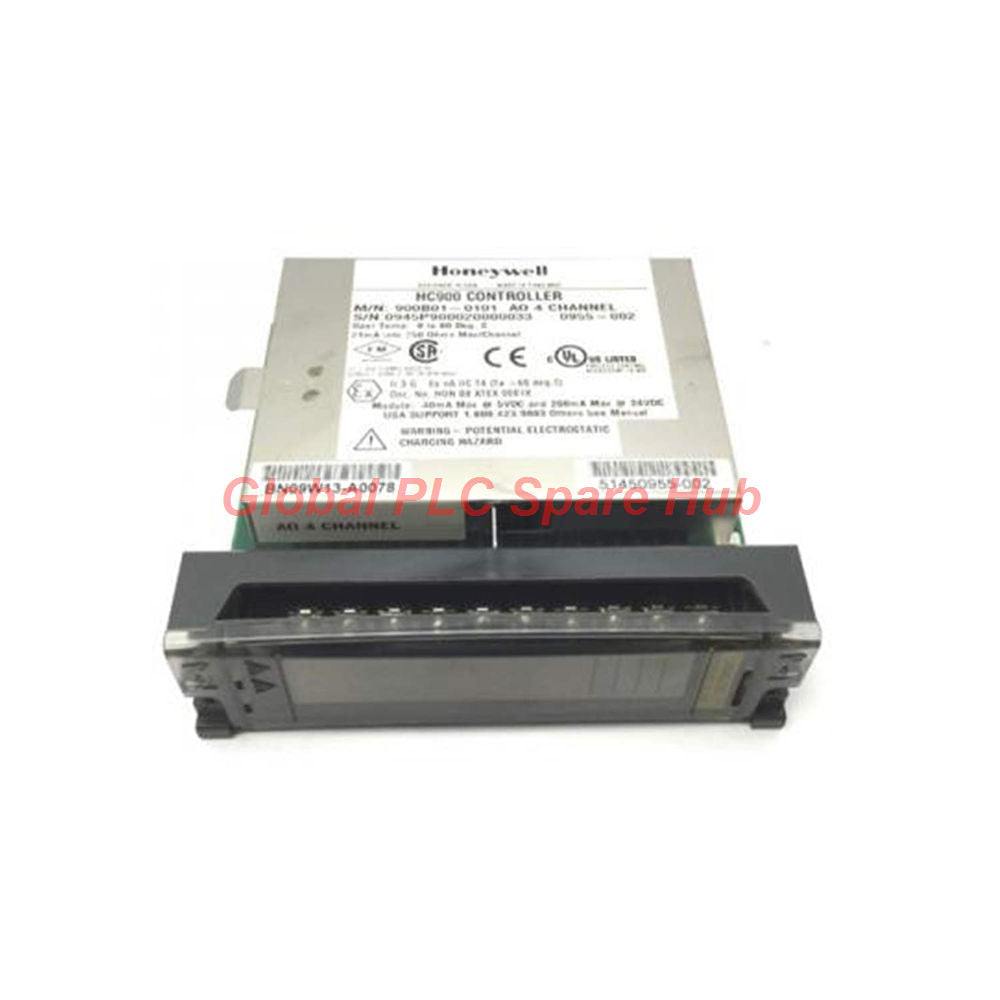

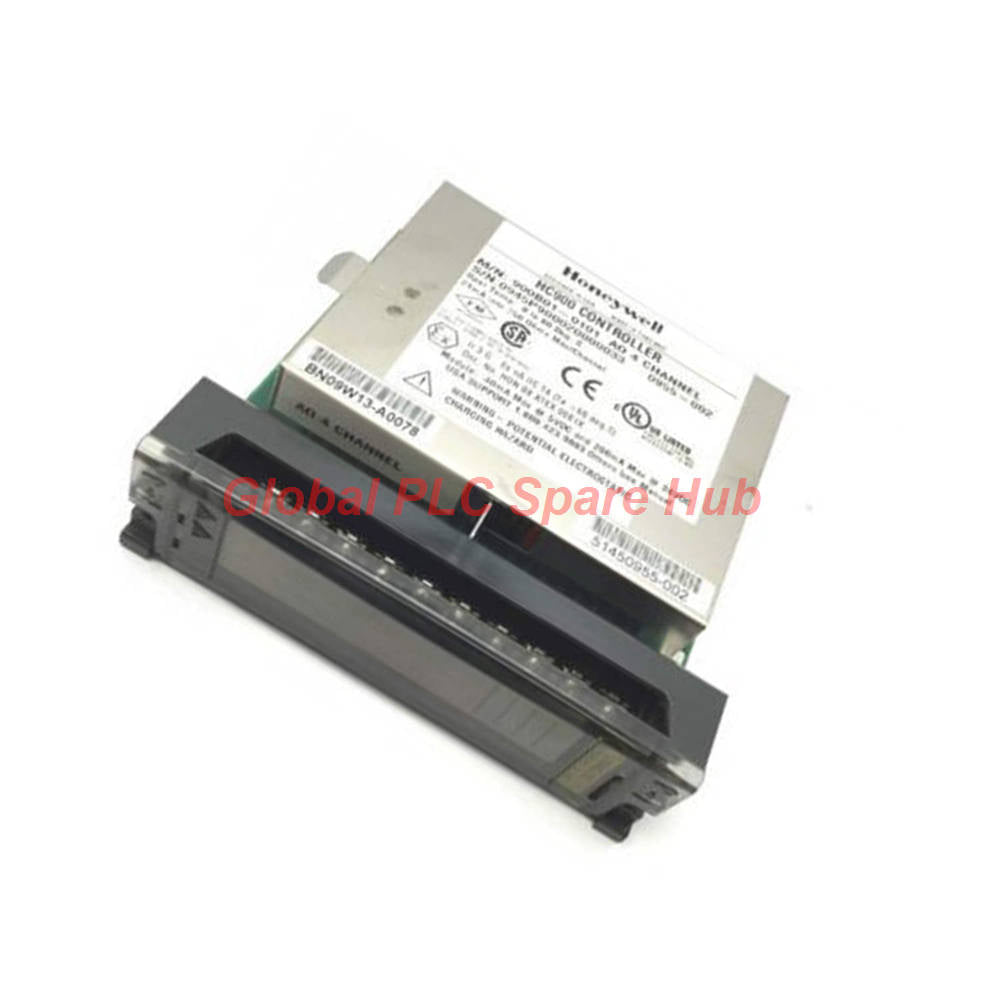

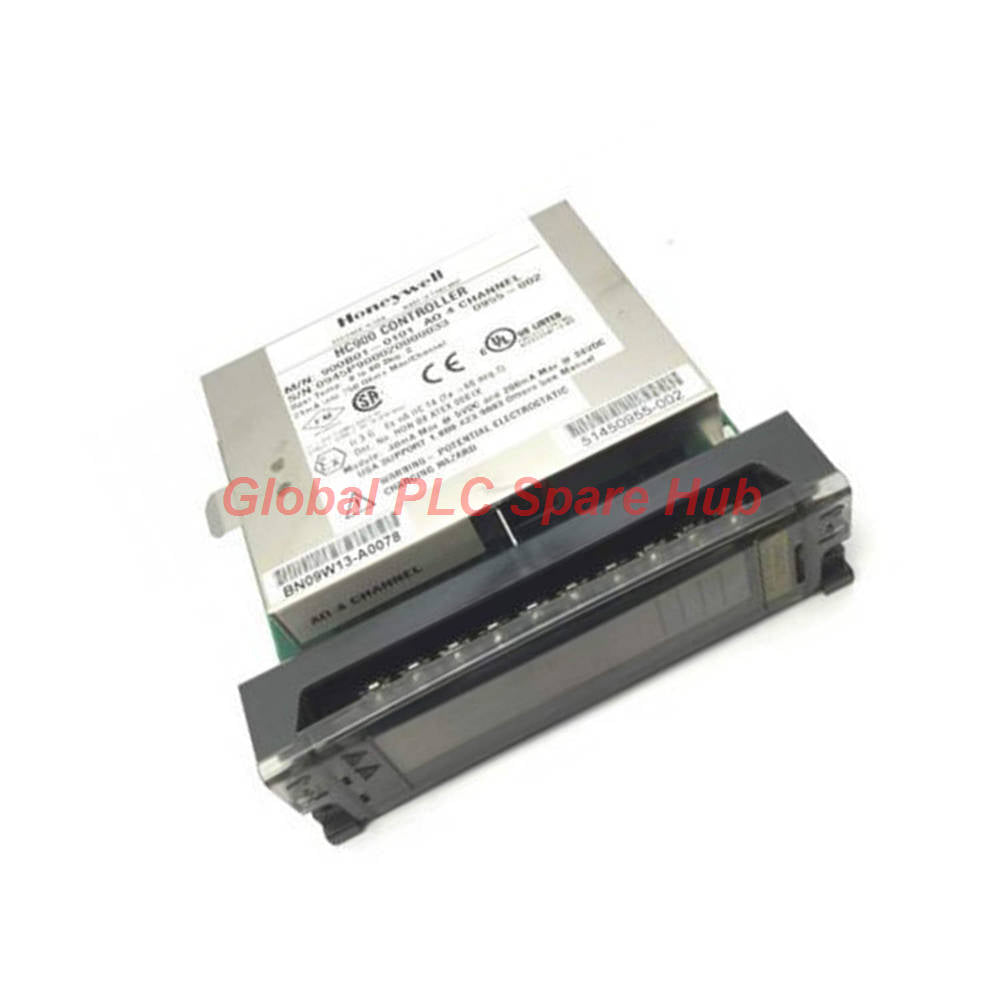

Honeywell 900B01-0101 HC900 AO Module 0-21.8mA 4-Channel

Product Overview

The Honeywell 900B01-0101 is a high-performance analog output module designed for the HC900 process controller series. This module delivers four isolated, high-precision current outputs to field instruments and control elements. Engineers can scale each channel independently up to 21.8mA to match specific industrial application spans.

This HC900 analog output module ensures predictable system behavior via user-specified failsafe values. The hardware automatically applies configured rate-of-change limits to prevent sudden process upsets during step changes. All outputs refresh synchronously with the main controller execution cycle for tight loop performance.

Global PLC Spare HUB's Insight

The Honeywell 900B01-0101 stands out because of its robust galvanic isolation and comprehensive diagnostics. Industrial environments expose control loops to ground loops and electrical noise regularly. By providing 500VDC channel-to-channel isolation, this module prevents cross-talk and protects the central processing logic from field faults. The onboard non-volatile memory safely retains factory and field calibration data. This architecture eliminates data loss during power cycles and maintains long-term loop accuracy without manual intervention.

Technical Specifications

• Brand: Honeywell
• Model: 900B01-0101
• Series: HC900 Control System
• Module Type: Analog Output
• Number of Channels: 4 fully isolated channels
• Measurement Range: 0mA to 21.8mA, fully user-scalable
• Resolution: 12 bits digital-to-analog conversion
• Accuracy: 0.1% of full scale at reference conditions
• Load Resistance: 750 ohms maximum load
• Galvanic Isolation: 500VDC channel-to-channel, 600VDC channel-to-logic
• Temperature Range: 0 to 60 degrees Celsius operating ambient
• Power Supply Loading: 5VDC at 40mA maximum, 24VDC at 200mA maximum
• Minimum Current Sensing: Greater than 3.5mA per active output

Diagnostic Capabilities

• Hardware monitors factory calibration and field calibration status constantly.
• Internal circuitry verifies configuration integrity and checks the +24VDC power supply.
• Output verification loops provide continuous feedback to the controller regarding actual current flow.
• A green blinking status LED confirms active scanning by the controller.
• A red status LED activates immediately when module or channel diagnostics detect errors.

Target Equipment & Applications

• Proportional control valves and electronic actuators requiring precise current loop signals.
• Variable frequency drives (VFD) regulating motor speeds in continuous process manufacturing.
• Chart recorders and external data loggers monitoring critical plant operational metrics.
• Industrial furnace control loops managing SCR power controllers for heating elements.
• Water and wastewater dosing pumps utilizing 4-20mA speed control signals.

Installation & Compatibility Guide

• Install the module into any available slot of an approved HC900 controller chassis.
• The chassis accommodates up to 10 modules under standard operating conditions.
• You can expand to 12 modules per rack with product ambient temperature de-rating.
• Ensure secure seating into the backplane connectors before powering the rack.
• Follow standard industrial wiring practices for shielded twisted-pair current loop cables.

Commissioning & Maintenance

• The module supports individual channel field calibration directly through the controller software.
• The internal system automatically rejects invalid calibration versions to prevent measurement errors.
• Hot-swappable architecture allows efficient module replacement without interrupting overall system power.
• LED status indicators provide instant visual verification during routine maintenance walks.

Shipping, Packaging & Warranty

• Packaging List: One factory-secured Honeywell 900B01-0101 Analog Output Module.
• Warranty Coverage: Standard 12-month comprehensive warranty protection against defects.
• Dispatch Time: Dispatches within 24 to 48 hours from order confirmation.
• Shipping Methods: Express global delivery via premium carriers including FedEx, UPS, and DHL.

Procurement & Selection Guidance

• Verify your total loop resistance remains below 750 ohms before selecting this module.
• Confirm that your existing controller rack runs the appropriate firmware for HC900 I/O modules.
• Check channel counts on your engineering drawings to match the 4-channel density of this unit.

Frequently Asked Questions

Question: What happens to the analog output signal if controller communication fails?

Answer: The module immediately adopts the user-specified failsafe value to maintain predictable and safe plant operations.

Question: Can I mix different current spans on a single module?

Answer: Yes, you can scale each of the four isolated channels independently to any span within the 0-21.8mA range.

Question: How does the module handle ground loops in complex plant wiring?

Answer: The 500VDC channel-to-channel galvanic isolation isolates each current loop, preventing ground loops from disrupting signal integrity.

Question: Why does the red diagnostic LED blink during field calibration?

Answer: The red LED indicates a calibration fault if the module detects and rejects an invalid calibration data set.
