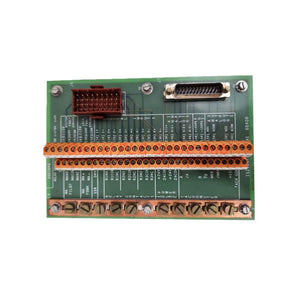

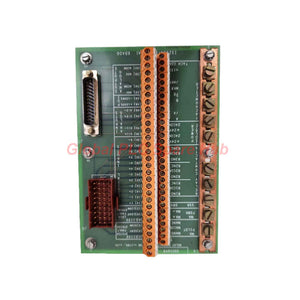

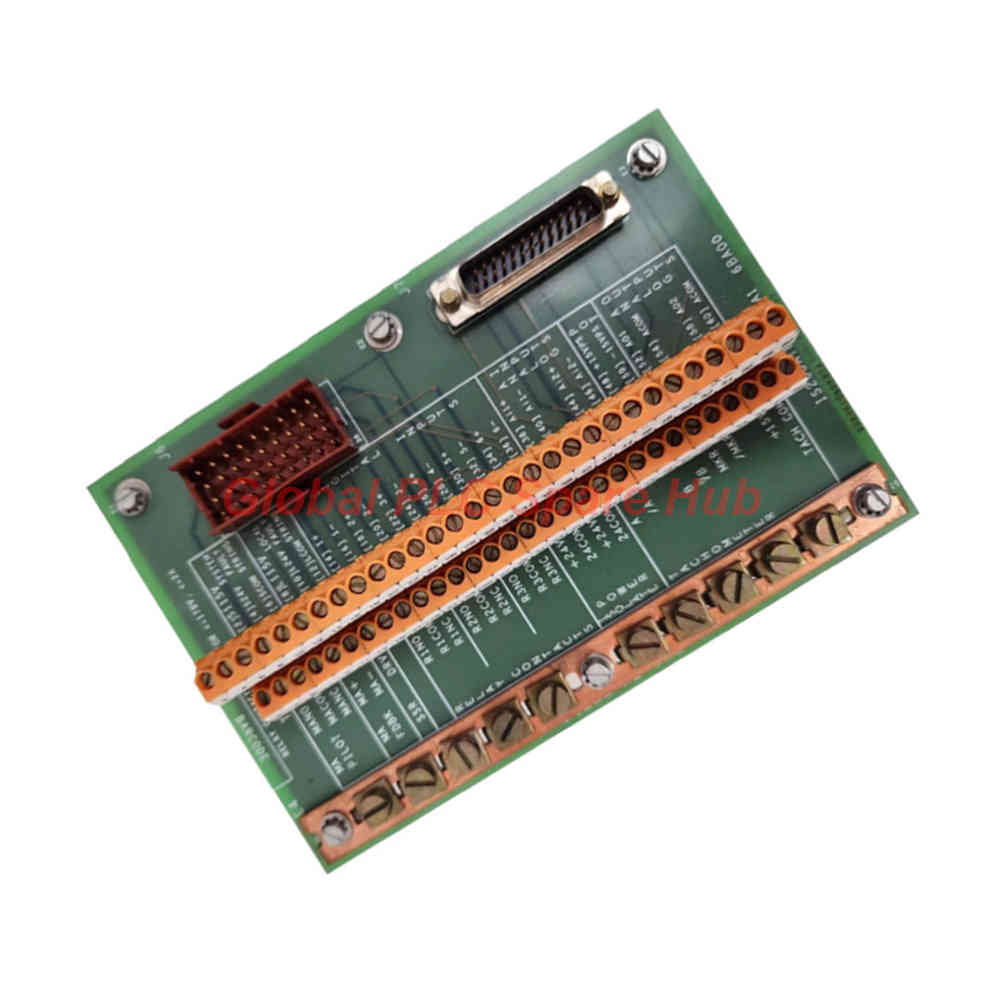

GE IS200ATBAG1BAA1 Terminal Board: Mark VI Speedtronic I/O Interface

Engineering Overview: IS200ATBAG1BAA1

The IS200ATBAG1BAA1 serves as a high-precision Application I/O Terminal Board within the General Electric Mark VI ecosystem. Engineered to facilitate seamless interaction between field instrumentation and control processors, this interface module manages complex signal strings including digital, analog, and tachometer inputs. It is a critical hardware foundation for Speedtronic turbine management, ensuring real-time data integrity in demanding industrial environments.

Technical Performance Specs

• Model Number: IS200ATBAG1BAA1
• System Compatibility: Mark VI Speedtronic Series
• Terminal Density: Single 60-position terminal block interface
• Analog Input Range: 4-20 mA current loops
• Generator Input: 0-5 A precision sensing
• Signal Connectivity: J6 (36-pin) and J7 (25-pin) vertical pin connectors
• Power Requirements: 28 V operational voltage
• Environmental Limits: 0°C to +60°C operating range
• Physical Dimensions: 15.9 cm x 17.8 cm

Global PLC Spare HUB Insight

The IS200ATBAG1BAA1 is a cornerstone for operators managing heavy-duty gas and steam turbine assets. Global PLC Spare HUB analysis highlights its specialized role in signal conditioning for MA Pilot and relay feedback loops. This board is particularly effective in integrated power plant scenarios where precise Cimplicity software communication is required to monitor plant resources and historical operational data.

Diagnostic and Operational Integrity

• Fault Management: Features dedicated circuitry for monitoring system and local fault strings.
• Voltage Protection: J7 connectors are strictly rated for 50V/1A, while base plate connectors maintain a 176V/1A rating.
• Safety First: Advanced hardware design incorporates decoupling and shielding to isolate control signals from high-frequency transients.
• Maintenance Protocols: Fully static-sensitive; requires standard grounding procedures and electrical circuit verification prior to hot-swapping or replacement.

Logistics and Warranty Guarantee

• Worldwide Logistics: Priority shipping via FedEx, UPS, and DHL.
• Rapid Fulfillment: Standard processing within 24-48 hours.
• Quality Assurance: All units are supported by a comprehensive 12-month performance warranty.

Expert FAQ and Selection Guide

Q: What should I prioritize during the installation of the IS200ATBAG1BAA1?
A: Prioritize verifying the voltage rating on your specific I/O loop. Because J6 and J7 connectors hold different ratings (225V vs 50V), cross-referencing your wiring schematic is essential to prevent circuit damage.

Q: How do I handle potential signal noise from the tachometer inputs?
A: The IS200ATBAG1BAA1 utilizes a dedicated cable shield on the board edge. Ensure this shield is properly grounded to the turbine cabinet to prevent EMI interference with the tachometer signal string.

Q: Selection Guide: How can I confirm this revision matches my current backplane?
A: Check your existing backplane (CABP) labels. While the IS200ATBAG1BAA1 is a standard replacement, confirm the pin assignment for the J6/J7 interfaces as factory configurations vary across the three known revisions.

Q: What is a clear indicator that the terminal board is experiencing a localized fault?
A: Monitor your HMI for "Local Fault String" triggers. If inputs are showing sporadic data, inspect the 60-pin terminal block for loose connections or terminal oxidation caused by prolonged vibration.

Q: Can I replace this module while the turbine is in a "Ready" state?
A: Always follow the specific lockout/tagout (LOTO) and GE safety documentation (GEI-100284). Never attempt board replacement without confirming the absence of hazardous voltages across the terminal interfaces.
