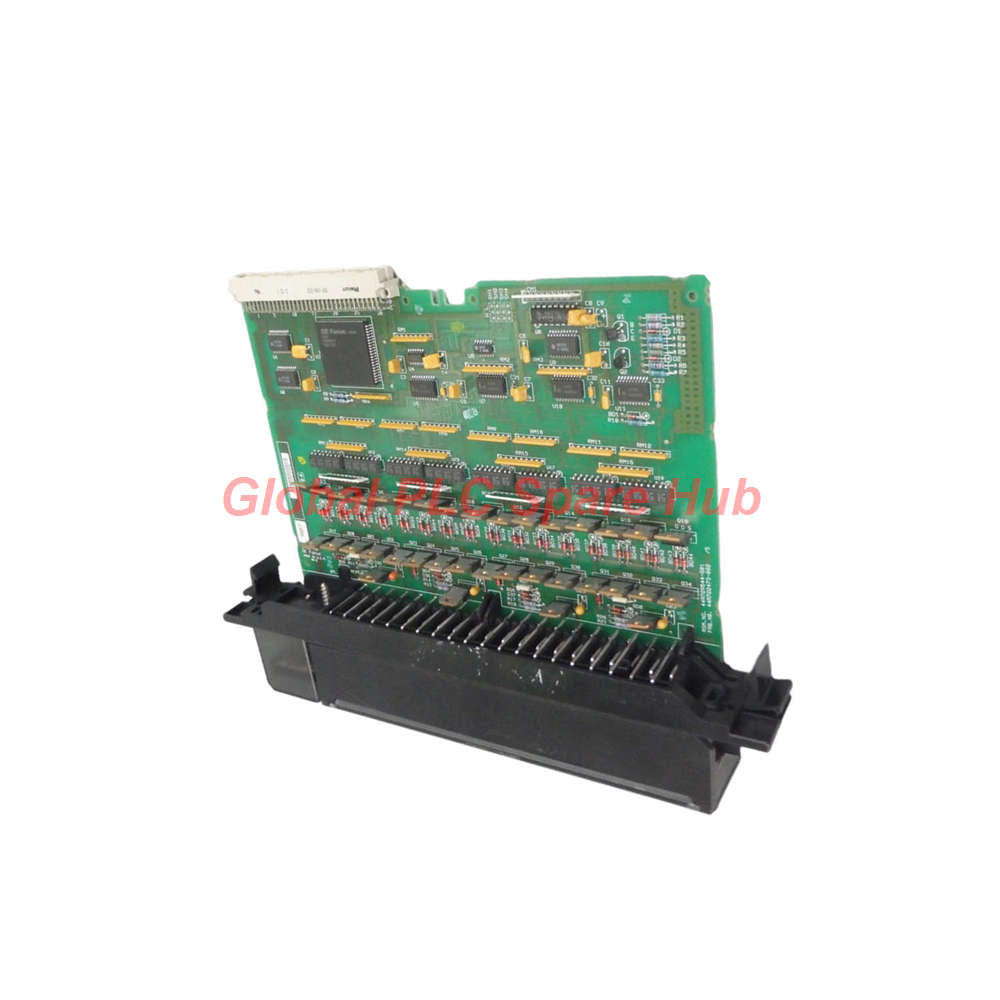

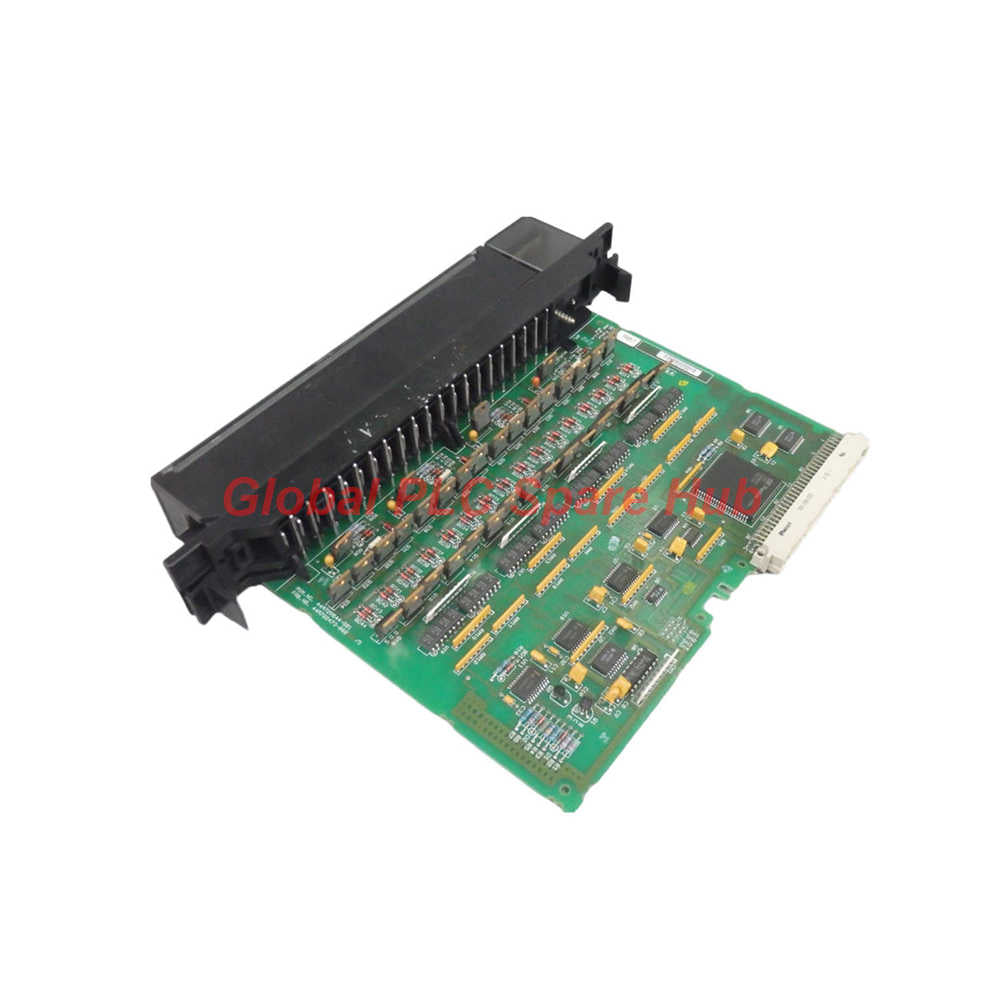

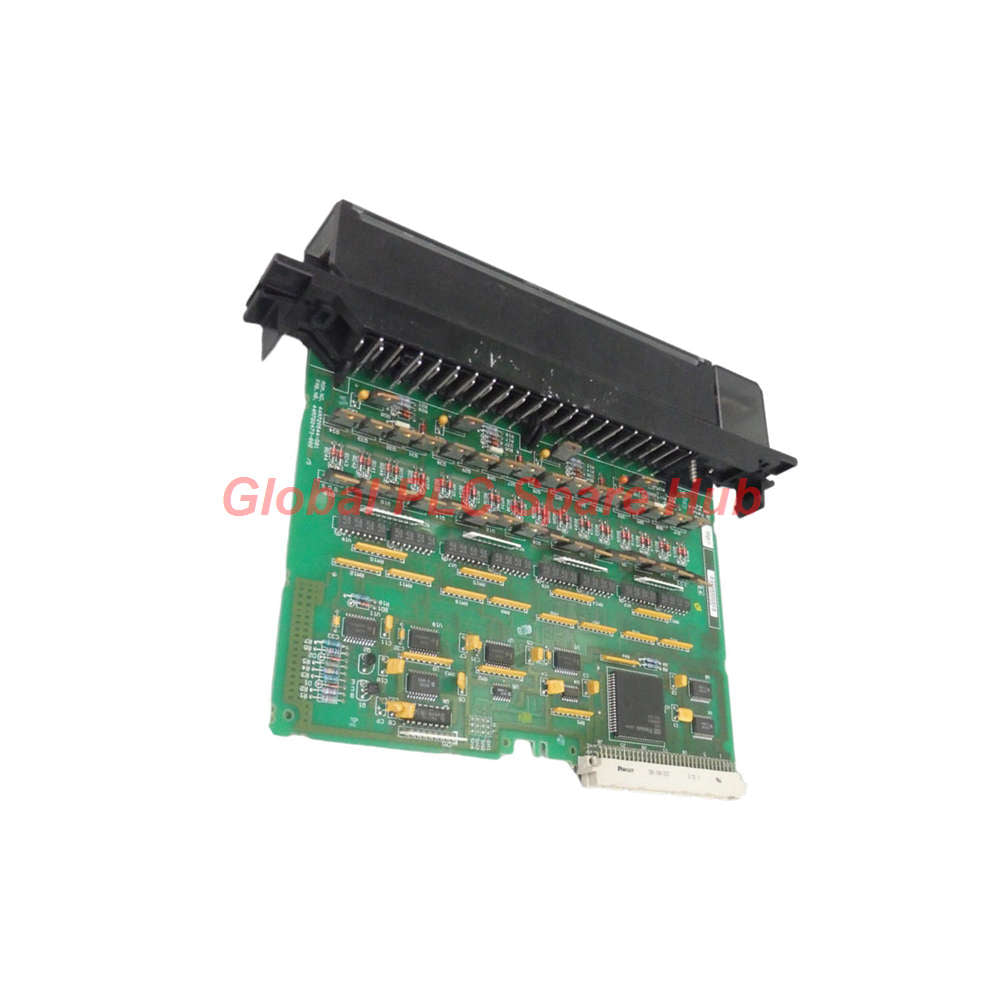

GE Fanuc IC697MDL254 Series 90-70 32-Point 48V AC Discrete Input Module

Product Overview

The GE Fanuc IC697MDL254 is a robust discrete input module designed for the Series 90-70 automation family. This module efficiently interfaces field devices with the PLC backplane. It processes 32 input points organized into four isolated groups. This isolation allows each group to monitor a distinct phase of an AC power supply. Its design ensures reliable signal acquisition for demanding industrial applications.

Technical Specifications

• Brand: GE Intelligent Platforms / GE Fanuc
• Series: Series 90-70
• Model: IC697MDL254
• Input Capacity: 32 points (4 groups of 8)
• Operating Voltage: 48V AC
• Frequency Range: 47-63 Hz
• Input Current: 4.7 mA nominal
• Backplane Power: 0.30 A from 5V DC bus
• Input Characteristics: IEC Type 1 resistive
• Sensitivity: 10 mA ON-state threshold
• Leakage Tolerance: 2 mA OFF-state maximum
• Diagnostic Ability: Integrated LED status indicators
• Environmental: Standard industrial cabinet tolerance

Installation and Compatibility

• Integration: Compatible with limit switches, pushbuttons, and 2/3-wire electronic switches.
• Configuration: Software-defined settings; no jumpers or DIP switches required.
• Programming: Supports both MS-DOS and Windows-based configuration software.
• Security: Features mechanical keying to prevent incorrect module insertion.

Global PLC Spare HUB Insight

The IC697MDL254 is an essential component for distributed control systems requiring phase isolation. It excels in environments where consistent signal detection is vital for machine logic. Our engineers recommend this Series 90-70 module for high-uptime manufacturing lines requiring precise 48V AC monitoring.

Shipping and Warranty

• Logistics: Fast dispatch via FedEx, UPS, and DHL.
• Lead Time: Orders are processed and shipped within 24-48 hours.
• Warranty: Includes a comprehensive 12-month quality assurance guarantee.
• Package Includes: IC697MDL254 module and standard technical documentation.

Frequently Asked Questions

Q: What is the benefit of the 4-group input design?
A: The grouping allows you to isolate different AC voltage phases across the 32 input points for safer, more flexible power distribution.

Q: Is this module suitable for DC input signals?
A: No, the IC697MDL254 is specifically engineered for 48V AC power applications.

Q: Why does the module use mechanical keying?
A: Mechanical keying prevents the insertion of the wrong module type into a slot, protecting your PLC rack and circuitry.

Q: How do I handle module configuration?
A: You can configure all input references directly via your programming software without physical hardware adjustments.

Selection Guide

Before purchasing, confirm that your system requires 48V AC inputs. Ensure your PLC rack has a compatible slot designated for the Series 90-70 mechanical keying system. Verify that your field devices meet the 10 mA ON-state threshold to ensure reliable operation. Please contact our technical support team if you require assistance with system architecture planning.
