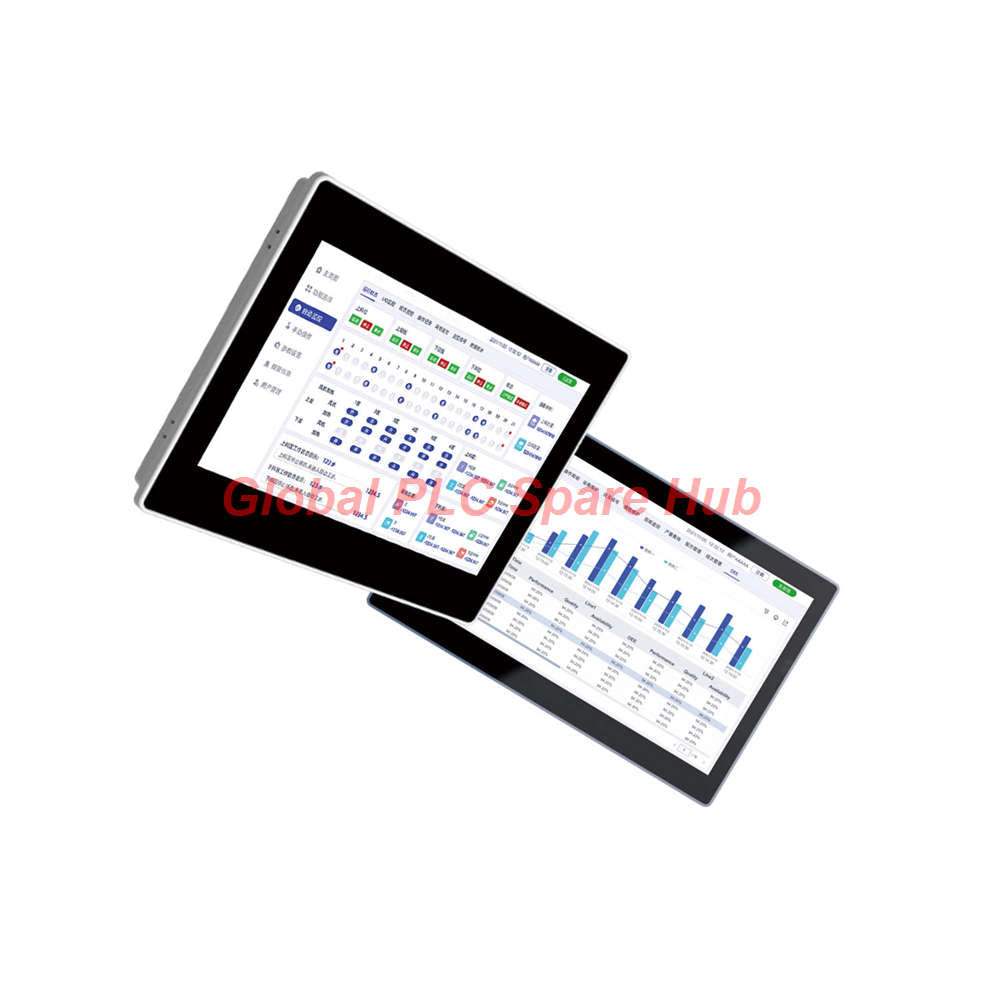

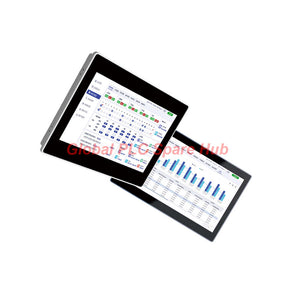

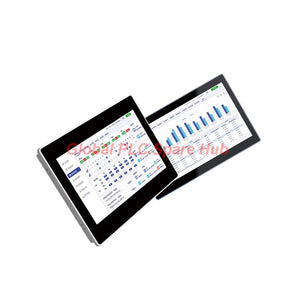

FPad916R001 Next-Gen 1080P Industrial HMI Flexem | New

Global PLC Spare HUB's Insight

• The FPad916R001 represents a significant shift from traditional HMI to high-compute IoT gateways.
• Equipped with an Intel Celeron J3455 quad-core processor, the FPad916R001 handles complex data processing at the edge.
• The 15.6-inch 1080P display offers superior clarity for SCADA-level visualization in a panel-mount format.
• Unlike ARM-based units, its x86 architecture and Linux OS provide an open-ended programming environment.
• This FPad916R001 unit is the ideal choice for engineers transitioning to Industry 4.0 data aggregation.

Engineering Specifications

• Brand: Flexem
• Model: FPad916R001
• Series: Next-Generation IoT HMI
• Processor: Intel Celeron J3455 (Quad-core, up to 2.30GHz)
• Memory/Storage: 8GB DDR3L RAM / 128GB SATA SSD
• Display: 15.6" 1920x1080 LED Backlight (50,000 hrs)
• Touch Interface: 4-Wire Industrial Resistive Touch
• Connectivity: 2GbE LAN, 4USB 3.0, 2*HDMI (4K supported)
• Serial Ports: COM1 (RS232/485/422), COM2 (RS485/422), COM3 (RS232)
• Power Input: DC 12V with isolated lightning surge protection
• Ingress Protection: Front IP65 (NEMA Panel compliant)

Compatibility and Target Equipment

• Designed for complex integration with high-end PLCs (Siemens S7-1500, Rockwell ControlLogix).
• Supports IoT protocols via FStudio Unified for cloud data transmission.
• Compatible with external 4K monitors through dual HDMI ports for expanded workspace.
• Ideal for industrial PC (IPC) replacement in heavy-duty manufacturing environments.
• Integrates with USB-to-RS485 converters for multi-node sensor networking.

Advanced Diagnostics & Features

• Real-Time Monitoring: The built-in RTC and Linux kernel allow for precise event logging and historical data storage.
• Surge Defense: Isolated power adapters protect the FPad916R001 from voltage spikes and lightning.
• Audio Feedback: An integrated horn provides audible alarms for critical system threshold breaches.
• Vibration Tolerance: 2G vibration endurance ensures reliability in proximity to heavy machinery.
• Thermal Efficiency: Natural cooling design eliminates fan failure risks in dusty environments.

Application Scenarios

• Centralized monitoring for automated logistics and sorting centers.
• Edge computing nodes for real-time energy management systems.
• Visual interface for high-precision CNC and pharmaceutical machinery.
• Environmental data aggregation in smart factory infrastructures.

Logistics and Warranty

• Warranty Period: 12 Months full industrial hardware warranty.
• Shipping Carrier: Worldwide express via FedEx, DHL, and UPS.
• Dispatch Time: Ships within 24-48 hours from our central warehouse.
• Packaging: Original factory-sealed box with shock-absorbent internal bracing.

Selection & Expert Guidance

• Choose the FPad916R001 when your application requires Windows-like processing power in an HMI form factor.
• Verify your panel cutout dimensions (380×245mm) before finalizing the mechanical layout.
• For high-noise environments, ensure the shielded RJ45 cables are used for the Gigabit LAN ports.
• Avoid installation in direct outdoor sunlight due to high UV resistance limitations.

Professional FAQ

• Can the FPad916R001 run standard Windows applications?
• This model is optimized for Linux and FStudio Unified; please check for specific IPC versions for Windows support.
• What is the benefit of dual HDMI ports on an HMI?
• The FPad916R001 can drive two additional independent 4K displays for multi-screen monitoring.
• How does the memory capacity impact industrial performance?
• With 8GB DDR3L RAM, the unit handles large-scale databases and complex scripts without latency.
• Is the resistive touch screen suitable for glove-wearing operators?
• Yes, the 4-wire industrial resistive touch ensures responsive operation even with heavy industrial gloves.
• How do I realize RS485 communication if I need more than the standard ports?
• Additional RS485 loops can be established via the 4*USB 3.0 ports using high-quality USB-to-RS485 converters.
