F3XD64-3F Yokogawa 24V DC Sink/Source Input Module

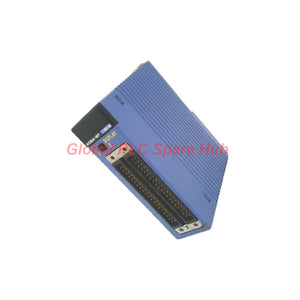

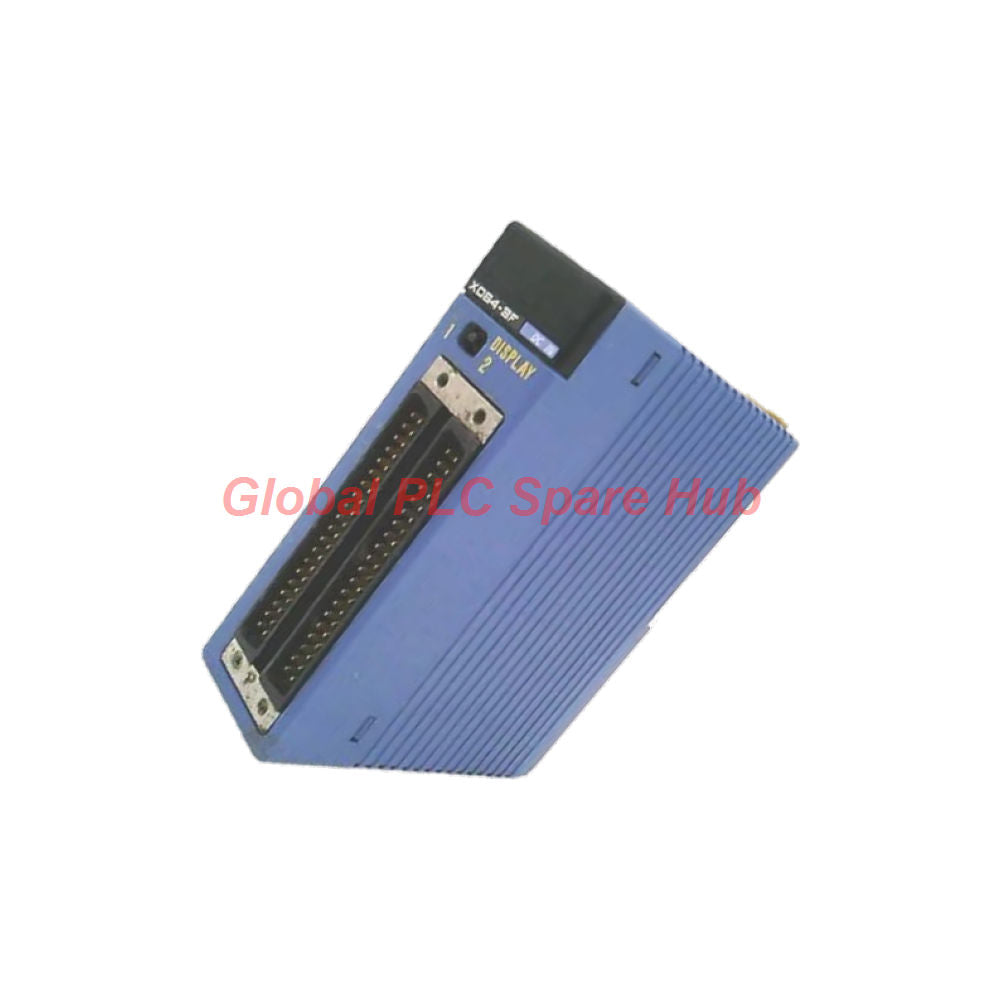

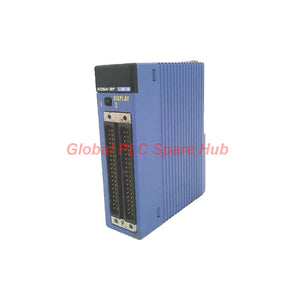

Yokogawa F3XD64-3F — 64-Point DC Input Module

The Yokogawa F3XD64-3F is a 64-point DC input module designed for industrial control applications using the Yokogawa FA-M3 PLC platform. It accepts 24 V DC field signals and supports both sink and source input configurations.

Photocoupler isolation separates the field input circuitry from the internal logic side. This design helps reduce the direct transfer of electrical disturbances from field wiring into the control electronics. The module provides eight points per common group and uses two 40-pin connectors for external signal connections.

For applications requiring faster signal acquisition, the input sampling time can be configured to one of four settings: Always (0 μs), 62.5 μs, 250 μs, or 1 ms. The selected setting should match the field signal characteristics and the required response to input changes.

01 | Electrical Specifications at a Glance

• Manufacturer: Yokogawa
• Series: FA-M3 PLC
• Model: F3XD64-3F
• Module type: 64-point DC input module
• Input configuration: Sink/source
• Rated input voltage: 24 V DC
• Operating voltage range: 20.4–26.4 V DC
• Isolation: Photocoupler isolation
• Input channels: 64
• Common configuration: 8 points per common
• External connections: Two 40-pin connectors
• Interrupt function: None
• Internal current consumption: 100 mA at 5 V DC
• Weight: Approximately 160 g

02 | Input Thresholds and Sampling Behavior

Input voltage alone does not determine whether a field signal will be recognized. The ON and OFF thresholds must also be considered when evaluating sensor outputs, contact signals, and long cable runs.

Parameter	Specification	Engineering implication
Rated input voltage	24 V DC	Nominal field signal supply
Operating voltage range	20.4–26.4 V DC	Verify the voltage at the module input under actual load conditions
ON threshold	16.0 V DC minimum; 3.2 mA minimum	Confirm that the field device can supply sufficient ON-state voltage and current
OFF threshold	5.8 V DC maximum; 0.9 mA maximum	Check for leakage current or induced voltage when the signal should be OFF
Rated input current	4.1 mA per point at 24 V DC	Consider the input load when selecting output devices
Input sampling time	0 μs, 62.5 μs, 250 μs, or 1 ms	Select a setting appropriate for signal duration and noise conditions
Simultaneous ON ratio	Maximum 60%	Observe the specified limit when many inputs are active together

Important: The sampling-time setting is not a guarantee of the complete PLC response time. The overall response also depends on the input circuitry, CPU scan, application logic, and field device behavior. Confirm the applicable FA-M3 hardware manual before using this module in a time-critical sequence.

03 | Connection Architecture and Compatibility Checks

The module has two 40-pin external connectors. Before installation, verify the terminal or cable assembly, connector pin assignment, and field wiring against the documentation for the exact hardware configuration.

• Signal grouping: The 64 input points are arranged in groups of eight points per common.
• Sink/source wiring: Confirm that the field device output type and the selected wiring arrangement are compatible with the module.
• Power supply: Check that the field supply remains within the specified operating range during switching and under load.
• Signal timing: Ensure that short pulses are long enough to be detected with the configured sampling time and actual PLC processing cycle.
• Replacement planning: Confirm the full model and suffix code, CPU and base-unit compatibility, connector arrangement, and available mounting space before ordering.

Do not assume that another 64-point DC input module is a direct replacement solely because its channel count and rated voltage are similar. Connector layout, common grouping, electrical thresholds, and supported sampling options can differ.

04 | Suitable Equipment and Industrial Applications

The F3XD64-3F can be considered for compatible FA-M3 PLC installations that need to collect multiple 24 V DC discrete signals.

• Factory automation: Collecting status signals from limit switches, proximity sensors, and photoelectric sensors.
• Machine control: Monitoring door switches, interlocks, actuator feedback, and operating-position signals.
• Material handling: Reading conveyor sensors, product detection signals, and station-ready contacts.
• Packaging equipment: Monitoring cycle status, guard switches, and discrete process conditions.
• Process auxiliary systems: Collecting pump status, valve limit feedback, and equipment-ready signals where the field interface is electrically compatible.
• Existing PLC maintenance: Replacing a failed input module or maintaining a compatible installed control system.

Application suitability depends on the field device output circuit, signal voltage, wiring method, environmental conditions, and the response requirements of the control sequence. This general-purpose input module should not be treated as a safety-rated input device unless the system documentation explicitly establishes that suitability.

05 | Diagnostic Guidance for Field Engineers

The module specification identifies input electrical characteristics and sampling options, but does not establish a dedicated per-channel diagnostic or interrupt function. Troubleshooting should therefore begin with the field signal, wiring, and PLC input status rather than assuming the module can independently identify every fault.

• Input remains OFF: Measure the voltage at the relevant input point while the field device is activated. Check the common connection, supply return, connector seating, and sink/source wiring arrangement.
• Input remains ON: Check for short circuits, incorrect common wiring, output leakage, or residual voltage from the field device.
• Intermittent input status: Inspect terminal tightness, connector condition, cable routing, grounding practices, and electrical noise from nearby drives or switching equipment.
• Short pulses are missed: Review the selected sampling-time setting, field pulse duration, CPU scan behavior, and the program's input-processing logic.
• Several channels fail together: Check shared power, common wiring, connector assemblies, and the field supply before concluding that multiple input circuits have failed.
• Replacement module does not resolve the issue: Verify the original model and suffix, hardware compatibility, external wiring, and CPU configuration. A system-level issue may remain after a module swap.

Field maintenance recommendation: Record the input voltage in both ON and OFF states and compare it with the specified thresholds. Where practical, compare a faulty channel with a known-good channel under equivalent operating conditions. Isolate power and follow site procedures before removing connectors or changing wiring.

06 | Environmental and Installation Requirements

Parameter	Operating	Storage
Ambient temperature	0 to 55°C	-20 to 75°C
Relative humidity	10–90% RH, non-condensing	10–90% RH, non-condensing

• The surrounding atmosphere must be free of corrosive gases, flammable gases, and heavy dust.
• Install the module in a compatible FA-M3 base or mounting arrangement as specified by the system manual.
• Inspect the connector and mating cable for bent contacts, contamination, or mechanical damage.
• Confirm the field wiring and common grouping before energizing the system.
• Follow the prescribed power isolation and electrostatic-discharge precautions during module replacement.

07 | Global PLC Spare HUB's Insight

When sourcing the Yokogawa F3XD64-3F, the most important selection check is the complete model code. A similar channel count or 24 V DC rating does not prove that another module has the same input thresholds, common arrangement, connector pinout, or sampling behavior.

For maintenance projects, we recommend comparing the installed module label with the replacement specification before placing an order. If the original module is unavailable for inspection, provide the PLC model, base-unit information, a clear label photo, and the application details for a compatibility review.

Global PLC Spare HUB supplies industrial automation parts and supports model verification for maintenance and replacement projects. Contact our team with your required quantity, destination country, and delivery schedule to request a quotation.

08 | Supply, Warranty and Shipping

• Product: Yokogawa F3XD64-3F DC Input Module
• Warranty: 12 months, subject to the seller's agreed warranty terms.
• Shipping options: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch: Typically arranged within 24–48 hours after order and stock confirmation, where available.
• Before ordering: Confirm stock status, condition, lead time, shipping cost, and compatibility with our sales team.

09 | Frequently Asked Questions

Q1. Can the F3XD64-3F directly accept signals from any 24 V DC sensor?

No. The rated voltage alone is not sufficient to establish compatibility. Check the sensor's output type, ON-state current, OFF-state leakage, polarity, and wiring arrangement against the module's input specifications. Verify the field circuit before connecting an unfamiliar sensor.

Q2. Which sampling-time setting should I use for a fast-moving machine?

Start by determining the shortest signal pulse that the PLC must reliably detect. The module offers Always (0 μs), 62.5 μs, 250 μs, and 1 ms settings. A shorter setting can support faster acquisition, but it does not eliminate CPU scan delays or electrical noise. Validate the complete response under real operating conditions.

Q3. What should I check if multiple input points stop working at the same time?

First inspect the shared field supply, common wiring, connector seating, and cable assembly. Because the module groups eight points per common, a fault affecting a group may indicate a shared wiring or supply problem. Compare measurements across affected and unaffected groups before replacing the module.

Q4. What information should I provide when ordering a replacement?

Provide the complete F3XD64-3F model code, a photo of the nameplate, the installed FA-M3 CPU and base-unit details, the required quantity, and the delivery destination. Also state whether the application depends on a particular sampling-time setting or existing connector assembly. These details help reduce selection errors.

Q5. Does this module provide built-in channel diagnostics or input interrupts?

The supplied specification states that the module has no interrupt function. It does not establish dedicated per-channel diagnostic reporting. For troubleshooting, verify the field voltage, wiring, input status available through the PLC system, and the applicable FA-M3 documentation. Do not assume a missing input signal will generate a dedicated module alarm.

Request a Quote for F3XD64-3F

Need a replacement for a Yokogawa FA-M3 input module? Contact Global PLC Spare HUB with the model number, quantity, and destination. Our team can help review the ordering details, confirm availability, and provide a shipping quotation.
