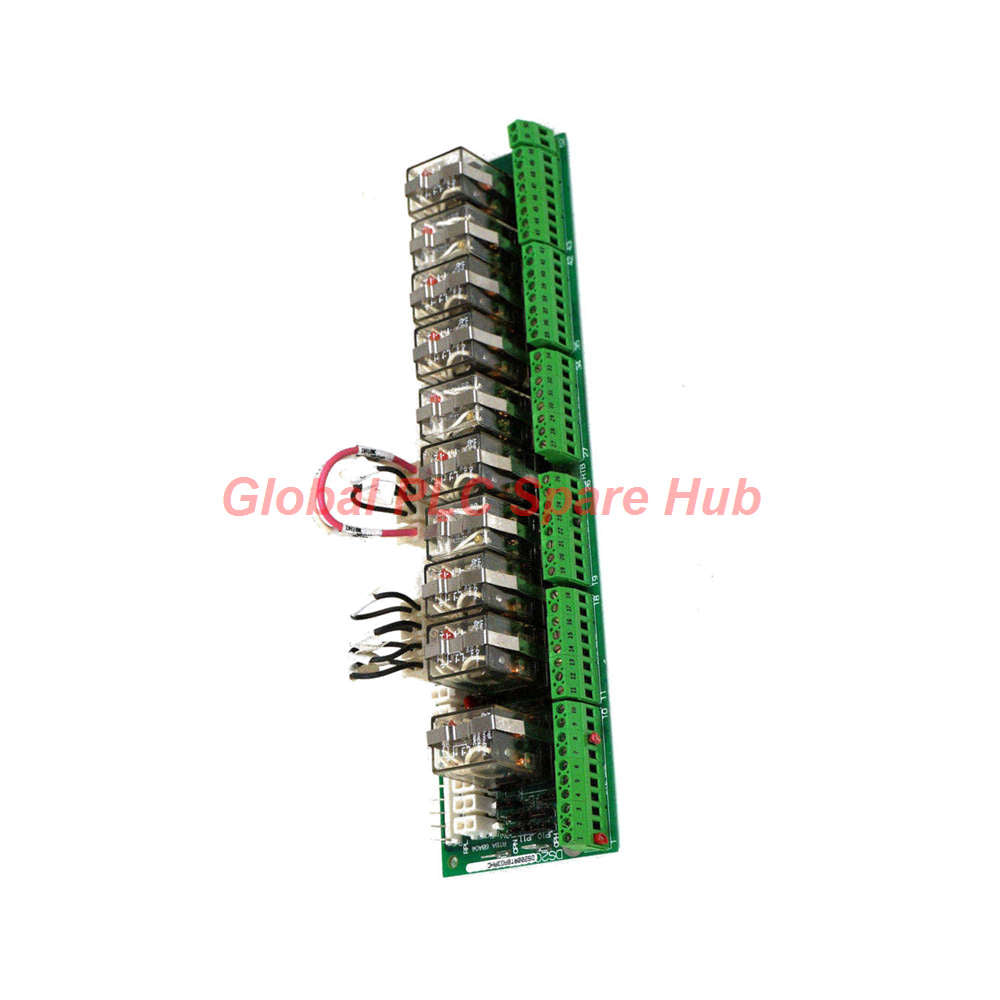

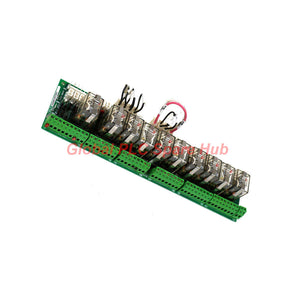

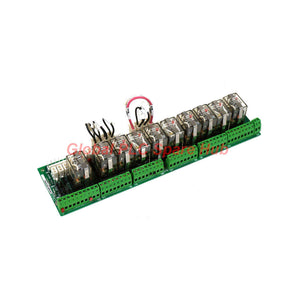

DS200RTBAG3AHC GE Mark V Relay Terminal Board EX2000 Excitation

GE DS200RTBAG3AHC Relay Terminal Card: EX2000 & Mark V Series

The DS200RTBAG3AHC is a critical Relay Terminal Card engineered by General Electric. Designed primarily for the EX2000 excitation system and Mark V turbine control architecture, this high-density interface board facilitates reliable switching operations for demanding industrial drive cabinets.

Technical Engineering Specifications

• Manufacturer: General Electric (GE)
• Series: Mark V / EX2000
• Part Number: DS200RTBAG3AHC
• Module Type: Relay Terminal Board (RTBA)
• Interface Capacity: 52 I/O terminal points
• Power Interface: Stab connectors (CPH Positive / CPN Negative)
• Relay Set A (K20-K26): 115V AC coil, DPDT, 10A current capacity
• Relay Set B (K27-K29): 115V AC coil, 4PDT, 1A precision
• Surge Protection: Integrated capacitor, resistor, and diode network
• Operating Temp: 0 to 60°C

Connectivity & Diagnostic Capability

The board serves as a versatile I/O hub. The terminal layout provides clear separation between Form C contacts, allowing engineers to verify Normally Open (NO) and Normally Closed (NC) logic states efficiently. The onboard relay matrix is optimized for rapid fault isolation, enabling technicians to perform continuity checks on pilot relays without dismantling the entire cabinet architecture.

Global PLC Spare HUB's Insight

At Global PLC Spare HUB, we recognize the DS200RTBAG3AHC as a vital component for maintaining uptime in heavy-duty turbine drives. It is an ideal solution for wind energy converters, steam turbines, and gas-fired power generation plants. Replacing this module during scheduled maintenance is a proven strategy to prevent the intermittent relay failure often associated with aging EX2000 excitation drives.

Logistics & Quality Assurance

• Warranty: 12-month performance guarantee.
• Shipping: Fast 24-48 hour dispatch window.
• Global Carriers: Reliable shipping via FedEx, UPS, and DHL.
• Origin: Manufactured in the United States.

Expert FAQ (Selection & Maintenance)

How do I confirm the failure of the DS200RTBAG3AHC?
First, verify voltage at the CPH/CPN stab connectors. If excitation power is stable but relays fail to trigger upon command, inspect the coil voltage pins on the K20-K29 relays before proceeding to unit replacement.

Are hardware revisions interchangeable?
While revisions generally maintain backward compatibility, always match the full part number to ensure that the relay contact ratings meet the specific load requirements of your drive cabinet.

What is the difference between K20 and K27 relays?
K20-K26 relays are engineered for high-current (10A) switching tasks, whereas K27-K29 relays provide Four Pole Double Throw (4PDT) flexibility for low-current precision control signals.

Why is this board considered "elective"?
It is an optional enhancement for the excitation system, providing additional I/O capacity for customized relay logic that exceeds the base functionality of standard drive models.

Safety guidelines for handling the board?
This board contains high-energy circuits. Always perform a formal Lock-Out/Tag-Out (LOTO) procedure and remove fuses from the 3-phase supply before physical handling or inspection.

Application Scenarios

• Utility-scale power generation and steam turbine management.
• Wind turbine excitation system control.
• Heavy-duty automated drive assembly maintenance.
• Industrial signal distribution and relay logic expansion.
