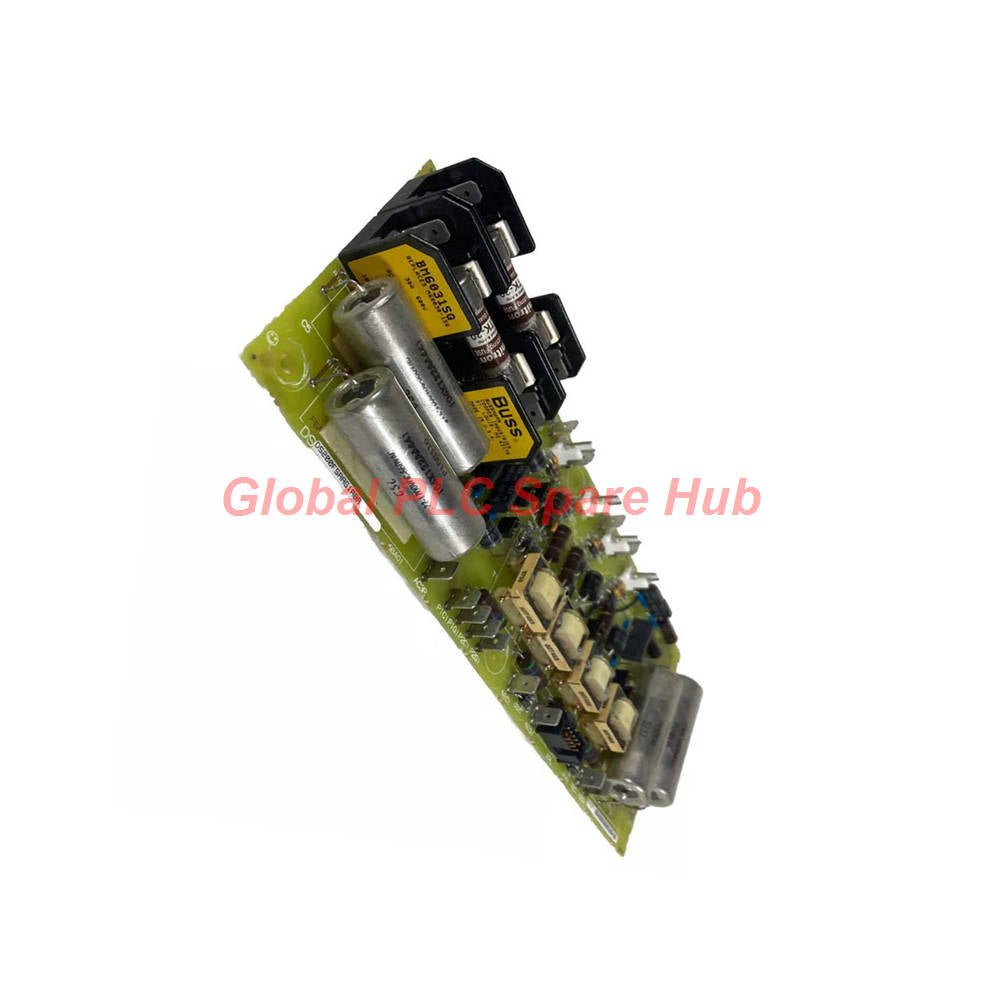

DS200FSAAG1ABA GE Mark V Drive Control Board Amplifier

Product Overview

• The DS200FSAAG1ABA is an advanced field supply gate amplifier board engineered by General Electric.
• This module operates directly within the Mark V Speedtronic drive control matrix.
• This hardware acts as a high-precision phase control interface designed to regulate four silicon-controlled rectifiers (SCRs).
• As a Group 1 normal assembly type, the DS200FSAAG1ABA integrates three specific functional and artwork revisions.
• These factory-revised updates (A, B, and A) enhance signal gating stability compared to the unrevised base module.
• The architecture supports dynamic plugging operations, enabling reliable commutation under varying inductive field loads.

Global PLC Spare HUB's Insight

• From an engineering perspective, the GE DS200FSAAG1ABA is a critical component for systems requiring rapid field suppression.
• Standard gate drivers often struggle with the thermal stress of high-frequency switching during field faults.
• This module uses a ruggedized hardware layout to manage inductive energy feedback safely.
• The inclusion of the specialized NRX functionality ensures that field collapsing and overcurrent conditions are managed at the hardware level.
• For control engineers, stocking this precise triple-revision board is a proactive measure against localized excitation loop failures.

Target Equipment & Field Applications

• GE Mark V Speedtronic automated drive control systems.
• Industrial SCR power conversion bridges and legacy excitation modules.
• Gas, steam, and wind turbine generator field excitation control panels.
• Heavy-duty industrial DC motor drives utilizing non-reversing plugging (NRP) schemes.
• Synchronous motor field supply systems requiring active NRX fault mitigation.

Technical Specifications

• Brand: General Electric (GE)
• Model Number: DS200FSAAG1ABA
• System Series: Mark V Drive Control
• Functional Acronym: FSAA
• Board Coating Style: Conformal Normal Coating (Group 1 Specification)
• Revision Breakdown: 1st Functional Rev A, 2nd Functional Rev B, Artwork Rev A
• Controlled Hardware: Phase control regulation for 4 Silicon-Controlled Rectifiers (SCRs)
• Onboard Fuse Protection: Two Limitron fast-acting KTK fuses rated at 30 Amps
• Maximum Internal Field Current: Up to 24 A continuous (Requires external fusing for fields > 24 A)
• Component Voltage Safeguard: Integrated Alternating Current (AC) Metal-Oxide Varistor (MOV)
• Physical Ports: One 10-pin FPL terminal connector block
• Onboard Hardware Jumper Count: 5 position-configurable logic jumpers
• Thermal Operating Envelope: 0 to 60 degrees Celsius (32 to 149 degrees Fahrenheit)
• Environmental Resilience: Industrial-grade atmospheric immunity to EMI and thermal drift
• Origin of Production: United States (USA)

Installation & ESD Protocols

• Keep the board inside its anti-static shielding bag until the precise moment of physical mounting.
• Minimize physical movement within the control area during handling to mitigate static accumulation.
• Wear a calibrated, grounded electrostatic discharge (ESD) wrist strap during the replacement process.
• Attach the ESD alligator clip directly to an unpainted, structural metal section of the drive cabinet.
• Align the PCB with the factory mounting rails, preventing contact with adjacent conductive parts.
• Secure the card into the chassis and connect the 10-pin FPL terminal connector securely.
• Verify all 5 hardware jumpers match the position configurations of the replaced module before applying power.

Diagnostic Matrix & Troubleshooting

• Onboard test points allow oscilloscope and multimeter validation of gate pulse timing and SCR synchronization.
• Dedicated Phase Control Diagnostics monitor independent SCR gating (P2 and N2 rectifiers) during positive anode voltage.
• The internal NRX logic sequence intercepts field errors during non-reversing plugging routines.
• Limitron KTK 30A fuses provide instant visual and electrical open-circuit isolation during overcurrent events.
• Integrated MOV protection circuits clamp voltage transients, protecting the internal gating amplifiers from failure.

Procurement & Selection Guide

• Match the exact alphanumeric suffix (G1ABA) to ensure direct hardware-level firmware compatibility.
• Evaluate your operating field current; if your system continuously exceeds 24 A, you must install external power fuses.
• Use this module specifically for systems configured for NRX control orientation, as it lacks standard NRP compatibility.
• Verify that the 10-pin FPL terminal interface matches your existing field wiring harness routing.

Logistics, Shipping, & Warranty

• Package Details: Shipped in a certified anti-static, hermetically sealed protective enclosure.
• Dispatch Lead Time: Orders are processed and dispatched within 24 to 48 hours of verification.
• Global Logistics: Rapid express shipping available worldwide via FedEx, DHL, and UPS networks.
• Warranty Framework: Backed by a comprehensive 12-month operational warranty covering all electronic components.

Frequently Asked Questions

How do the 24A internal limit and the 30A KTK fuses correlate during operation?

The 30A Limitron fuses protect the onboard AC MOV and internal circuitry. The board safely regulates fields up to 24A; any application drawing more than 24A will stress the copper traces and requires dedicated external power fuses.

Can this module be cross-applied to systems running strictly in NRP mode?

No, this model is explicitly optimized for NRX mode and lacks the hardware gating logic to operate in traditional NRP mode. Verify your system documentation before substituting other FSAA series variants.

What field engineering step is most frequently missed during hot-swaps of this card?

Failure to manually match the positions of the 5 configuration jumpers from the old board to the new board often causes gating mismatches or disables the critical NRX protection loop upon power-up.

Why does this specific variant feature three separate revision codes in its part number?

The ABA suffix indicates structural updates: two functional circuit upgrades (A and B) to improve SCR phase control stability, and one artwork revision (A) optimizing trace routing to reduce electromagnetic noise interference.

How can we verify gate pulse integrity if an SCR fails to fire?

Field engineers should utilize the onboard test points with an isolated channel oscilloscope to verify that the gating amplifier is delivering clean, high-rise-time pulses when anode voltage is positive.
