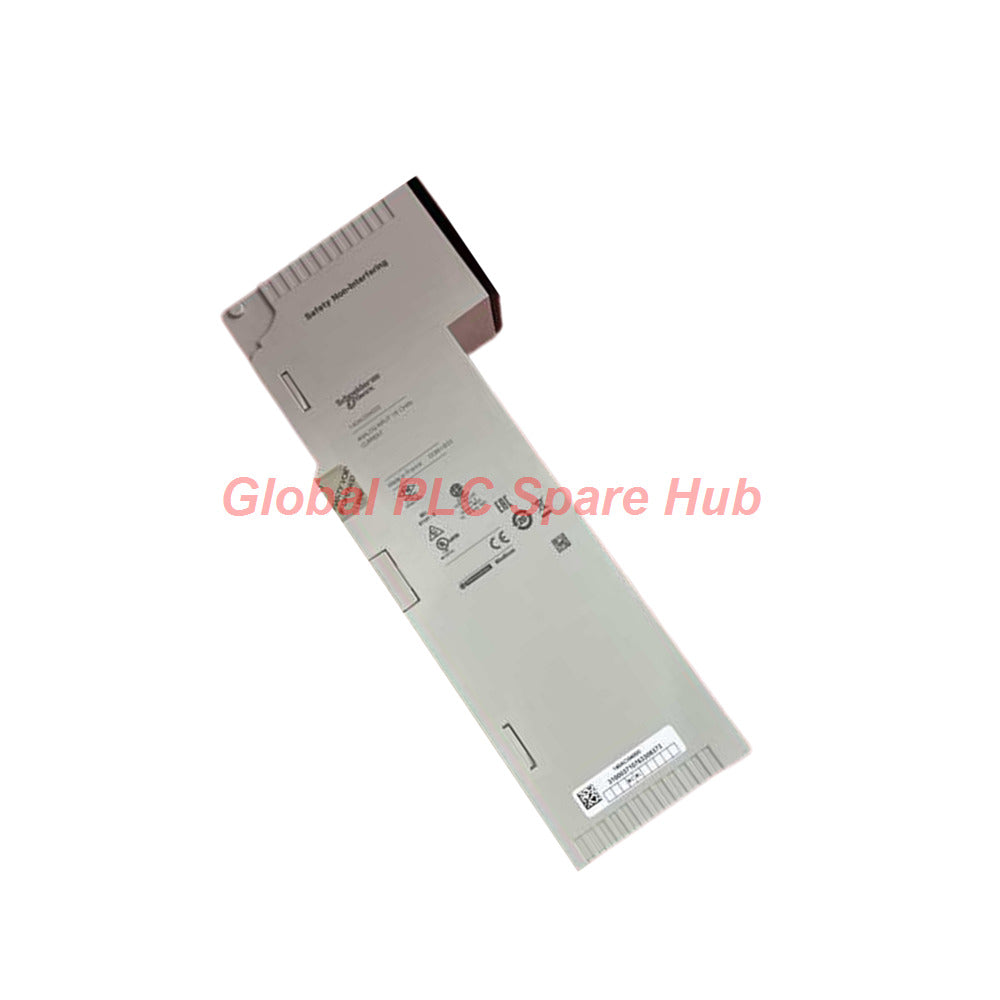

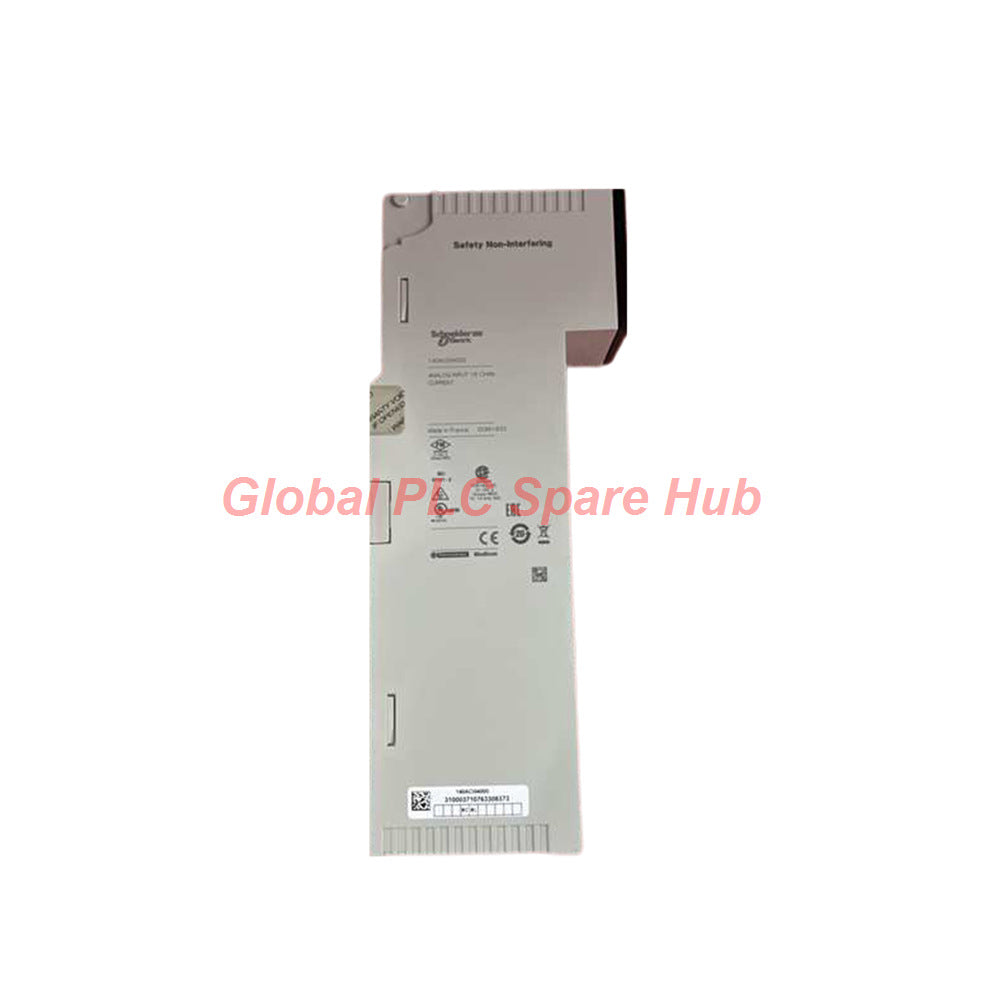

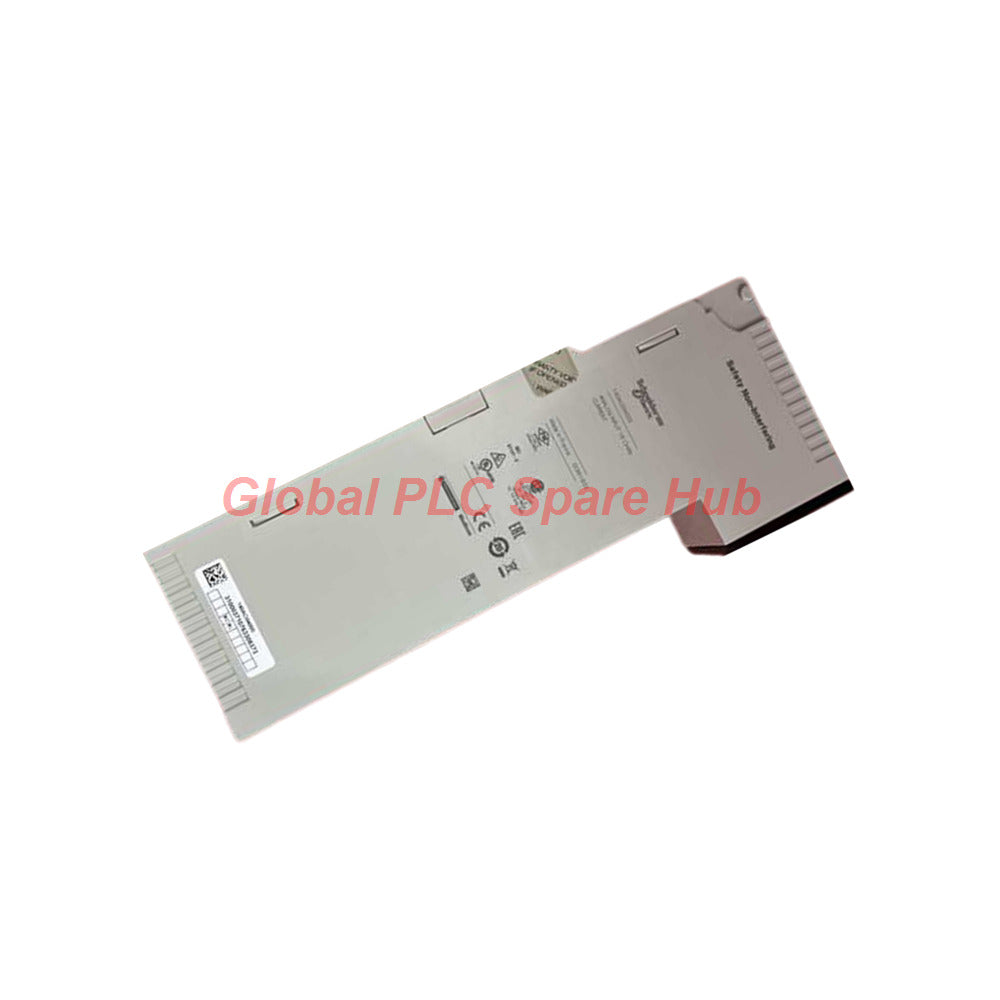

Buy 140ACI04000 Schneider Electric Modicon Quantum Analog Input Module

140ACI04000 Product Overview

The Schneider Electric 140ACI04000 is a high-density analog input module engineered for industrial process monitoring.

This hardware unit belongs to the trusted Modicon Quantum automation platform series.

It provides 16 differential channels capable of processing multi-range current signals natively.

The 140ACI04000 utilizes a single-pole low-pass filter to suppress high-frequency industrial noise effectively.

It interfaces with the main controller backplane by requiring 17 input words for comprehensive addressing.

Global PLC Spare HUB's Insight

The 140ACI04000 module stands out for its exceptional channel isolation and deterministic conversion performance.

A fast 15 ms update time across 16 channels ensures tight tracking of dynamic process variables.

Our engineering review highlights its 1780 V AC galvanic isolation protecting backplane logic from field-side surges.

The 140ACI04000 eliminates external signal conditioners by accepting multiple current ranges directly.

This internal integration optimizes rack space and minimizes potential hardware failure points in complex systems.

Technical Specifications

• Brand: Schneider Electric
• Model Number: 140ACI04000
• Product Series: Modicon Quantum
• Component Type: Analogue Input Module
• Number of Channels: 16 differential inputs
• Measurement Ranges: 0...20 mA, 4...20 mA, 0...25 mA multi-range selection
• Analog Resolution: 0...16000 counts, 0...20000 counts, 0...25000 counts, or 0...4095 counts
• Absolute Accuracy Error: +/- 0.125 % of full scale maximum
• Linearity Error Limits: +/- 6 µA max for 0...20/25 mA, +/- 12 µA max for 4...20 mA
• Temperature Accuracy Drift: +/- 0.0025 % of full scale/°C up to <= 0.0050 % of full scale/°C
• Frequency Response Filter: Single pole low pass with 3 dB cutoff at 34 Hz
• Common Mode Rejection: Greater than -90 dB at 60 Hz
• Input Impedance: 250 Ohm internal resistance
• Bus Current Requirement: 360 mA maximum
• Power Dissipation: 5 W maximum module dissipation
• Operating Temperature Limits: 32°F to 140°F (0°C to 60°C)
• Operating Altitude: Up to 16404.2 ft (5000 m) safely
• Net Weight: 0.7 lb (0.3 kg)

Target Equipment Compatibility

This hardware component integrates directly into the following industrial configurations:

• Standard Modicon Quantum local or remote I/O backplanes utilizing 140XBPxxx configurations
• Multi-channel analog current transmitter loops monitoring field variables
• Distributed industrial control architectures running modern EcoStruxure Control Expert environments
• Legacy processor configurations utilizing original Unity Pro or Concept control software

Installation Guide

• Power down the target backplane rack completely before inserting the 140ACI04000 unit.
• Align the module with the chosen slot guides and push firmly into the connector.
• Secure the top and bottom captive screws to establish mechanical stability and frame grounding.
• Connect external loop wiring to the terminal block ensuring differential positive and negative pairings.
• Ensure external loop power is properly derived and fused according to official technical manual specifications.

Diagnostic Capabilities

• One green LED provides instant visual confirmation of healthy bus communication status.
• One dedicated red LED illuminates immediately when external module fault conditions occur.
• Sixteen individual green LEDs display whether each separate channel is turned active.
• Sixteen individual red LEDs provide rapid diagnosis of specific channel broken wire loop faults.
• Open circuit detection triggers automatically when operators select the 4...20 mA monitoring configuration.

Typical Application Scenarios

• Continuous process monitoring in chemical processing plants requiring high-density current loop feedback.
• Flow meter and level transmitter integration within large-scale municipal water treatment facilities.
• Boiler control monitoring and steam temperature tracking in heavy power generation facilities.
• SCADA infrastructure integration for oil and gas storage assets monitoring distributed telemetry points.

Certification and Standard Compliance

• Compliant with UL 508 safety standards for industrial control hardware components.
• Certified fully to CSA C22.2 No 142 operational standards.
• Approved for FM Class 1 Division 2 hazardous application environments.
• CE and cUL marked for global industrial installation acceptance.
• Electrostatic discharge resistance up to 4 kV contact and 8 kV air per IEC 801-2.

Commercial and Logistics Terms

• Shipping Guarantee: Every verified order ships rapidly within 24 to 48 hours.
• Express Logistics: We provide reliable global express transport through FedEx, UPS, and DHL.
• Warranty Coverage: This product includes a dependable 12-month comprehensive warranty policy.

Packaging Checklist

• One brand-new Schneider Electric 140ACI04000 module
• Anti-static protective enclosure barrier bag
• Factory-grade structural outer retail packaging box

Purchasing Guide

• Verify whether your field instrumentation requires differential grounding before deploying this module.
• Validate that your system backplane power budget accommodates the 360 mA bus current load.
• Match the specific software scaling counts with your application program logic requirements.
• Ensure a matching Modicon Quantum terminal strip connector is available for field wiring deployment.

Frequently Asked Questions (FAQ)

Question: How does the module react if a 4...20 mA field loop experiences a physical wire break?

Answer: The specific channel red fault LED illuminates instantly to alert field maintenance technicians.

Question: Can I mix different current ranges such as 0...20 mA and 4...20 mA simultaneously across the channels?

Answer: Yes, users configure each channel independently inside the engineering software environment.

Question: Does the 250 Ohm input impedance require external shunt resistors installed at the terminal block?

Answer: No, the precision 250 Ohm resistors are built internally into the module hardware circuitry.

Question: What operational advantage does the 34 Hz low-pass filter provide?

Answer: It attenuates industrial frequency hum to prevent measurement signal jitter on analog loops.

Question: Why does the 140ACI04000 require 17 input words instead of exactly 16?

Answer: The 17th word contains comprehensive channel diagnostics and hardware status information for the CPU.
