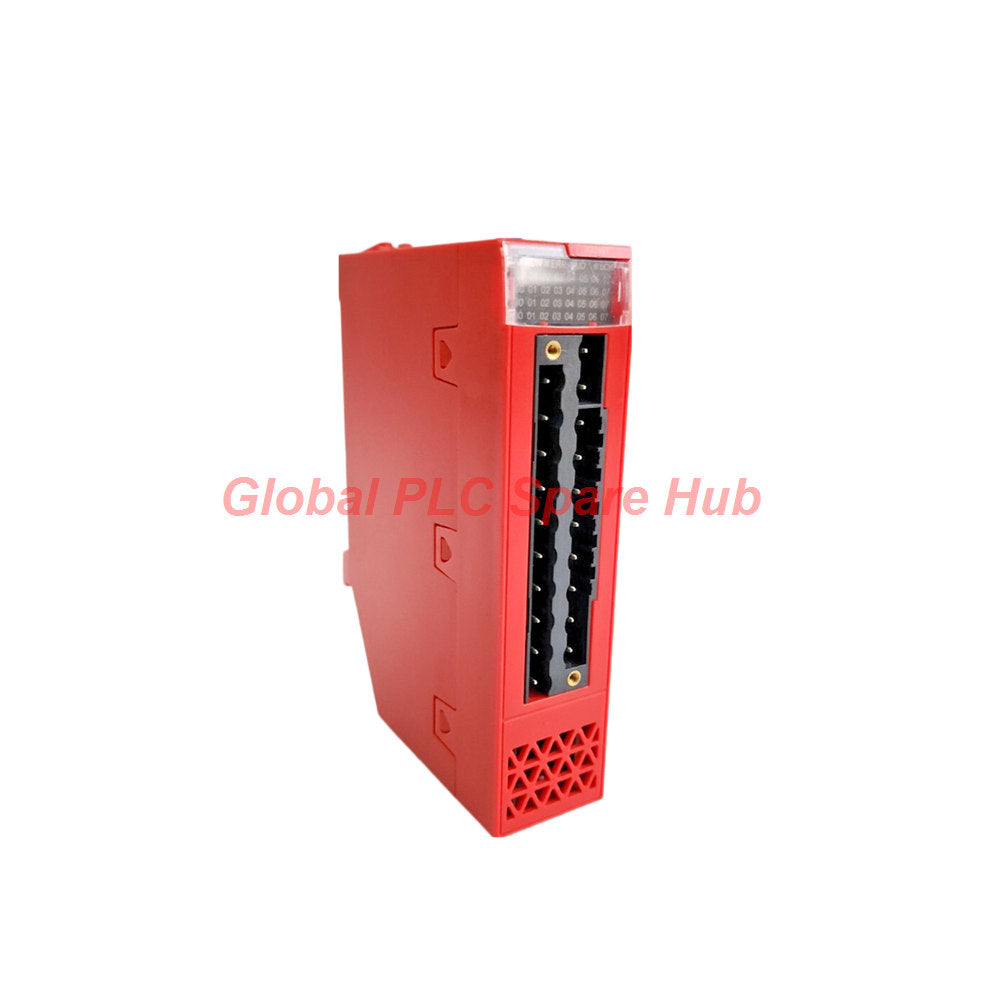

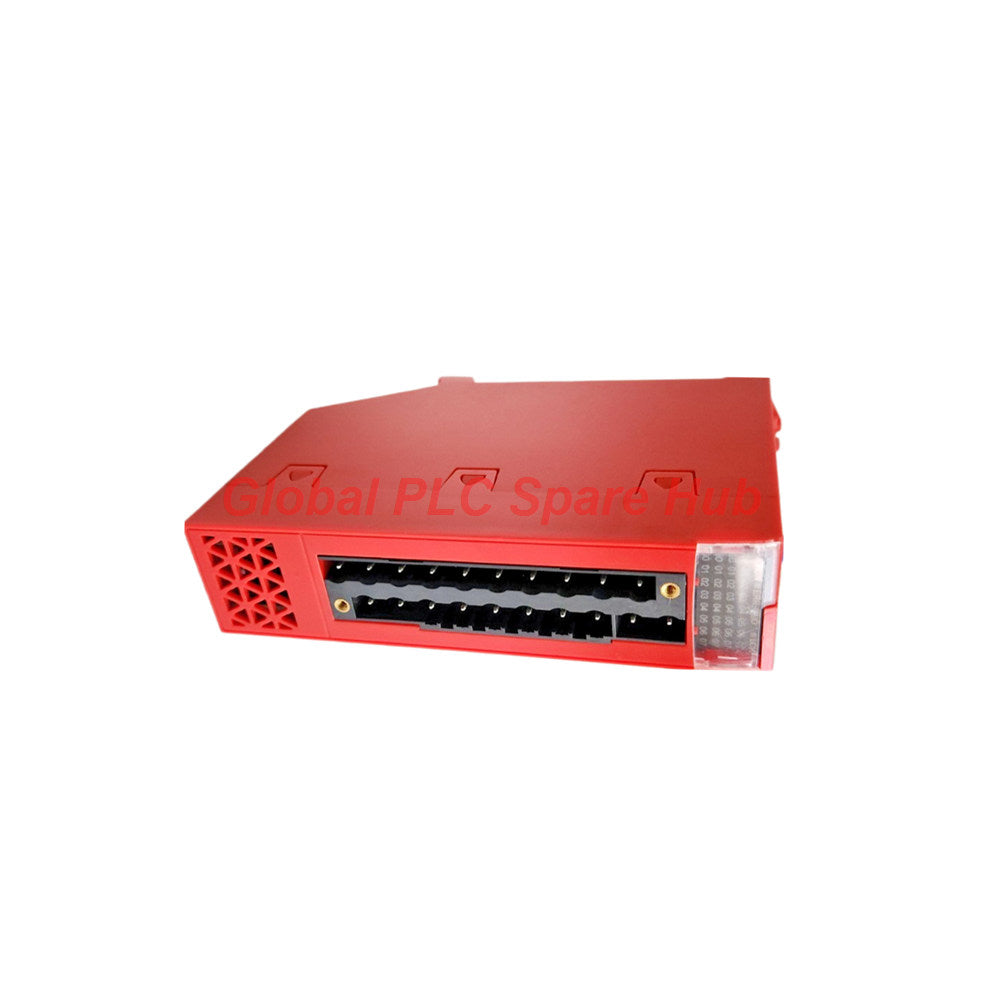

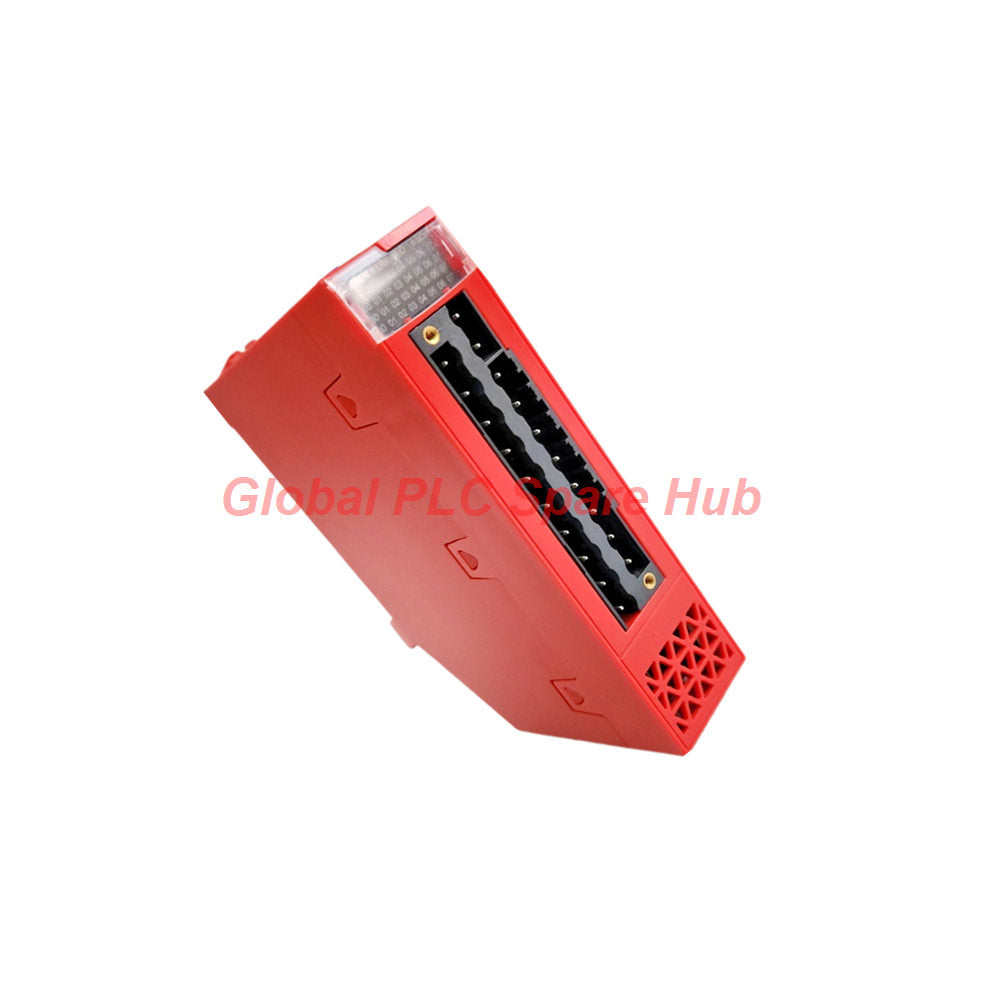

BMXSDI1602 Schneider Electric Modicon X80 Safety Discrete Input Module 24V DC

1. Technical Specifications

2. System Compatibility & Operating Applications

The BMXSDI1602 safety discrete input module integrates into the Modicon X80 rack structure, operating alongside Modicon M580 Safety PLCs and specialized safety coprocessors.

Engineered with harsh environmental conformal coating, this unit withstands corrosive gaseous atmospheres (3C4/Gx) and high mechanical stress up to 3gn vibration and 15gn shock loads.

Typical target applications include emergency stop circuits, perimeter safety light curtains, interlocked guard gates, two-hand control systems, and functional safety loops across chemical processing, power generation, and automated material handling facilities.

3. On-Board LED Diagnostic Capabilities

Field commissioning engineers can monitor system health directly via four distinct LED arrays located on the module faceplate:

• RUN LED (Green): Indicates active module operating state and healthy backplane communications.
• ERR LED (Red): Signals internal hardware failure or parameter configuration error.
• I/O LED (Red): Alerts operators to external field-side sensor faults, line breaks, or power loss.
• Channel LEDs (Green): 16 individual LEDs indicating precise logical state and real-time status per input point.

4. Installation Guide & Field Maintenance Tips

• Sensor Wiring: Compatible with 2-wire and 3-wire IEC 60947-5-2 proximity switches and dry contact safety devices.
• Overcurrent Protection: Utilize external 0.5A fast-blow fuses per channel bank to guard against unexpected wiring shorts.
• Altitude Derating: Operates at full rating up to 6,561 feet (2,000 m); apply thermal derating factors when installing above 2,000 meters.
• Hot-Swapping Protocols: Verify safety task parity before swapping modules in active functional safety loops to avoid unexpected controller trips.

5. Global PLC Spare HUB's Insight

The Schneider Electric BMXSDI1602 input module provides exceptional field durability in aggressive chemical or marine environments due to its factory 3C4/3S4 conformal coating. In field retrofits, engineers often observe line-fault alarms during initial power-up if sensor supply voltages drop below the strict 18V DC threshold. Ensuring stable 24V DC bus voltage to field transducers prevents false safety trip commands. Furthermore, because inputs are non-isolated with a shared internal reference, carefully segregating field cabling prevents ground loops across high-noise motor drives.

6. Why Buy From Global PLC Spare HUB?

• 20+ Years Experience: Deep technical specialization in industrial automation spare parts and control hardware.
• Technical Verification Before Shipment: Every module undergoes rigorous bench and backplane testing prior to dispatch.
• 12-Month Warranty: Fully backed by our comprehensive 1-year replacement warranty policy.
• 24-48 Hour Global Dispatch: Fast express shipping provided worldwide via FedEx, UPS, and DHL.
• Legacy Support: Continuous availability for active, hard-to-find, and legacy control system modules.

7. Frequently Asked Questions (FAQ)

Q: What cable sizing and fuse rating should be used when wiring field sensors to the BMXSDI1602?

A: Use standard 18 to 22 AWG copper conductors for 24V DC signal lines, and install a 0.5A fast-acting inline fuse on the sensor power feed to prevent module trace damage during field shorts.

Q: Can the BMXSDI1602 module be installed in a standard non-safety Modicon X80 rack?

A: Yes, it physically mounts into standard Ethernet backplanes of the Modicon X80 family, but functional safety logic execution requires a certified safety CPU such as the Modicon M580 Safety controller.

Q: What does an active red I/O status light indicate on this safety input module?

A: The red I/O light alerts you that the sensor supply voltage has dropped below 14V DC or that a channel-level open circuit has been detected by internal diagnostic monitoring.

Q: Practical Troubleshooting Tip: Why do field input channels fail to switch state despite active 24V supply at the terminal block?

A: Check the current draw. The module requires a minimum guaranteed current of 2 mA at >18V DC to change logic state. High-impedance dry contacts with oxidation or long cable runs exceeding 7500 Ohm loop limits will prevent proper state activation.

Q: Selection Guidance: How do I choose between standard discrete input modules and the BMXSDI1602 for safety circuits?

A: Select this dedicated safety input module when your system risk assessment demands SIL2/SIL3 or PLd/PLe compliance, internal line diagnostics, pulse testing, and harsh-environment conformal coating.
