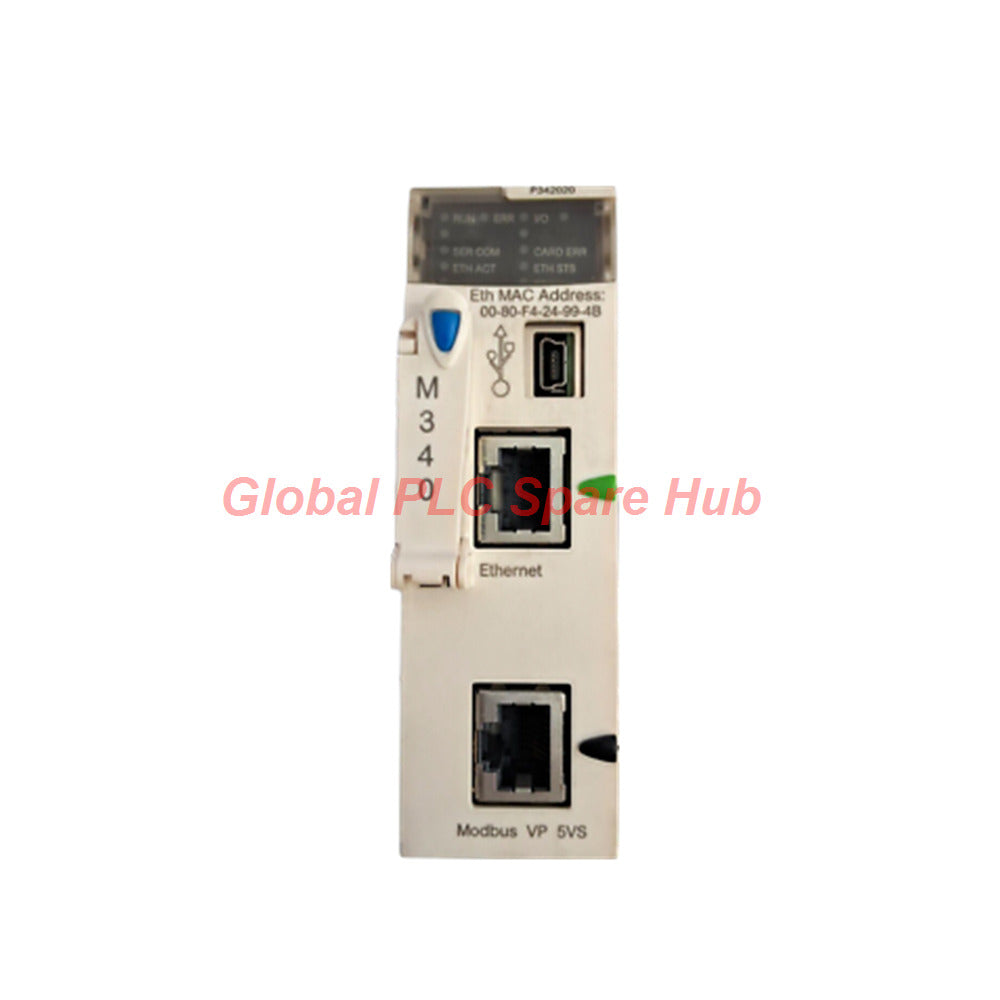

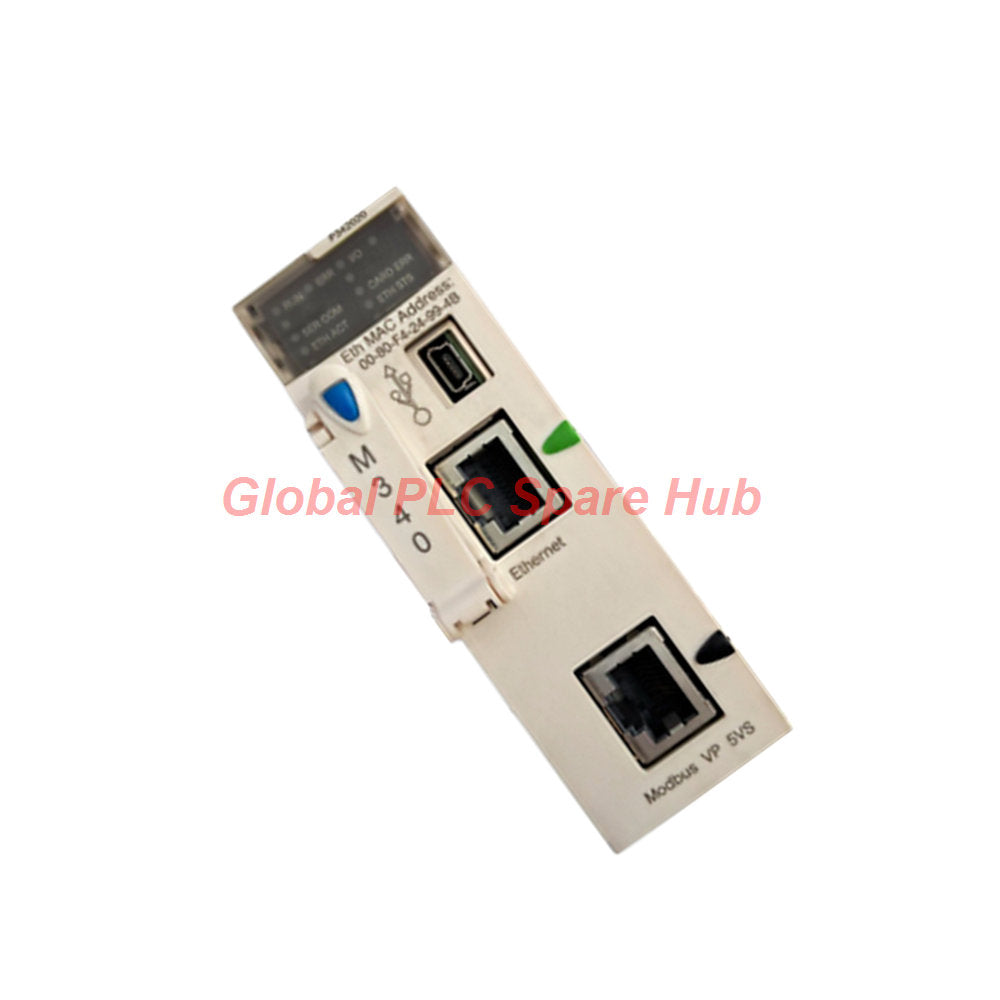

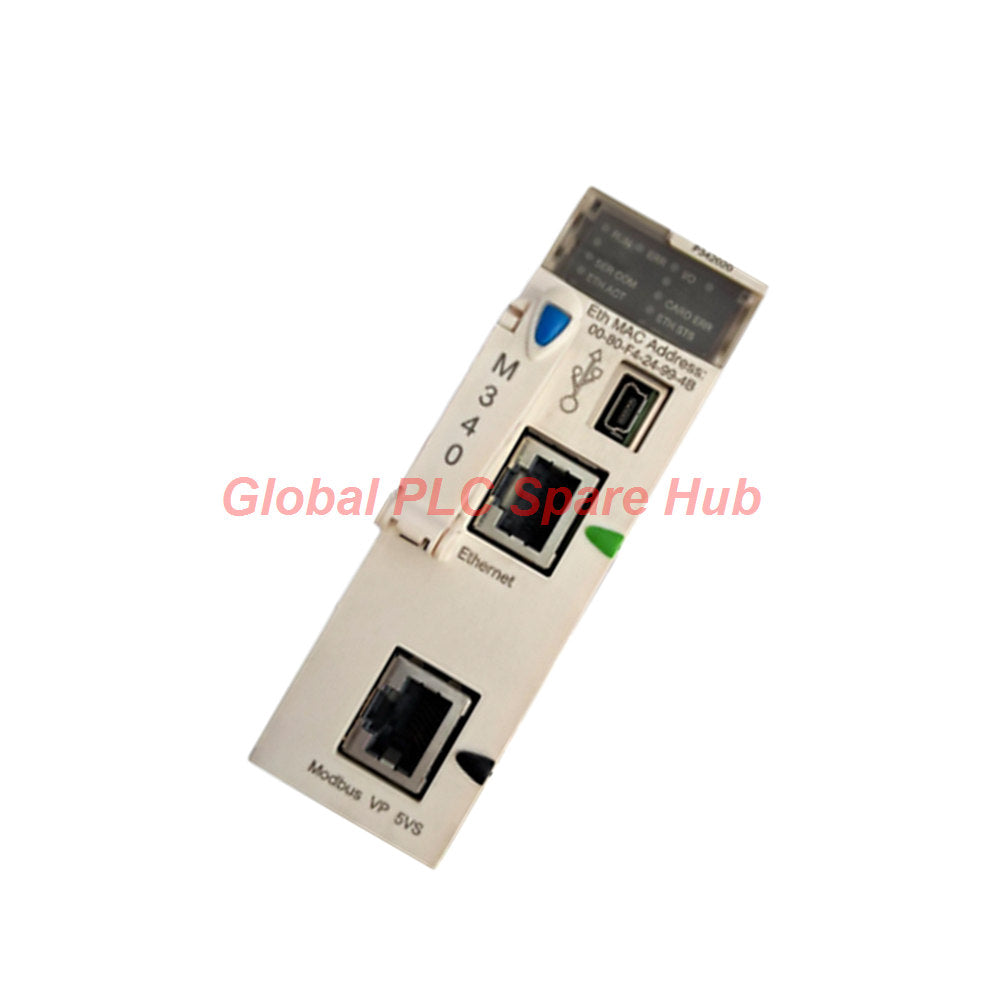

BMXP342020 Modicon M340 Processor CPU Module Schneider Electric

Core Architecture & System Capacities

• Brand & System Platform: Schneider Electric Modicon M340 Automation Series
• CPU Reference: BMXP342020 High-Performance Processor
• Rack Infrastructure: Supports up to 4 racks and 11 slots across multi-rack topologies
• Discrete I/O Processing: 1,024 multi-rack / 704 single-rack maximum capacity
• Analog I/O Processing: 256 multi-rack / 66 single-rack maximum capacity
• Application Channels: 36 dedicated function-specific channels for motion and counting
• Execution Speeds: 0.12 µs Boolean execution; 8.1 Kinst/ms at 100% Boolean workload
• On-Board Memory: 4,096 kB internal RAM (3,584 kB code/constants, 256 kB data)
• Memory Backup Unit: Supplied BMXRMS008MP memory card for application storage and Class B10 Web server hosting

Integrated Communications & Technical Specifications

Target Machinery & Industrial Application Environments

The BMXP342020 standalone CPU serves as a primary automation controller for complex machine control loops and distributed infrastructure systems.

With built-in Ethernet, Modbus serial, and USB ports, this unit integrates smoothly into water treatment plants, packaging lines, material handling conveyors, power generation skids, and HVAC pumping networks.

Class I Division 2 and marine certifications ensure reliable continuous operation in harsh environments subject to elevated vibration, electrical noise (EN/IEC 61850-3), or wide thermal fluctuations (0°C to 60°C).

Real-Time Status Monitoring & Diagnostic LEDs

Front-panel LED arrays on the BMXP342020 module provide immediate physical diagnostics without needing external software connections:

• RUN LED (Green): Solid illumination confirms active logic execution and normal program cycle state.
• ERR LED (Red): Signals internal processor hardware faults, execution exceptions, or system stop conditions.
• I/O LED (Red): Illuminates during backplane bus errors, missing rack cards, or field I/O line faults.
• CARD ERR LED (Red): Alerts engineers to missing, corrupt, or incompatible memory cards.
• ETH ACT / ETH STS / ETH 100: Green and red LEDs track active Ethernet packet transmission, network connection state, and 100 Mbps data rates.
• SER COM LED (Yellow): Flashes dynamically to indicate active Modbus RTU/ASCII serial communication.

Global PLC Spare HUB's Insight

From practical engineering field experience, the BMXP342020 CPU offers an extremely flexible control core for medium-scale automation projects. However, field technicians often encounter start-up issues due to the memory card configuration. The CPU requires a formatted BMXRMS008MP card installed during power-up to retain user programs and web server settings after power cycles. Additionally, when using the non-isolated RS485 serial port over long field runs (up to 1000m), using a external line isolator prevents ground potential differences from causing communication drops or port damage on high-noise factory floors.

Why Buy From Global PLC Spare HUB?

• 20+ Years Industrial Experience: Deep technical knowledge in automation spare parts supply and controller lifecycle management.
• Global Shipping Support: Rapid international delivery using premium express channels (FedEx, UPS, and DHL).
• 24-48 Hour Dispatch: In-stock inventory processed quickly to minimize plant downtime.
• 12-Month Warranty: Every unit is backed by a full 1-year replacement warranty policy.
• Pre-Shipment Technical Verification: Comprehensive hardware testing on rack beds prior to packing.
• Legacy & Obsolete System Support: Reliable sourcing for hard-to-find active and out-of-production control modules.

Frequently Asked Questions (FAQ)

Q: What cable limits apply when connecting field serial devices to the non-isolated RS485 port on the BMXP342020?

A: Direct non-isolated cable runs must stay under 10 meters (32.8 ft). If your Modbus network extends up to 1000 meters (3280 ft), install an inline RS485 optic isolator to maintain signal integrity and protect CPU hardware.

Q: Does the BMXP342020 processor retain user programs without an active rack power supply?

A: Yes. Non-volatile flash backup on the supplied memory card retains programs, constants, and symbols indefinitely without relying on internal lithium batteries.

Q: How do engineers access embedded web diagnostics on this processor?

A: Connect a PC to the RJ45 Ethernet port, open a web browser, and enter the assigned IP address to load the built-in Rack Viewer and Data Editor pages.

Q: Engineering Experience Tip: Why does the "CARD ERR" light flash red after replacing a processor card?

A: In field situations, this occurs when the memory card contains program binaries compiled under a different firmware version than the host CPU. Updating the CPU firmware via USB or re-formatting the SD card via EcoStruxure Control Expert resolves this mismatch.

Q: Hardware Selection Guide: How does the BMXP342020 compare with lower-tier M340 CPUs like the BMXP341000?

A: Choose the BMXP342020 when your architecture demands built-in Ethernet connectivity, 4-rack expansion capacity (up to 1024 discrete I/O points), and advanced web server capabilities without adding separate network expansion cards.
