Transmitter Architecture and Core Overview

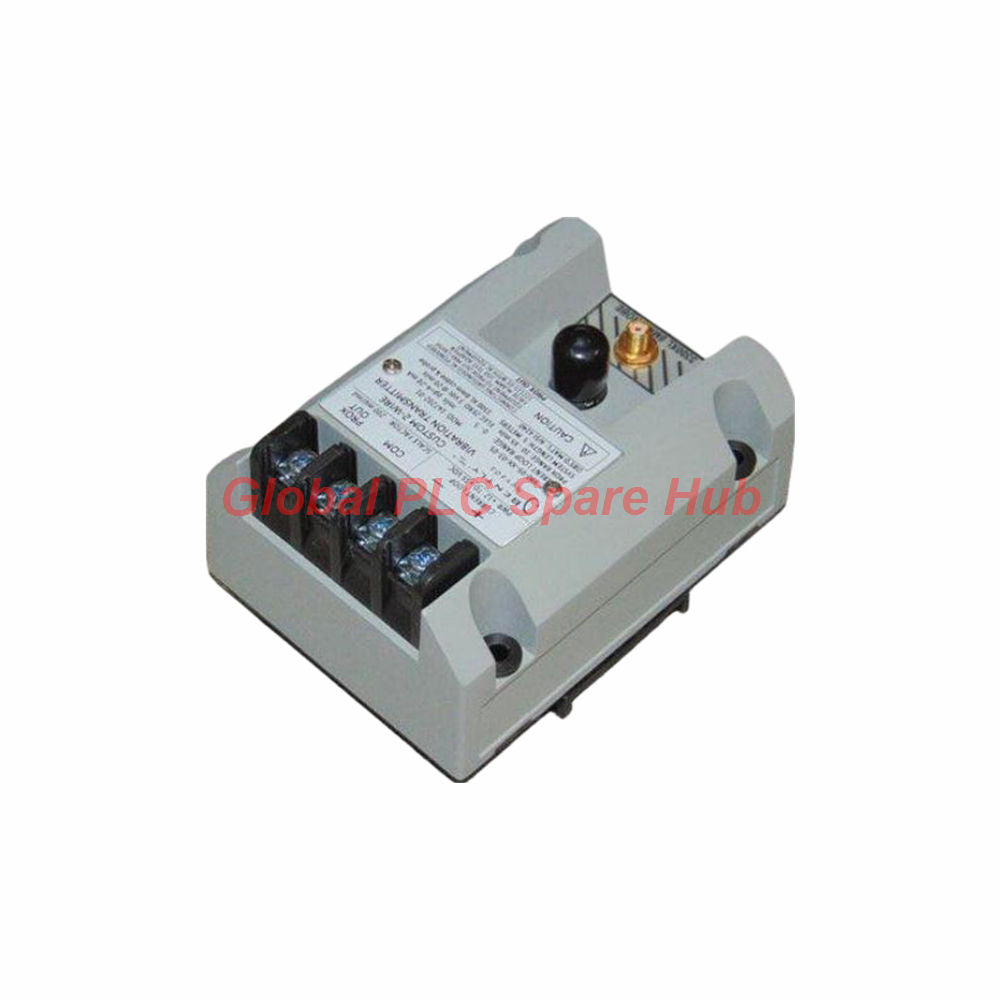

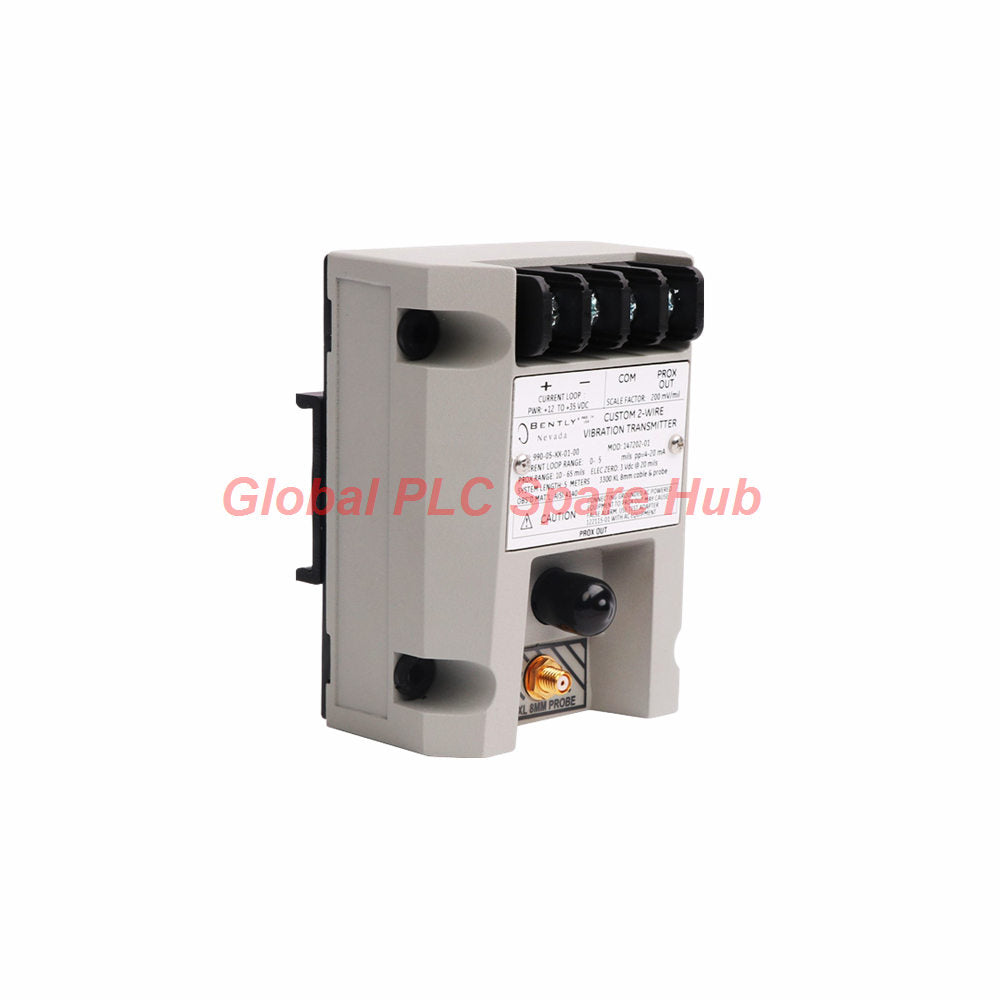

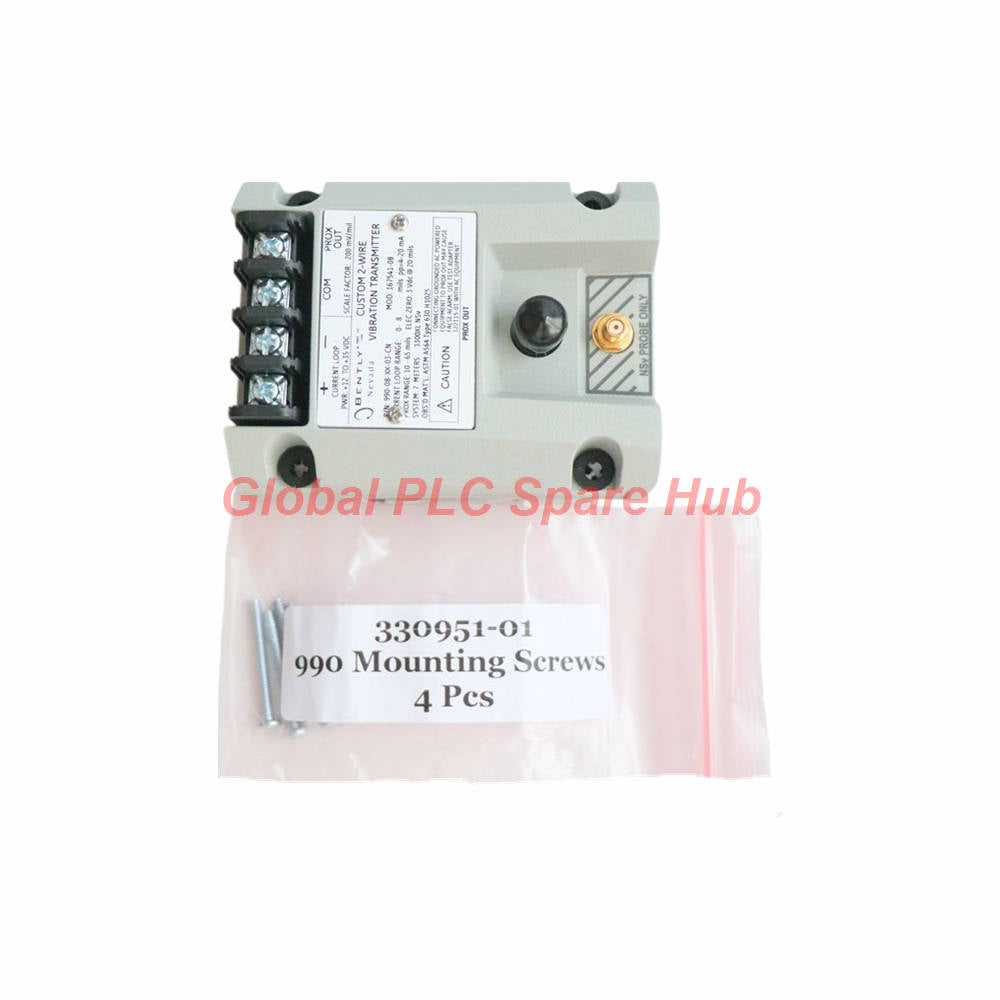

The 990-04-50-01-00 is an advanced industrial vibration transmitter manufactured by Bently Nevada within the 990 series. Engineered to interface directly with non-contacting proximity probe systems, it converts raw vibration parameters into a standardized 4 to 20 mA loop-powered output. Its compact DIN-rail mount design streamlines installation in remote junction boxes and machinery control panels.

Model Configuration Breakdown

Technical Specifications & Performance Matrix

Installation and Mechanical Guidelines

• Mount the unit securely onto a standard 35 mm industrial DIN rail inside a protective enclosure.
• Ensure the connected 3300 NSv proximity probe is statically gapped between 0.5 and 1.75 mm from the target.
• Verify that external loop resistance does not exceed 1,000 ohms at 35 Vdc supply voltage.
• Connect shield drain wires properly to prevent ground loops across long signal transmission runs.
• Use the non-interacting external zero and span potentiometers for precise field calibration adjustments.

Diagnostic Capabilities and Fault Detection

The unit features built-in Not-OK signal defeat circuitry that automatically forces output current below 3.6 mA within 100 microseconds if a sensor fault or broken cable occurs. This rapid downscale behavior alerts control systems to probe failures instantly, preventing false trip commands while ensuring operators are notified of telemetry loss before machinery damage escalates.

Target Equipment and Application Scenarios

• Small to Medium-Sized Industrial Centrifugal Pumps
• Balanced-Draft Fans and Blowers in Power Plants
• Industrial Gearboxes and Auxiliary Compressor Trains
• Compact Steam Turbines and Motor-Driven Centrifuges
• Balance-of-Plant Skids requiring direct 4-20mA PLC integration

Comparative Selection Analysis

When selecting monitoring hardware for specialized machinery, engineers frequently compare displacement ranges and scale configurations. For an alternative configuration featuring an extended 0 to 8 mils pp full-scale range and a 7.0-meter system length with agency approvals, review the 990-08-70-03-01 model. While the subject model is calibrated for tight 0-4 mils vibration monitoring, the comparative unit accommodates higher vibration thresholds.

Global PLC Spare HUB Insight

Instrumentation engineers operating the 990-04-50-01-00 note that utilizing the front BNC connection for temporary test equipment hookups allows quick raw signal verification without breaking 4-20mA loop wiring. For example, connecting a portable spectrum analyzer to the BNC port during routine maintenance isolates mechanical unbalance from electrical noise instantly.

Logistics, Fulfillment, and Warranty

• Expedited order processing and dispatch within 24 to 48 hours of purchase confirmation.
• Reliable international shipping channels coordinated via FedEx, UPS, and DHL.
• Packaged securely in heavy-duty industrial materials to prevent transit damage.
• Fully backed by a comprehensive 12-month manufacturer replacement warranty.

Buying Guide and Engineering FAQ

Q: What is the primary function of the Not-OK signal defeat feature?

A: It drops the 4-20mA output below 3.6 mA during sensor faults to signal control systems that the vibration reading is invalid.

Q: Why must the probe gap be maintained between 0.5 and 1.75 mm?

A: This specific gap range guarantees linear electrical response across the full 0 to 4 mils pp measurement scale.

Q: Can I connect this transmitter directly to standard PLC analog input cards?

A: Yes, the 2-wire 4-20mA loop output integrates seamlessly with any standard PLC or DCS analog input card.

Q: How does loop resistance affect maximum cable run distances?

A: Total loop resistance including wiring must remain under 1,000 ohms at 35 Vdc to maintain proper transmitter operating current.

Q: What type of proximity probe is required for this transmitter model?

A: It requires a non-contacting Bently Nevada 3300 NSv Proximity Probe and matching extension cable system.
