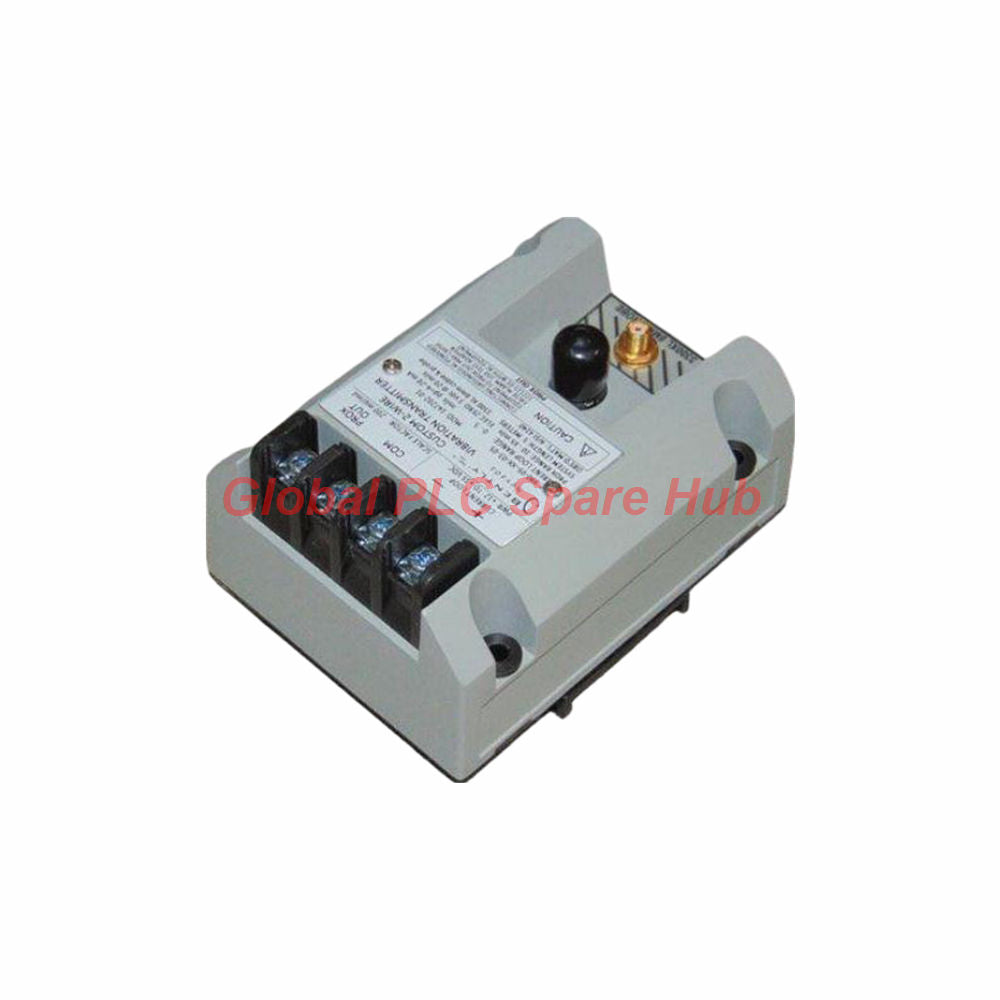

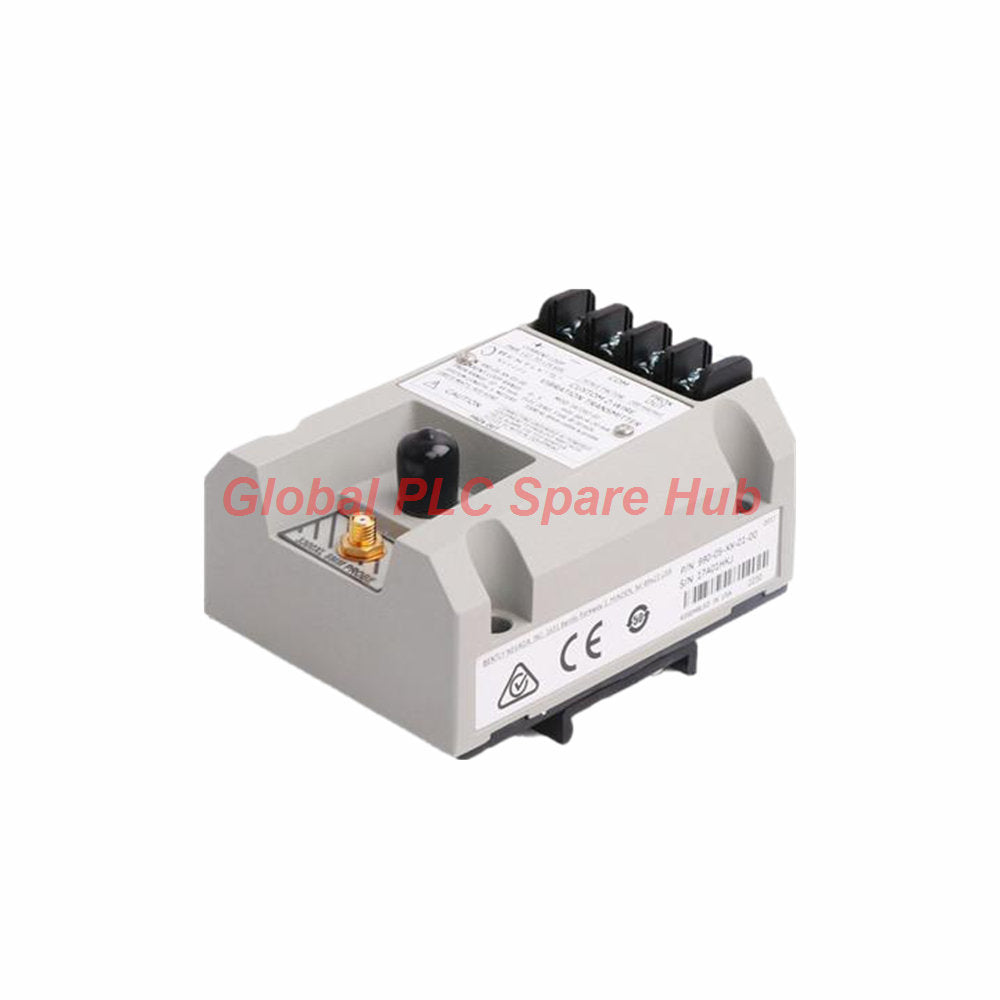

990-08-70-03-01 Bently Nevada 990 Vibration Transmitter

Overview

The 990-08-70-03-01 is an advanced 2-wire vibration transmitter manufactured by Bently Nevada within the 990 Vibration Transmitter series. Designed to interface directly with a 3300 NSv proximity probe and extension cable, this compact unit converts raw displacement signals into a proportional 4 to 20 mA DC output loop. It provides an economical, rackless solution for continuous shaft vibration monitoring in balance-of-plant machinery, featuring non-interacting zero/span adjustments and built-in "NOT OK" signal defeat diagnostics.

Part Number & Configuration Breakdown (990-AA-BB-CC-DD)

• Base Model (990): 990 Vibration Transmitter Platform
• Option A (-08): Full-scale Option — 0 to 8 mils pp (0 to 200 μm pp) vibration range
• Option B (-70): System Length Option — 7.0 meters (23.0 feet) total matched electrical length
• Option C (-03): Mounting Option — DIN clips and screws for secure panel or rail mounting
• Option D (-01): Agency Approval Option — CSA Division 2 hazardous area classification
• Brand: Bently Nevada
• Series: 990 Vibration Transmitter
• Condition: New & Original in Factory Packing

Technical Specifications Matrix

1. Input, Power & Loop Parameters

• Input Signal: Accepts 1 non-contacting 3300 NSv Proximity Probe and matching extension cable
• Operating Power: Requires +12 to +35 V DC input at transmitter terminals
• Signal Output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration
• Loop Accuracy: Within ± 1.5% over specified full-scale range (measured across a 250 Ω loop resistance)
• Maximum Loop Resistance: 1,000 Ω including cable at 35 V DC
• Current Limiting: 23 mA typical clamp protection

2. Metrology & Operating Parameters

• Probe Gap Window: Probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to guarantee full-scale linear output
• Frequency Response: 5 Hz to 6,000 Hz (+0, -3 dB)
• Minimum Target Diameter: 9.5 mm (0.375 in)
• Transmitter Net Weight: 0.43 kg (0.9 lbm)

3. Diagnostic & Safety Features

• NOT OK Signal Defeat: Output drops to < 3.6 mA within 100 μs upon detecting a sensor fault; normal signal restores within 2 to 3 seconds after fault clearance
• Zero and Span: Non-interacting external potentiometers for precise calibration
• Hazardous Ratings: CSA Division 2 / Zone 2 certification with power supply limit of 28 V

Model Comparison & Technical Selection Guide

When scaling monitoring loops for balance-of-plant machinery, selecting the correct full-scale range and system length ensures optimal loop sensitivity. Compare with the alternative variant 990-04-50-02-05, which features a tighter 0 to 4 mils pp (0 to 100 μm pp) full-scale range (-04), a shorter 5.0 meter system length (-50), panel mount adapter configuration (-02), and ATEX/IECEx Zone 0/1 hazardous approvals (-05). Technical Recommendation: If your machinery exhibits higher baseline vibration amplitudes up to 8 mils pp and requires standard rail-mounted DIN hardware with CSA Div 2 compliance, stick with the 990-08-70-03-01. If tighter vibration resolution is required in a European hazardous zone environment, evaluate the alternative model link above.

Installation & Wiring Guidelines

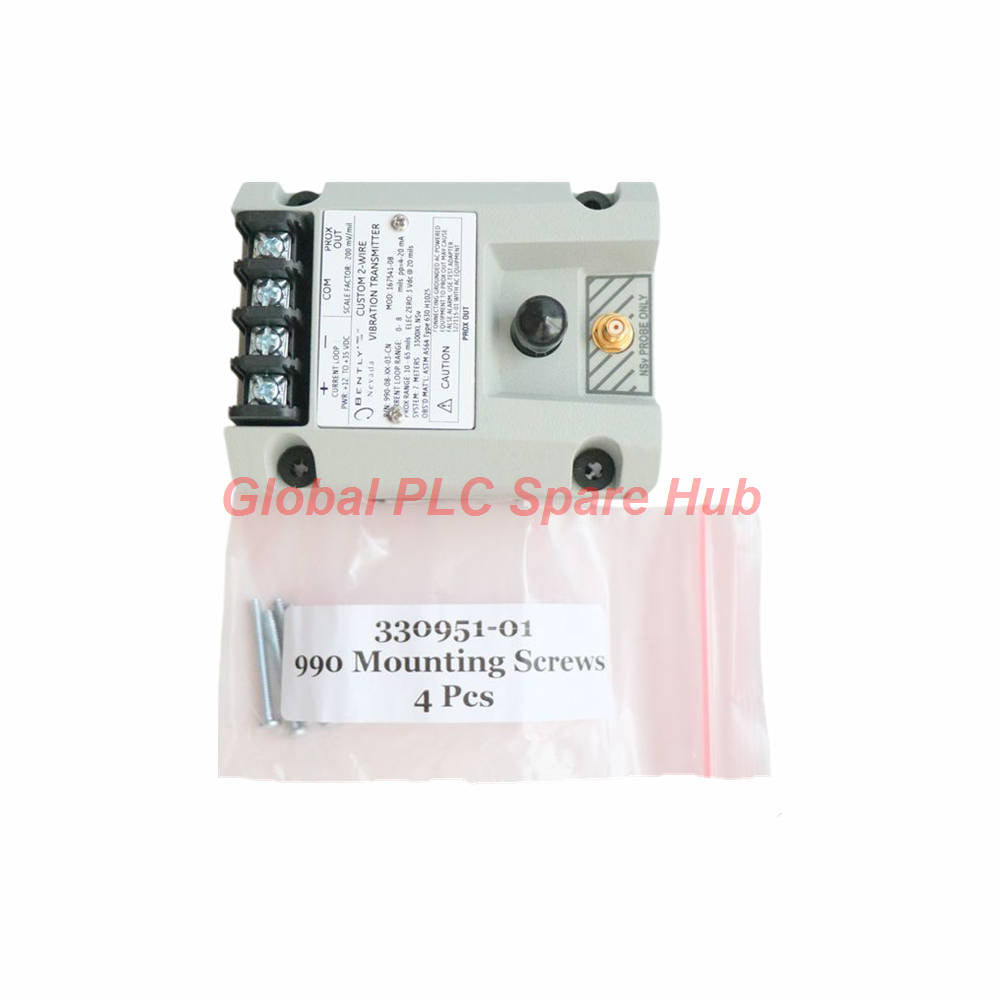

• DIN Rail Mounting: Secure the transmitter using the factory-provided -03 DIN clips and screws inside a protected local junction box or instrument cabinet.
• Loop Wiring: Connect the 2-wire 4 to 20 mA loop using shielded twisted-pair cable, ensuring total loop resistance stays below 1,000 Ω at 35 V DC.
• BNC Access: Utilize the front BNC connector for temporary diagnostic data collection (up to 3 meters / 10 feet maximum cable distance for portable analyzers).

Diagnostic Capabilities & Fault Monitoring

• Loop Current Drop: An output current plunging below 3.6 mA instantly flags a broken probe cable, disconnected power terminal, or internal sensor failure via the NOT OK defeat circuit.
• Proximity Gap Checks: Verify using a digital voltmeter that the probe DC gap voltage corresponds to the required 0.5 to 1.75 mm installation window before locking zero/span adjustments.

Global PLC Spare HUB's Insight & Expert Guidance

Global PLC Spare HUB's Insight notes that unlike multi-slot rack systems (such as the 3500 series), the 990 transmitter relies on loop-powered integrity. When deploying the 990-08-70-03-01, ensure your DCS or PLC analog input card is configured with a 250 Ω input resistor to properly translate the 4 to 20 mA signal into accurate engineering units without grounding loops.

Compatible Equipment & Target Application Scenarios

• Compatible Equipment: Bently Nevada 3300 NSv proximity probes, 3300 NSv extension cables, and plant distributed control systems (DCS) or PLCs with 4-20 mA analog input cards.
• Target Application Scenarios: Small steam turbines, centrifugal air compressors, industrial pumps, motor-driven gearboxes, and auxiliary balance-of-plant skids where full rack protection is economically unviable.

Logistics, Fulfillment & Warranty Protection

• Shipping Carriers: Express global dispatch via FedEx, UPS, and DHL.
• Fulfillment Speed: Guaranteed processing and dispatch within 24 to 48 hours.
• Warranty Terms: Fully backed by a 12-month factory replacement or repair warranty.

Professional Frequently Asked Questions

What causes the 990-08-70-03-01 transmitter output to drop below 3.6 mA?

An output current dropping below 3.6 mA triggers the NOT OK signal defeat, indicating an open circuit, severed probe cable, or loss of operating power at the transmitter terminals.

Can I adjust the zero and span settings without affecting each other?

Yes, the transmitter is engineered with non-interacting external potentiometers, allowing technicians to calibrate span without shifting the zero baseline setting.

Why is maintaining the 0.5 to 1.75 mm probe gap critical for this model?

Operating within this specific gap window ensures the Proximitor front-end remains in its linear region, allowing the transmitter to accurately scale displacement into the 4-20 mA loop.

What are the best selection guidelines when replacing an existing vibration transmitter?

Always match the exact full-scale range option (e.g., -08 for 8 mils) and system electrical length (-70 for 7 meters) to preserve the factory-calibrated scale factor of your vibration loop.

How should I troubleshoot a sluggish 4-20 mA response during machinery startup?

Check for excessive loop resistance exceeding 1,000 Ω, verify that plant power supply voltage is maintained between 12 and 35 V DC, and inspect signal cable shielding for ground loops.
