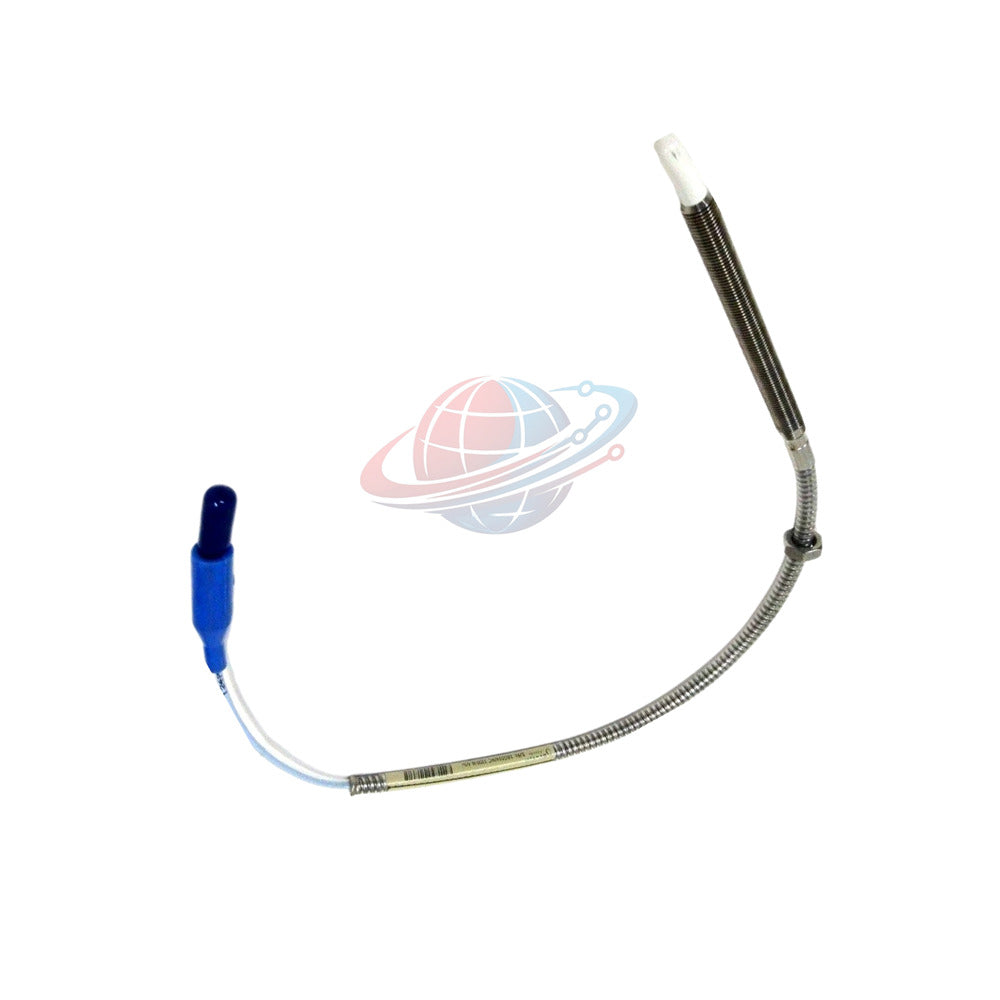

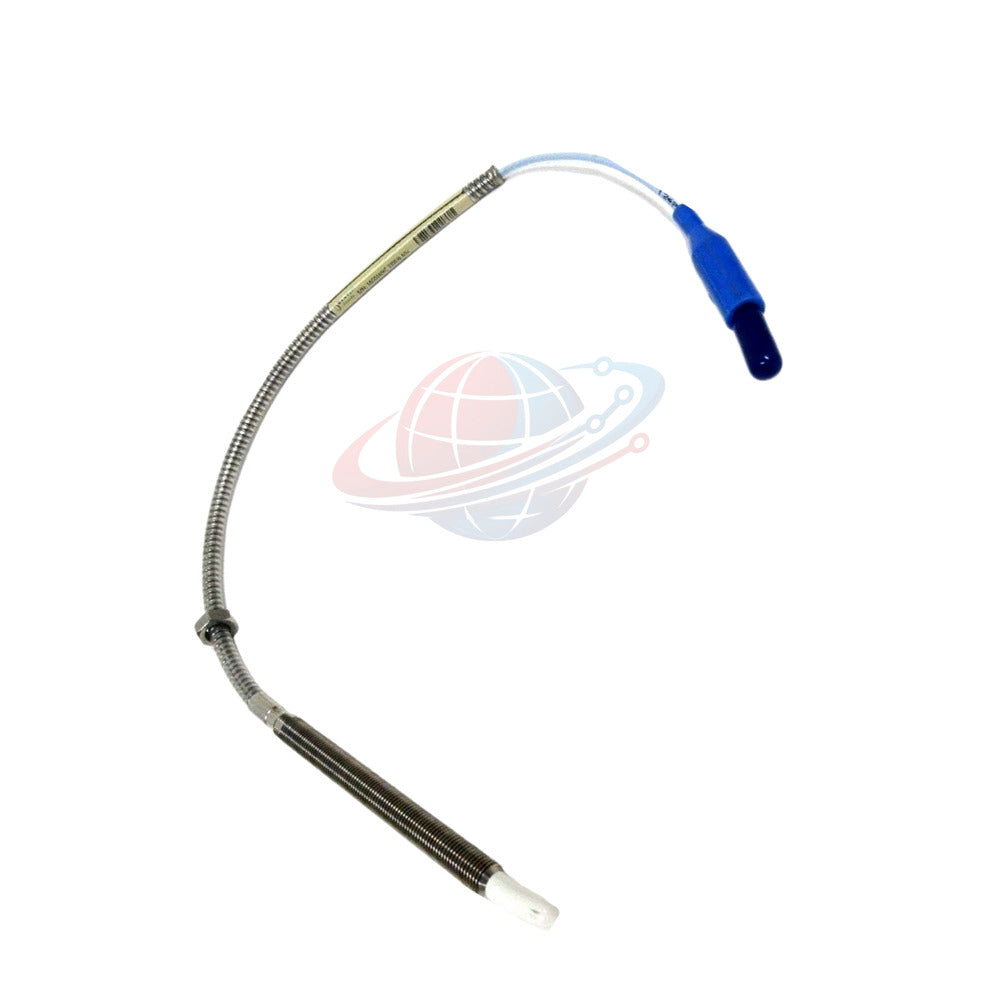

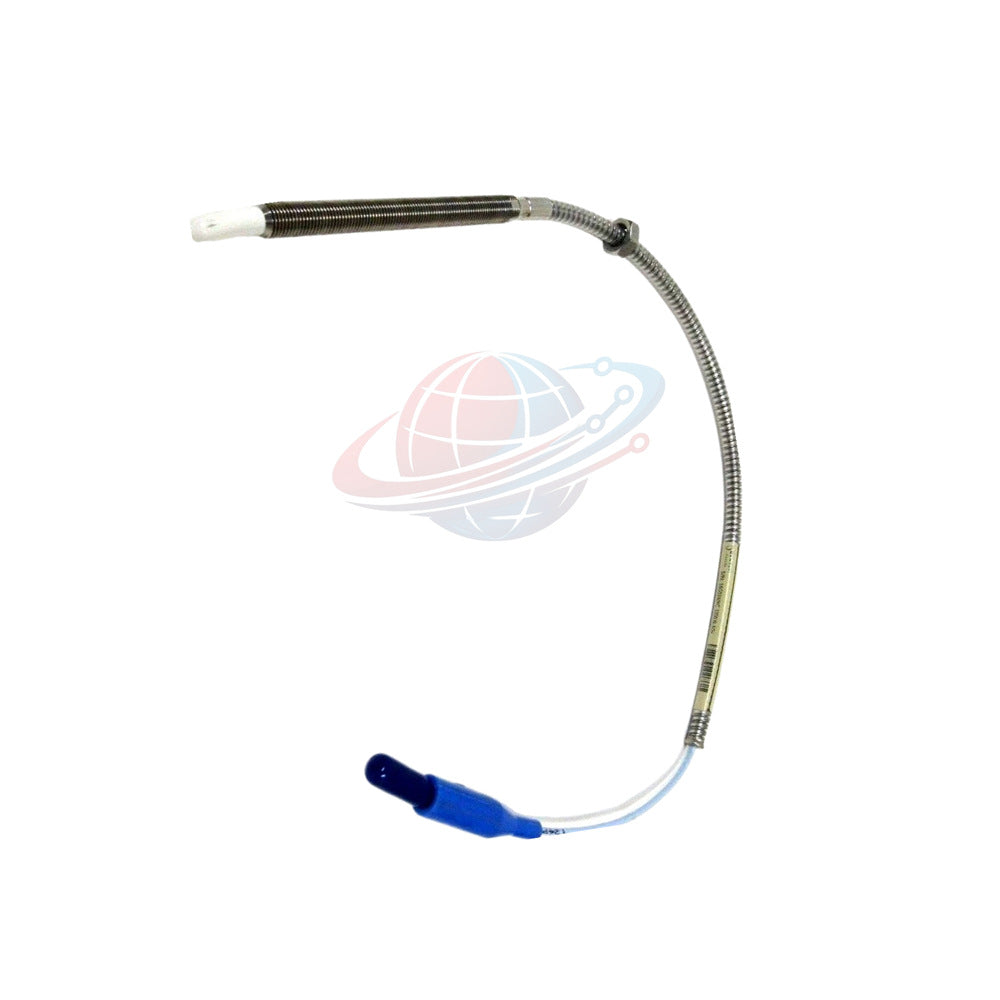

Bently Nevada 330909-40-60-10-02-00 3300 NSv Proximity Probe

Engineering Overview

The Bently Nevada 330909-40-60-10-02-00 is a high-precision 3300 NSv proximity probe designed for non-contacting vibration and position monitoring in rotating machinery. Optimized for small-shaft applications, this probe utilizes a polyphenylene sulfide (PPS) tip and AISI304 stainless steel housing to ensure long-term stability. This specific configuration features an armored cable for enhanced mechanical protection in harsh industrial environments.

Global PLC Spare HUB’s Insight

The 3300 NSv system is the industry standard for detecting sub-mil vibrations on small-diameter shafts where standard 3300 XL probes lack sufficient resolution. Our technical team highlights the ClickLoc connector system as a critical feature for maintaining signal integrity; it prevents accidental disconnection during high-frequency vibration events. For critical assets, we recommend this specific armored model to prevent cable damage from flying debris or chemical exposure.

Configuration Breakdown

• Product: 330909 (3300 NSv Proximity Probe)
• Unthreaded Length (40): 4.0 inches
• Overall Case Length (60): 6.0 inches
• Total Length (10): 1.0 meter (39 in)
• Connector/Cable (02): Miniature ClickLoc, Standard Cable
• Agency Approval (00): Not Required

Selection Comparison

• 330909-40-60-10-02-00: Long-reach version (4.0" unthreaded) with armored protection. Recommended for machines with deeper access requirements or higher debris risks.
• 330909-00-25-10-02-00: Short-reach version (0.0" unthreaded) with a 2.5" case. Recommended for compact housings where space is limited and mechanical protection requirements are lower.

Application and Diagnostic Capability

This system provides linear output proportional to the distance between the probe tip and the target. Rapid diagnostics are achieved by monitoring the DC gap voltage; sudden shifts often indicate shaft misalignment or bearing wear. The probe is engineered to withstand magnetic field interference up to 300 Gauss.

Logistics and Quality Assurance

• Shipping: 24-48 hour dispatch via FedEx, UPS, or DHL.
• Warranty: 12-month standard performance warranty.

Professional FAQ

Why is the probe not pressure tested before shipment?
The Viton O-ring seal is designed for field assembly. We recommend performing a localized leak test if the installation involves pressurized housing.

Can I shorten the 1.0-meter probe cable?
No. The system is calibrated for a specific total length. Cutting the cable will alter the probe’s electrical impedance and void your calibration accuracy.

What is the significance of the "ClickLoc" connector?
It provides a secure, repeatable electrical connection that maintains constant pressure on the contact surfaces, significantly reducing signal noise caused by vibration-induced connection movement.

If my application environment is below -34°C, how do I prevent seal failure?
The Viton seal becomes brittle at low temperatures. If you must operate in extreme cold, consider using specialized low-temperature probe variants or insulated mounting enclosures.
