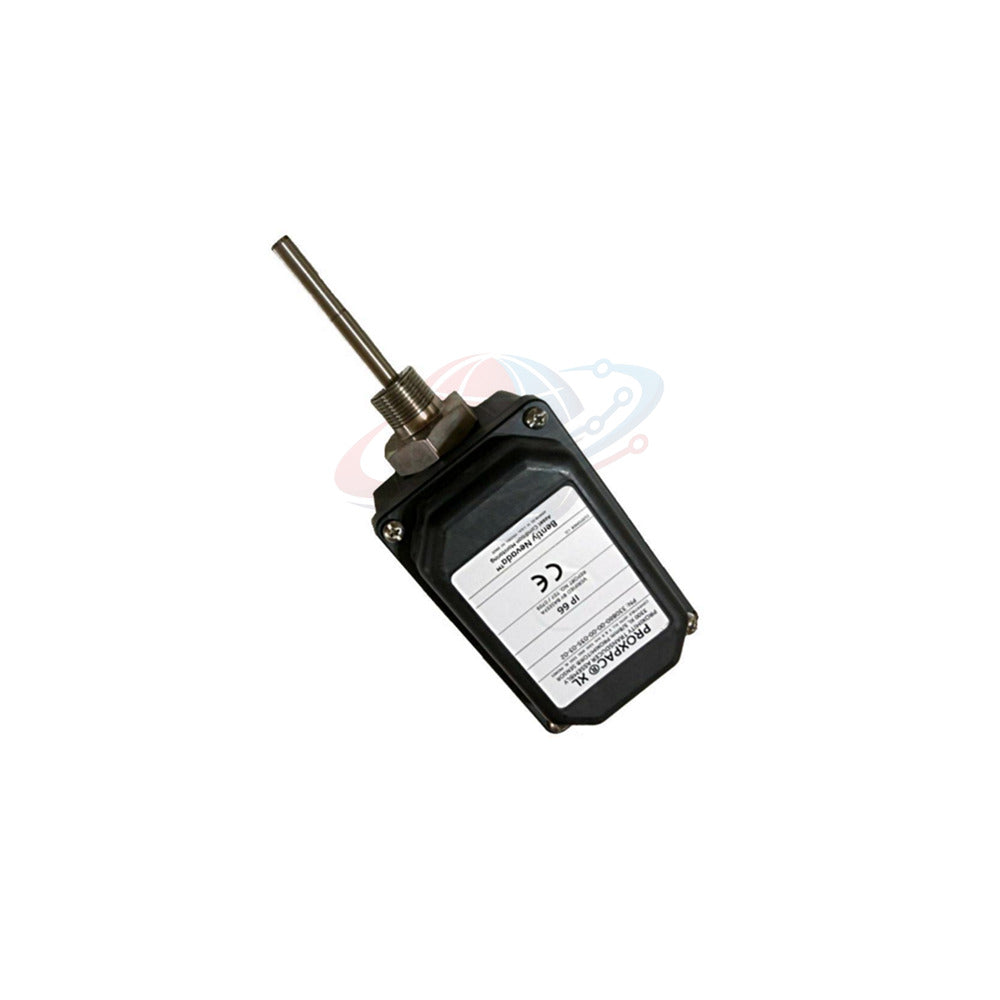

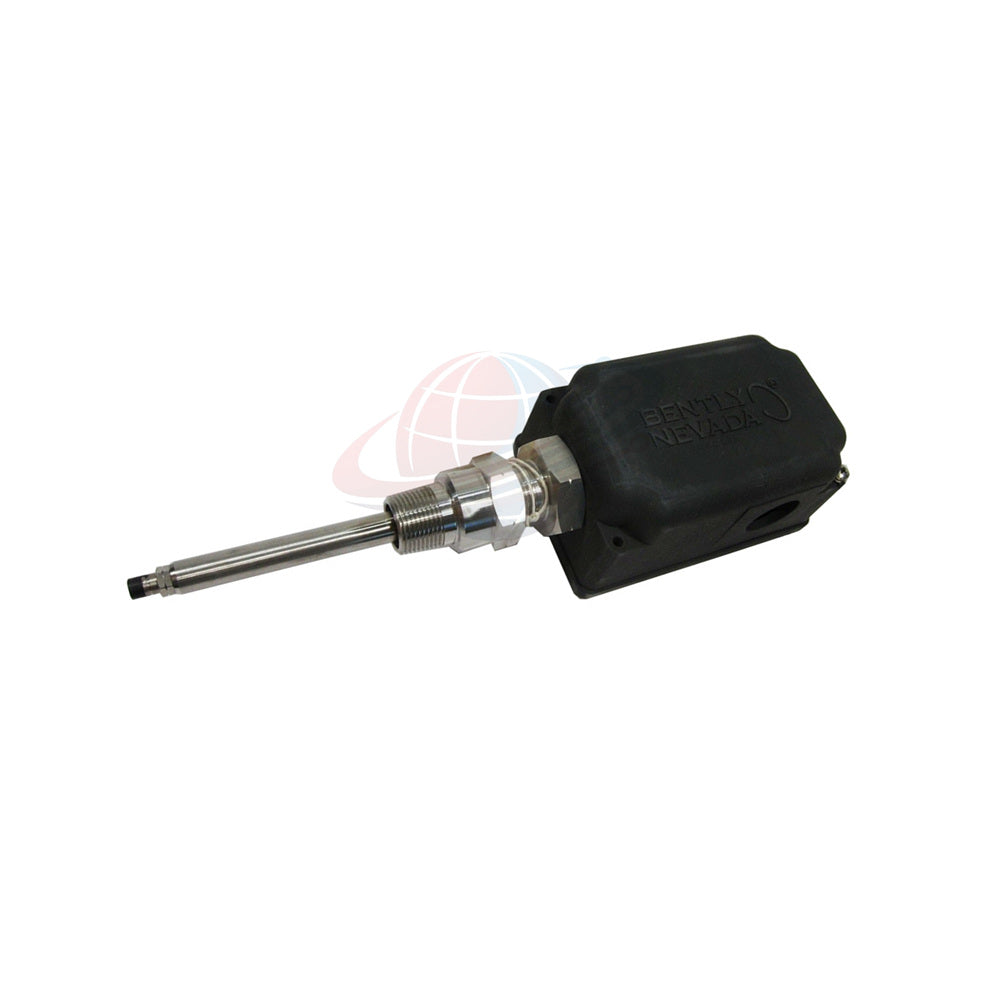

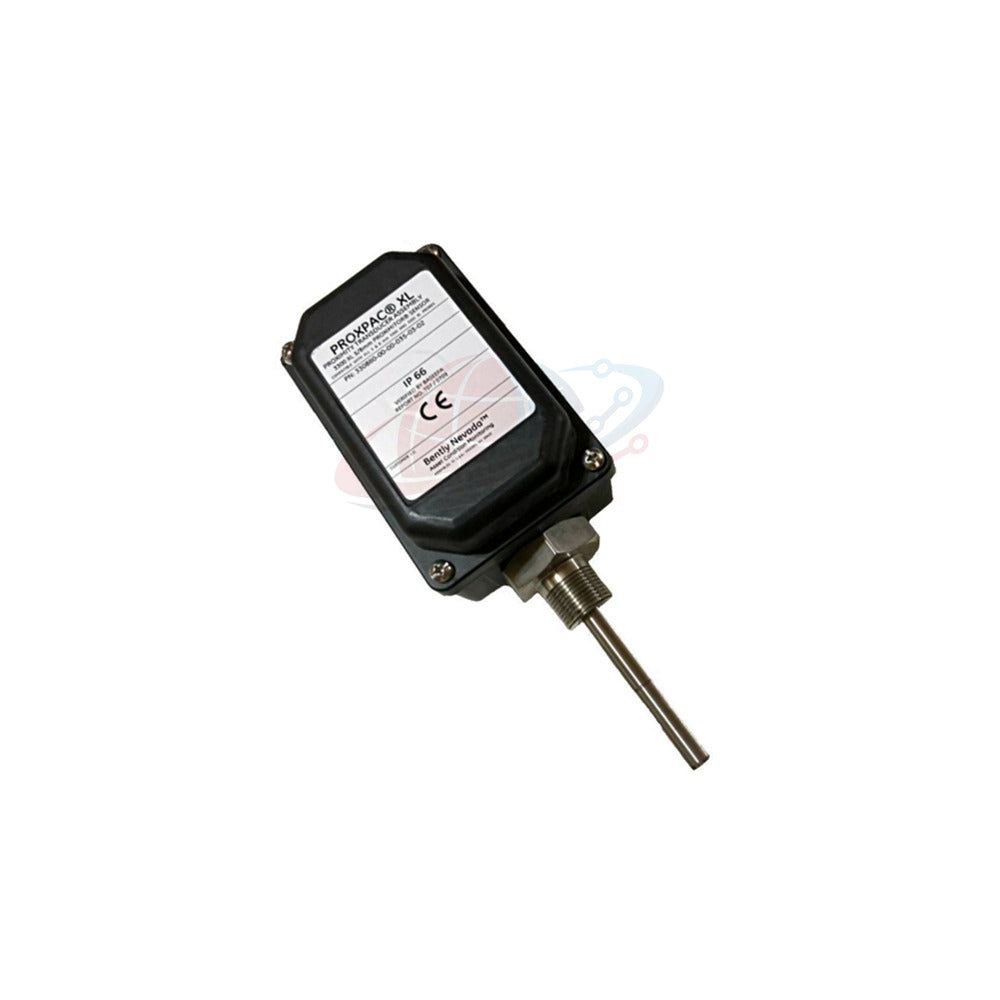

330881-16-00-060-01-02 Bently Nevada PROXPAC XL Proximity Transducer System

Engineered for extreme industrial vibration monitoring, the Bently Nevada 330881-16-00-060-01-02 is a rugged PROXPAC XL Proximity Transducer system. Combining an 8 mm probe with robust thermoplastic housing and NPT conduit fittings, the 330881-16-00-060-01-02 delivers high-accuracy radial vibration and axial position feedback for critical turbomachinery.

Configuration Breakdown & Model Suffix Structure

Model Suffix Code	Engineering Specification & Feature Breakdown
Brand & Model	Bently Nevada, 330881-16-00-060-01-02
Product Series & Type	PROXPAC XL Proximity Transducer System
-16 (Probe & Approvals)	3300 XL 8 mm probe without hazardous area approvals
-00 (Standoff Adapter)	No standoff adapter (B dimension = 00)
-060 (Probe Penetration)	60 mm probe penetration depth (C dimension)
-01 (Fittings Option)	One 3/4-14 NPT fitting with two plugs
-02 (Mounting Thread)	3/4-14 NPT mounting thread specification
Total System Weight	1.44 kg (3.2 lbm) typical with 0.3 metre sleeve length

Technical Performance Matrix & Electrical Specifications

Linear Measurement Range: 2 mm (80 mils) linear range, spanning from 0.25 mm to 2.3 mm (-1 Vdc to -17 Vdc).

Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5% linearity across operating temperature limits.

Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 meters (1,000 feet) of triaxial field wiring.

Power Supply Requirements: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption.

Mechanical Resilience & Environmental Limits

Housing Construction: Ultraviolet (UV) resistant, glass-reinforced polyphenylene sulfide (PPS) thermoplastic with IP66 rating.

Impact & Load Strength: Certified by BASEEFA to withstand dual 4 Joule impacts and 912 N static side loads.

Probe Temperature Range: Operating range from –51 °C to +177 °C (–60 °F to +350 °F) for high-temperature turbine casings.

Target & Shaft Limits: Minimum flat target size of 15.2 mm (0.6 in) on shafts with minimum 50.8 mm (2.0 in) diameter.

Diagnostic Intelligence & Onboard Signalling

Gap Voltage Verification: Recommended static gap setting of 1.27 mm (50 mils) verified via external monitor output.

Fault Isolation: Open-circuit and signal rolloff detection via 75-ohm triaxial cable shielding integrity.

Self-Monitoring Loops: Continuous DC power supervision prevents signal clipping and voltage drop anomalies.

Target Industrial Applications & Deployment Use Cases

Steam & Gas Turbines: Continuous monitoring of shaft vibration and radial bearing wear in power generation plants.

Centrifugal Compressors: Tracking axial thrust position and shaft dynamic displacement in petrochemical facilities.

Large Industrial Pumps: Safeguarding high-speed rotating equipment against unbalance and mechanical misalignment.

Global PLC Spare HUB's Insight & Field Experience

Global PLC Spare HUB Review: When mounting the Bently Nevada 330881-16-00-060-01-02 on heavy turbomachinery, instrument engineers must ensure the probe case locknut is torqued precisely to 39.3 N·m (350 in·lb) to prevent mechanical loosening under severe vibration. Furthermore, exposing the PPS probe tip to temperatures below –34 °C during cold weather shutdowns can compromise the pressure seal; always verify thermal enclosure ratings before winter commissioning.

Model Selection & Technical Comparison

When selecting proximity transducer assemblies for custom machinery retrofits, compare your penetration depth and thread requirements against alternative configurations. For instance, consider the 330880-28-00-105-02-02 Transducer System if your application demands a different standoff adapter length or thread pitch. Ensure that extension cable lengths and armor configurations match your machinery's physical routing layout to preserve signal linearity.

Logistics & Fulfillment Terms

Fulfillment Speed: Expedited global dispatch within 24-48 hours via trusted international couriers: FedEx, UPS, and DHL.

Warranty Protection: Backed by a comprehensive 12-month commercial warranty covering structural and operational integrity.

Frequently Asked Questions

Question: What is the recommended static gap setting for the 330881-16-00-060-01-02 proximity probe?
Answer: The recommended initial gap setting is 1.27 mm (50 mils), which centers the output voltage within the linear range.
Question: What is the purchasing and selection strategy when upgrading older probe penetration lengths?
Answer: Verify your mounting bracket clearance and standoff dimensions upfront—this specific model utilizes a 60 mm probe penetration with 3/4-14 NPT threads.
Question: What power supply voltage range is required to drive this proximity transducer system?
Answer: It requires a DC supply voltage between -17.5 Vdc and -26 Vdc without barriers at a maximum consumption of 12 mA.
Question: Can this transducer system operate safely in high-temperature industrial environments?
Answer: Yes, the probe tip operates reliably from –51 °C to +177 °C, while the housing features UV-resistant PPS thermoplastic.
Question: What cable type and maximum field wiring length are recommended for signal connection?
Answer: Use a 3-conductor shielded triaxial cable up to a maximum length of 305 meters (1,000 feet) between sensor and monitor.
