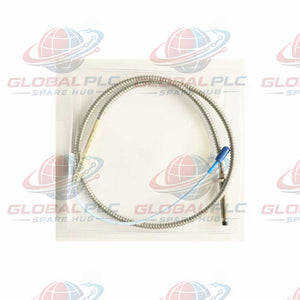

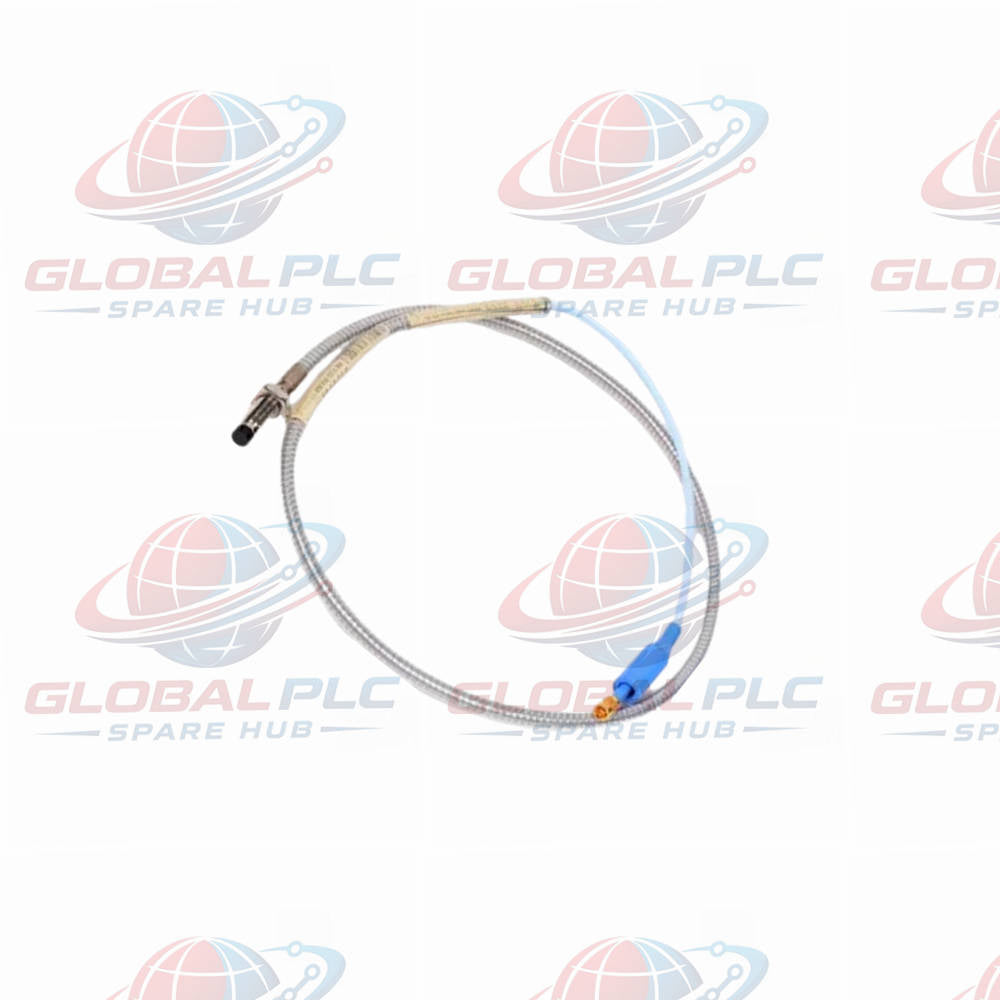

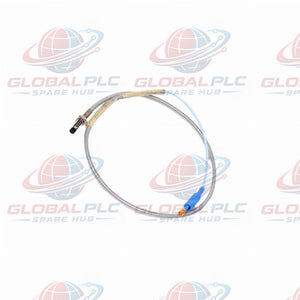

Bently Nevada 330104-01-09-10-12-05 3300 XL Series Proximity Probe

Engineering Insight & Core Overview

The 330104-01-09-10-12-05 is an advanced 8 mm proximity probe engineered by Bently Nevada within the industry-standard 3300 XL series. Featuring robust armored stainless steel casing and ClickLoc fluid-sealed coaxial connections, this transducer system delivers highly accurate vibration and displacement measurements in harsh industrial settings.

According to Global PLC Spare HUB's Insight, machinery protection specialists frequently select the 330104-01-09-10-12-05 for continuous shaft monitoring on high-speed turbomachinery. Our hands-on field evaluations show that ensuring correct probe gapping (1.27 mm nominal) against an AISI 4140 steel target prevents signal clipping and maximizes linearity.

Configuration Breakdown & Part Suffix Structure

Technical Specifications & Electrical Parameters

• Probe Tip Material: Polyphenylene sulfide (PPS) high-temperature polymer
• Case Material: AISI 303 or 304 stainless steel with Viton O-ring pressure seal
• DC Resistance: Center conductor to outer conductor resistance of 7.59 +/- 0.50 ohms for the 1.0m cable length
• Power Requirements: Proximitor sensor requires -17.5 Vdc to -26 Vdc (12 mA max) without barriers, or -23 Vdc to -26 Vdc with barriers
• Hazardous Ratings: Class I, Zone 0/2 and Division 1/2 approvals with a comprehensive temperature schedule supporting up to +232 °C probe ambient limits

Diagnostics, Troubleshooting & Maintenance Guide

• Resistance Verification: Measure center-to-shield DC resistance across the coaxial leads using a calibrated digital multimeter to verify cable integrity prior to startup.
• Gap Voltage Check: Verify that static probe gap voltage reads approximately -10 Vdc when gapped at 1.27 mm (50 mils) from the shaft target.
• Visual Inspection: Inspect the ClickLoc connector for moisture ingress or oil contamination using the FluidLoc cable barrier status.

Global Logistics, Express Shipping & Warranty

• Priority Global Dispatch: Shipped worldwide within 24 to 48 hours via premium express couriers including FedEx, UPS, and DHL.
• Commercial Warranty: Backed by a comprehensive 12-month replacement warranty covering non-artificial manufacturing defects.

Typical Industrial Applications

• Steam & Gas Turbines: Monitoring radial vibration and thrust position on high-speed rotating shafts.
• Centrifugal Compressors: Measuring dynamic shaft displacement inside pressurized compressor casings.
• Critical Pumps & Motors: Providing continuous condition surveillance in hazardous chemical and oil processing plants.

Model Selection Comparison & Technical Advice

When selecting proximity probes for your machinery protection rack, comparing exact thread pitches and cable lengths is critical. For instance, if your application requires alternative thread specifications or length configurations, consider reviewing the 330104-02-21-10-01-00 variant. While the base 3300 XL sensing technology remains consistent, switching between dash options adjusts physical reach and thread dimensions. Ensure that your target material matches the standard AISI 4140 steel calibration baseline to maintain absolute measurement accuracy.

Frequently Asked Questions

What is the standard calibration target material for the 330104-01-09-10-12-05 probe?
The transducer system is factory-calibrated specifically for an AISI 4140 steel target.

How do I verify if the probe cable has suffered internal conductor damage?
Perform a DC resistance test across the coaxial center conductor and outer shield, ensuring the measured value reads 7.59 +/- 0.50 ohms for a 1.0-meter cable.

What is the purpose of the FluidLoc cable option in this part number?
The FluidLoc feature prevents oil and process fluids from wicking through the inside of the coaxial cable jacket toward the monitor rack.

Buying Guide: When should I choose an armored probe over an unarmored version?
Select armored probes like this model when physical cable runs are exposed to mechanical abrasion, heavy foot traffic, or harsh industrial debris.

What power supply voltage is required for the associated Proximitor sensor?
The sensor operates on -17.5 Vdc to -26 Vdc for standard nonincendive installations, or -23 Vdc to -26 Vdc when using zener barriers.
