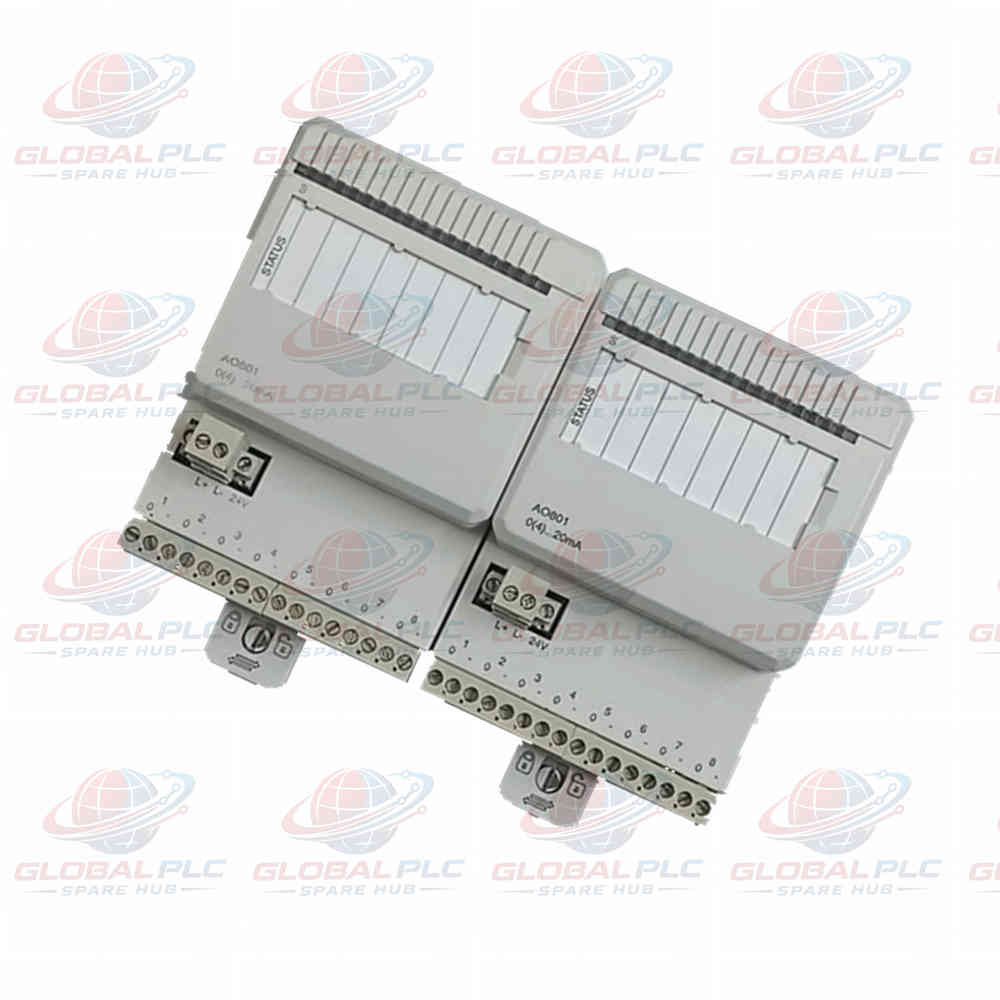

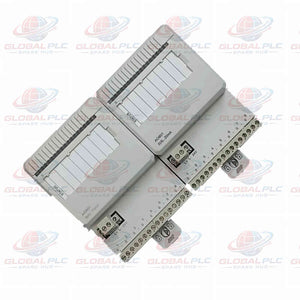

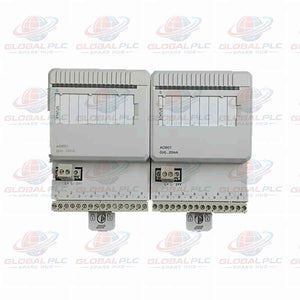

AO801 3BSE020514R1 ABB Analog Output S800L Module | Fast Shipping
Manufacturer: ABB
Product No.: AO801
Condition： In stock
Product Type: Analog Output Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The ABB AO801 (3BSE020514R1) is an 8-channel unipolar analog output module.
It belongs to the S800L I/O family for distributed process automation.
The module delivers precise current signals ranging from 0 to 20 mA or 4 to 20 mA.
Integrated cycling self-diagnostics ensure high system operational safety.
Technical Specifications
| Brand | ABB |
| Model Number | AO801 |
| Article Number | 3BSE020514R1 |
| Product Series | S800L I/O System |
| Module Type | Unipolar Single-Ended Analog Output |
| Channel Count | 8 Channels |
| Signal Ranges | 0 to 20 mA, 4 to 20 mA |
| Resolution & Accuracy | 12 bit resolution, 0.1% accuracy error |
| Update Cycle & Rise Time | 1 ms update cycle, 10 µs rise time |
| Maximum Output Load | 850 Ω |
| Power Consumption | 3.8 W dissipation, 200 mA external +24 V DC |
| Environmental Protection | ISA-S71.04 G3 conformal coating, IP20 rated |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) horizontal mounting |
| Safety Certifications | CE, UL 61010-1, ATEX Zone 2, Class 1 Div 2, DNV, ABS |
Installation & Wiring Guidance
- Detachable screw connectors simplify field cabling during panel assembly.
- Supports solid or stranded copper wires from 0.05 to 2.5 mm² (30-12 AWG).
- Tighten terminal block screws to a recommended torque of 0.5 to 0.6 Nm.
- Drives analog current signals over field cable distances up to 600 meters.
Diagnostic Capabilities & System Safety
- Front-panel Status LED provides clear visual RUN and FAULT indication.
- Configurable OSP drives outputs to safe predefined levels during communication loss.
- Internal monitoring sets channels into INIT mode if logic power drops below threshold.
- Output channels feature continuous short-circuit protection against ground and +24 V lines.
Target Applications & System Compatibility
- Drives positioners on modulating process control valves.
- Sends current references to variable frequency drives and motor controllers.
- Integrates directly with AC 800M controllers through standard Modulebus networks.
Global PLC Spare HUB's Insight
During a chemical plant retrofit, output noise on control valves caused loop instability.
Installing the ABB AO801 solved current drift through its groupwise isolation design.
The rapid 10 microsecond rise time restored precise valve position control.
Conformal G3 coating prevents circuit degradation in corrosive ambient air.
Selection & Engineering Guidance
- Choose AO801 for standard 8-channel unipolar current output requirements.
- De-rate upper operating temperature to 40 °C when mounting modules vertically.
- Select alternative S800 models if your application requires HART protocol pass-through.
Package List & Commercial Terms
- Package Contents: Includes one original AO801 analog output module.
- Warranty Term: Full 12-month factory coverage on all parts.
- Dispatch Speed: Ships within 24 to 48 hours from warehouse stock.
- Global Express: Expedited delivery via FedEx, UPS, or DHL.
Frequently Asked Questions
Q1: What happens to process outputs when communication with the controller fails?
A1: The module triggers OSP mode, driving channels to pre-configured safe values.
Q2: Does the module require an external 24 V DC power supply connection?
A2: Yes, it requires 200 mA external 24 V DC power for analog output loops.
Q3: How do engineers select between 0-20 mA and 4-20 mA current output ranges?
A3: Configure the channel range parameters directly within the control builder software.
Q4: What mounting orientation affects the maximum operating temperature rating?
A4: Vertical mounting lowers maximum allowed ambient temperature from 55 °C to 40 °C.
Q5: Can I wire this module to high-impedance field instruments?
A5: Yes, the channels drive resistive loads up to 850 ohms maximum.
