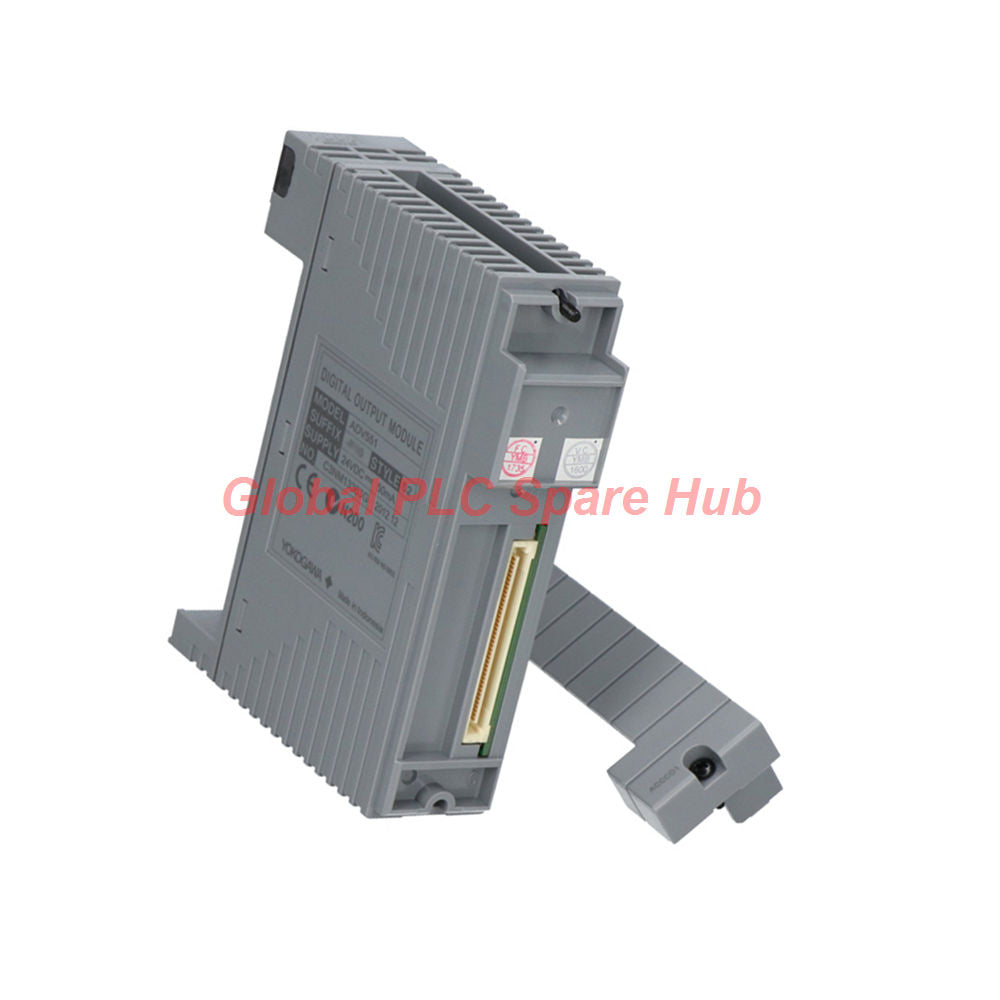

ADV551-P50 Yokogawa Digital Output Module Centum VP DCS Spare

Product Overview & Technical Documentation

The ADV551-P50/D5A00 stands as a high-density digital output solution within the Yokogawa Centum VP ecosystem. Engineering teams utilize this 32-channel transistor module to execute precise control logic via pulse width and time-proportional functions. It is specifically designed for high-availability architectures requiring dual-redundant configurations. We strongly advise technicians to access the ADV551-P50 hardware manual and instruction sheet for terminal assignment and load calculation protocols.

Hardware Configuration Breakdown

• ADV551 — Base Series: 32-Channel Digital Output Module
• └─ -P — Functional Logic: Integrated Pulse Width & Time-Proportional Output
• └─ 5 — Display/Safety Spec: Standard configuration without status LEDs
• └─ 0 — Mounting Style: Standard base-plate installation type
• └─ /D5A00 — Interface Option: Factory-fitted KS Cable Adapter (ATD5A-00)

Technical Core Specifications

• Model Identity: ADV551-P50/D5A00
• Output Channels: 32 Isolated Transistor Outputs (Current Sink)
• Operating Voltage: 24 V DC (Nominal)
• Supply Tolerance: 20.4 to 26.4 V DC
• Current Capacity: 100 mA maximum load per channel
• Switching Speed: Status output response ≤ 3 ms; Pulse output ≤ 10 ms
• Pulse Precision: 8 ms resolution with a range up to 7200 seconds
• Isolation Integrity: 2 kV AC Withstanding Voltage (Signal to System)
• Current Draw: 700 mA @ 5 V DC (Internal Bus)
• Physical Mass: Approximately 0.20 kg (Excluding cables)

Global PLC Spare HUB’s Insight

From a field engineering perspective, the ADV551-P50 is a "set-and-forget" component due to its exceptional thermal management. Unlike mechanical relay modules, this transistor-based ADV551-P50/D5A00 avoids contact wear, making it the superior choice for high-frequency valve pulsing or PID-driven time-proportioning loops. The inclusion of the D5A00 adapter is a critical efficiency factor, as it permits rapid migration to pre-fabricated KS cables, significantly reducing loop-check time during outages.

Target Equipment & Compatible Environments

• Control Hosts: Yokogawa Centum VP, Centum CS 3000, and ProSafe-RS systems.
• Field Devices: Solenoid valves, interposing relays, LED indicators, and acoustic signalers.
• Industrial Verticals: Hydrocarbon processing (Refining), Ethylene plants, and Thermal power utility monitoring.

Advanced Diagnostics & Field Maintenance

• Real-Time Logic Tracking: Use the DCS software diagnostic buffer to monitor output consistency.
• Channel Isolation: Faulty external loads are isolated to prevent module-wide back-plane interference.
• Hardware Health: Integrated watchdog timers monitor internal MCU status and communication bus integrity.

Logistics, Warranty, & Global Support

• Shipping Carriers: Express priority dispatch via FedEx, UPS, or DHL.
• Dispatch Window: Guaranteed processing within 24 to 48 hours of order confirmation.
• Warranty Protection: This ADV551-P50/D5A00 includes a 12-month comprehensive warranty against manufacturing defects.
• Quality Assurance: Every module undergoes rigorous bench testing prior to export.

Purchasing & Selection Guide

• Voltage Verification: Ensure your external power supply remains within the 20.4-26.4V range to prevent logic errors.
• Connector Strategy: Choose the D5A00 suffix if you utilize high-density KS cable interfaces rather than individual terminal blocks.
• Function Requirement: Opt for the "-P" version specifically if your logic requires PWM or specialized pulse-width modulation.

Professional Engineering FAQ

• Question: How does the transistor sink output on the ADV551-P50 handle inductive kickback?
• Answer: While the module has internal protection, we recommend installing an external flyback diode (1N4007 or similar) across relay coils to extend the module’s lifespan.
• Question: Is the ADV551-P50/D5A00 hot-swappable in a redundant rack?
• Answer: Yes, provided the system is configured for dual-redundancy, you can replace a module without interrupting the process control loop.
• Question: Why should I choose the 32-channel version over multiple 16-channel modules?
• Answer: This high-density ADV551-P50 configuration optimizes cabinet footprint and reduces the number of bus-interface slots required.
• Question: What is the benefit of the Time-Proportional function in this module?
• Answer: It allows the DCS to treat a digital output like an analog signal for heating elements or slow-acting valves by varying the Duty Cycle.
• Question: How do I identify a communication failure specifically for this module?
• Answer: The Centum VP diagnostic view will flag a "Card I/O Error"; check the 24V external supply first, as this module requires it for output circuit operation.
