ABE7R16S210 Schneider Modicon Relay | 16-Channel I/O Interface

Engineering Overview: The ABE7R16S210 Advantage

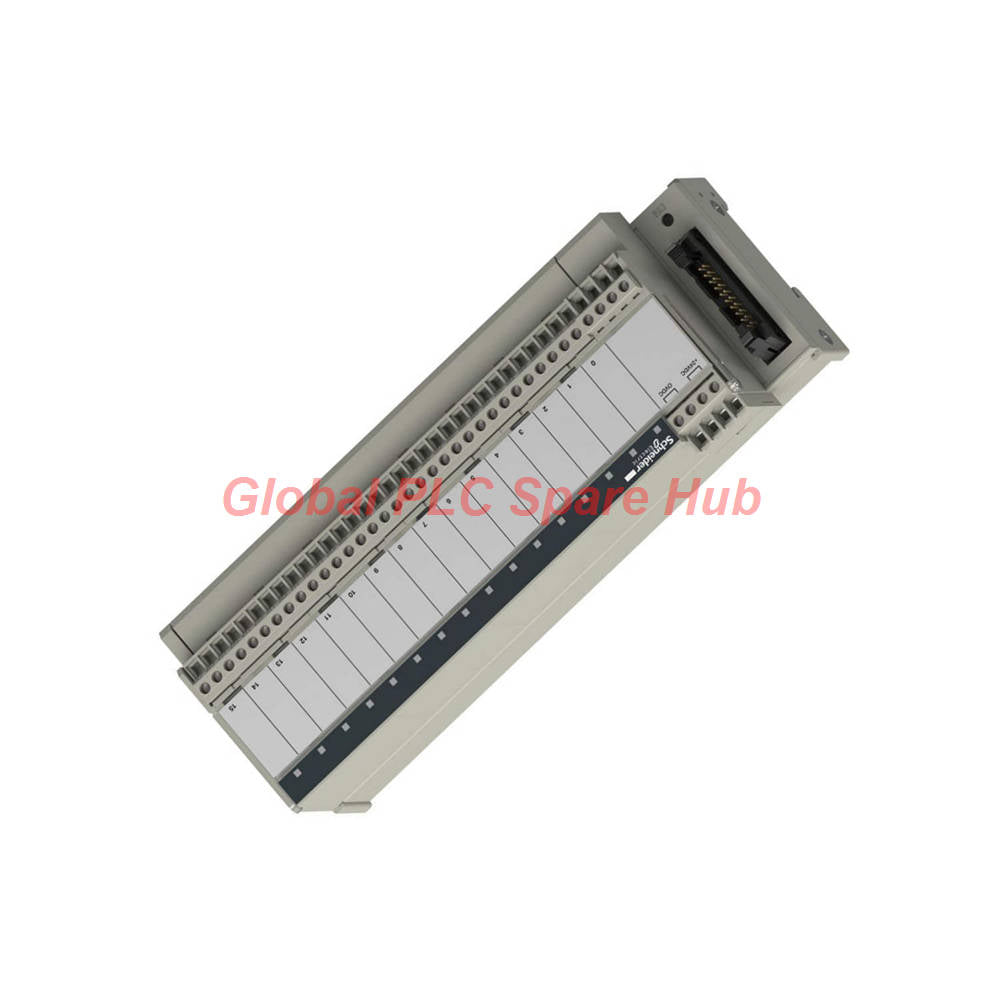

The ABE7R16S210 is a high-density electromechanical output relay sub-base engineered for the Modicon ABE7 series. Designed to bridge PLC control logic with field actuators, this 16-channel module ensures seamless signal isolation and power distribution. With a slim 10 mm per-relay pitch, it optimizes cabinet space while providing the electrical durability required for high-cycle industrial automation tasks.

Technical Performance Parameters

• Series: Modicon ABE7
• Interface Type: Electromechanical output relay sub-base
• Channel Density: 16 independent channels, 2 terminals per channel
• Supply Voltage: 24 V DC (PLC side)
• Switching Capacity: 5 A per channel
• Contact Configuration: 1 NO (Normally Open) per relay
• Switching Voltage: Up to 250 V AC or 30 V DC
• Mounting: 35 mm DIN rail or screw-fixed plate
• Durability: 20,000,000 mechanical cycles

Diagnostic Intelligence & System Integration

The ABE7R16S210 supports volt-free polarity distribution, allowing for advanced segmented troubleshooting. With robust level 3 EMC immunity, this module remains stable in high-noise factory environments. Its removable terminal block design facilitates rapid maintenance without rewiring, significantly reducing mean time to repair (MTTR) during machine downtime.

Global PLC Spare HUB Insight

Engineers consistently choose the ABE7R16S210 for secondary control loops in automated packaging and CNC applications. Its low 0.36W power consumption per channel makes it a highly efficient solution for thermal-sensitive control cabinets where space and efficiency are equally prioritized.

Logistics and Quality Assurance

• Rapid Dispatch: Orders processed within 24–48 hours.
• Global Shipping: Expedited transport via FedEx, UPS, and DHL.
• Quality Warranty: Comprehensive 12-month quality assurance guarantee.
• Packaging: Protected with anti-static and shock-absorbent materials for safe transit.

Professional FAQ

• Question: Is this module suitable for solenoid valve control?
• Answer: Yes, but external suppression is recommended for inductive loads to extend service life.
• Question: What tool is needed for wiring?
• Answer: A flat-head 3.5 mm screwdriver is required for proper terminal torque (0.6 N.m).
• Question: How does volt-free polarity help my process?
• Answer: It allows you to isolate I/O banks for localized testing without powering down the main PLC system.
• Question: Why choose this over direct PLC wiring?
• Answer: It provides essential galvanic isolation to protect your PLC from field-side voltage spikes.
• Question: Best practices for vibration?
• Answer: Ensure your DIN rail is securely grounded and use end-clamps to prevent movement.

Selection & Implementation Guide

When implementing the ABE7R16S210, verify your process switching frequency; for applications exceeding 0.5 Hz, evaluate solid-state alternatives. Ensure the operating ambient temperature is maintained between -5°C and 60°C to guarantee the specified 1e-008 electrical reliability. Double-check all terminal connections against your wiring schematic before commissioning.
