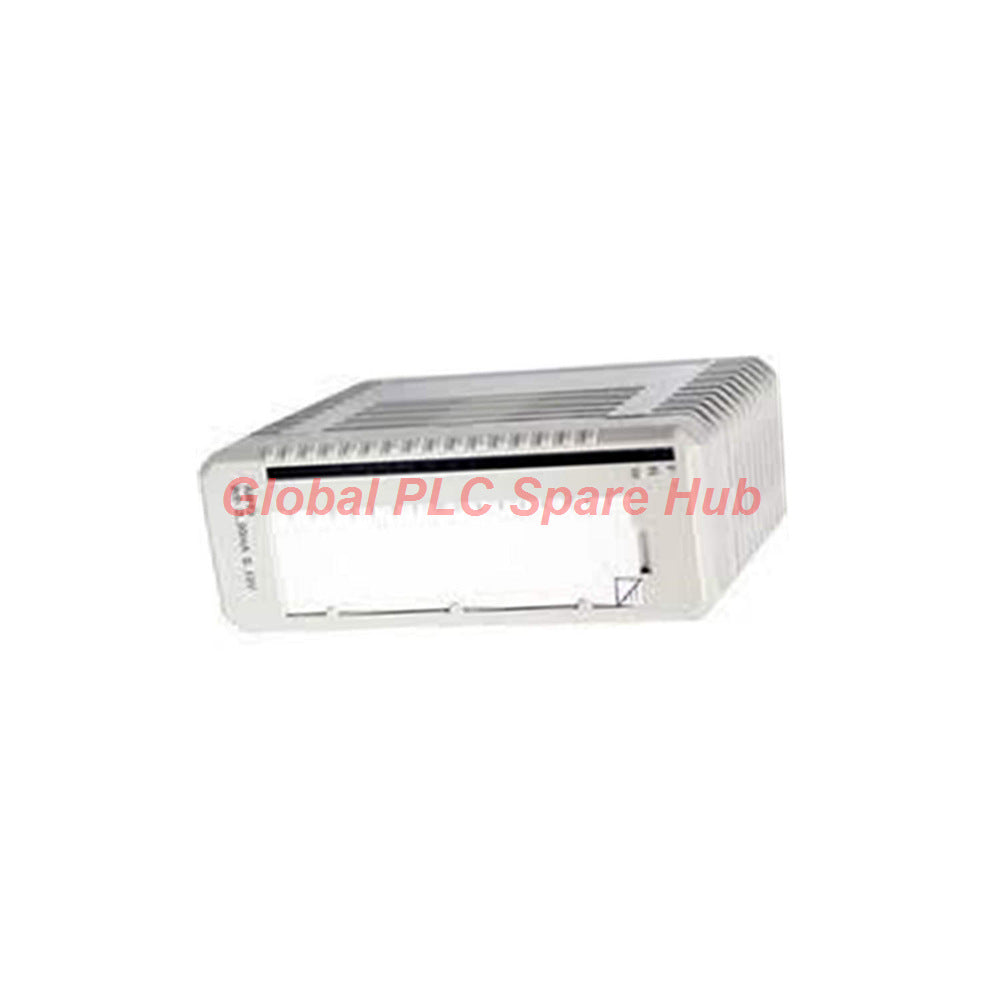

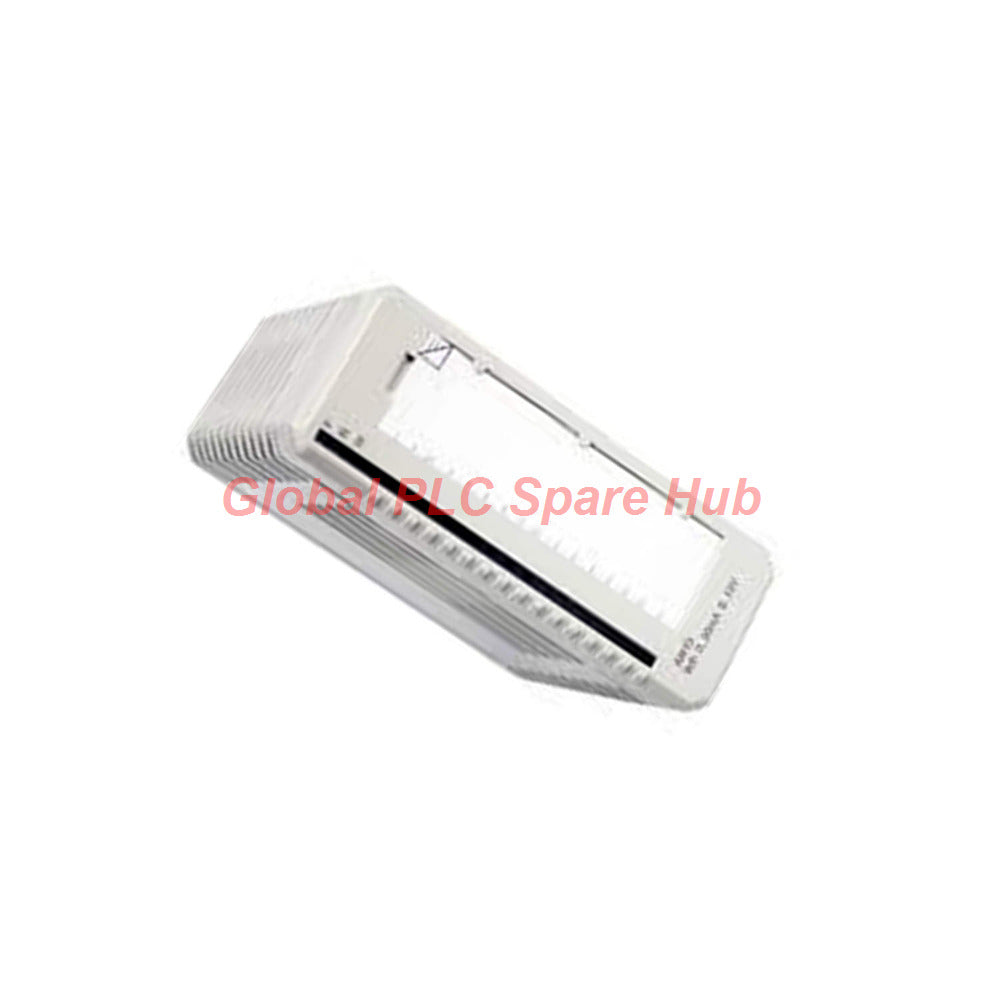

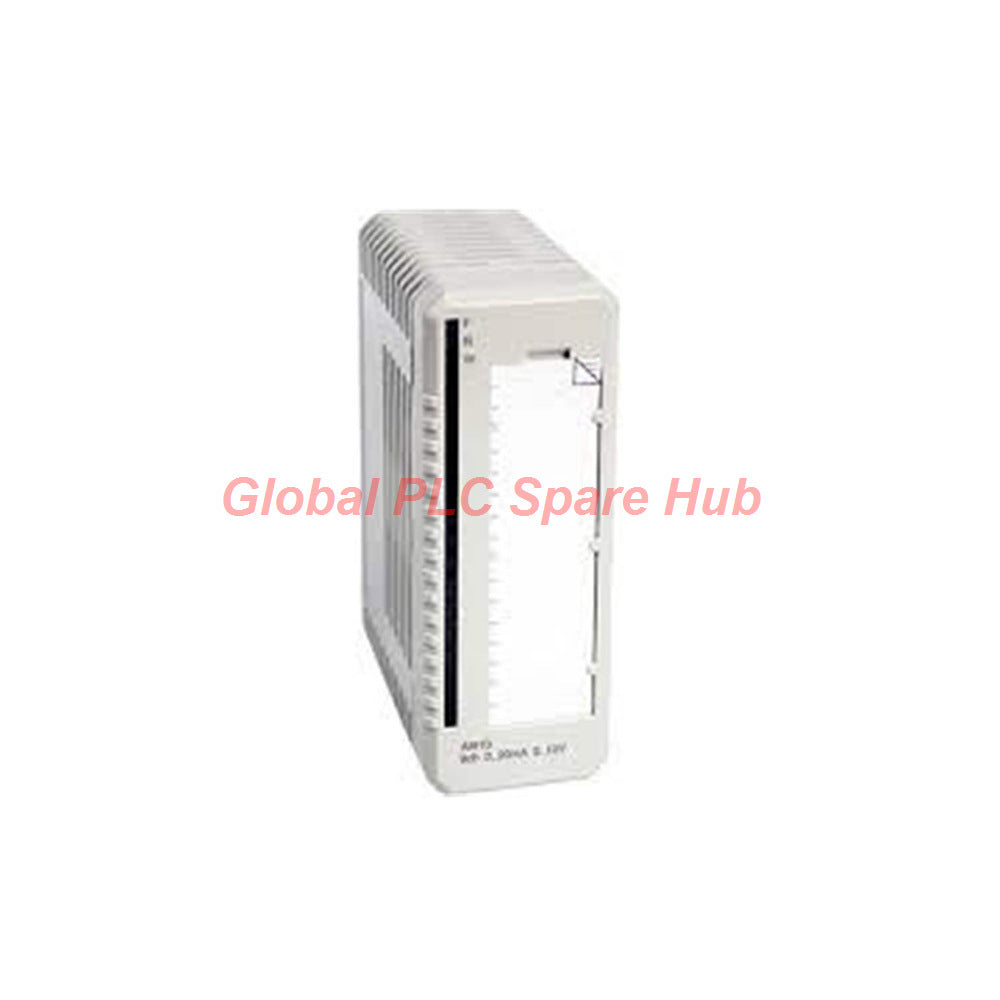

ABB AI810 3BSE008516R1 S800 I/O 8 Ch Analog Input Module

ABB AI810 3BSE008516R1 S800 I/O Analog Input Module Overview

The ABB S800 I/O AI810 analog input module provides reliable process signal acquisition for industrial control architectures. It supports eight single-ended unipolar channels for flexible current and voltage monitoring. Built-in PTC protection safeguards internal shunt resistors against field overvoltage conditions. The compact design simplifies wiring through compatible module termination units in demanding plant environments.

Technical Specifications

• Brand: ABB
• Series: S800 I/O
• Model / Article Number: AI810 / 3BSE008516R1
• Measurement Range: 0...20 mA, 4...20 mA, 0...10 V, 2...10 V d.c.
• Resolution: 12 Bit
• Input Impedance: 290 kΩ (Voltage mode), 250 Ω nominal including PTC (Current mode)
• Update Cycle & Response: 8 ms cycle time, 140 ms filter rise time (0-90%)
• Accuracy & Drift: Max error 0.1%; Voltage drift 100 ppm/°C max; Current drift 80 ppm/°C max
• Noise Rejection: NMRR > 40 dB at 50 Hz / 60 Hz
• Environmental Limits: Operating temperature 0 to +55 °C; Relative humidity 5 to 95% non-condensing
• Interference & Overvoltage: Groupwise isolation up to 50 V; PTC current limiting protected to 30 V d.c.

Installation Guide

Align the AI810 module with keying code AE onto your target Module Termination Unit. Press the module firmly onto the MTU until the locking mechanism engages securely. Keep field cable lengths below 600 meters to ensure signal integrity. Verify transmitter power connections across L1+/L1- or L2+/L2- terminals before applying system power. Maintain vertical cabinet airflow when operating at ambient temperatures above 40 °C.

Commissioning and Maintenance Efficiency

Front-facing LEDs allow technicians to check operational status without external testing tools instantly. The module auto-detects short circuits to prevent component degradation during field wiring errors. Standardized S800 mechanical latches enable rapid module replacement during routine plant turnarounds. Groupwise isolation isolates field ground faults away from the central system bus.

Compatibility Overview

• Matching MTU Base: TU810V1
• Compatible MTUs: TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU850
• Field Protocol Support: Analog pass-through without internal HART decoding
• Backplane Power Consumption: 70 mA at +5 V d.c., 40 mA at +24 V d.c.

Compliance and Certifications

The ABB AI810 holds comprehensive global approvals for industrial installations. It carries CE mark compliance alongside EN 61010-1 and UL 61010-2-201 electrical safety standards. Certification includes Class 1 Division 2, Class 1 Zone 2, and ATEX Zone 2 for hazardous locations. Marine classification societies ABS, BV, DNV, and LR approve this hardware for offshore marine deployments. Environmental directives conform strictly to RoHS DIRECTIVE/2011/65/EU and WEEE standards.

Package Contents and Warranty

• 1 x Factory-Sealed ABB AI810 Analog Input Module (Article 3BSE008516R1)
• 1 x Standard Installation Datasheet Leaflet
• 12-Month Comprehensive Replacement Warranty

Dispatch and Logistics

Orders ship within 24-48 hours via premium express carriers including FedEx, UPS, and DHL. Express air transport ensures prompt delivery to international job sites. Tracking details upload automatically upon order fulfillment.

Typical Application Scenarios

Process plants deploy the AI810 module for continuous temperature monitoring using 4-20 mA transmitters. Machine builders rely on its 0-10 V inputs for precise hydraulic valve positioning systems. Municipal water facilities utilize its 8-channel density for flow monitoring across isolated pump station sites.

Integrated Diagnostic Capabilities

Three front-panel LEDs display key system states: Fault (F), Run (R), and Warning (W). The module continuously monitors internal power supply health and field loop connectivity. Software reporting flags explicit event codes for Module Error, Module Warning, and individual Channel Error condition tracking.

Global PLC Spare HUB's Insight

In our field experience, field technicians occasionally mistake PTC resistor heating for a permanent hardware failure on the AI810. During a transmitter short circuit, the internal PTC heats up rapidly to choke excessive current, causing a channel fault LED to illuminate. Once the field wiring short gets cleared, the PTC cools down and resets automatically without requiring module replacement. Checking loop wiring before swapping modules saves significant downtime on active S800 systems.

Selection Guide and Frequently Asked Questions

Selection Tip: Choose the AI810 for cost-effective standard 12-bit analog input channels. If your field instruments require digital HART protocol pass-through communication back to the controller, select the HART-enabled variant in the S800 I/O portfolio instead.

Question: Can I wire both 4-20 mA current loops and 0-10 V voltage sensors to the same AI810 module?

Answer: Yes, each of the 8 channels configures individually for either current or voltage input mode based on your terminal wiring setup.

Question: Does the AI810 module support channel-to-channel isolation?

Answer: No, the 8 channels share a single groupwise isolation barrier rated up to 50 V from ground.

Question: What happens if a field technician miswires 24V d.c. directly across the current input terminal?

Answer: The built-in PTC resistor limits the fault current and protects the 250-ohm internal shunt resistor against non-destructive overvoltage up to 30 V d.c.
