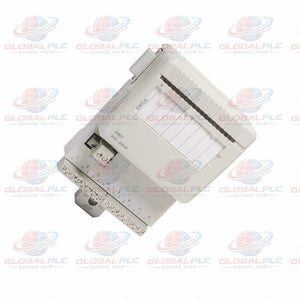

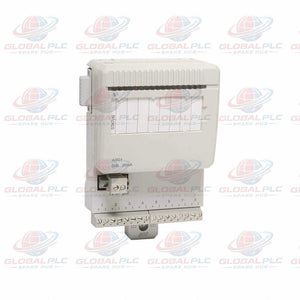

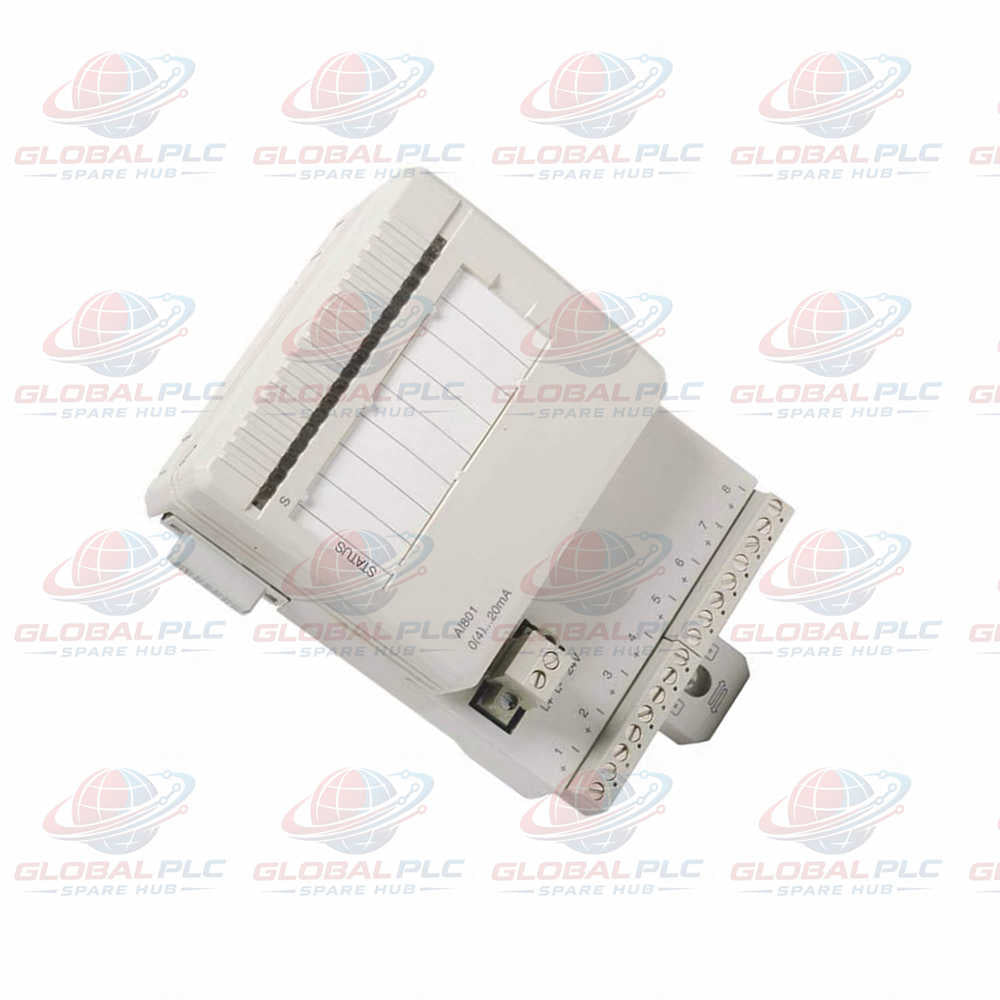

The ABB AI801 (3BSE020512R1) is an 8-channel analog input module engineered for the S800L I/O series. This hardware delivers robust process signal acquisition for industrial automation environments. It processes single-ended unipolar signals across 0...20 mA and 4...20 mA ranges. Engineers deploy this unit in distributed control systems to monitor field transmitters reliably.

Global PLC Spare HUB's Insight & Field Experience

Industrial automation engineers frequently encounter signal distortion caused by severe ground potential shifts or accidental transmitter short circuits. During a commissioning phase at a large chemical processing facility, our technical team observed an ABB AI801 module successfully withstand a direct 30 V d.c. short circuit to the transmitter supply line without internal component failure.

The integrated PTC resistor architecture limits fault current instantly, preserving downstream module bus integrity. Technicians should verify that field cable lengths remain within the 600-meter operational ceiling to prevent signal attenuation, particularly when deploying the hardware in noisy electromagnetic environments governed by EN 61000-6-4.

Technical Specifications

Technical Parameter	Specification Detail
Brand	ABB
Model / Article Number	AI801 (3BSE020512R1)
Series	S800L
Module Type	Analog Input Module
Measurement Range	0...20 mA, 4...20 mA d.c. (Unipolar single-ended)
Resolution	12 bit
Input Impedance	230 - 275 kΩ (current input including PTC)
Frequency Response / Update Cycle	1 ms update cycle time; Input filter rise time (0-90%) is 180 ms
Linearity / Accuracy Error	Maximum error 0.1%
Temperature Range	Operating: 0 to +55 °C (approvals for +5 to +55 °C); Storage: -40 to +70 °C
Environment & Protection	IP20 rating; ISA-S71.04 G3 corrosion protection; Pollution degree 2
Interference Immunity & NMRR	Normal Mode Rejection Ratio (NMRR): > 40 dB at 50Hz and 60Hz
Power Dissipation & Consumption	1.1 W total power dissipation; 70 mA on +5 V Modulebus; 30 mA on external +24 V

Installation Guide

• Mount the AI801 module onto compatible S800L base plates securely.
• Ensure vertical mounting limits ambient operating temperature to a maximum of 40 °C.
• Connect solid field wires sized 0.05-2.5 mm² (30-12 AWG) or stranded wires 0.05-1.5 mm² (30-12 AWG).
• Strip cable insulation precisely to 6-7.5 mm (0.24-0.30 inch).
• Secure terminal connections using recommended torque values between 0.5-0.6 Nm.

Commissioning & Maintenance Convenience

• Detachable screw or spring connectors streamline module replacement without rewiring field cables.
• Front panel LED indicators provide instant visibility into runtime status and system communication.
• Hot-swappable mechanical design minimizes process downtime during scheduled maintenance windows.

Compatibility & Integration

• Fully compatible with ABB S800L remote I/O structures and standard Modulebus backplanes.
• Accepts standard industrial field transmitters utilizing unipolar current loops.
• Supports transparent pass-through for HART communication protocols.

Certifications & Standards

• Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
• Hazardous Locations: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
• Marine Approvals: ABS, BV, DNV, LR
• Compliance: CE, RoHS DIRECTIVE/2011/65/EU, WEEE DIRECTIVE/2012/19/EU

Shipping, Packaging & Warranty

• Logistics & Delivery: Fast 24-48 hour dispatch times.
• Courier Partners: Secure international transport via FedEx, UPS, and DHL.
• Package Contents: One ABB AI801 analog input module and installation instruction sheet.
• Warranty Terms: Comprehensive 12-month quality warranty covering operational reliability.

Typical Application Scenarios

• Continuous process control loops in oil and gas refineries.
• Chemical manufacturing reactor temperature and pressure monitoring systems.
• Power generation turbine auxiliary instrumentation interfaces.
• Water and wastewater treatment plant flow measurement loops.

Diagnostics & Fault Management

• Real-time monitoring tracks module errors, module warnings, and individual channel errors.
• Front-panel status LEDs provide immediate visual diagnostics for run and fault conditions.
• Internal channel-level isolation safeguards system integrity against common-mode electrical faults.

Frequently Asked Questions (FAQ)

Question: Can the ABB AI801 module handle accidental wiring mistakes during field installation?

Answer: Yes, the input shunt resistors are protected up to 30 V by a built-in PTC resistor, and analog inputs are short-circuit secured to ZP or +24 V without hardware damage.

Question: What maintenance practices prevent long-term signal drift on the AI801 unit?

Answer: Maintain operating temperatures below 55 °C and ensure cabinet environments comply with ISA-S71.04 G3 corrosion standards to protect internal shunt resistors from chemical degradation.

Question: How should an engineer troubleshoot a persistent channel error LED on this module?

Answer: Verify that the field cable length is under 600 meters, check terminal torque adherence (0.5-0.6 Nm), and confirm that loop current input parameters remain within the specified 4...20 mA range.

Purchasing Guidance

When selecting process I/O modules for critical distributed control systems, verify your rack space availability and total loop power consumption requirements. Procuring verified industrial automation spares guarantees seamless backplane integration and protects critical production cycles from unexpected hardware failures.
