ABB 3HAC031683-004 Genuine Teach Pendant Extension Cable 30m

3HAC031683-004 ABB FlexPendant Communication Cable (30m)

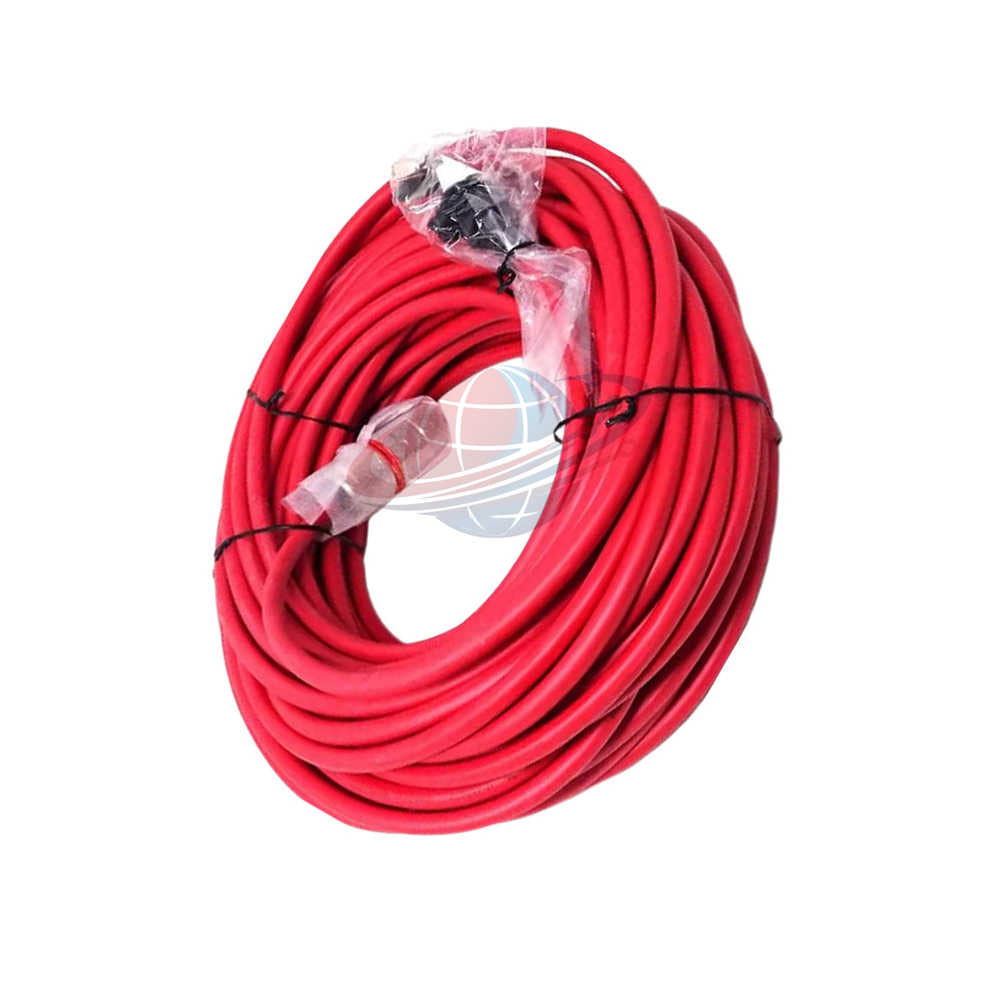

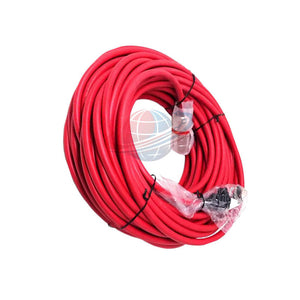

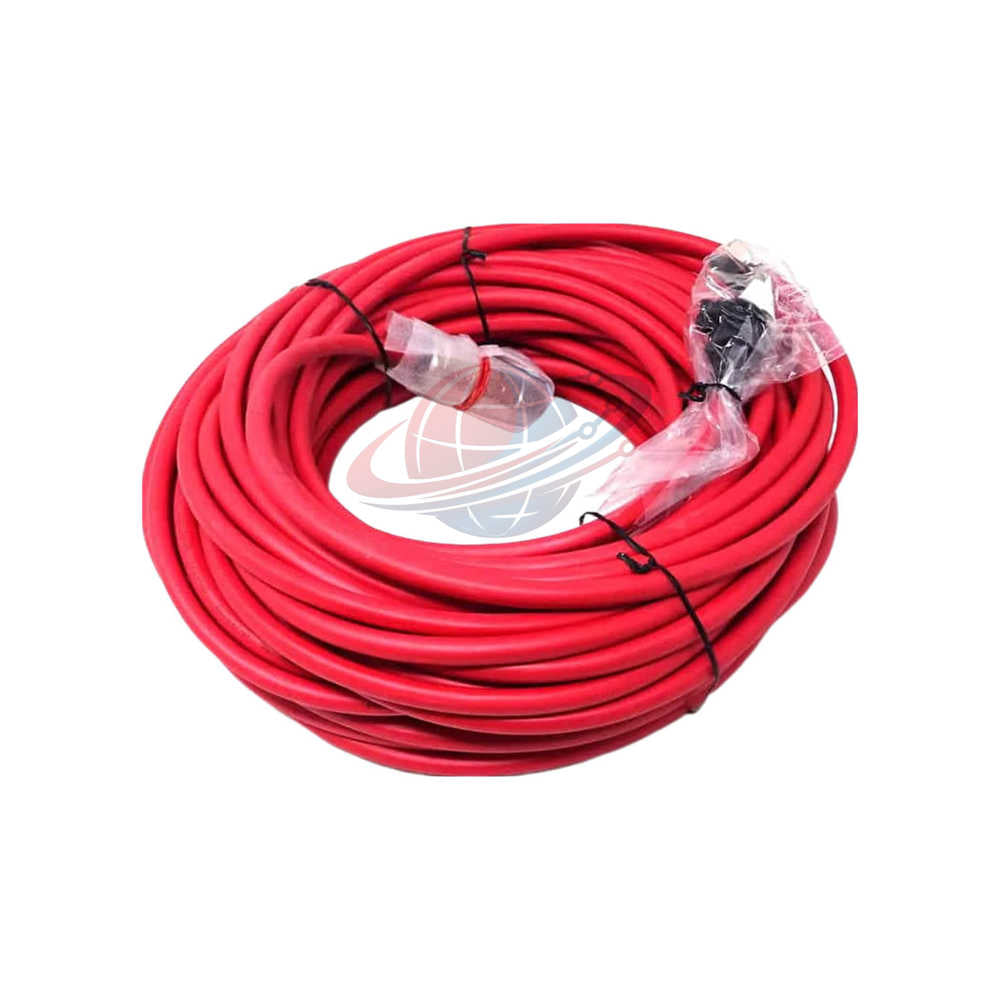

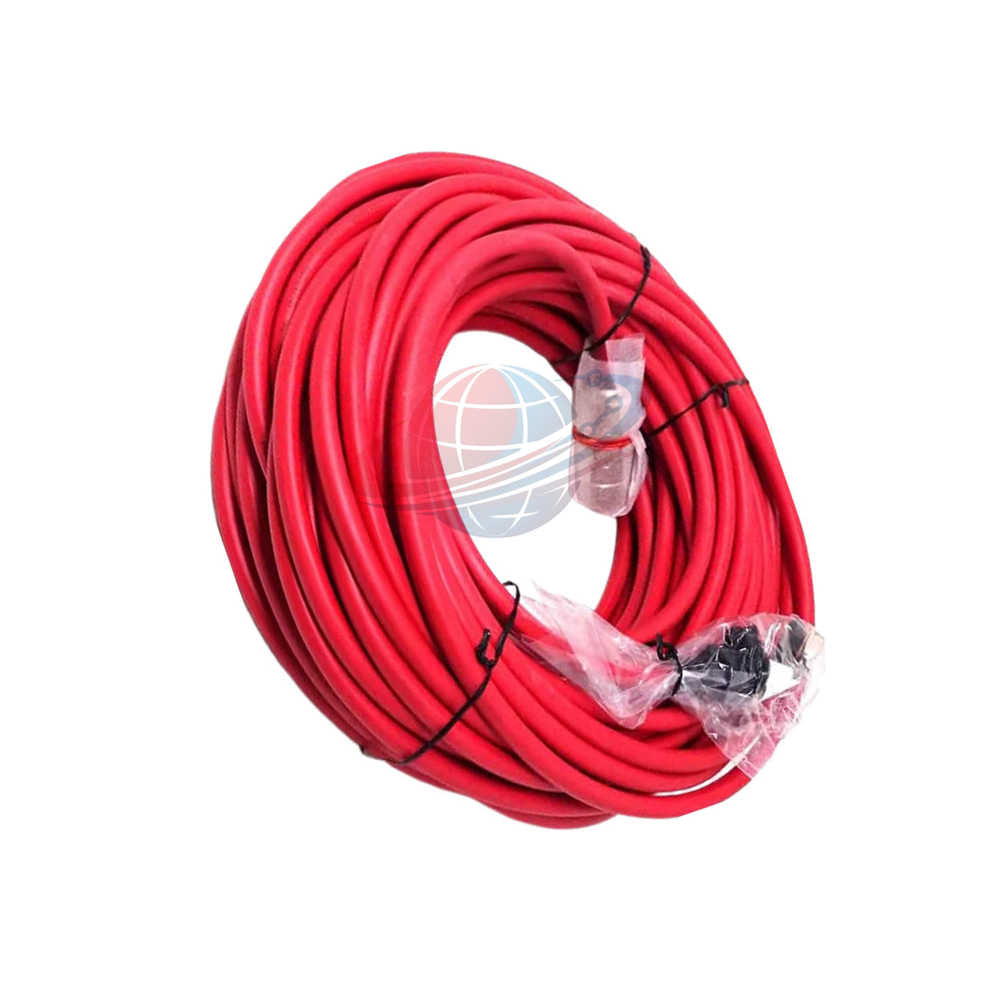

The 3HAC031683-004 is a high-performance, 30-meter interface cable designed for ABB IRC5 robot controllers. This heavy-duty lead establishes a secure connection between the FlexPendant (Teach Pendant) and the main controller cabinet, supporting critical safety signals and real-time data transmission. Engineered for industrial flexibility, the 3HAC031683-004 allows operators to maintain a safe distance while performing complex robot programming or diagnostic procedures in large-scale work cells.

Technical Specification Matrix

• Brand: ABB
• Part Number: 3HAC031683-004
• Cable Length: 30 Meters (Extended Range)
• Product Net Weight: 3.02 kg
• Gross Shipping Weight: 3.44 kg
• Tariff Code (HS): 85444290
• Compatibility: Optimized for ABB IRC5 controller series
• Frame Size: Spare_Parts classification
• Condition: Factory New

Engineering Insight & Diagnostic Capability

• Global PLC Spare HUB Review: The 3HAC031683-004 30m version is indispensable for automotive production lines where the robot controller is situated outside high-security safety fencing.
• Signal Integrity: This cable utilizes high-grade shielding to prevent EMI interference, ensuring that E-Stop and deadman switch signals remain responsive.
• Diagnostic Capability: Integrated wiring architecture supports the FlexPendant’s self-diagnostic boot-up sequence, identifying communication handshaking errors instantly.
• Wear Resistance: The outer jacket is designed to resist industrial oils, coolant, and repetitive mechanical stress common in robotic work cells.

Application Scenarios & Equipment Compatibility

• Robotics: Specifically for ABB industrial robots utilizing the IRC5 FlexPendant system.
• Large Work Cells: Perfect for applications where the operator requires 30m of mobility to inspect the robot's physical tool path.
• Safety Integration: Functions as the primary conduit for the safety circuit bypass during manual teaching modes.
• Manufacturing: Widely used in welding, palletizing, and precision assembly lines.


Logistics & Warranty Fulfillment

• Quality Assurance: Every unit includes a standard 12-month industrial warranty for peace of mind.
• Global Warehousing: Stocked in Menden (Germany) and Shanghai (China) for rapid regional deployment.
• Shipping Carriers: Worldwide express delivery via FedEx, UPS, and DHL.
• Handling Time: Orders typically processed and ready for courier pickup within 24 hours.

ABB Cable Selection FAQ

• What is the main advantage of the 30m 3HAC031683-004 over the standard 10m cable? The extended 30m length provides maximum mobility for large-scale automation environments where the controller is far from the robot.
• Can I use this cable with older S4C+ controllers? No, the 3HAC031683-004 is specifically pinned for the IRC5 FlexPendant connector interface.
• How do I diagnose a faulty teach pendant cable? Check for intermittent "Communication Lost" errors or safety circuit faults on the controller; these often indicate internal wire fatigue.
• Is the cable jacket resistant to welding sparks? While durable, we recommend using additional cable protection (conduit) if the cable is exposed to direct, heavy welding spatter.
• Selection Guide: How do I ensure I am ordering the correct part? Verify that your existing cable or manual lists the 3HAC031683-004 ID to ensure pin-to-pin compatibility with your IRC5 unit.
