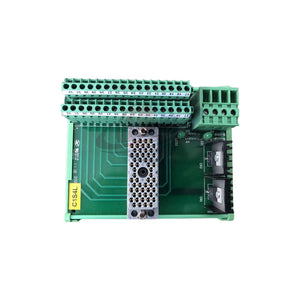

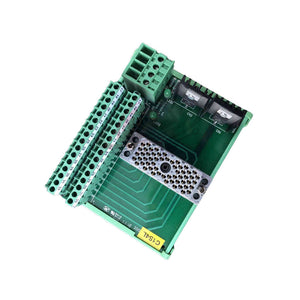

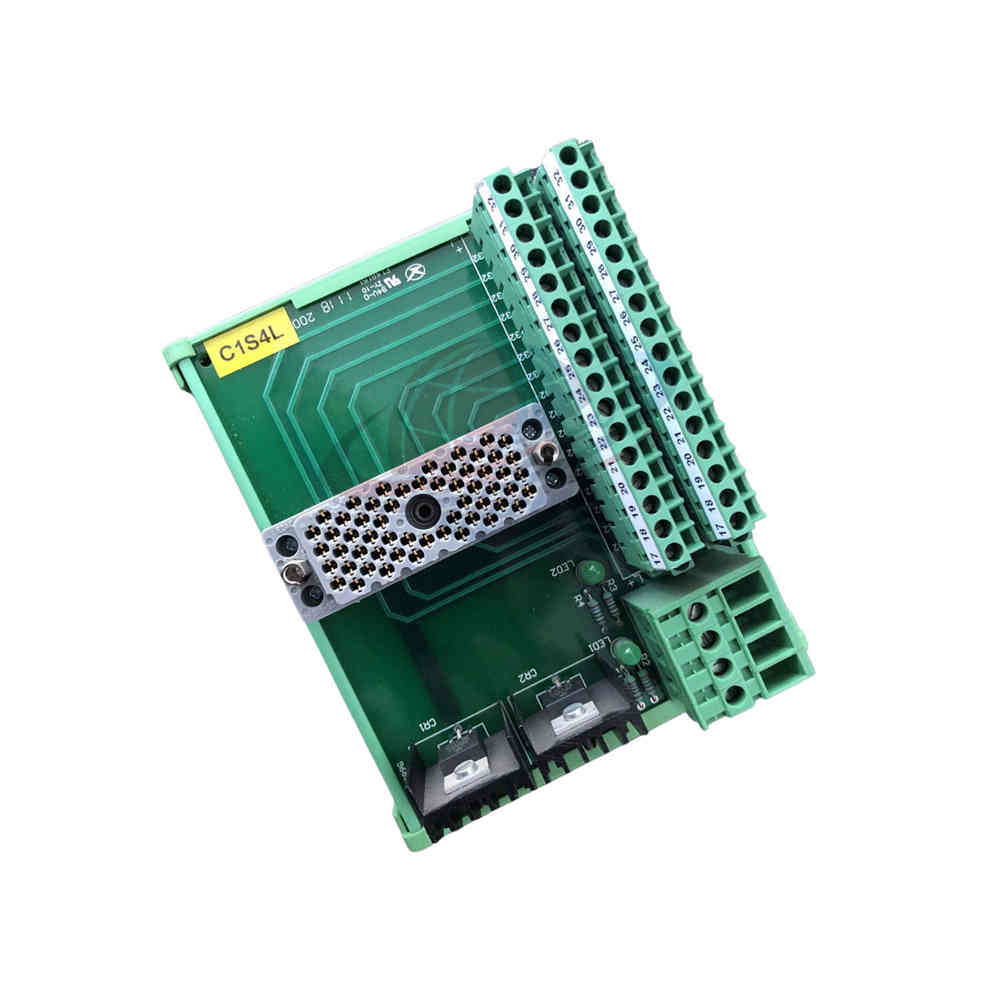

9662-610 Invensys Triconex Termination Board | 24VDC Signal Link

Technical Product Introduction

• The 9662-610 is a high-reliability termination board designed for Invensys Triconex Safety Instrumented Systems.
• Engineered for stability, it provides a secure interface for analog, digital, and pulse field signals.
• The 9662-610 is built to withstand harsh industrial plants, operating within a wide temperature range of -20°C to +70°C.
• Its compact 12.7 cm square design optimizes cabinet space while improving wiring clarity for maintenance personnel.
• Isolation strength of 1500V AC ensures the highest level of protection for the central control logic.

Global PLC Spare HUB's Insight

• The 9662-610 is a cornerstone for ensuring SIL-rated performance in Triconex safety loops.
• From an engineering perspective, the <5 ms response time is vital for high-speed shutdown sequences where every millisecond counts.
• The ±0.1% signal accuracy contribution makes this board ideal for critical pressure and temperature monitoring in oil and gas refineries.
• We recommend this model for its G3-equivalent resilience in non-condensing environments up to 95% humidity.

Technical Specifications Table

• Manufacturer: Invensys (Triconex Series)
• Model Number: 9662-610
• Input Supply: 24 V DC nominal (50 mA draw)
• Signal Support: Analog, Digital, and Pulse signals
• Isolation Barrier: 1500 V AC (Input to Output)
• System Accuracy: ±0.1% contribution
• Dimensions: 12.7 cm x 12.7 cm x 5.1 cm
• Weight: 0.3 kg (approx.)

Diagnostic & Application Scope

• Field Interface: Seamlessly connects field sensors to Triconex I/O processing modules.
• Fault Isolation: High-voltage isolation prevents field-side electrical faults from propagating to the main controller.
• Primary Use Cases: Emergency Shutdown (ESD), Fire and Gas (F&G), and Boiler Protection Systems.
• Industrial Compatibility: Proven performance in chemical processing, power generation, and offshore oil platforms.

Logistics & Warranty Terms

• Warranty Policy: Includes a comprehensive 12-month quality guarantee.
• Shipping Partners: Priority global dispatch via FedEx, UPS, and DHL.
• Packaging: Industrial-grade anti-static packaging to ensure safe transit.

Professional FAQ & Engineering Guide

• Can the 9662-610 be used for both input and output signal termination?
  While it supports analog, digital, and pulse signals, its primary design is for field signal termination to the I/O subsystem. Always verify the specific I/O module wiring diagram for bidirectional use cases.
• What are the storage requirements to prevent degradation?
  The board should be stored between -40°C and +85°C. Ensure the environment is non-condensing to protect the high-precision circuitry from corrosion.
• Does this board include built-in fuses for loop protection?
  The 9662-610 focus is on high-isolation termination. Depending on your specific marshalling design, supplementary fuse blocks may be required for individual loop protection.
• How do I verify the signal accuracy during commissioning?
  The board contributes only ±0.1% to the overall system error. Use a calibrated signal generator at the terminal block to verify that the value reported by the Triconex software matches within the specified tolerance.
• Selection Guide: Why is the 9662-610 preferred for SIS over generic boards?
  Generic boards lack the 1500V AC isolation and the rigorous environmental testing required for safety-certified systems. Using the 9662-610 ensures the safety loop maintains its integrity during electrical disturbances.
