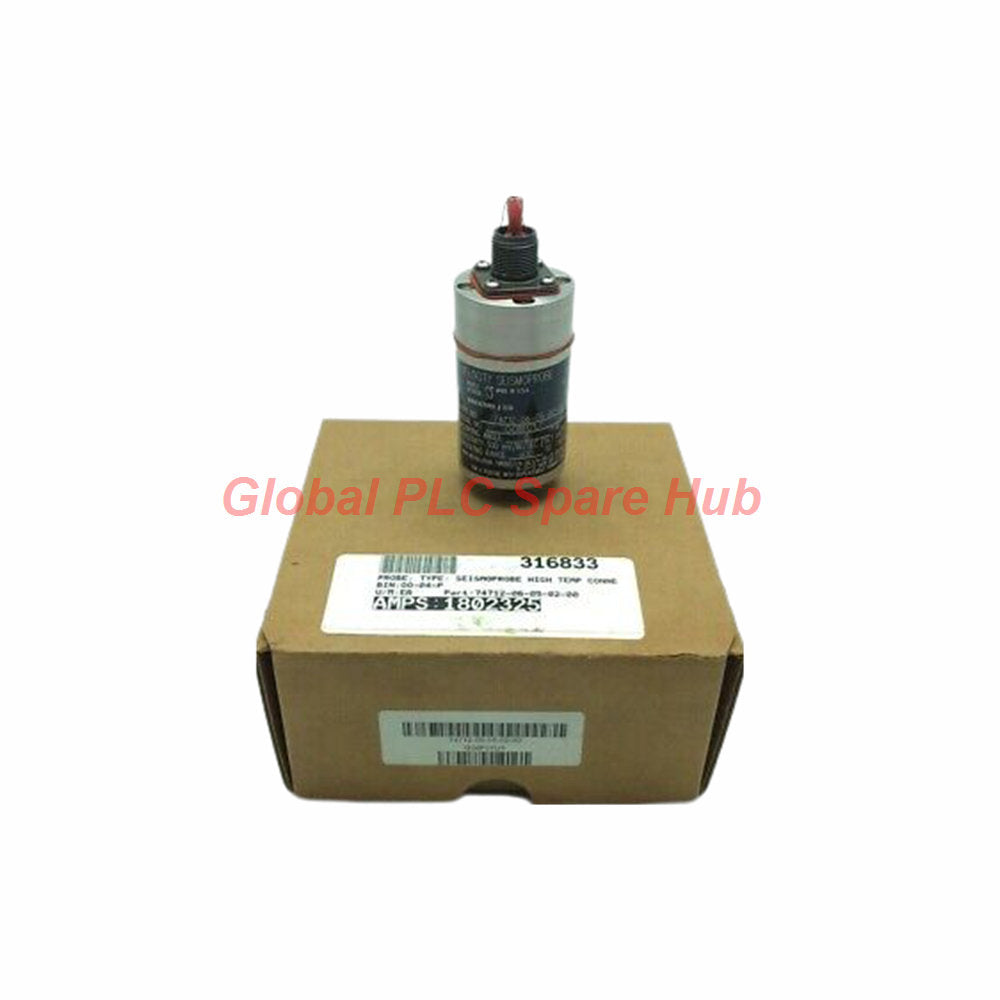

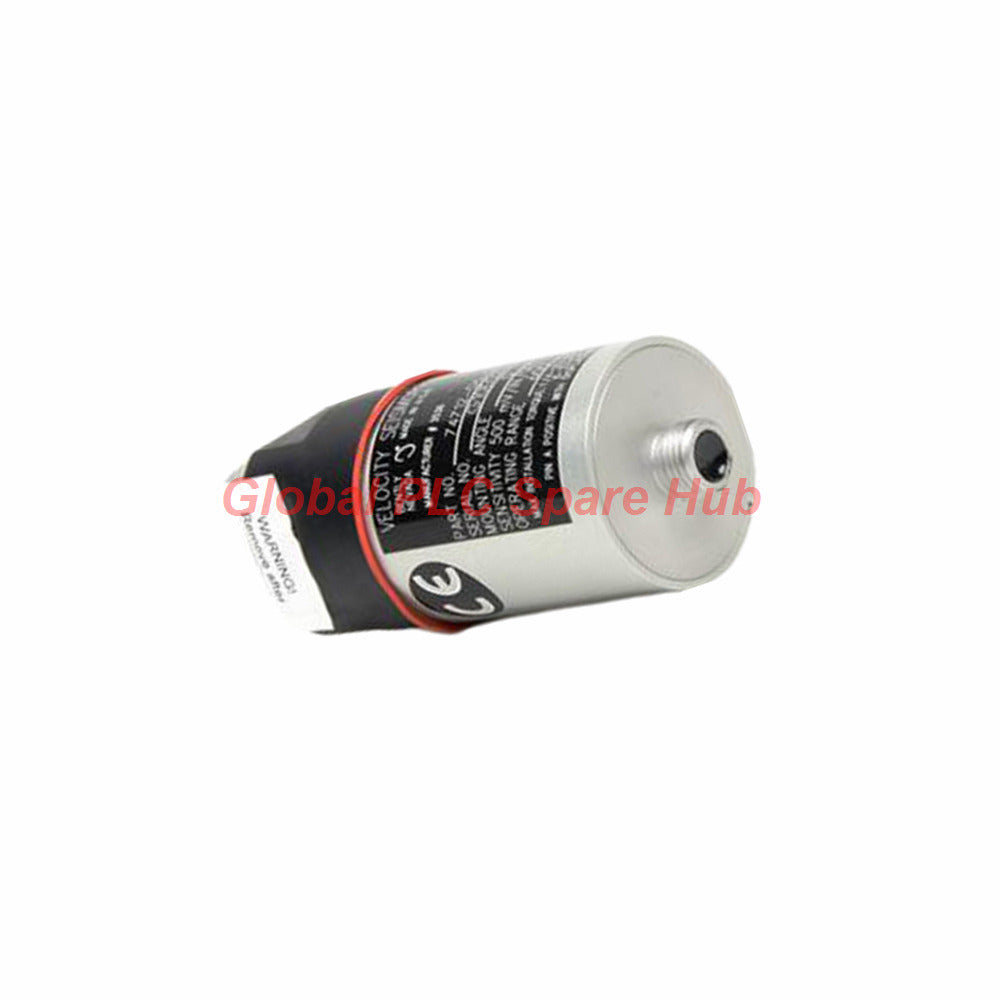

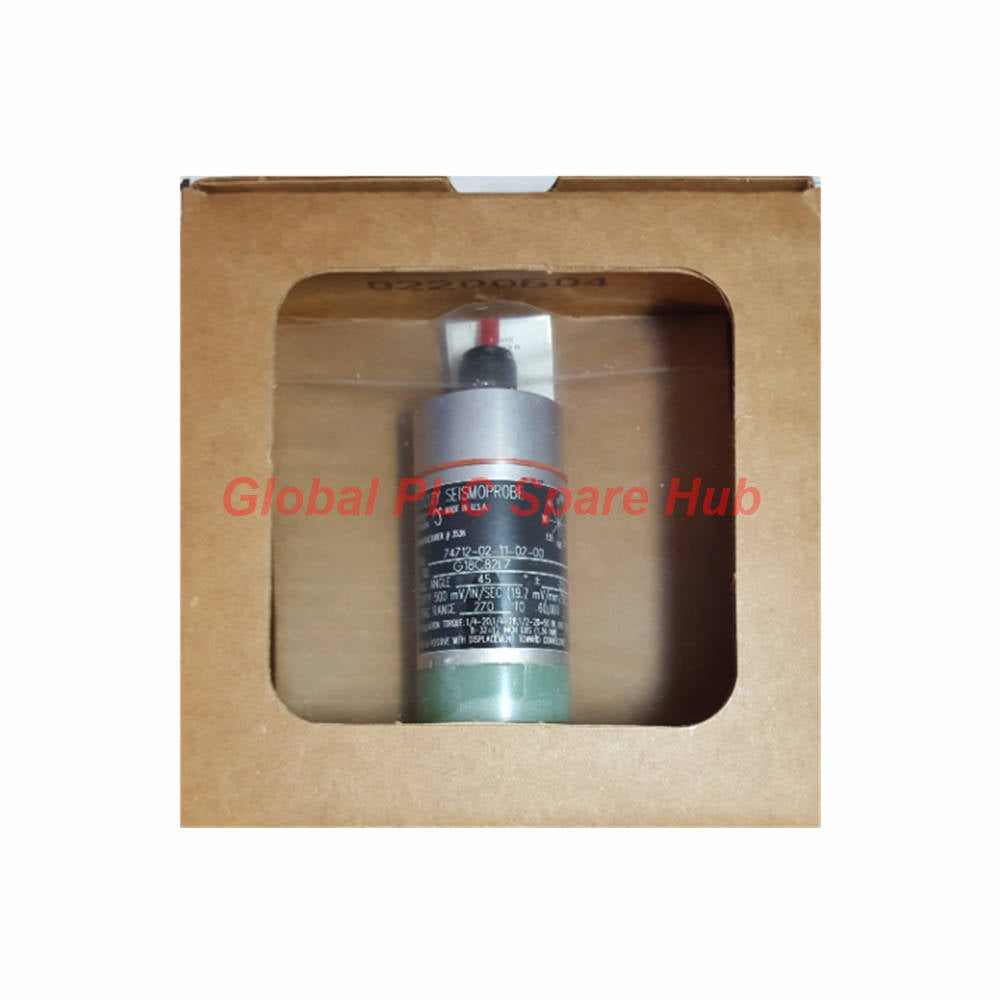

74712-03-10-02-00 Bently Nevada Velocity Sensor New
Manufacturer: Bently Nevada
Product No.: 74712-03-10-02-00
Condition： In stock
Product Type: Two-Wire Transducer
Product Origin: USA
Payment: T/T, Western Union
Weight: 480g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 74712-03-10-02-00 is a high-temperature moving-coil velocity transducer.
It belongs to the Bently Nevada Seismoprobe transducer product line.
This unit measures absolute bearing housing and casing vibration on critical rotating machinery.
Moving-coil technology operates reliably without external power supply requirements.
The rugged design resists impulsive impact forces effectively during machine operations.
Configuration Breakdown
-
74712 — Base Model: High-temperature Two-wire Seismoprobe Transducer
- -03 — Mounting Angle & Minimum Frequency Option: 90 ±2.5° orientation, 4.5 Hz (270 CPM) minimum frequency
- -10 — Mounting Base Option: Circular base with M10X1 threaded mounting stud
- -02 — Connector Option: Top-mounted two-pin connector interface
- -00 — Agency Approval Option: Standard non-hazardous area approval / No approvals required
Technical Specifications
| Specification Category | Engineering Parameter Value |
|---|---|
| Manufacturer Brand | Bently Nevada |
| Product Model Number | 74712-03-10-02-00 |
| Transducer Series | Seismoprobe Velocity Transducer System |
| Calibrated Mounting Orientation | 90° ±2.5° relative to horizontal position |
| Minimum Operating Frequency | 4.5 Hz (270 CPM) minimum frequency threshold |
| Measurement Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% at calibration angle |
| Frequency Response | 4.5 Hz to 1,000 Hz operating bandwidth |
| Dynamic Range | 2.54 mm (0.100 in) peak-to-peak maximum displacement |
| Amplitude Linearity | ±5% from 0.254 mm/s to 127 mm/s (0.01 to 5.0 in/s) at 100 Hz |
| Internal Coil Impedance | 1.25 kΩ ±5% DC coil resistance, 125 mH inductance |
| Operating Temperature Range | -29°C to +204°C (-20°F to +400°F) continuous operational rating |
| Shock & Impact Resistance | Withstands 50 g peak maximum acceleration along non-sensitive axis |
| Mounting Thread Torque | 5.6 N·m (50 in·lb) recommended mounting torque for M10X1 stud |
Cross-Model Comparison & Selection Guidance
| Feature / Parameter | 74712-03-10-02-00 | 74712-01-10-03-00 |
|---|---|---|
| Mounting Orientation | 90° ±2.5° (Horizontal orientation mounting) | 0° ±2.5° (Vertical orientation mounting) |
| Connector Position | Top mount connector (Option 02) | Side or secondary orientation connector (Option 03) |
| Mounting Base Stud | M10X1 metric threaded stud (Option 10) | M10X1 metric threaded stud (Option 10) |
| Technical Recommendation | Select for horizontally mounted casing positions where cables exit from top ports. | Select for vertically mounted machine bearing housings with side cable routing. |
Installation & Maintenance Guidelines
- Verify machine mounting location matches the required 90° ±2.5° calibration orientation.
- Clean target mounting surface to ensure flush physical contact.
- Apply 5.6 N·m (50 in·lb) torque when tightening the M10X1 mounting stud.
- Connect twisted-shielded field cabling up to 305 meters to monitoring systems.
- Check coil resistance periodically using a digital multimeter during maintenance turnarounds.
System Compatibility & Approvals
- Integrates seamlessly into Bently Nevada 3500 and 3300 monitoring rack systems.
- Operates without external power drivers due to self-generating moving-coil design.
- Option 00 designates standard non-hazardous industrial installation compliance.
Package Contents & Warranty Terms
- 1 x Bently Nevada 74712-03-10-02-00 Velocity Transducer
- Includes 12-Month complete factory warranty coverage against manufacturing defects.
Shipping & Express Delivery
- Orders dispatch within 24 to 48 hours after payment verification.
- Worldwide shipping provided via FedEx express logistics networks.
- Global delivery services available through DHL and UPS international express channels.
- Packaged securely in shock-absorbent materials to protect internal moving-coil elements.
Typical Application Scenarios & Diagnostic Capabilities
- Casing vibration measurements on high-temperature steam turbine housings.
- Vibration monitoring on hot gas expanders and exhaust duct structures.
- Portable diagnostic balancing checks on remote rotating equipment without local power.
- Absolute structural velocity measurements on high-temperature industrial blowers.
Global PLC Spare HUB's Insight
High thermal radiation near turbine casings quickly damages solid-state accelerometer electronics.
During a power plant outage, technicians replaced failing electronic sensors on an expander deck.
Installing the moving-coil 74712-03-10-02-00 resolved the continuous heat failure issues completely.
The unit withstands temperatures up to +204°C without active cooling air.
Always verify physical mounting angle prior to final stud torquing to preserve accuracy.
Frequently Asked Questions (FAQ)
Q: Why is mounting angle orientation critical for the 74712-03-10-02-00?
A: The internal coil suspension spring is pre-calibrated specifically for 90° horizontal alignment.
Q: Does this velocity transducer require an external power supply or driver module?
A: No, moving-coil sensors generate their own voltage signal through electromagnetic induction.
Q: How do I test internal coil health before placing the unit into service?
A: Measure DC resistance across pins A and B. A healthy coil measures 1.25 kΩ ±5%.
Q: What field cable length is supported before signal attenuation occurs?
A: You can run field wiring up to 305 meters (1,000 feet) to the monitoring rack.
Q: When should I select a moving-coil sensor over a solid-state Velomitor?
A: Choose moving-coil sensors for extreme temperatures up to +204°C or unpowered portable diagnostics.
