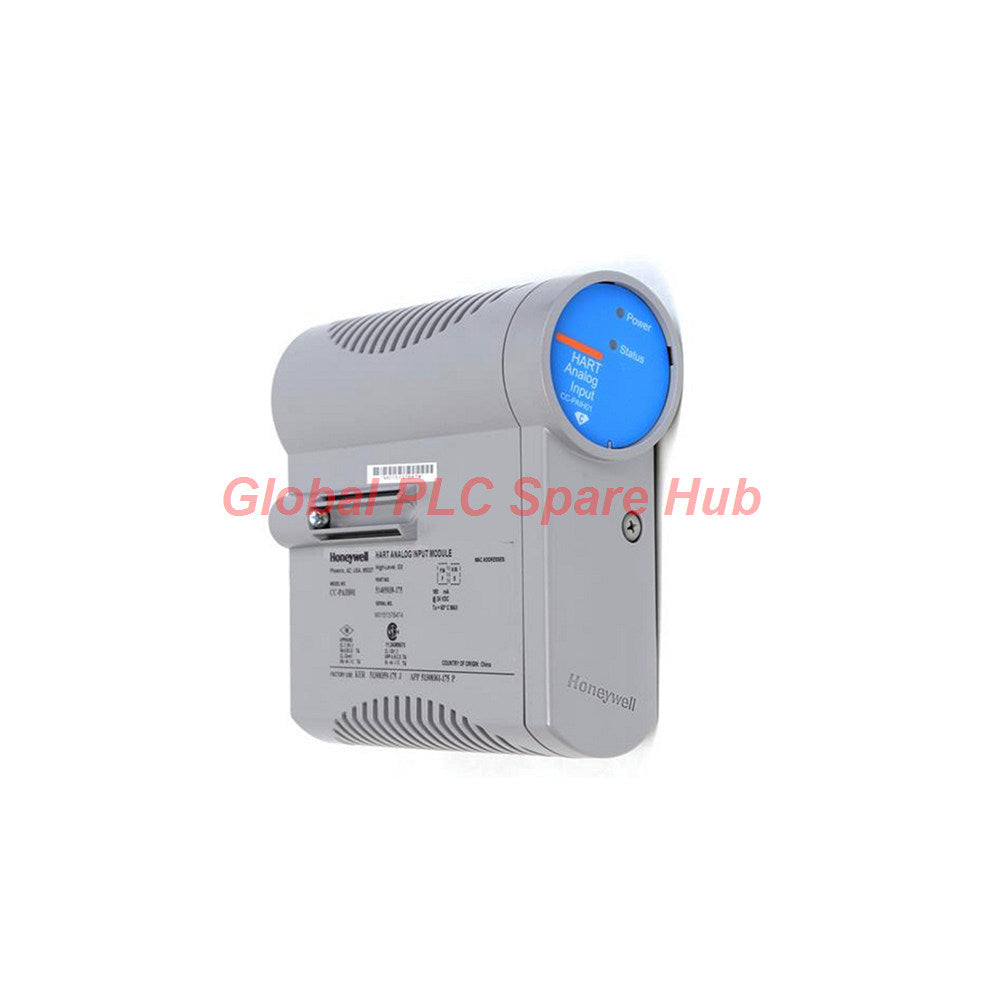

CC-PAIH02 Honeywell C300 Series Hart Analog Input Module
Manufacturer: Honeywell
Product No.: CC-PAIH02
Condition： In stock
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Overview & Expert Perspective
The CC-PAIH02 is an advanced high-level analog input module engineered by Honeywell for the C300 controller architecture. This hardware handles sixteen differential or single-ended channels supporting 4-20mA, 1-5V, and 0-5V signals with integrated HART protocol pass-through. Global PLC Spare HUB's Insight emphasizes that process control engineers choose the CC-PAIH02 unit when legacy loops require dual-mode flexibility and robust G3 harsh-environment corrosion resistance. During a recent chemical plant migration, our technical group deployed this card to capture live HART diagnostic variables directly from field transmitters without installing external multiplexers.
Core Technical Architecture & Specifications
| Engineering Parameter | Operational Specification |
|---|---|
| Manufacturer | Honeywell |
| Part Identifier | CC-PAIH02 |
| Control Family | C300 Series |
| Module Classification | High-Level HART Analog Input Module |
| Channel Configuration | 16 channels (Differential or Single-ended) |
| Signal Range Support | 4-20 mA, 1-5 Vdc, 0-5 Vdc |
| Power Dissipation | 60 Watts max |
| Environmental Rating | G3 hard-coating for corrosive gas defense |
| Status Indication | Dedicated power and channel status LEDs |
Deployment Environment & System Compatibility
- Engineered specifically for Honeywell Experion PKS C300 controller chassis slots.
- Deployed heavily in offshore oil platforms, petrochemical refineries, and wastewater treatment plants.
- Interfaces smoothly with smart HART-enabled pressure, temperature, and flow transmitters.
- Performs reliably under extreme temperature swings and high ambient humidity levels.
Advanced Diagnostics & Troubleshooting Capabilities
- Onboard channel status LEDs offer immediate visual confirmation of loop health.
- Hardware monitoring detects open-wire loops, over-range currents, and HART communication drops.
- Controller software logs transient signal spikes to prevent unexpected control loop windups.
Fulfillment, Logistics & Warranty Commitment
- Shipping Partners: Trusted global courier networks including FedEx, UPS, and DHL.
- Dispatch Window: Orders are securely packed and dispatched within 24 to 48 hours.
- Protection Plan: Backed by a comprehensive 12-month replacement warranty covering hardware defects.
Expert FAQs & Procurement Guide
Q: What precise configuration steps prevent HART communication packet drops on the CC-PAIH02?
A: Ensure proper shielded twisted-pair grounding at one end only and confirm that loop resistance stays within the 250 to 1100-ohm operating window.
Q: How can an engineer verify if a field channel has suffered internal input buffer damage?
A: Check the Experion control builder diagnostic tab for communication timeout flags, then measure terminal voltage using a calibrated digital multimeter.
Q: What factors should guide my decision when sourcing a replacement CC-PAIH02 module?
A: Always verify your rack's firmware revision, power budget allocation (up to 60W), and whether your installation demands G3 corrosive-resistant conformal coating.
Q: Can this input card process mixed 4-20mA and 0-5V signals simultaneously across different channels?
A: Yes. The hybrid analog architecture allows individual channel software configuration for current or voltage inputs without hardware jumpers.
Q: Why does the module indicate a power fault LED even when field loops appear active?
A: This typically points to an internal power supply rail sagging below operational thresholds or an overloaded 60W cabinet distribution block.
