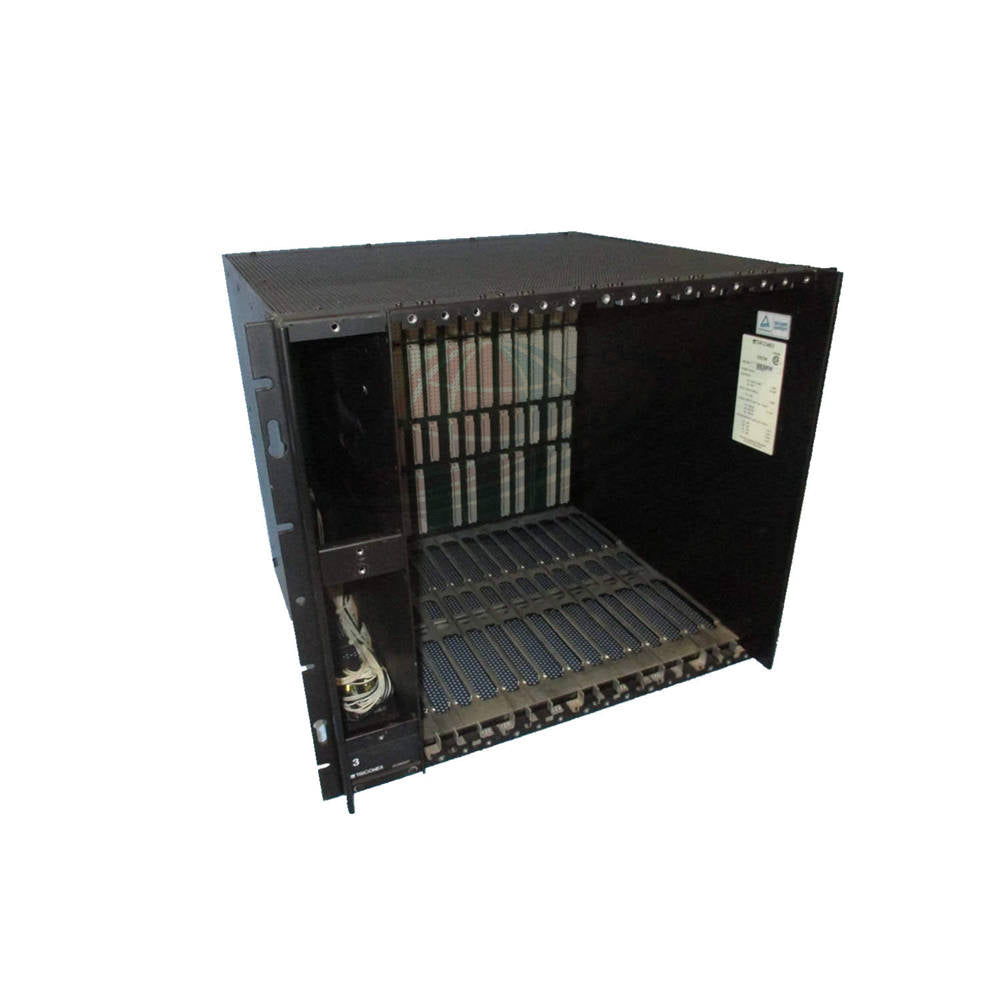

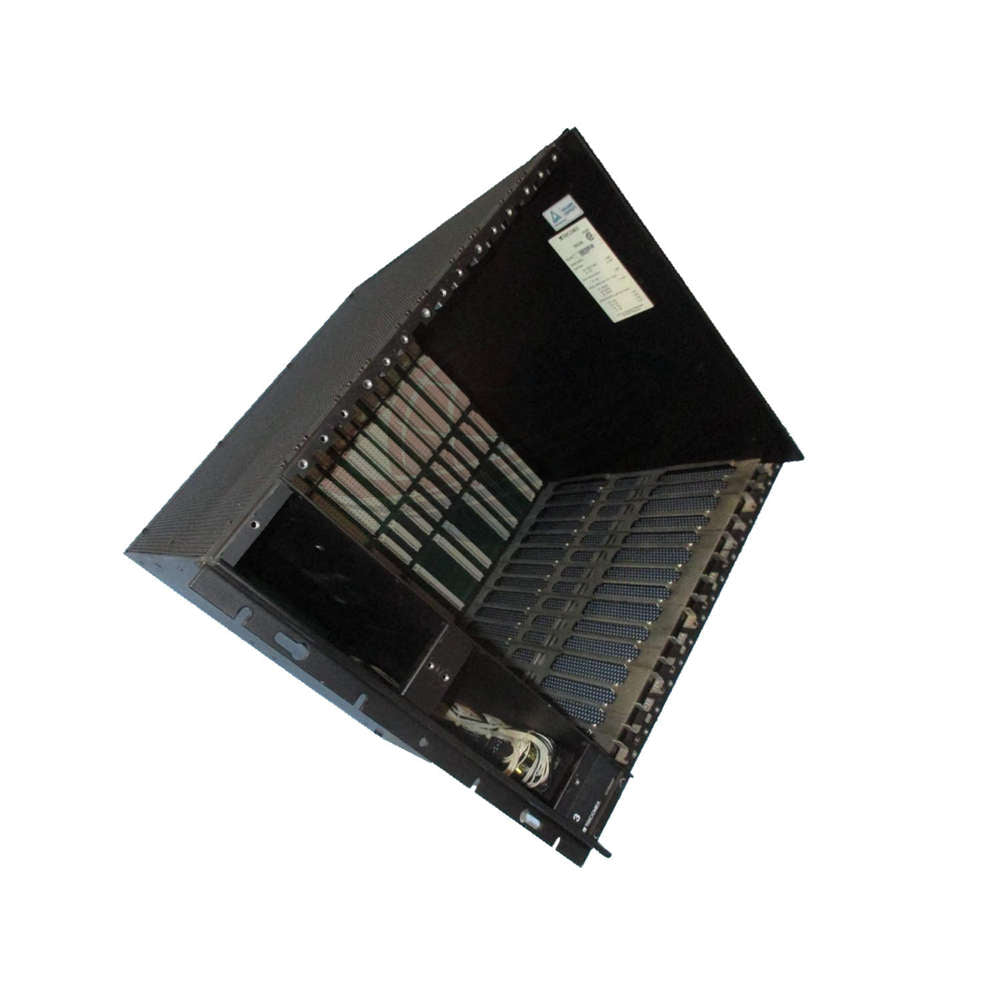

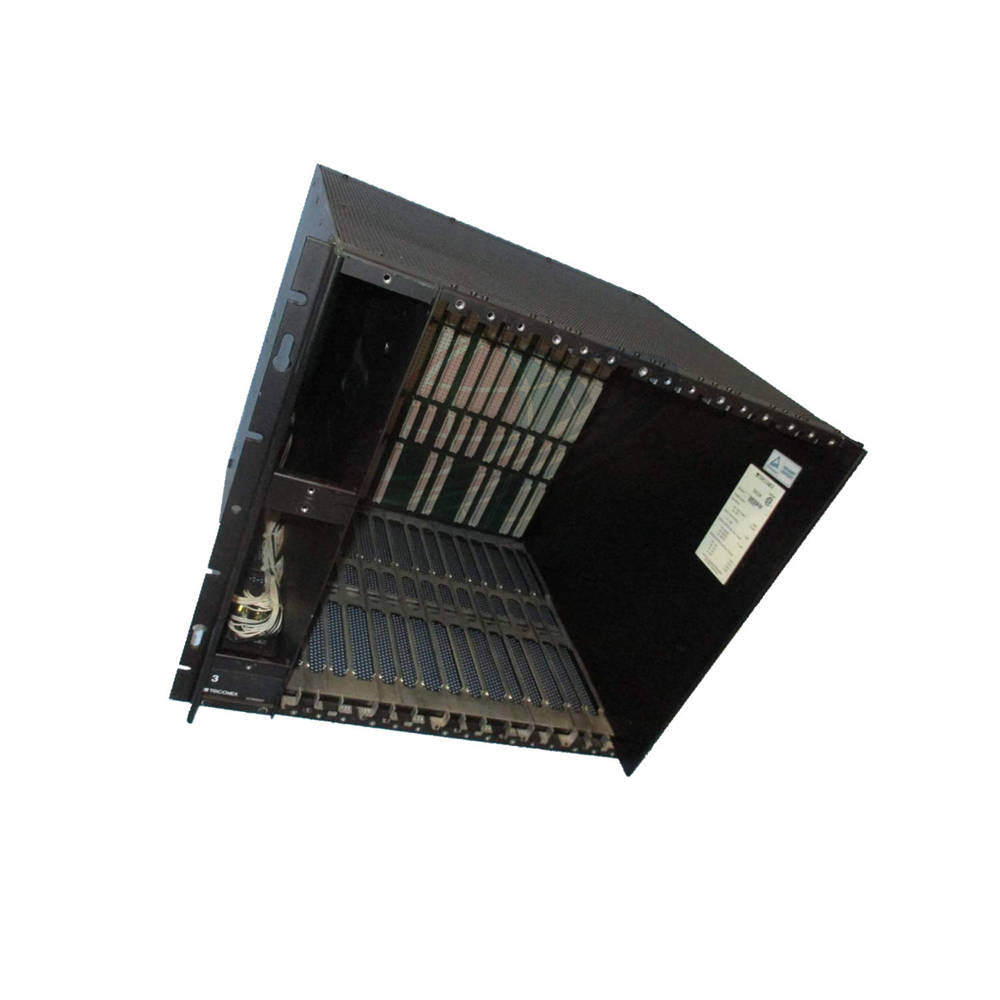

7400028-100 Triconex Main Chassis 15-Slot Rack Low Density

Global PLC Spare HUB's Insight

• The 7400028-100 serves as the structural and communication backbone for Triconex TMR systems.
• Engineering a fault-tolerant environment begins with this high-integrity 15-slot main chassis.
• Its low-density design focuses on thermal management and physical isolation between mission-critical modules.
• Passive cooling is a strategic choice for high-availability sectors, removing fans as a potential point of failure.
• This chassis ensures the high-speed "voting" logic of the Triconex system occurs with absolute bus integrity.

Infrastructure Architecture: Rack System

• The 7400028-100 is a field-proven host for processor, communication, and safety I/O modules.
• Constructed from high-grade aluminum, it provides superior RF shielding and natural heat dissipation.
• The 15-slot backplane is engineered for zero-latency data exchange across the critical system bus.
• Standard rack dimensions allow for seamless integration into 19-inch industrial control cabinets.
• This main chassis supports the full redundancy requirements of Triple Modular Redundancy (TMR) applications.

Technical Performance Matrix

• Brand: Triconex (Schneider Electric)
• Model Number: 7400028-100
• Chassis Type: Low Density Main Rack / Chassis.
• Capacity: 15 Dedicated Module Slots for flexible configuration.
• Supply Voltage: Universal AC 100-240 V, 50-60 Hz compatibility.
• Thermal Management: Passive Convection Cooling (No mechanical fans required).
• Operating Range: Reliable performance from 0°C to +50°C (32°F to 122°F).
• Structural Material: Lightweight, Ruggedized Aluminum for durability and grounding.
• Weight: 15 kg (approx. 33 lbs) net weight.
• Footprint: 45.7 cm x 48.3 cm x 40.6 cm optimized for industrial racks.

Equipment Integration & Applications

• Emergency Shutdown (ESD): Primary host for safety-critical trip logic in global refineries.
• Fire and Gas (F&G) Systems: Rugged housing for monitored input and alarm notification modules.
• Turbomachinery Control: Provides high-speed processing environments for overspeed protection.
• Nuclear Power Safety: Utilized in reactor protection systems requiring high slot density and isolation.
• Burner Management (BMS): Ensures sequence reliability for industrial boiler and furnace control.
• Legacy Migration: Direct fit for modernizing older Triconex installations without cabinet rework.

Diagnostic & Physical Integrity

• Backplane Integrity: Integrated bus monitoring architecture to detect slot communication faults.
• Power Distribution: Dual redundant power rail support to ensure continuous module uptime.
• Slot Addressing: Mechanical and electrical slot identification to prevent incorrect module insertion.
• Grounding Architecture: Superior aluminum conductivity for high-integrity logic and safety grounding.
• Reliability: Passive design significantly increases the Mean Time Between Failures (MTBF).

Logistics, Warranty, and Support

• Warranty Policy: 12-month comprehensive professional technical warranty included.
• Dispatch Window: Orders processed and shipped globally within 24 to 48 hours.
• Express Delivery: Secured transit available via FedEx, UPS, or DHL.
• Condition: Professional-grade hardware, fully meeting original manufacturer specifications.

Professional FAQ & Procurement Guide

• What defines this as a "Low Density" chassis in a Triconex system?
• Low density refers to the slot spacing optimized for superior airflow and reduced electrical cross-talk.
• Does the 7400028-100 require an external fan tray?
• It is designed for passive cooling; however, ensure cabinet ambient temperatures do not exceed 50°C.
• Can this chassis be used as a Remote Expansion (RX) rack?
• This is specifically a "Main" chassis variant, primarily intended to house the Main Processors (MP).
• Is the AC power input handled by the backplane or modules?
• The backplane distributes power from dedicated power modules to all 15 I/O and processor slots.
• What is the benefit of the aluminum construction?
• Aluminum offers better heat dissipation and electrical shielding than steel, crucial for safety-critical logic.
