6ES7414-3XJ00-0AB0 Siemens SIMATIC S7-400 CPU 414-3 – Fast Ship

6ES7414-3XJ00-0AB0 Siemens SIMATIC S7-400 Technical Overview

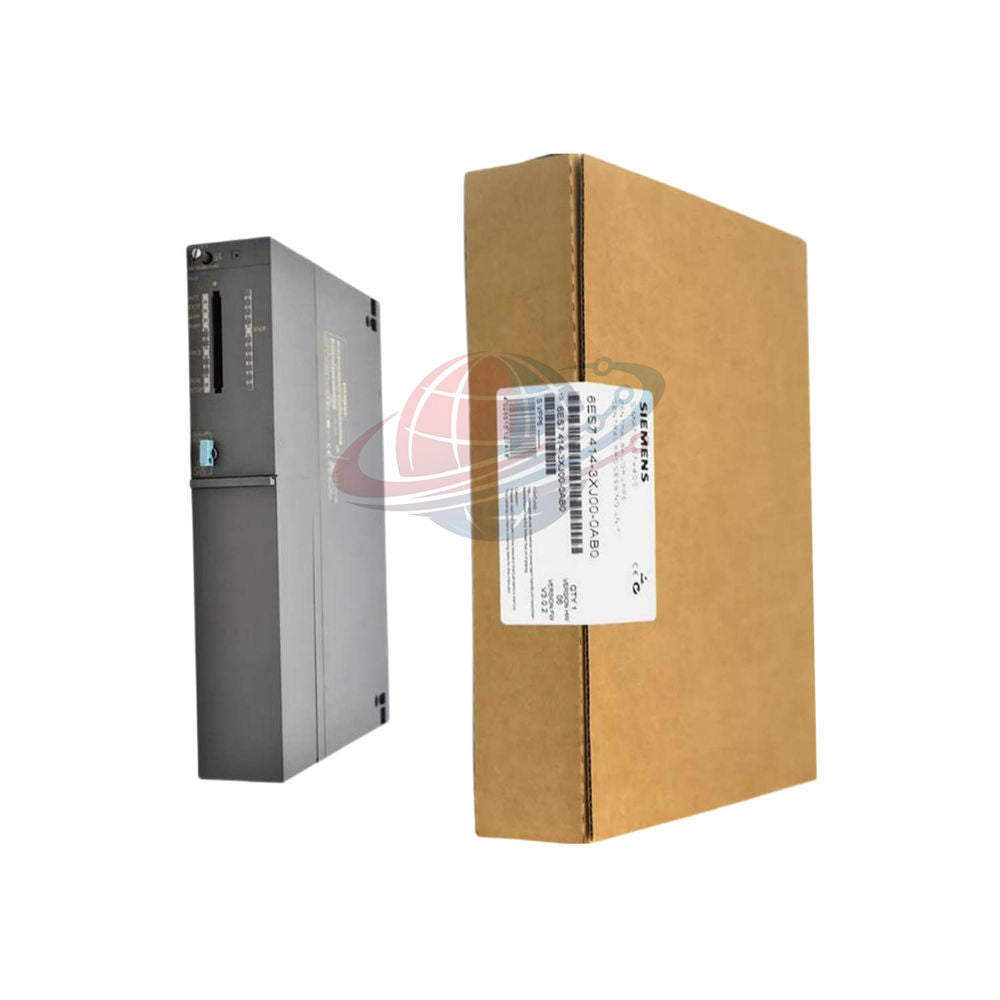

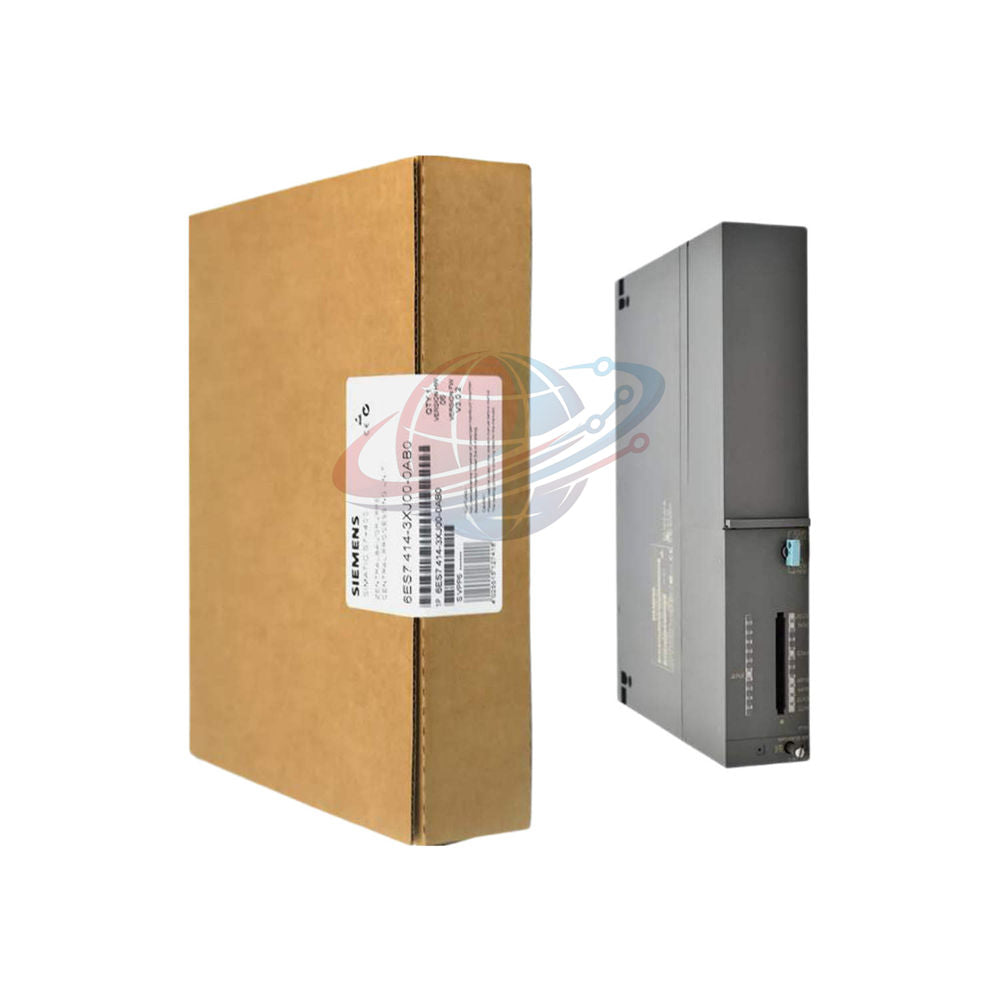

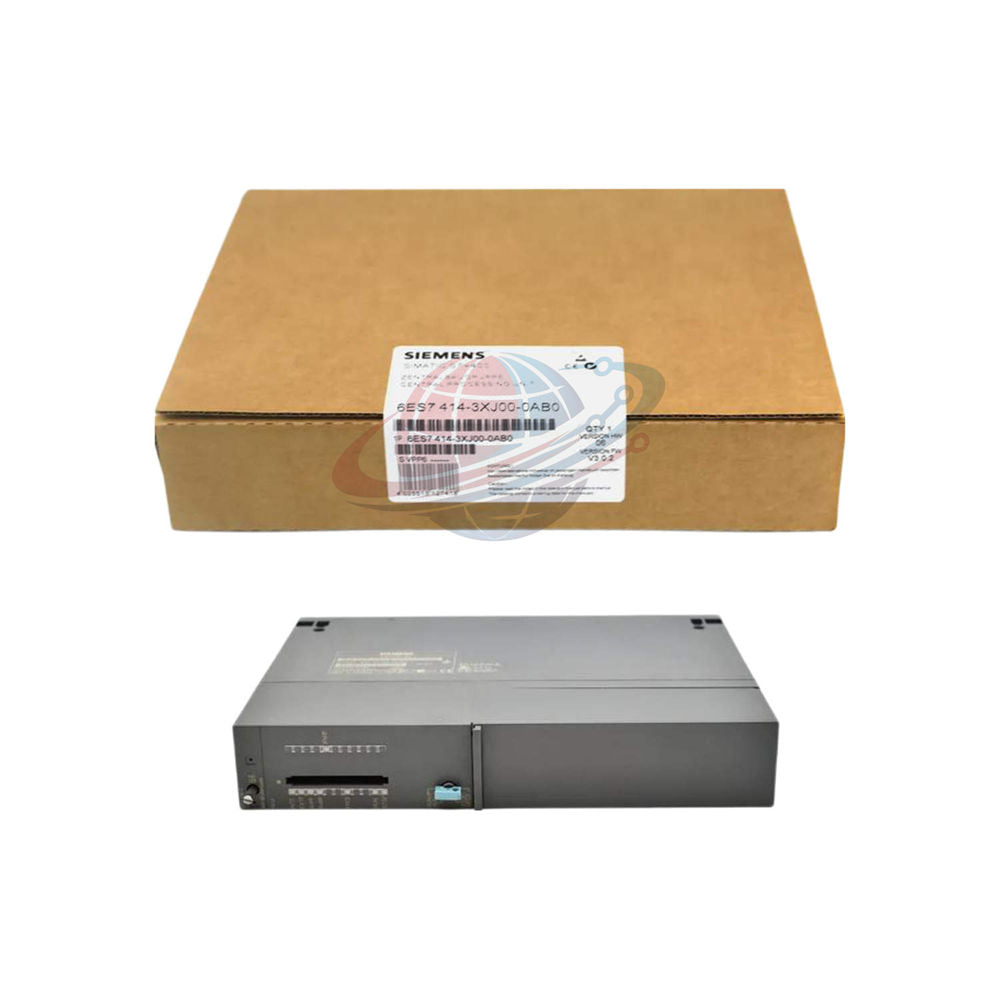

The 6ES7414-3XJ00-0AB0 is a high-performance CPU 414-3 controller designed for the demanding requirements of the SIMATIC S7-400 platform. This module is engineered for mid-to-high range applications that necessitate fast processing speeds and versatile communication options. With a dual-segmented work memory architecture and integrated MPI/PROFIBUS DP interfaces, it ensures seamless integration into complex industrial networks.

Global PLC Spare HUB's Insight

Our engineering team identifies the 6ES7414-3XJ00-0AB0 as a critical component for plants requiring Configuration in RUN (CiR). This allows for hardware modifications without process interruption. The CPU 414-3 strikes an ideal balance between the entry-level S7-400 units and the high-end 416 series, providing 768 KB of work memory which is sufficient for most medium-scale automation logic and data handling tasks.

Technical Specifications

• Brand: Siemens
• Model: 6ES7414-3XJ00-0AB0
• Series: SIMATIC S7-400
• Work Memory: 768 KB (384 KB Code / 384 KB Data)
• Processing Time: 0.1 µs (Bit/Word operations)
• Power Consumption: 1.5 A Typical (from 5V DC backplane)
• Power Loss: 7.5 W (Typical)
• Backup: Support for battery backup of all retentive data
• Nesting Depth: 24 per priority class

Interface Configuration Breakdown

• Interface 1: Integrated MPI/DP
  • Physics: RS 485
  • Transmission Rate: Max 12 Mbit/s
  • Function: PG/OP Communication, Routing, Global Data
• Interface 2: Integrated PROFIBUS DP
  • DP Master Capacity: Up to 96 slaves
  • Address Area: 6 KB Inputs / 6 KB Outputs
• Interface 3: Pluggable Slot
  • Compatible Module: IF 964-DP
  • Expansion: Provides additional DP Master/Slave functionality

System Diagnostics & Operation

The 6ES7414-3XJ00-0AB0 provides advanced diagnostic buffers with up to 3,200 entries. It supports Isochronous Mode for high-precision synchronization between the control program and the distributed I/O. The CiR synchronization feature allows hardware changes with a basic load time of only 100 ms, ensuring maximum system uptime.

Applications & Compatibility

• Compatible Devices: Works with all S7-400 UR1/UR2 racks and SM/FM/CP modules.
• Automotive Industry: Coordination of complex robotic assembly cells.
• Process Engineering: Management of large-scale chemical or water treatment I/O.
• Power Generation: Reliable monitoring in high-EMI environments.

Logistics & Service Terms

• Warranty: Full 12-month quality assurance.
• Shipping Carriers: Worldwide express via FedEx, UPS, and DHL.
• Lead Time: Fast dispatch within 24-48 hours.
• Packaging: Factory-standard anti-static protection.

Expert FAQ & Buying Guide

Question: Can I expand the work memory of the 6ES7414-3XJ00-0AB0?
Answer: No, the work memory is integrated and fixed at 768 KB. For larger memory requirements, consider a CPU 416 or 417. However, the load memory is expandable up to 64 MB via Memory Cards.

Question: What is the benefit of the "Configuration in RUN" feature?
Answer: It allows field engineers to add or remove distributed I/O modules via PROFIBUS without putting the CPU into STOP mode, which is vital for continuous processes.

Question: Does this unit support multi-computing?
Answer: Yes, you can install up to 4 CPUs of the SIMATIC S7-400 series in a single central rack for parallel processing tasks.

Question: How should I choose between RAM and FLASH memory cards?
Answer: Use RAM cards for debugging and frequent program changes. Switch to FLASH (FEPROM) cards for permanent, non-volatile storage once the system logic is finalized.

Question: Experience Tip: What causes the "EXTF" LED to light up?
Answer: On the 6ES7414-3XJ00-0AB0, this usually indicates an external fault such as a disconnected PROFIBUS slave or a power failure in an expansion unit. Check the 3,200-entry diagnostic buffer in STEP 7 for the specific error code.
