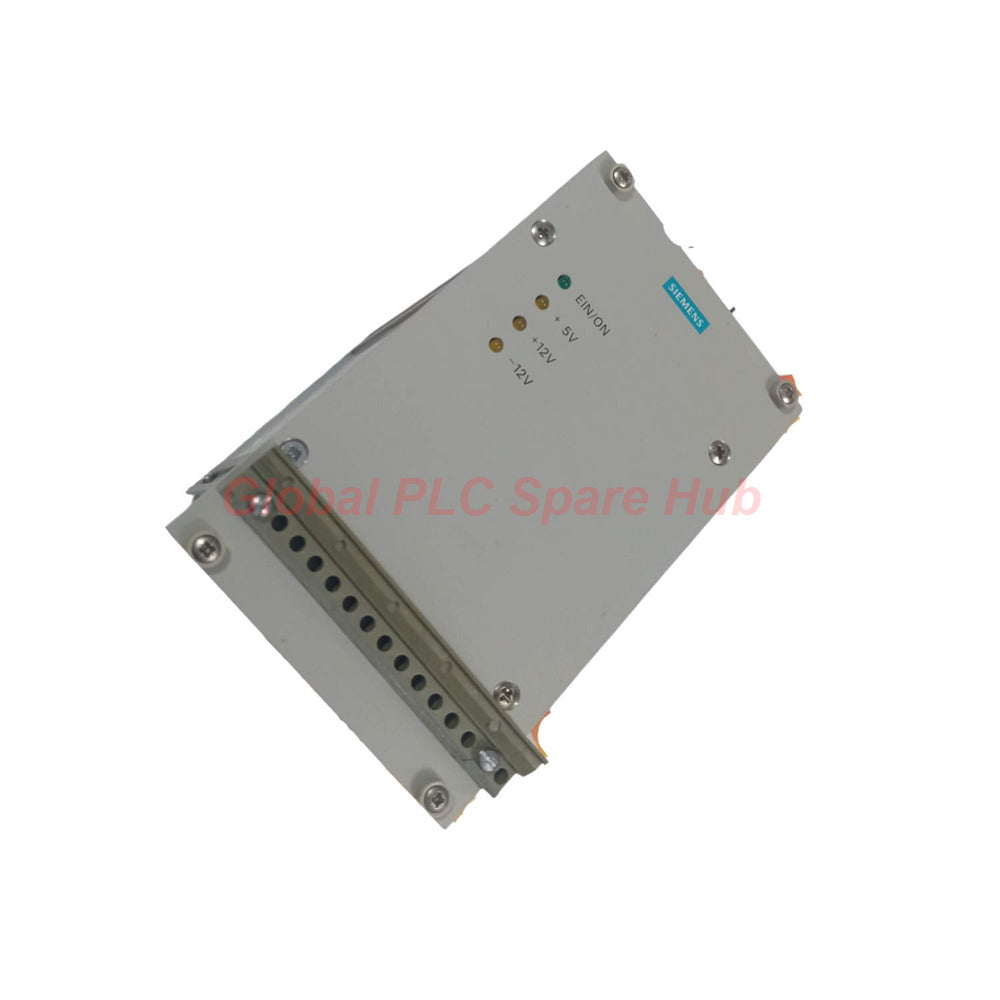

6AR1306-0HC00-0AA0 Siemens Power Supply Module | 3kW SICOMP System PSU

Technical Engineering Summary

The 6AR1306-0HC00-0AA0 is a high-performance power supply unit engineered specifically for the Siemens SICOMP ecosystem. It delivers high-density power conversion through a triple-rail output architecture (5.1V, 12V, -12V). Designed for industrial durability, it utilizes a passive cooling topology, eliminating reliance on mechanical fans and reducing the point-of-failure risk in clean or harsh environments.

Performance Specifications

• Manufacturer: Siemens
• Model: 6AR1306-0HC00-0AA0
• Input Range: 120 / 230 V AC (Auto-adaptive)
• Output Rails: +5.1 V DC (12 A) | +12 V DC (5 A) | -12 V DC (0.5 A)
• Total Power Rating: 3 kW
• Thermal Envelope: -20°C to +60°C (Operational)
• Storage Thermal Range: -40°C to +85°C
• Form Factor: 100 x 80 x 20 mm (Compact high-density)
• Certifications: CE, UL, CSA compliant

Global PLC Spare HUB Insight

Our technical team identifies the 6AR1306-0HC00-0AA0 as a foundational component for mission-critical SICOMP hardware. Its 3kW output makes it exceptionally suitable for powering industrial workstations, legacy rack controllers, and localized multi-voltage instrumentation. Its reliance on passive thermal dissipation ensures a longer operational lifespan in static environments where air filtration is strictly managed.

Service & Logistics

• Quality Guarantee: 12-month comprehensive warranty on all units.
• Shipping Partners: Global expedited transit via FedEx, UPS, or DHL.
• Lead Time: 24–48 hour dispatch window to minimize system downtime.
• Protection: ESD-shielded industrial packaging for secure global delivery.

Diagnostic & Operational Monitoring

The unit maintains high availability through its robust design. For preventative maintenance, operators should monitor the voltage stability of the +5.1V rail, as this serves as the primary logic supply for connected SICOMP modules. Any ripple or voltage sag detected via external instrumentation is a precursor indicator of capacitor fatigue, necessitating unit inspection.

Technical FAQ & Selection Strategy

• Why does the output configuration prioritize a 12A current on the 5.1V rail?
• The 5.1V rail is optimized for the logic-level current demands of Siemens SICOMP backplanes; this higher amperage headroom ensures stable CPU operation during high-compute load states.
• Is the 6AR1306-0HC00-0AA0 suitable for use in high-vibration environments?
• While it is robust, its passive cooling design makes it best suited for stationary cabinet mounting. If installed in high-vibration zones, we recommend additional chassis shock absorption.
• Can this module be used to replace older, lower-rated power supplies?
• Yes, provided the physical dimensions and connector pin-outs match your legacy SICOMP configuration. Always verify current-draw requirements of your existing cards before upgrading.
• How do I troubleshoot "No Output" conditions if input voltage is present?
• First, check for any tripped thermal or over-current protection within your local distribution block. If the unit remains unresponsive, check for internal fuse integrity, though factory-sealed units typically require replacement.
• What is the primary selection criterion for this model?
• Choose the 6AR1306-0HC00-0AA0 strictly for systems requiring the specific Siemens multi-rail voltage output standard. Substituting with generic power supplies often leads to bus-timing errors in SICOMP hardware.
