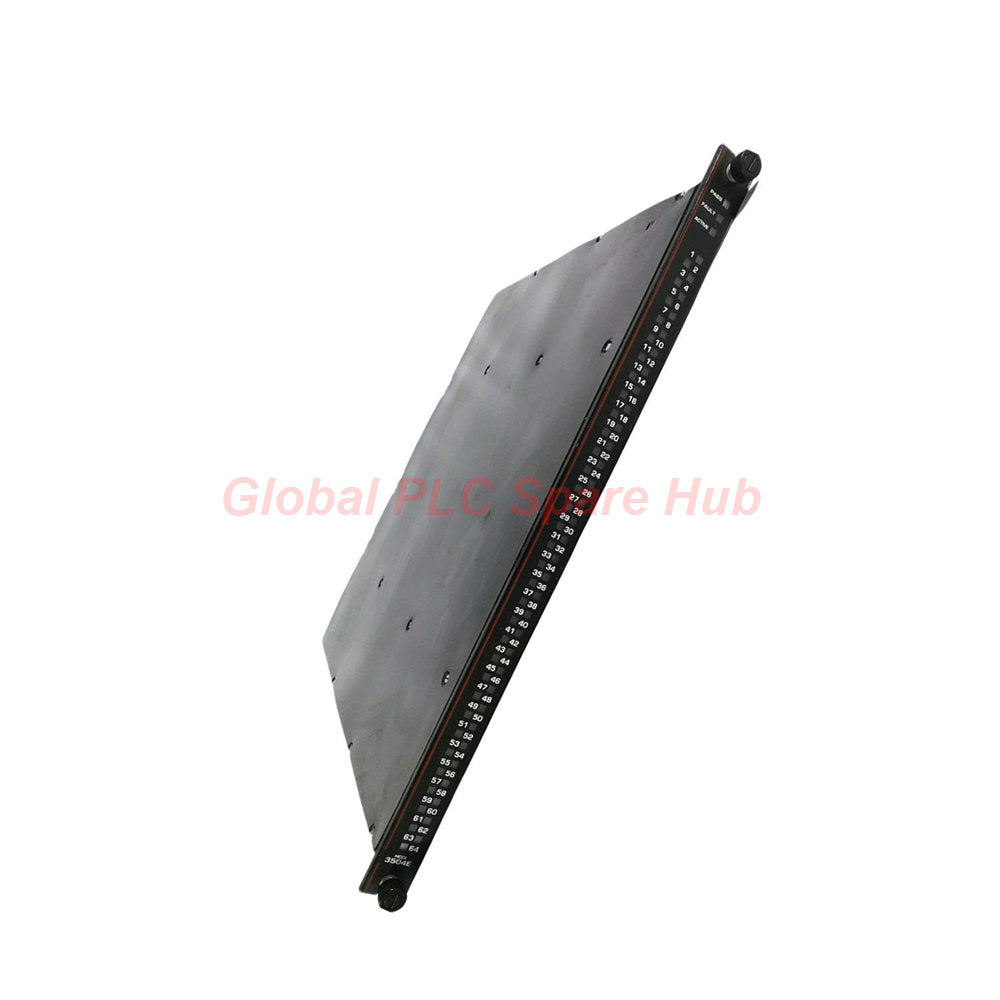

3504E Triconex TMR Digital Input Module | 24/48V High Density 64-Point

Product Overview

• The 3504E represents the pinnacle of high-density signal acquisition within the Triconex TMR architecture.
• Engineered for critical safety instrumented systems, this 3504E module interfaces with 64 commoned, DC-coupled points.
• It supports dual-nominal voltages of 24 VDC or 48 VDC, configurable via TriStation 1131 software.
• The high-density design allows for massive I/O consolidation without sacrificing fault tolerance or system integrity.


Engineering Specifications

• Manufacturer: Schneider Electric / Triconex
• Model Number: 3504E
• System Series: Tricon High-Density I/O
• Input Points: 64 Channels (Commoned, DC-Coupled)
• Input Voltage Range (24V Mode): 20–36 VDC
• Input Voltage Range (48V Mode): 40–72 VDC
• Over-Range Protection: 115 VAC continuous / 150 VDC continuous
• Hysteresis Performance: 4 VDC (at 24V) / 7 VDC (at 48V) typical
• Input Delay Time: < 10 ms (Off-to-On and On-to-Off)
• Internal Diagnostics: Stuck-at-ON and Stuck-at-OFF testing every 100 ms
• Glitch Duration: 1 ms pulse every 2–3 seconds for active circuit validation
• Visual Indicators: Individual per-point status plus Pass, Fault, and Active module LEDs
• Identification: Dark Red color-coded faceplate

Global PLC Spare HUB's Insight

• The 3504E is a "workhorse" for high-scale automation and critical safety logic.
• The 64-point density of the 3504E significantly reduces the number of chassis slots required.
• Robust over-range protection (up to 115 VAC) acts as a critical safeguard against accidental cross-wiring.
• Its ability to toggle between 24V and 48V makes the 3504E a versatile spare for diverse plants.
• This module is designed specifically for Tricon v9.x, v10.x, and v11.x controller racks.

Diagnostic Capabilities & Applications

• Continuous TMR Voting: Three independent legs vote on input data to eliminate single points of failure.
• FVD (Force-to-Value): Automated diagnostic glitches ensure the input opto-isolators are not physically stuck.
• Emergency Shutdown (ESD): Ideal for monitoring vast arrays of pushbuttons and limit switches in oil and gas.
• Fire and Gas (F&G): Supports high-density flame and smoke detector digital feedback channels.
• Boiler Management (BMS): Manages interlocking logic for large-scale power generation and heating units.

Logistics & Service Terms

• Packaging List: One (1) Triconex 3504E Module in industrial-grade protective packaging.
• Warranty Policy: 12-month comprehensive industrial warranty included with every unit.
• Dispatch Time: Orders are ready for shipment within 24–48 hours upon confirmation.
• Worldwide Shipping: Reliable express delivery via FedEx, UPS, and DHL.

Professional FAQ & Procurement Guide

• How does the 3504E handle different voltage standards on a single card?
• The thresholds are software-defined; select 24V or 48V in TriStation 1131 to align switching levels.
• Does the high density of 64 points affect the scan time of the module?
• No, the 3504E maintains a fast input delay of less than 10ms for high-speed response.
• What is the significance of the "Dark Red" color code on this module?
• It is a visual safety feature to ensure the 3504E is inserted only into compatible DI slots.
• Can this module survive a direct 110V AC short circuit on the field wiring?
• Yes, the 3504E features over-range protection up to 115 VAC to prevent module burnout.
• Selection Advice: When should I choose the 3504E over the 3503E?
• Choose the 3504E when rack space is limited or field instrumentation operates on 48V DC.
