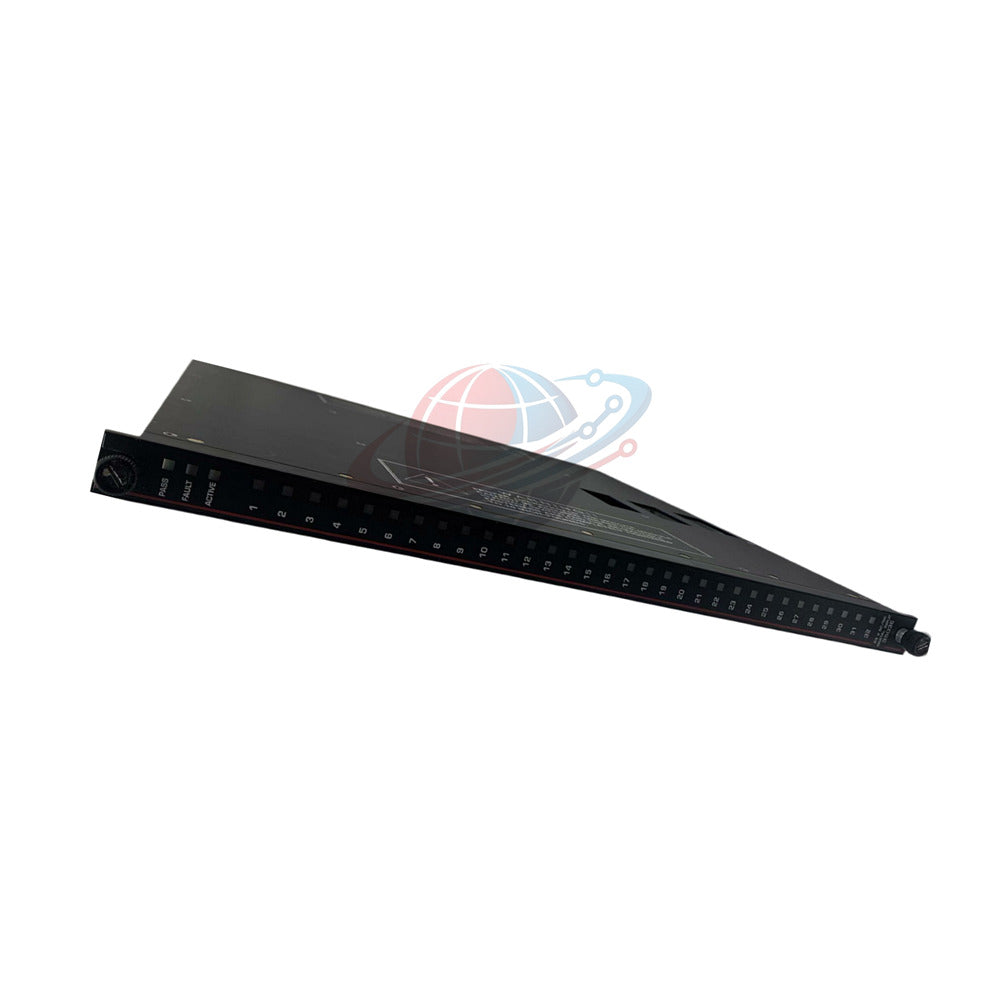

3503E Triconex DI Module 24VAC/DC | TMR Self-Test Redundant Input

Product Overview

• The 3503E is a Triple Modular Redundant (TMR) Digital Input module designed for the Triconex safety system.
• It features 32 input points, providing high-integrity monitoring for 24 VAC/VDC field signals.
• Equipped with three independent channels, the 3503E ensures that a single channel failure does not result in a system trip.
• The module includes advanced self-test capabilities to detect dangerous "Stuck-ON" hardware failures.

Technical Specifications

• Brand: Triconex
• Model: 3503E
• Type: TMR with Self-Test
• Input Capacity: 32 Points (Commoned in groups of 8)
• Nominal Voltage: 24 VAC/VDC
• Input Voltage Range: 20 - 42.5 VAC/VDC
• Frequency: DC or 47-63 Hz
• ON/OFF Thresholds: > 18 V (ON) | < 6 V (OFF)
• Point Isolation: 1,500 VDC
• Diagnostic Indicators: PASS, FAULT, ACTIVE, STUCK TEST
• Color Code: Dark Red

Diagnostic & Maintenance Features

• Continuous background diagnostics monitor the health of all three processing channels simultaneously.
• The 3503E supports Hot-Spare capability, allowing for on-line replacement without process interruption.
• Internal self-test switches simulate "OFF" conditions to verify optical isolation circuitry, critical for de-energize-to-trip safety loops.
• Mechanical keying prevents the 3503E from being installed in a chassis slot configured for incorrect voltages.

Typical Application Scenarios

• Critical Emergency Shutdown (ESD) logic in oil and gas refineries.
• High-availability Burner Management Systems (BMS) for industrial boilers.
• Fire and Gas (F&G) system monitoring requiring 100% signal triplication.
• Safety Interlock Systems (SIS) in chemical processing plants requiring SIL 3 compliance.

Global PLC Spare HUB’s Insight

• The 3503E is the industry standard for "Fault-Tolerant" digital inputs.
• Our engineers emphasize the value of the 1,500 VDC isolation, which provides a massive buffer against field-induced transients.
• When selecting the 3503E, always ensure your termination panels (ETP) are correctly matched to the dark red color-coded inputs for peak system reliability.

Shipping & Warranty Terms

• Warranty: 12-month quality guarantee on all 3503E modules.
• Express Logistics: Global shipping via DHL, FedEx, and UPS.
• Dispatch Time: Stocked items are shipped within 24 to 48 hours.
• Packaging: ESD-safe industrial packaging ensures the module arrives in factory-ready condition.

Expert FAQ & Selection Tips

• What happens to the process values during a self-test?
• The last valid input reading is frozen in the I/O communication processor, so the safety logic remains stable while the 3503E performs its internal stuck-ON check.
• How do I identify a channel-specific fault?
• The "FAULT" indicator on the front panel will illuminate; diagnostics through the Triconex software will then pinpoint which of the three redundant channels requires attention.
• Can I use the 3503E without an External Termination Panel (ETP)?
• No, the 3503E requires an ETP and the appropriate interface cable to connect field wiring to the Tricon backplane.
• What is the purpose of the Dark Red color code?
• It is a visual safety indicator to ensure that only 24V compatible modules and terminations are used together, preventing high-voltage damage.
• Is this module suitable for high-speed pulse counting?
• With response times up to 15ms, the 3503E is designed for status inputs. For high-speed counting, a dedicated pulse input module is recommended.
