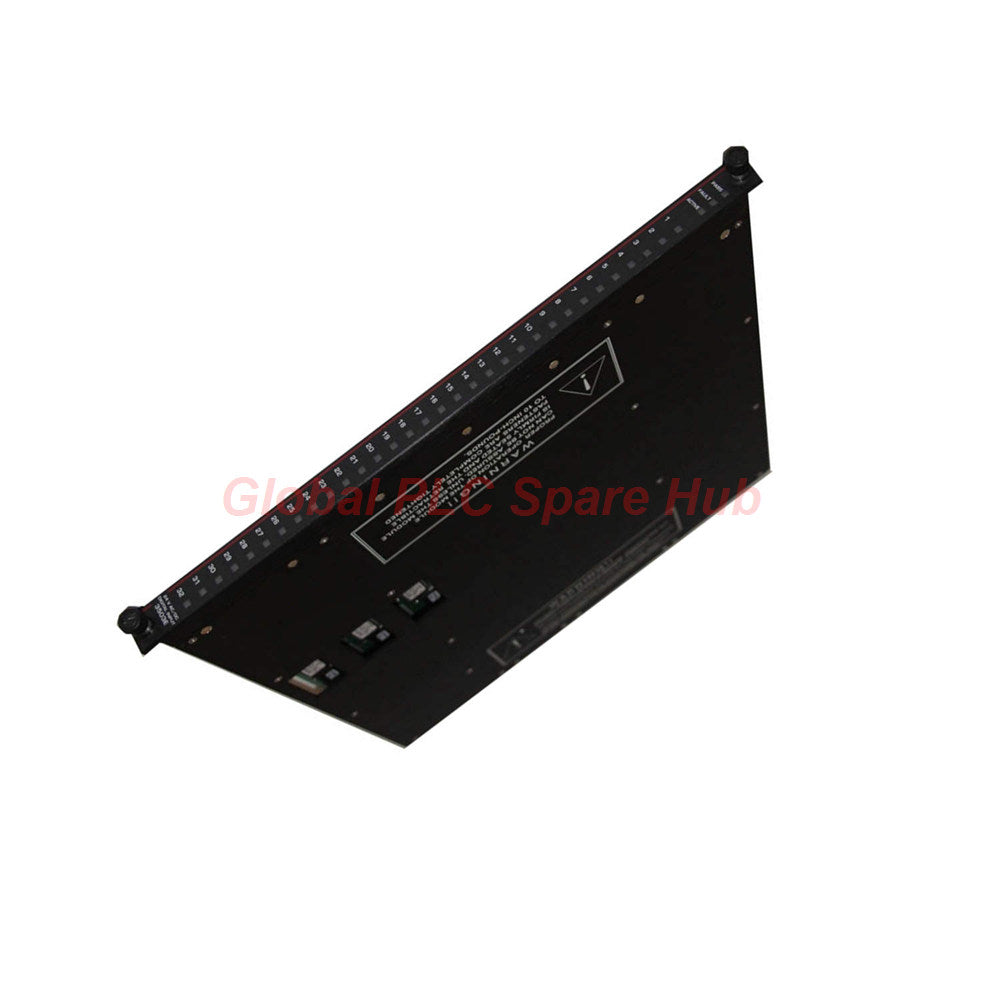

3502E Triconex Digital Input Module | 48V TMR Safety Interface

Global PLC Spare HUB's Insight

• The 3502E is a critical asset for high-integrity "de-energize-to-trip" safety loops.
• Unlike standard inputs, the 3502E specifically addresses the "Stuck-On" failure mode.
• The module momentarily freezes the I/O processor to verify "Off" states without disrupting the process.
• Engineers prioritize the 3502E for legacy 48V infrastructures requiring SIL3 TMR reliability.
• With 1,500 VDC isolation, it offers superior protection for the Tricon controller backplane.

Engineering Technical Profile

• Brand: Schneider Electric / Triconex
• Model Number: 3502E
• Series: Triconex TMR Series
• Module Type: Digital Input (DI) with Self-Test
• Input Density: 32 points, commoned in groups of 8
• Nominal Voltage: 48 VAC/VDC
• Operational Range: 35 to 95 VAC/VDC
• Frequency Compatibility: DC or 47–63 Hz
• Nominal Input Impedance: >2.9 KΩ
• Input Delay (ON to OFF): <15 ms
• Point Isolation: 1,500 VDC
• Identification Code: Dark Red Faceplate

Advanced Diagnostic Architecture

• Stuck-On Detection: Integrated self-test switch ensures the optical circuitry can recognize a zero-input state.
• TMR Voting: Employs three isolated channels; faults are identified at the channel level for maximum uptime.
• Live Status LEDs: Dedicated LEDs for PASS, FAULT, and ACTIVE provide immediate module health data.
• Hot-Spare Support: Enables 100% system availability during module maintenance or replacement.
• Input Status: One dedicated LED per point for rapid field-side troubleshooting.

Industry Application Scenarios

• Emergency Shutdown (ESD): Essential for monitoring pull stations and pressure switches in oil and gas.
• Turbine Protection: Reliable digital feedback for overspeed and vibration trip systems.
• Burner Management Systems (BMS): Safe monitoring of flame scanners in 48V control circuits.
• Power Grid Interfacing: High-reliability breaker status monitoring in substations.
• Critical Manufacturing: Safety monitoring where de-energize-to-trip logic is mandatory.

Delivery & Warranty Excellence

• Warranty: Comprehensive 12-Month industrial warranty on all 3502E units.
• Global Shipping: Fast international delivery via FedEx, UPS, and DHL.
• Dispatch Window: Orders ship within 24 to 48 hours following quality verification.
• Condition: Industrial-grade reliability, quality-inspected for safety-critical service.

FAQ & Expert Selection Guide

Why is the "Stuck-On" test specifically important for the 3502E?

It ensures the optical logic can recognize an "Off" state, which is vital for safety systems designed to trip upon loss of power.

Can the 3502E handle both AC and DC field signals simultaneously?

Yes, but it is recommended to maintain consistency within commoned groups of 8 to avoid signal cross-talk.

What is the significance of the "Dark Red" color code on the module?

It is a mechanical keying indicator to ensure the 3502E is correctly installed in a 48V DI slot.

How does the 15ms "On to Off" delay impact performance?

This delay filters out mechanical contact bounce, preventing nuisance trips in safety loops.

Selection Guidance: Should I purchase an ETP with the 3502E?

Yes, the 3502E requires a separate External Termination Panel and interface cable for operation.
