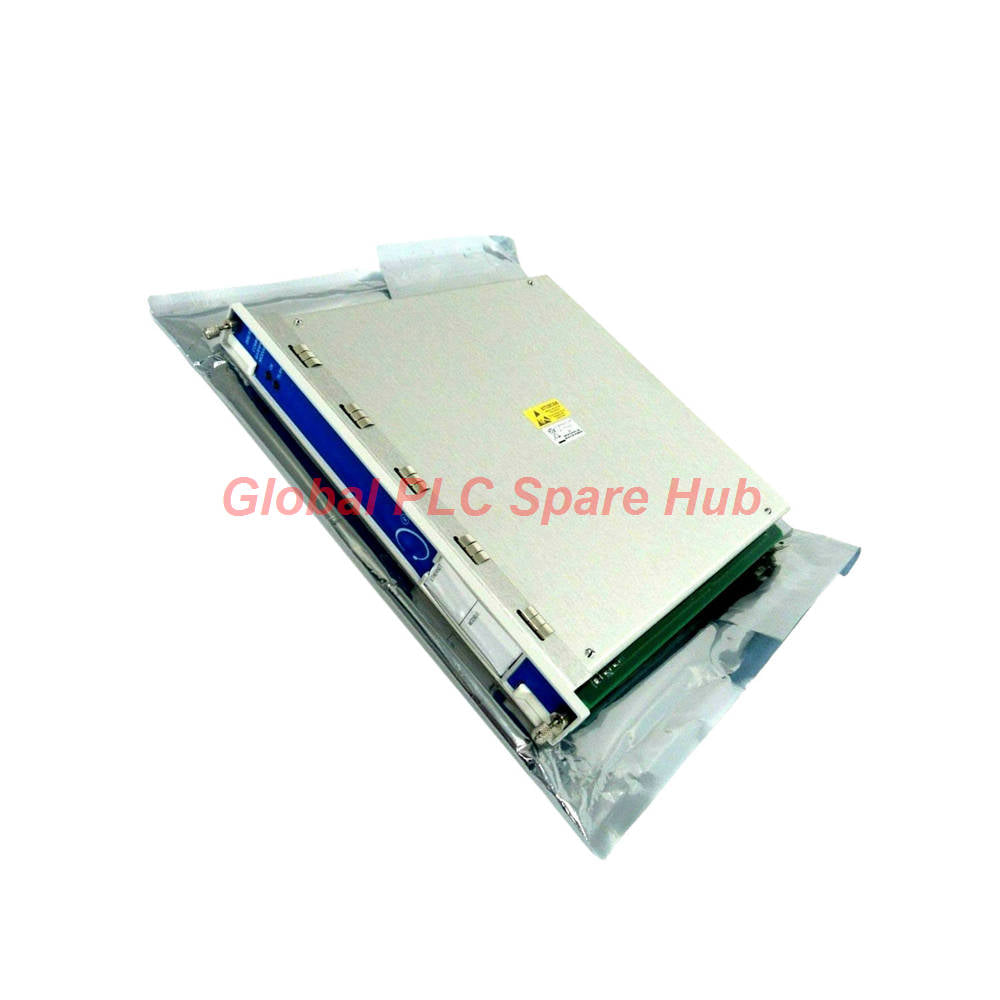

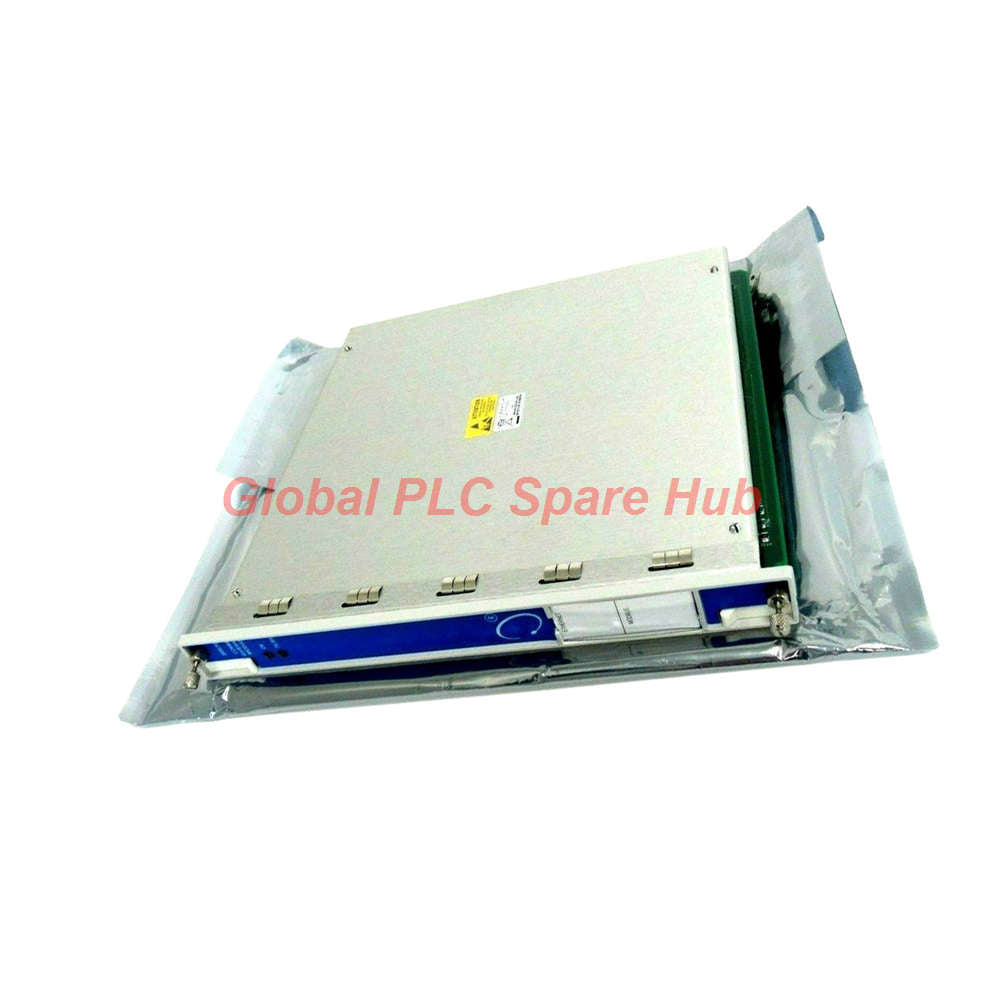

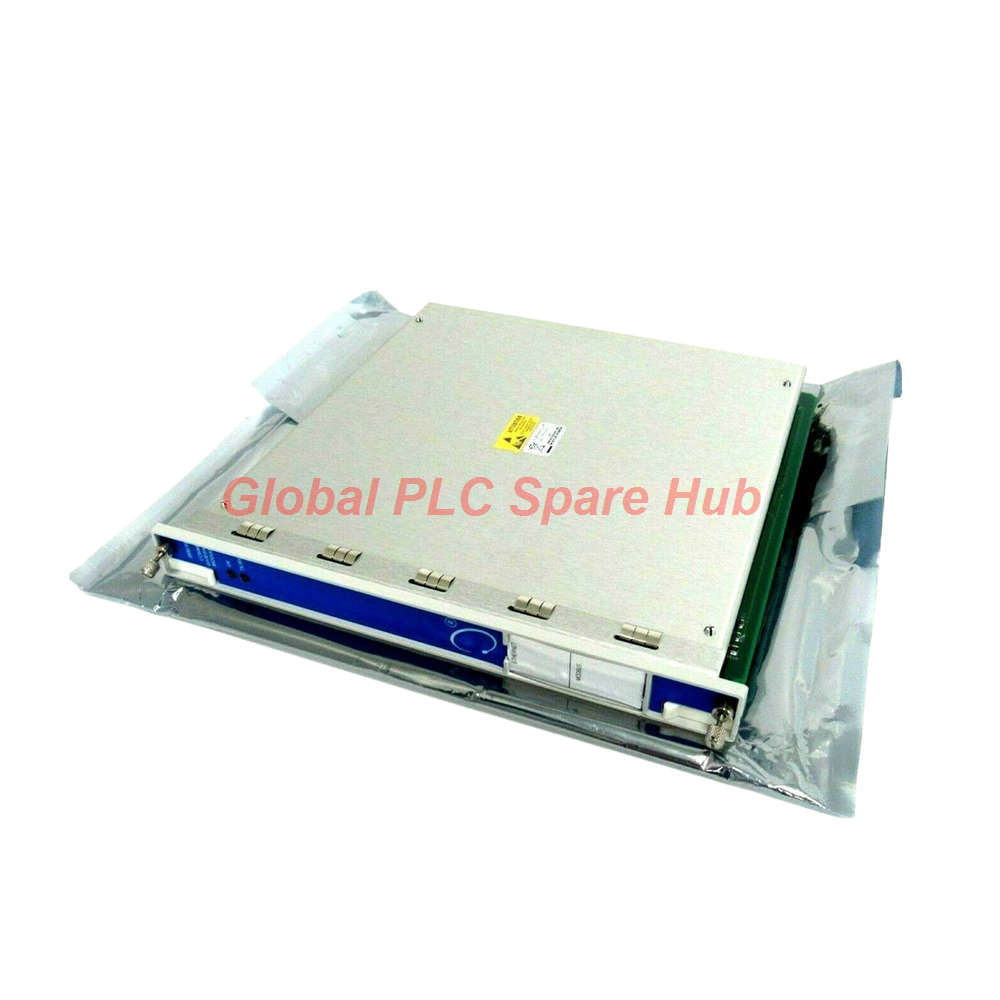

3500/92 136180-01 Bently Nevada Communication Gateway Module 3500 Series

3500/92 136180-01 Bently Nevada Communication Gateway Module 3500 Series Ethernet Interface

The 3500/92 model 136180-01 engineered by Bently Nevada functions as a core bridge unit within the 3500 Series machinery protection framework. This Communication Gateway module aggregates high-speed internal rack data—including time-stamped static measurements, module statuses, and dynamic alarm flags—and translates them for enterprise automation platforms. It supports simultaneous Ethernet TCP/IP and serial communications, eliminating data silos between mechanical protection systems and distributed control architectures.

Core Specifications & Hardware Metrics

• Brand: Bently Nevada
• Model: 3500/92 (Part Number: 136180-01)
• Product Family: 3500 Series
• Module Type: Communication Gateway Module with Serial and Ethernet Options
• Power Consumption: 5.0 Watts typical with Modbus RS232/RS422 I/O; 5.6 Watts typical with Modbus RS485 I/O
• Data Refresh Rate: Under 1 second across all rack-mounted modules
• Main Board Dimensions: 241 mm x 24.4 mm x 242 mm
• Main Board Weight: 0.82 kg
• I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm
• I/O Module Weight: 0.44 kg

Communication Protocols & Interface Layout

• Ethernet Interface: 10BASE-T star configuration via RJ-45 port supporting IEEE 802.3 standards
• Modbus Integration: Built-in Configurable Modbus Register Utility running Modbus/TCP and serial RTU protocols
• Proprietary Link: Dedicated BNC Host Protocol for seamless connectivity with 3500 Rack Configuration and Data Acquisition software packages
• Diagnostic Visuals: Front panel OK and TX/RX LEDs providing real-time operational feedback and internal bus traffic monitoring

Environmental Thresholds & Physical Footprint

• Operating Thermal Range: -30°C to +65°C (-22°F to +149°F)
• Storage Thermal Range: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: Up to 95 percent non-condensing
• Rack Space Allocation: Requires 1 full-height front slot for the monitor board and 1 full-height rear slot for the matching I/O module

Regulatory Compliance & Marine Certifications

• Electromagnetic Compatibility: Complies with EU EMC Directive 2014/30/EU under EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions)
• Electrical Safety: Meets LV Directive 2014/35/EU adhering to EN 61010-1 standards
• Environmental Standards: Fully compliant with RoHS Directive 2011/65/EU
• Marine Approvals: DNV GL classification rules for ships and offshore units; ABS rules for steel vessels and offshore structures

Targeted Equipment & Industrial Application Scenarios

• Primary Applications: Plant-wide distributed control system (DCS) integration, supervisory control and data acquisition (SCADA) networks, and machinery condition monitoring hubs.
• Compatible Machinery: Critical rotating assets including large steam turbines, centrifugal gas compressors, hydro generators, and multi-train petrochemical processing units.

Diagnostic Capabilities & Data Flow Performance

• Captures high-frequency vibration metrics, gap voltages, and channel alarm conditions without introducing latency bottlenecking into the main rack backplane.
• Translates legacy register layouts into customizable data blocks using the integrated Configurable Modbus Register Utility, simplifying third-party PLC mapping.

Logistics, Packaging, and Warranty Provisions

• Packaging Standard: Factory-sealed anti-static packaging designed to protect sensitive internal logic boards during transport.
• Global Dispatch: Fast and reliable shipping options within 24 to 48 hours via premium couriers including FedEx, UPS, and DHL.
• Warranty Terms: Backed by a comprehensive 12-month factory warranty covering material defects and manufacturing anomalies.

Frequently Asked Questions

Question: How does the 3500/92 handle primary value register configurations compared to legacy gateway models?

Answer: The unit replaces older primary value Modbus registers with a flexible Configurable Modbus Register Utility, allowing engineers to map specific monitoring parameters directly to custom memory addresses.

Question: What considerations are essential when selecting between RS232, RS422, and RS485 I/O options for plant integration?

Answer: Choose RS485 modules for long-distance multi-drop serial networks spanning noisy industrial floors, while reserving RS232 or Ethernet ports for localized configuration terminals and control room links.

Question: Can the 136180-01 gateway module be replaced live during active plant operations?

Answer: Yes, hot-swappable rack design allows technicians to replace the monitor board during runtime, provided standard safety precautions and proper backplane power procedures are followed.

Question: What causes update latency variations when pulling data across large 3500 monitoring racks?

Answer: While data collection rates depend on total rack channel density and active module configurations, internal bus optimization guarantees a complete refresh cycle under 1 second.

Question: How do marine certifications impact the deployment of this gateway in coastal or offshore facilities?

Answer: DNV GL and ABS approvals ensure the unit withstands severe shock, vibration, and environmental corrosion typical of marine vessels and offshore drilling platforms.

Global PLC Spare HUB's Insight

When integrating older Bently Nevada frameworks with modern control systems, field engineers frequently struggle with fixed Modbus mapping limitations. Utilizing the flexible register assignment tools inside the 3500/92 module eliminates hardcoded offset mismatches. Properly structuring your polling intervals over Ethernet TCP/IP ensures that plant historians capture high-resolution machinery health trends without overloading the internal rack bus or triggering timeout errors on your master DCS controllers.
