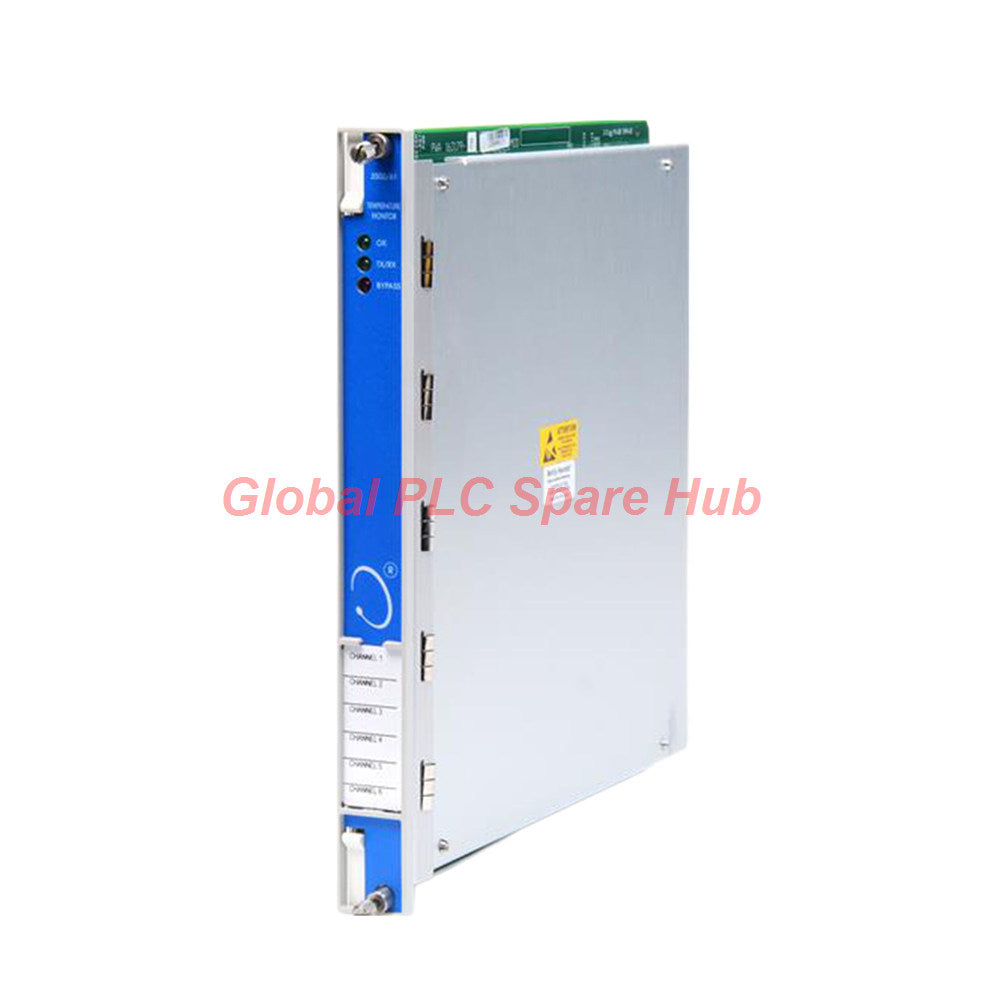

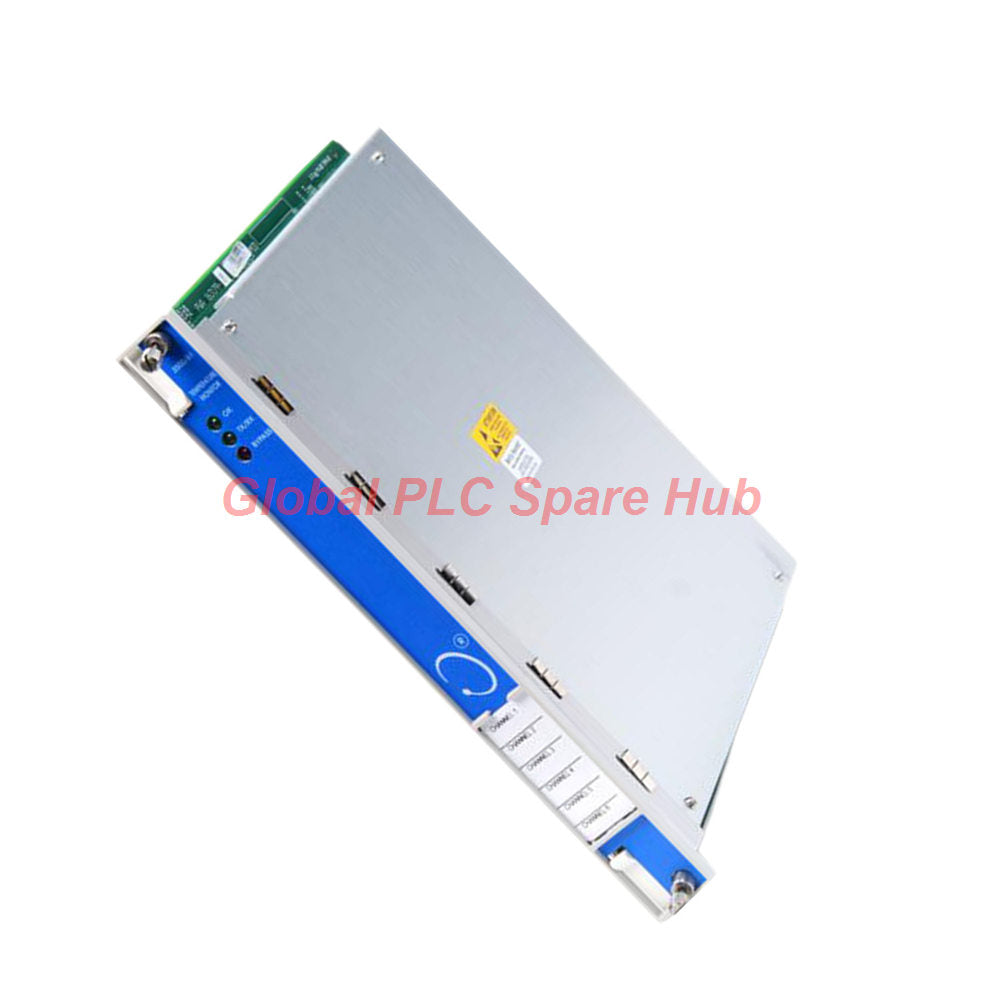

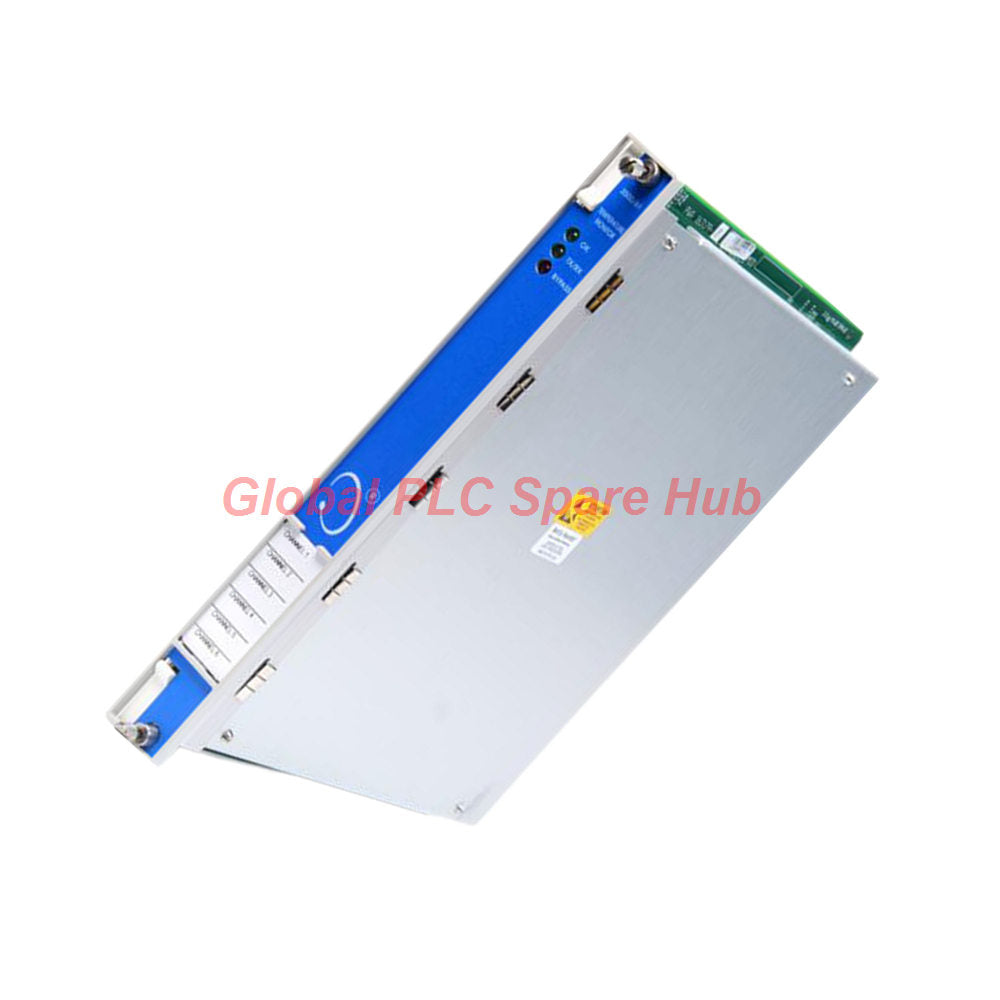

3500/61 Bently Nevada Temperature Monitor Module | 3500 Series RTD TC Card

Global PLC Spare HUB Review:

Industrial thermal management demands continuous, high-precision validation across multiple critical temperature vectors to avoid sudden asset failure. The Bently Nevada 3500/61 Temperature Monitor Module processes up to six independent RTD or thermocouple inputs with exceptional noise immunity. Unlike basic indicator units, this 3500 Series monitoring card incorporates advanced cold-junction compensation and optional 250 Vdc channel isolation, ensuring stable alarm drive logic for massive industrial generators and bearings.

Technical Performance Parameters

Module Variants and I/O Architecture

• Isolated vs Non-Isolated Configurations: Available in non-isolated standard formats or TC-isolated versions providing 250 Vdc channel-to-channel protection against electrical noise.
• TMR Multi-Card Layouts: Designed to mount in adjacent groups of three when implementing Triple Modular Redundant configurations for high-integrity protection.
• Software-Driven Setup: Eliminates manual hardware jumpers by utilizing configuration software to assign full-scale ranges and sensor types directly.

Operational Diagnostics and Health Monitoring

• Front Panel Annunciation: Real-time visual status verification provided by dedicated green OK LED, flashing TX/RX LED, and active Bypass LED.
• Short-Circuit Tolerance: Current output channels feature robust internal design ensuring monitor operations remain completely unaffected by external recorder short circuits.
• Sensor Break Detection: Continuous microprocessor self-audits identify open-circuit RTD or thermocouple loops instantly.

Global Logistics, Packaging, and Support

• Dispatch Timelines: Guaranteed fulfillment and shipping within 24-48 hours from order confirmation.
• International Carriers: Secure global transit handled via trusted couriers including FedEx, UPS, and DHL.
• Protection Warranty: Fully backed by a comprehensive 12-month warranty covering component reliability.

Target Equipment and Industrial Applications

• Large Steam Turbine Bearings: Monitors Babbitt temperature fields to detect excessive friction or lubrication breakdown early.
• Centrifugal Gas Compressors: Tracks thrust and journal bearing thermal profiles under high-load operating conditions.
• Heavy-Duty Industrial Generators: Guards stator windings and exhaust gas temperatures against over-temperature degradation.

Professional Frequently Asked Questions

What causes a sudden step-change on a thermocouple channel reading?
Field experience indicates that erratic thermocouple jumps usually stem from degraded insulation resistance or loose terminal block screw connections introducing ground loops. Check shield continuity and junction box integrity.

How do I choose between internal and external termination I/O modules?
External termination blocks offer higher measurement accuracy, such as reducing error down to ±1 °C for isolated setups, making them ideal for high-precision turbine monitoring where minimal drift is required.

Why is the RTD current source value critical during troubleshooting?
The module supplies a regulated 925 microamp current per transducer. Measuring this value helps technicians verify whether an input channel failure is caused by an open sensor wire or internal card circuitry.

What precautions are necessary when storing spare temperature modules?
Store units inside anti-static shielding packaging within an environment maintained between -40 °C and +85 °C to protect onboard calibration memory from environmental moisture and electrostatic discharge.

How does selecting a 3-wire versus 4-wire RTD configuration impact accuracy?
A 4-wire RTD setup completely eliminates lead-wire resistance errors by using two separate sense lines, which is highly recommended for long cable runs across large industrial plant layouts.
