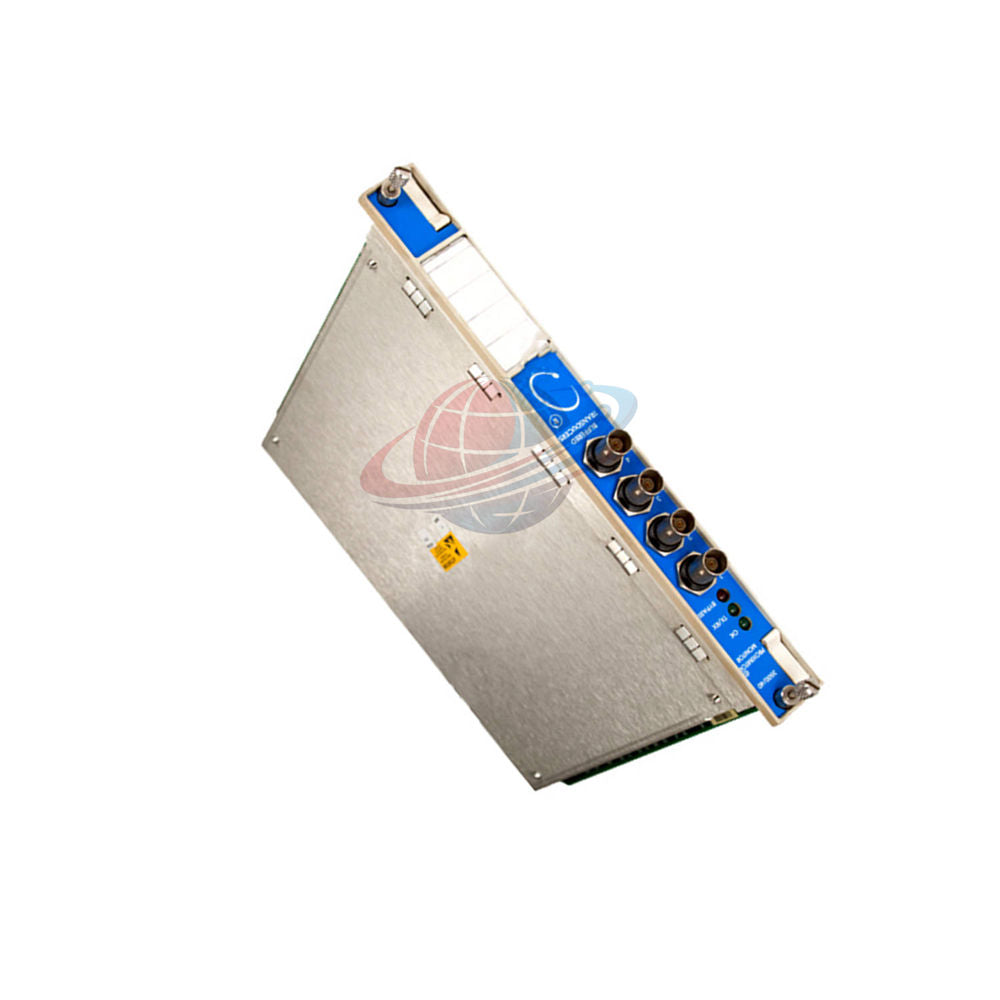

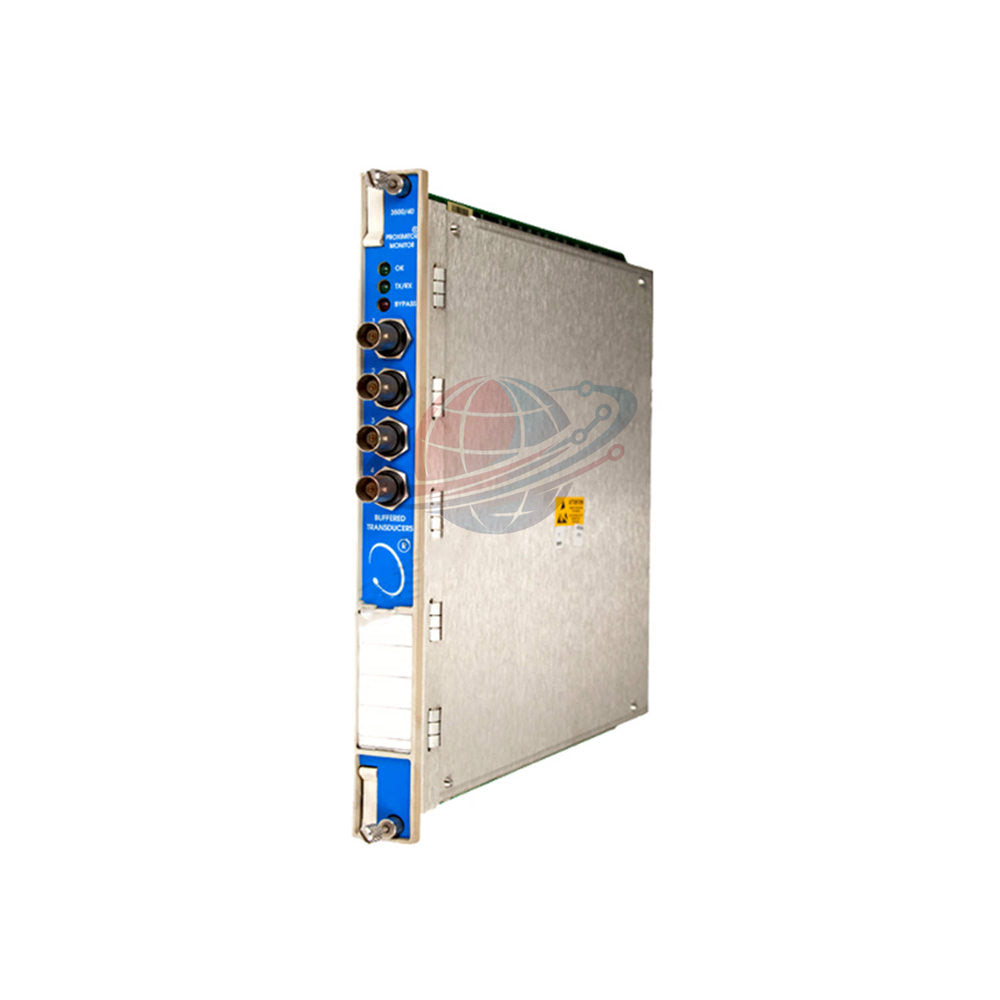

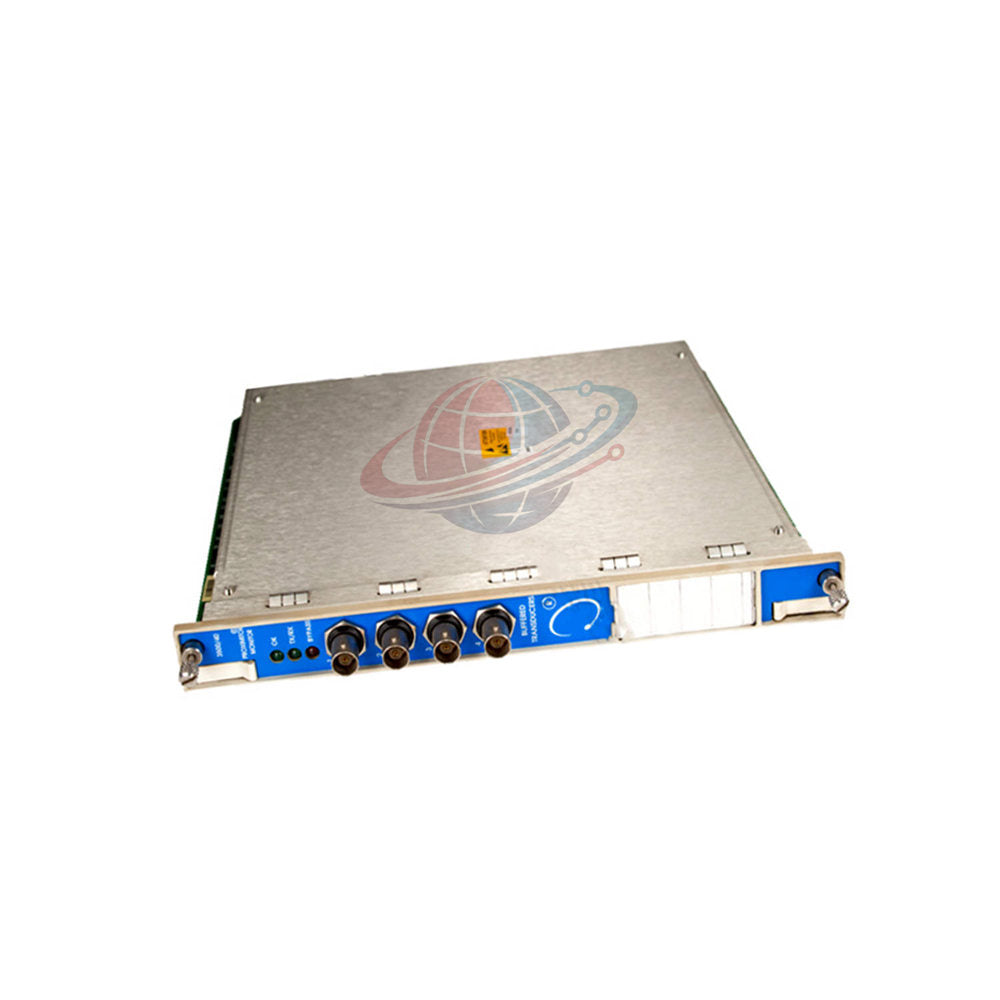

3500/40-03-02 Bently Nevada 3500/40M Proximitor Module

Bently Nevada 3500/40-03-02 Proximitor Monitor | Industrial Vibration Module

The Bently Nevada 3500/40-03-02 Proximitor Monitor is an advanced four-channel machinery protection module designed for continuous industrial asset monitoring. It acquires inputs directly from proximity transducers, processes dynamic signals, and delivers precise vibration and position measurements. Engineers utilize this module to safeguard critical rotating machinery by continuously evaluating operational parameters against user-configured alert and danger setpoints.

Technical Specifications

• Brand: Bently Nevada
• Model: 3500/40-03-02
• Series: 3500 Series
• Module Type: Proximitor Monitor with Internal Barriers and Internal Terminations
• Input Channels: 1 to 4 proximity transducer inputs
• Input Impedance: 10 kΩ standard inputs
• Power Consumption: 7.7 Watts typical
• Transducer Power Supply: -24 Vdc
• Buffered Output Impedance: 550 Ω
• Radial Vibration Sensitivity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
• Thrust Sensitivity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
• Eccentricity Sensitivity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil)
• Differential Expansion Sensitivity: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil)
• REBAM Sensitivity: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil)
• Radial Vibration Frequency Response: Direct filter 4 Hz to 4000 Hz or 1 Hz to 600 Hz
• Direct and Gap Accuracy: Within ±0.33 percent of full-scale typical, ±1 percent maximum
• Operating Temperature: Specified at +25 degrees Celsius (+77 degrees Fahrenheit)

Installation Guide

• Mount the 3500/40-03-02 module directly into any designated slot within the standard 3500 Series rack framework.
• Ensure the system utilizes compatible firmware revisions including 3500/01 Software Version 2.50, 3500/02 Software Version 2.20, and 3500/03 Software Version 1.21 or later.
• Connect proximity probes to the internal termination I/O module matching the designated channel terminals.
• Verify proper rack bus communication through the front panel TX/RX LED indicator before system startup.

Commissioning and Maintenance Convenience

• Configure channel parameters remotely using the 3500 Rack Configuration Software interface.
• Monitor channel operational status instantly via dedicated front panel LED indicators for OK, TX/RX, and Bypass modes.
• Access raw vibration signals safely using front-panel coaxial connectors featuring short-circuit protection.
• Replace modules seamlessly during routine maintenance without disrupting adjacent rack operations.

Compatibility and System Requirements

• Compatible exclusively with 3500 Series machinery protection racks and internal termination I/O architectures.
• Requires appropriate rack firmware and configuration software versions to support advanced filtering and measurement functions.
• Operates seamlessly with standard Bently Nevada proximity transducers and eddy current probes.

Certification and Compliance

• Agency Approval: ATEX, IECEx, and CSA Class 1, Zone 2 hazardous location certifications.
• Compliance: Meets rigorous industrial safety and electromagnetic interference standards.

Package Contents and Warranty

• Package Includes: One Bently Nevada 3500/40-03-02 Proximitor Monitor module in factory-sealed original packaging.
• Shipping Methods: Fast dispatch via FedEx, UPS, and DHL within 24 to 48 hours of order confirmation.
• Factory Warranty: Comprehensive 12-month warranty included with every purchase.

Typical Application Scenarios and Diagnostic Capabilities

• Application Scenarios: Continuous monitoring of steam turbines, gas compressors, centrifugal pumps, and large industrial gearboxes.
• Diagnostic Capabilities: Detects shaft radial vibration, thrust position wear, rotor eccentricity, and differential thermal expansion.
• Protection Mechanism: Triggers immediate machine shutdown alerts when vibration amplitudes exceed pre-configured safety thresholds.

Buying Guide

• Verify your existing rack I/O configuration type to ensure compatibility with internal termination modules.
• Confirm that your system software versions meet the minimum firmware requirements before integrating the 3500/40-03-02 module.
• Select appropriate hazardous location rating options to match your plant installation environment.

Frequently Asked Questions

Question: What software version is required for the 3500/40-03-02 module?

Answer: The system requires 3500/01 Software Version 2.50, 3500/02 Software Version 2.20, and 3500/03 Software Version 1.21 or later.

Question: Can external termination blocks be used with this module?

Answer: No, external termination blocks cannot be used with internal termination I/O modules like the 3500/40-03-02.

Question: What hazardous area certifications does this monitor carry?

Answer: The unit holds ATEX, IECEx, and CSA Class 1, Zone 2 agency approvals for hazardous operational environments.

Global PLC Spare HUB's Insight

Field engineers frequently encounter high electrical noise environments in heavy industrial plants. When deploying the Bently Nevada 3500/40-03-02 Proximitor Monitor, ensuring proper cable shielding and grounding of proximity probe circuits prevents erratic gap voltage readings. Maintaining the recommended -24 Vdc transducer power supply stability directly preserves the accuracy of radial vibration and thrust position measurements over extended operational lifecycles.
