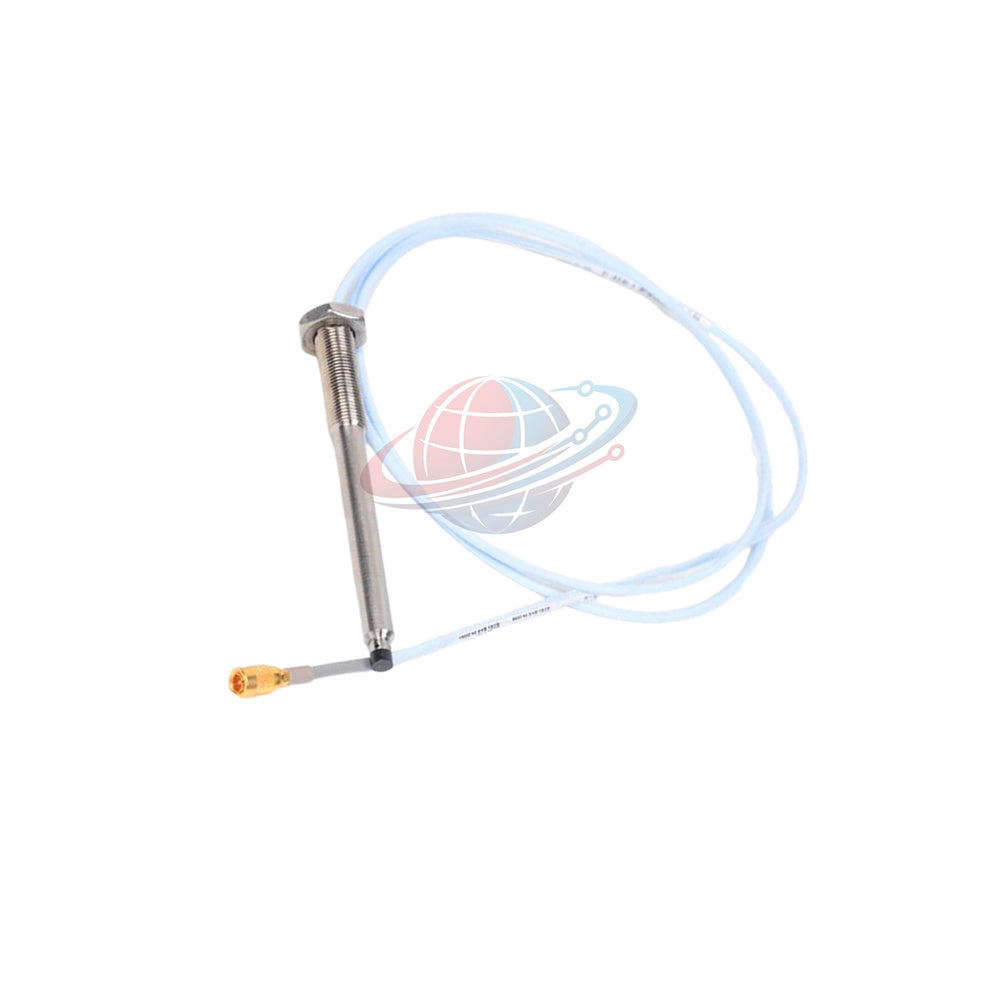

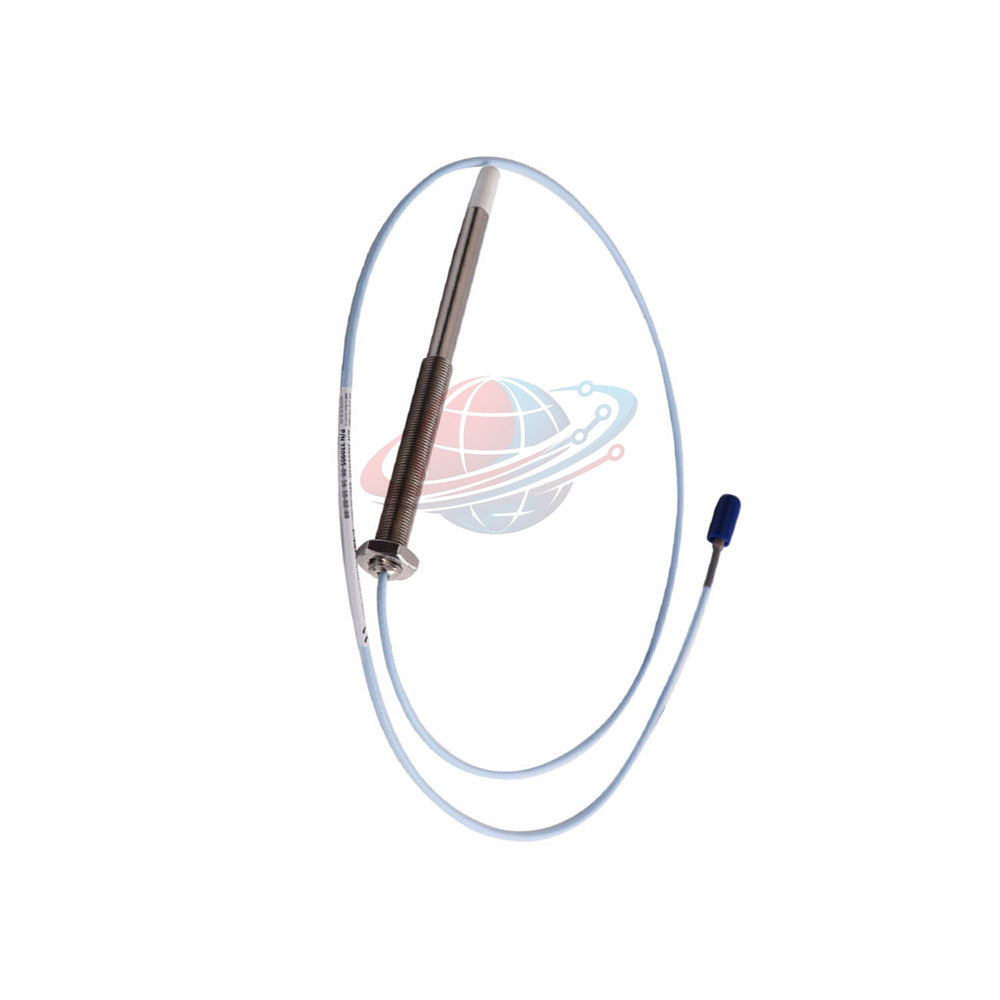

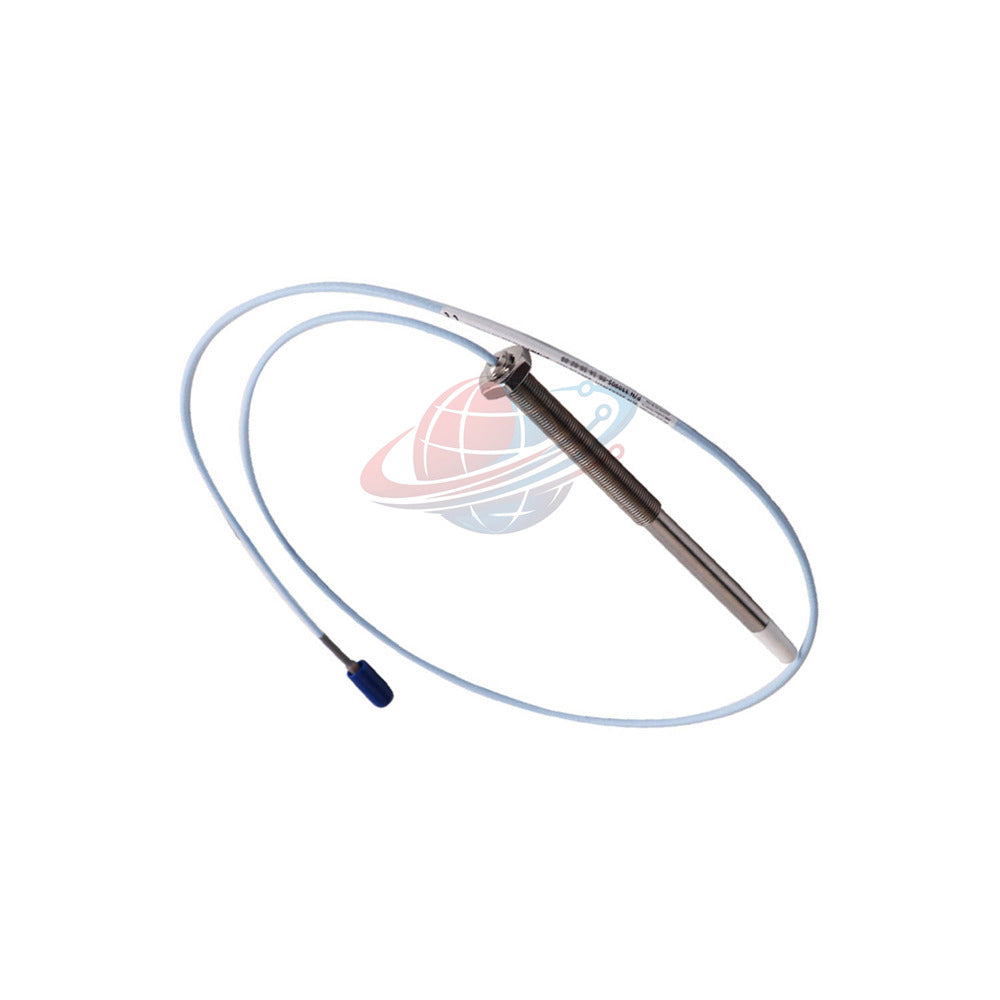

330905-00-10-05-02-05 Bently Nevada 3300 NSv Proximity Sensor

Product Introduction

Welcome to Global PLC Spare HUB. As an industry expert, our insight into rotating machinery protection reveals that selecting the correct transducer prevents catastrophic machinery failures. The Bently Nevada 330905-00-10-05-02-05 belongs to the advanced 3300 NSv series. This proximity probe measures static and dynamic vibration on compressor applications and small shafts. Engineers rely on this system for reliable machinery health monitoring.

Comprehensive Technical Specifications

The following MECE-classified specifications detail the 330905-00-10-05-02-05 3300 NSv Proximity Probe parameters:

Installation Guidelines

• Thread the M10X1 probe case manually to achieve finger-tight seating.
• Apply a maximum torque of 0.56 N•m (5 in•lb) during final positioning.
• Maintain a recommended gap setting of 1.0 mm (40 mils) from the target surface.
• Ensure a minimum bend radius of 25.4 mm (1.0 in) for the probe cable.
• Connect field wiring using a three-conductor shielded triad cable.

Debugging and Maintenance Convenience

• Verify dc resistance across the center conductor to outer conductor to be 4.0 ± 0.5 ohms.
• Check extension cable capacitance at 69.9 pF/m for signal integrity.
• Inspect miniature coaxial ClickLoc connectors for secure locking mechanisms.
• Confirm zero-position voltage outputs sit between -1 to -13 Vdc.

Compatibility and Interchangeability

• Fully compatible with Bently Nevada 3300 NSv extension cables and Proximitor sensors.
• Mechanically and electrically interchangeable with legacy 3300 RAM probes.
• Superior side-view characteristics compared to older 190 probes.

Certifications and Approvals

• Equipped with Agency Approval Option -05 for multiple hazardous location ratings.
• Designed to meet international industrial safety standards.

Package Contents and Logistics

• 330905-00-10-05-02-05 3300 NSv Proximity Probe in factory packing.
• Factory warranty covering 12 months from purchase.
• Rapid dispatch within 24-48 hours via FedEx, UPS, and DHL.

Typical Application Scenarios and Diagnostics

• Deployed in process compressors requiring superior chemical resistance.
• Used for axial position and radial vibration monitoring on small shafts.
• Identifies shaft runout and dynamic radial displacement in high-speed machinery.

Selection Comparison and Technical Advice

Global PLC Spare HUB's Insight: When upgrading legacy installations, engineers must evaluate case length and target dimensions. If your application requires a longer overall case or different unthreaded length configurations, compare this unit with alternative configurations. For instance, consider the 330905-00-25-05-01-00 when your installation demands a different unthreaded length option. Selecting the exact physical dimensions prevents gapping errors on small shafts.

Frequently Asked Questions

Question:
What target size is required for accurate readings with the 330905-00-10-05-02-05?

Answer:
A flat target requires a minimum diameter of 8.9 mm, with 13 mm recommended for optimal linear response.

Question:
Can I use standard coaxial cables instead of recommended triad cables for field wiring?

Answer:
Field wiring should utilize a three-conductor shielded triad cable up to 305 meters to maintain noise immunity and accurate frequency response.

Question:
How does the 330905-00-10-05-02-05 handle high differential pressures?

Answer:
The probe tip features a Viton O-ring designed to seal differential pressure between the tip and case.
