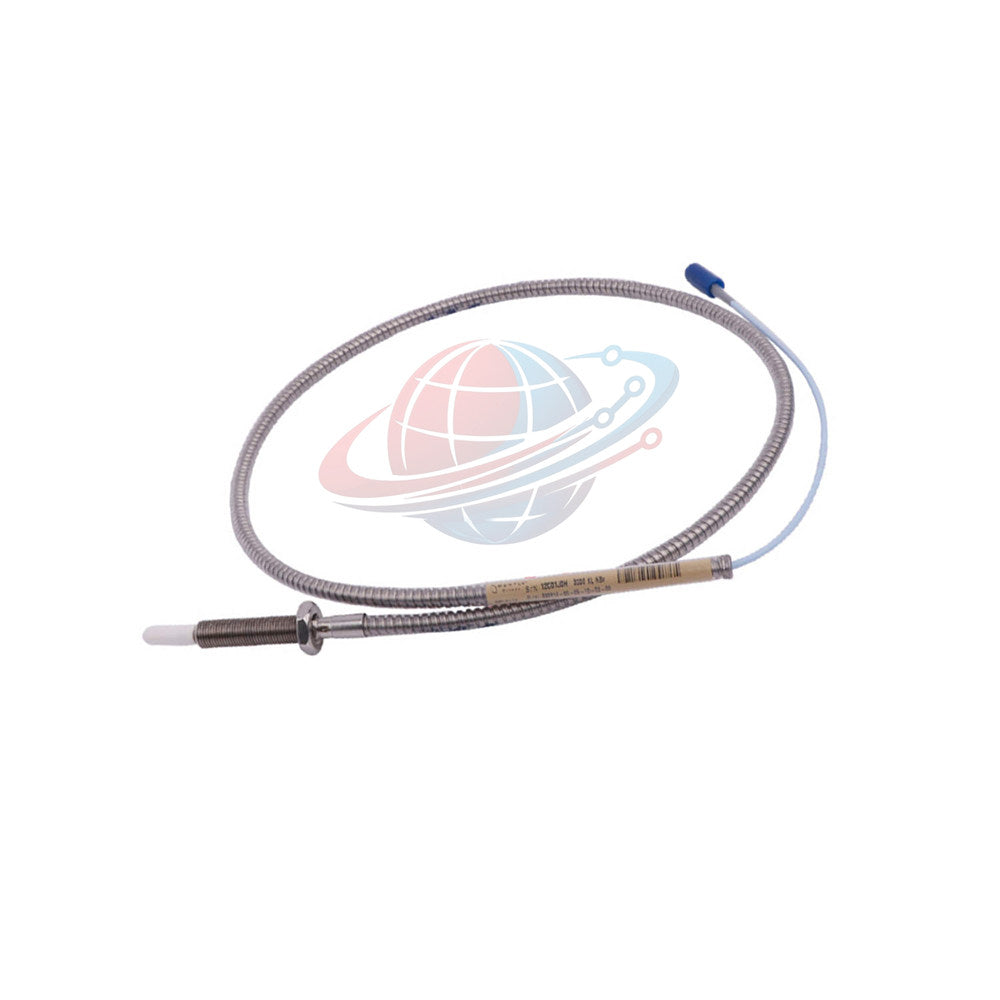

330904-00-25-05-02-CN Bently Nevada 3300 NSv Proximity Probe
Manufacturer: Bently Nevada
Product No.: 330904-00-25-05-02-CN
Condition： In stock
Product Type: Proximity Probe
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Technical Overview
330904-00-25-05-02-CN is a compact proximity probe engineered for precise displacement measurement. It belongs to the 3300 NSv series by Bently Nevada. The probe is optimized for tight installation spaces and chemically aggressive environments.
This model enhances durability compared to earlier designs. It provides stable electrical performance and accurate signal output. It is widely applied in critical rotating machinery monitoring systems.
Configuration Breakdown
- Model Structure: 330904-00-25-05-02-CN
-
- 330904
- 3300 NSv probe, M8x1 thread, armored construction
- 00
- Unthreaded length: 0 mm
- 25
- Overall case length: 250 mm
- 05
- Total probe cable length: 0.5 meter
- 02
- Miniature coaxial ClickLoc connector with standard cable
- CN
- Country-specific compliance option
- 330904
Measurement and Electrical Characteristics
- Linear Range: 1.5 mm measurement span
- Recommended Gap: 1.0 mm optimal setting
- Scale Factor: 7.87 V/mm typical
- Linearity Deviation: ±0.06 mm
- Frequency Response: 0 to 10 kHz
- Probe Resistance: 4.0 ± 0.5 ohms
- Cable Capacitance: 69.9 pF/m typical
- Field Wiring Distance: up to 305 meters
Material and Mechanical Design
- Probe tip uses PPS for chemical resistance.
- Housing constructed from AISI 304 stainless steel.
- Sealed with Viton O-ring for environmental protection.
- Flexible coaxial cable with FEP insulation.
- Minimum bend radius of 25.4 mm ensures durability.
Installation Guidelines
- Apply correct torque during installation.
- Maintain proper probe-to-target gap.
- Ensure clean and stable mounting surface.
- Avoid sharp cable bends during routing.
- Use shielded wiring for signal integrity.
Application Scope
- Process compressors in chemical plants
- Steam and gas turbine monitoring
- Industrial pumps and rotating shafts
- Precision vibration analysis systems
- Compact machinery installations
Diagnostics and Monitoring Capability
- Provides accurate shaft displacement data
- Supports early detection of mechanical faults
- Maintains signal stability over long cable runs
- Enables predictive maintenance programs
- Improves reliability of condition monitoring systems
Global PLC Spare HUB’s Insight
The 330904-00-25-05-02-CN probe is designed for demanding industrial environments. It offers enhanced chemical resistance and stable measurement performance. Engineers select it for compact installations with strict monitoring requirements.
It integrates well with modern vibration monitoring systems. Ideal for equipment requiring precise displacement tracking.
Warranty and Shipping
- 12-month warranty ensures reliability
- Dispatch within 24 to 48 hours
- Shipping via FedEx, UPS, or DHL
- Secure packaging for global delivery
FAQ
- What makes NSv probes suitable for compact spaces?
- Their smaller form factor allows installation in tight locations.
- How to optimize measurement accuracy?
- Maintain proper gap and ensure stable mounting conditions.
- What should be considered when selecting cable length?
- Balance installation distance with signal attenuation requirements.
- Can this probe handle chemical exposure?
- Yes, it has improved resistance compared to earlier models.
- What affects long-term performance?
- Environmental conditions, installation quality, and maintenance practices.
