330881-16-05-070-00-02 PROXPAC XL Bently Nevada Proximity Transducer

Bently Nevada 330881-16-05-070-00-02 | PROXPAC XL Proximity Transducer

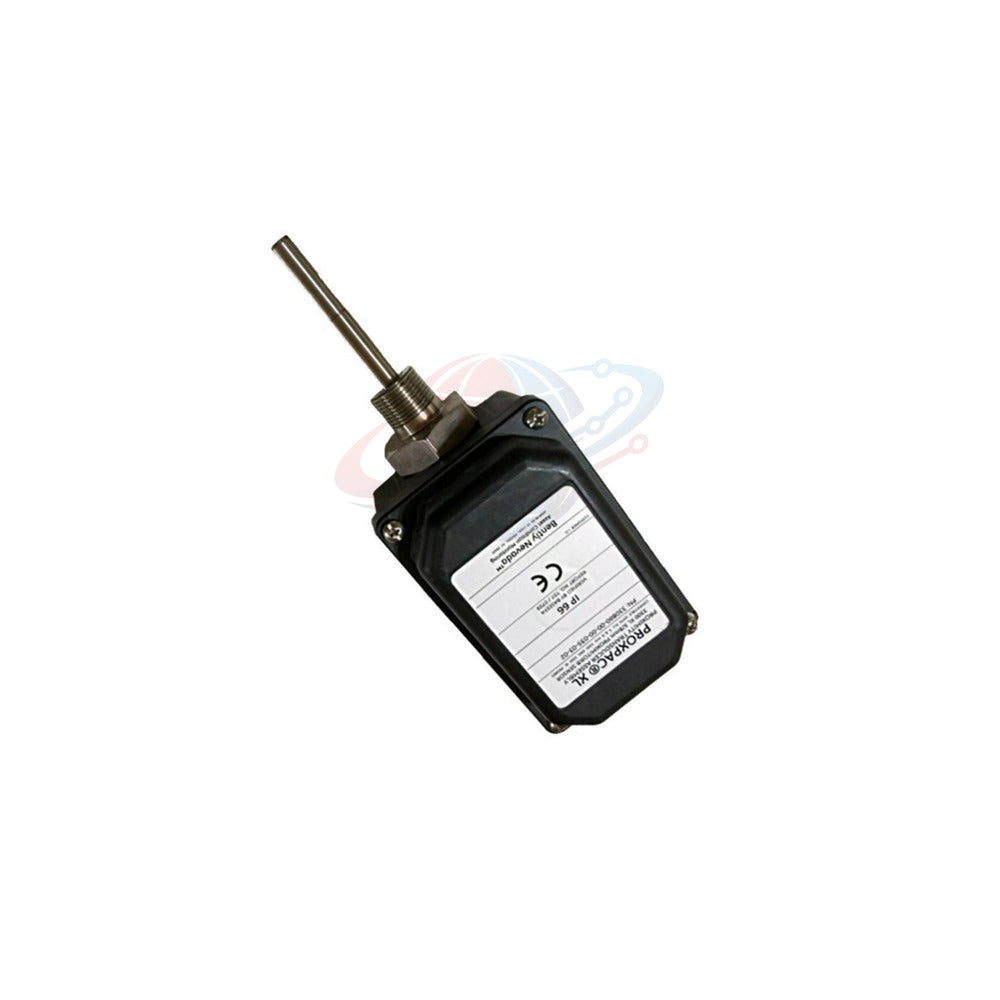

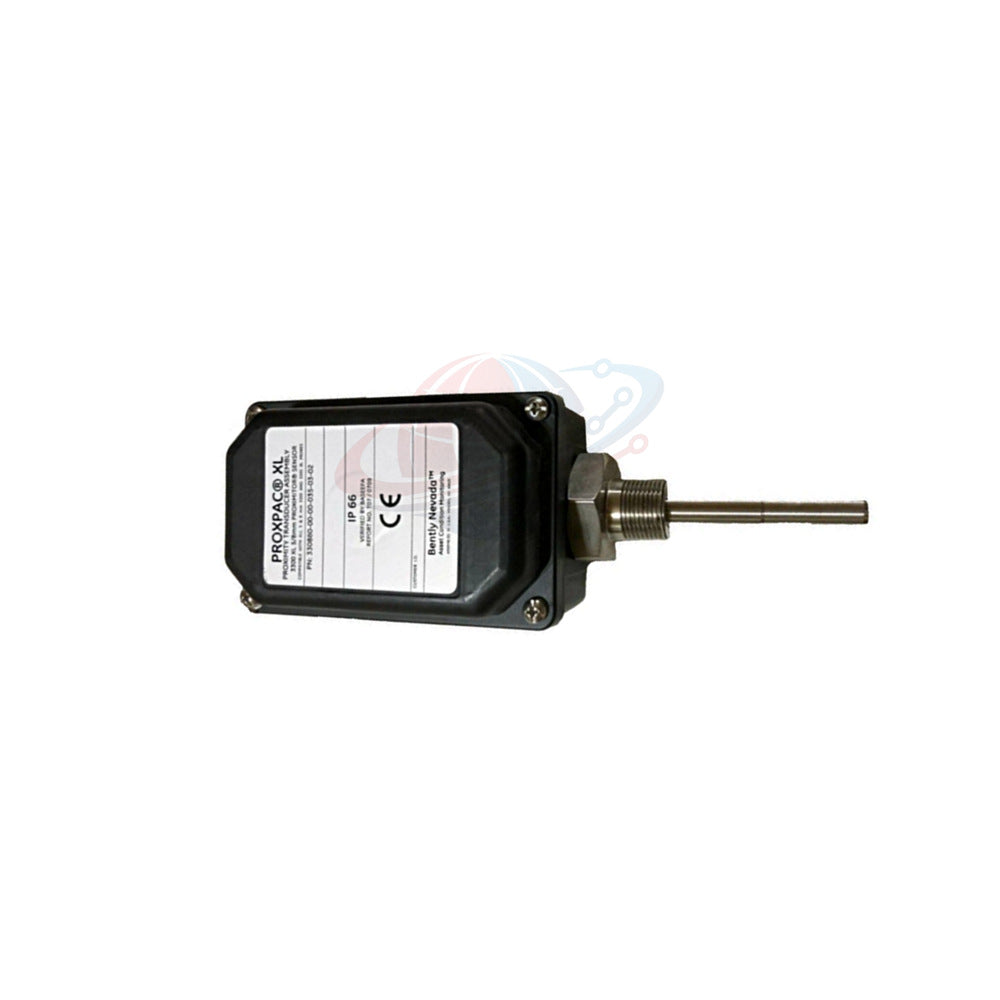

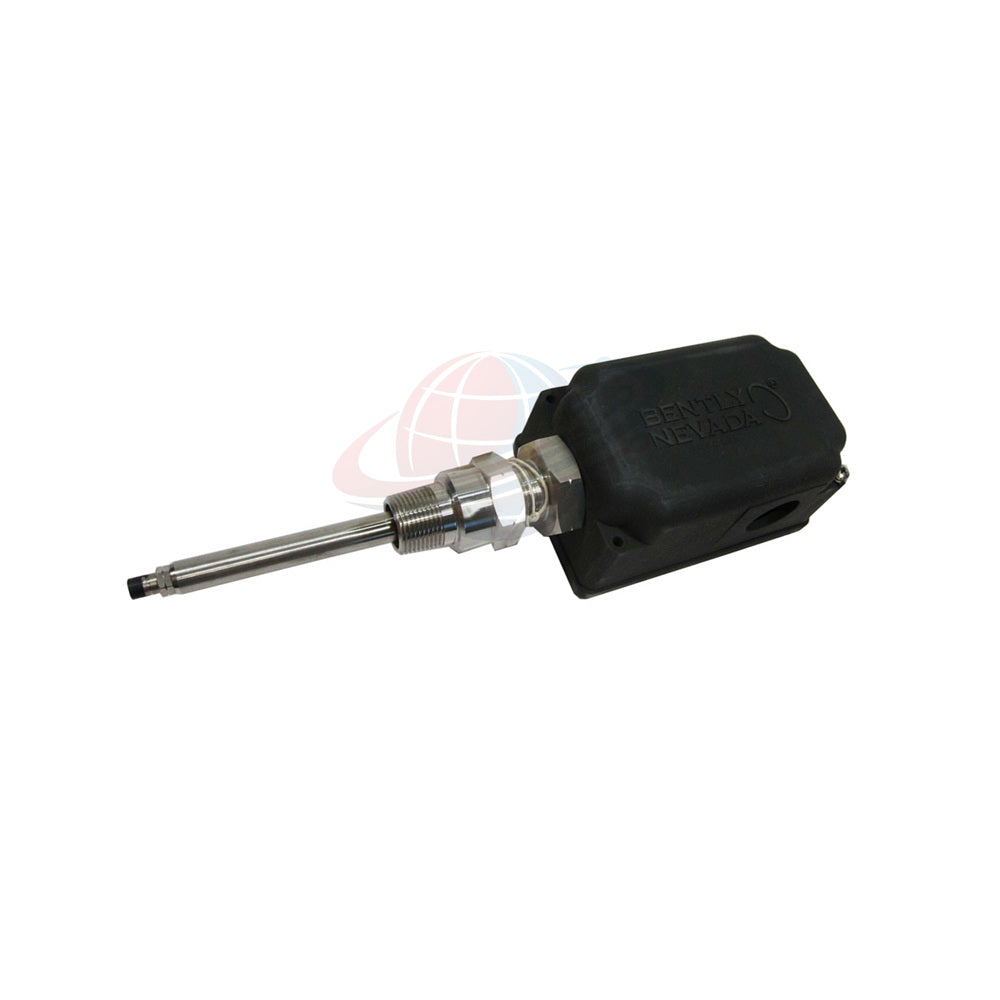

The 330881-16-05-070-00-02 is a Bently Nevada PROXPAC XL proximity transducer assembly designed for non-contact shaft displacement measurement in rotating machinery monitoring systems. It combines a 3300 XL 8 mm proximity probe with an environmental housing and a defined mounting arrangement for installations that require controlled probe positioning and protection from environmental exposure.

This configuration specifies a 50 mm standoff adapter, 70 mm probe penetration, a 3/4-14 NPT mounting thread, and a no-fittings option supplied with two plugs and two washers. The probe option is listed as a 3300 XL 8 mm probe without approvals. Verify the complete installation requirements before using this assembly in a hazardous area.

For maintenance and reliability engineers, the important selection factors are the target geometry, mounting clearance, probe penetration, supply voltage, sensor compatibility, and cable routing. The transducer's measurement performance depends on the complete probe, Proximitor sensor, wiring, and monitor configuration.

Configuration Map | Decode the Complete Part Number

• 330881 — PROXPAC XL proximity transducer assembly
  • -16 — 3300 XL 8 mm probe without approvals
  • -05 — Standoff adapter option: 50 mm (B dimension)
  • -070 — Probe penetration option: 70 mm (C dimension)
  • -00 — No fittings; supplied with two plugs and two washers
  • -02 — Mounting thread: 3/4-14 NPT, required with the specified standoff adapter

Configuration check: The full part number is 330881-16-05-070-00-02. The 50 mm standoff adapter and 70 mm probe penetration are separate mechanical dimensions. Confirm both against the equipment drawing before ordering a replacement.

Technical Specifications

Temperature caution: The supplied documentation warns that exposing the probe to temperatures below -34°C (-29°F) may cause premature pressure-seal failure. Evaluate actual operating and startup conditions, not only the nominal temperature range.

Measurement Performance and Electrical Requirements

System integration note: The power, scale factor, linear range, and frequency-response figures describe the specified 3300 XL measurement system characteristics. Confirm the complete probe and Proximitor sensor combination before applying these values to commissioning or monitor configuration.

Where This Assembly Fits in a Machinery Protection System

The PROXPAC XL assembly provides a mounting and environmental housing arrangement for a proximity probe. When correctly installed with compatible signal-conditioning and monitoring equipment, the probe can measure shaft displacement without physical contact with the target.

• Steam and gas turbines: Supports shaft vibration and position measurement where the machine design accepts the specified probe and housing dimensions.
• Centrifugal compressors: Provides a protected probe mounting arrangement for machinery protection channels monitoring shaft movement.
• Industrial pumps: Can support non-contact shaft measurement on compatible equipment with suitable target geometry and mounting clearance.
• Gearboxes and rotating machinery: May be suitable where the required shaft diameter, probe target, and installation geometry meet the specified measurement requirements.
• Plant condition-monitoring systems: Supplies a displacement-related signal through the compatible Proximitor sensor to a monitor or control-system interface designed for that signal.

Because this configuration specifies a probe without approvals, do not assume it is suitable for a hazardous area. Confirm the required certifications and complete system approval before installation.

Installation Guidance for Commissioning Engineers

1. Confirm mechanical dimensions: Check the 50 mm standoff adapter, 70 mm penetration, 3/4-14 NPT mounting thread, and available clearance against the approved drawing.
2. Inspect the target: Verify that the shaft diameter and target surface meet the minimum target requirements. Surface runout, material variation, and target geometry can affect the measured signal.
3. Set the initial gap: Use the recommended 1.27 mm (50 mils) reference and follow the manufacturer's procedure for the connected Proximitor sensor. Confirm the resulting voltage before enabling protection logic.
4. Check electrical supply: Verify supply polarity and voltage at the applicable system components. Use the barrier-specific voltage range when barriers are installed.
5. Route the cable correctly: Use the recommended shielded triax wiring approach, secure the cable without excessive tension, and avoid sharp bends or high-interference routes.
6. Apply the correct torque: Use 29.5 N·m for the retaining nut and 39.3 N·m for the probe sleeve locknut where applicable. Follow the correct assembly procedure and do not transfer these torque values to unrelated fittings.
7. Document the baseline: Record the gap voltage, monitor channel reading, machine operating state, and final installation dimensions for future maintenance comparisons.

Field Diagnostics | Identify the Source Before Replacing Parts

Diagnostic boundary: PROXPAC XL provides the probe mounting and measurement interface, but the assembly does not independently identify a mechanical fault. Confirm the probe, sensor, cabling, target, and monitor channel before concluding that the transducer assembly has failed.

Model Comparison | 330881-16-05-070-00-02 vs. 330881-16-04-138-03-02

The alternative below belongs to the PROXPAC XL product family. The available specifications in this request fully define the first model, but do not provide a verified suffix-by-suffix breakdown for the alternative. Confirm the alternative's dimensions and fittings using its official product documentation before substituting it.

Technical Recommendation

• Select 330881-16-05-070-00-02 when the approved installation requires a 50 mm standoff adapter, 70 mm probe penetration, 3/4-14 NPT mounting thread, and no-fittings configuration.
• Consider 330881-16-04-138-03-02 only after verifying that its documented dimensions and fittings suit the equipment. Do not infer exact adapter or penetration dimensions from the suffix alone without the manufacturer's configuration table.
• For either model, confirm hazardous-area requirements, target geometry, probe and sensor compatibility, operating temperature, cable routing, and commissioning gap settings.

For a replacement order, compare the installed assembly against the equipment drawing and record the existing gap voltage before removal. A matching product family alone does not establish mechanical or electrical interchangeability.

Global PLC Spare HUB's Insight

On a field replacement, the main risk is often a dimensional mismatch rather than a failed electronic measurement element. Standoff adapter length determines the mounting geometry, while probe penetration determines how far the probe extends into the measurement position. Treat these dimensions separately during inspection and purchasing.

For this model, verify the 50 mm adapter and 70 mm penetration against the machine drawing. Then confirm the NPT mounting interface, cable path, and required approvals. During commissioning, validate the initial gap voltage and compare it with the monitor reading before returning the machinery protection channel to service.

The supplied part number specifies a probe without approvals. If the installation is in a classified hazardous area, obtain confirmation of the approved probe and complete installation arrangement rather than relying on the IP66 housing rating.

Package Contents and Purchasing Support

• 1 × Bently Nevada 330881-16-05-070-00-02 PROXPAC XL proximity transducer assembly, subject to order confirmation.
• The specified -00 fittings configuration includes two plugs and two washers.
• Additional monitoring hardware, field wiring, or accessories are included only when expressly listed in the quotation.

Warranty: 12-month warranty, subject to the supplier's written terms and conditions. Confirm coverage with the sales team before purchase.

Shipping: FedEx, UPS, and DHL options are available, subject to destination, carrier service, and order processing. Confirm dispatch timing with the supplier if the order supports an urgent maintenance shutdown.

Request a quote: Send the complete part number, quantity, delivery destination, required approval status, and relevant mounting dimensions. For a replacement, include the installed configuration or equipment drawing to help verify compatibility.

Frequently Asked Questions

Q1: Why must standoff adapter length and probe penetration be checked separately?

They describe different parts of the mounting geometry. The adapter affects the distance between the housing mounting point and the probe assembly, while penetration describes the specified probe extension. Confirm both dimensions from the equipment drawing to avoid incorrect probe positioning.

Q2: Can the assembly be installed in a hazardous area if the housing has an IP66 rating?

Not on that basis alone. IP66 describes environmental ingress protection, not hazardous-area certification. This configuration specifies a probe without approvals, so confirm the required area classification and the approval status of the complete installed system before use.

Q3: What should I check if the signal becomes less linear after installation?

First verify the supply voltage, initial gap, probe and Proximitor sensor compatibility, and target surface. The supplied specifications warn that a more positive supply voltage than -23.5 Vdc can reduce linear range. Confirm the applicable sensor configuration and measurement procedure before adjusting the installation.

Q4: Does the 1 m probe cable mean the monitor can be connected directly without a Proximitor sensor?

No. The specified cable length does not replace the signal-conditioning stage. The 3300 XL proximity system uses a compatible Proximitor sensor between the probe assembly and monitor. Verify the complete system arrangement and the permitted field wiring length in the applicable documentation.

Q5: What information helps determine whether the alternative model is a suitable replacement?

Provide both complete part numbers, the equipment mounting drawing, required adapter and penetration dimensions, fittings arrangement, probe approval requirements, and the connected Proximitor sensor model. Ask the supplier to confirm the alternative's configuration from its documentation rather than assuming suffixes represent identical dimensions across models.
