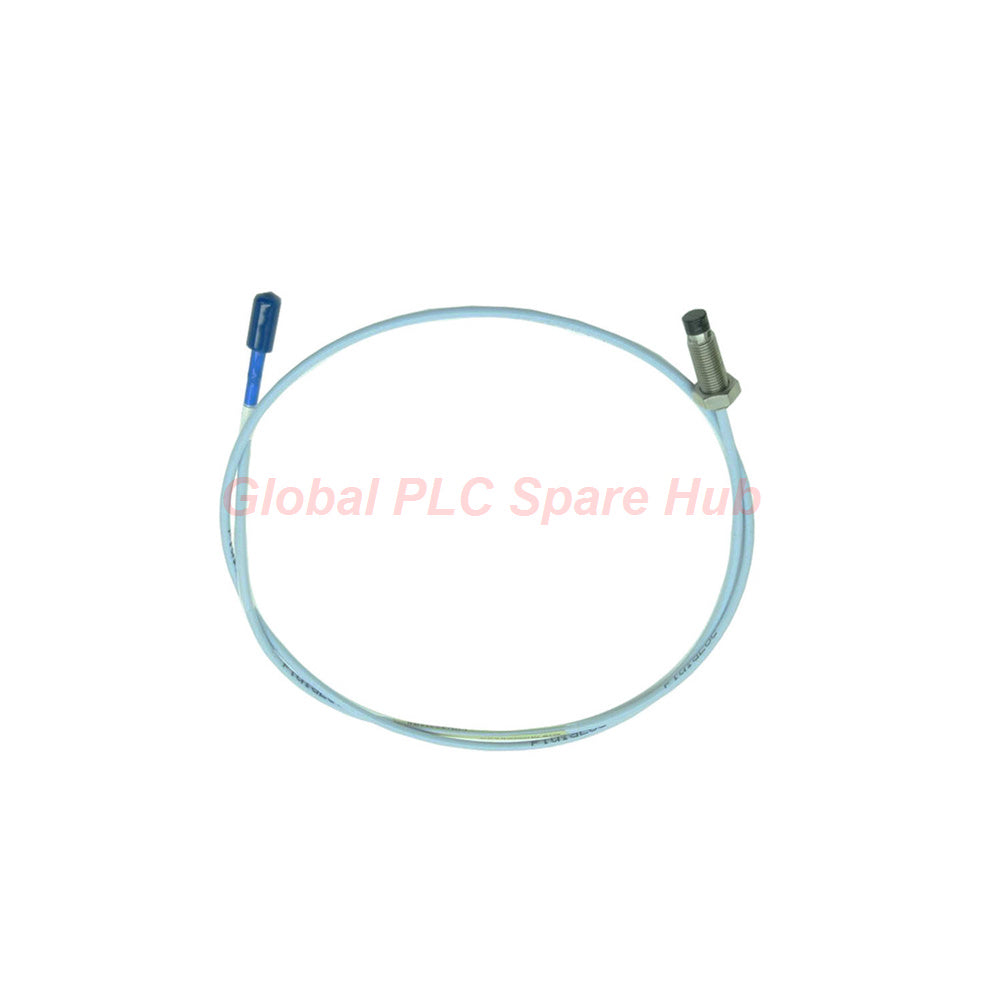

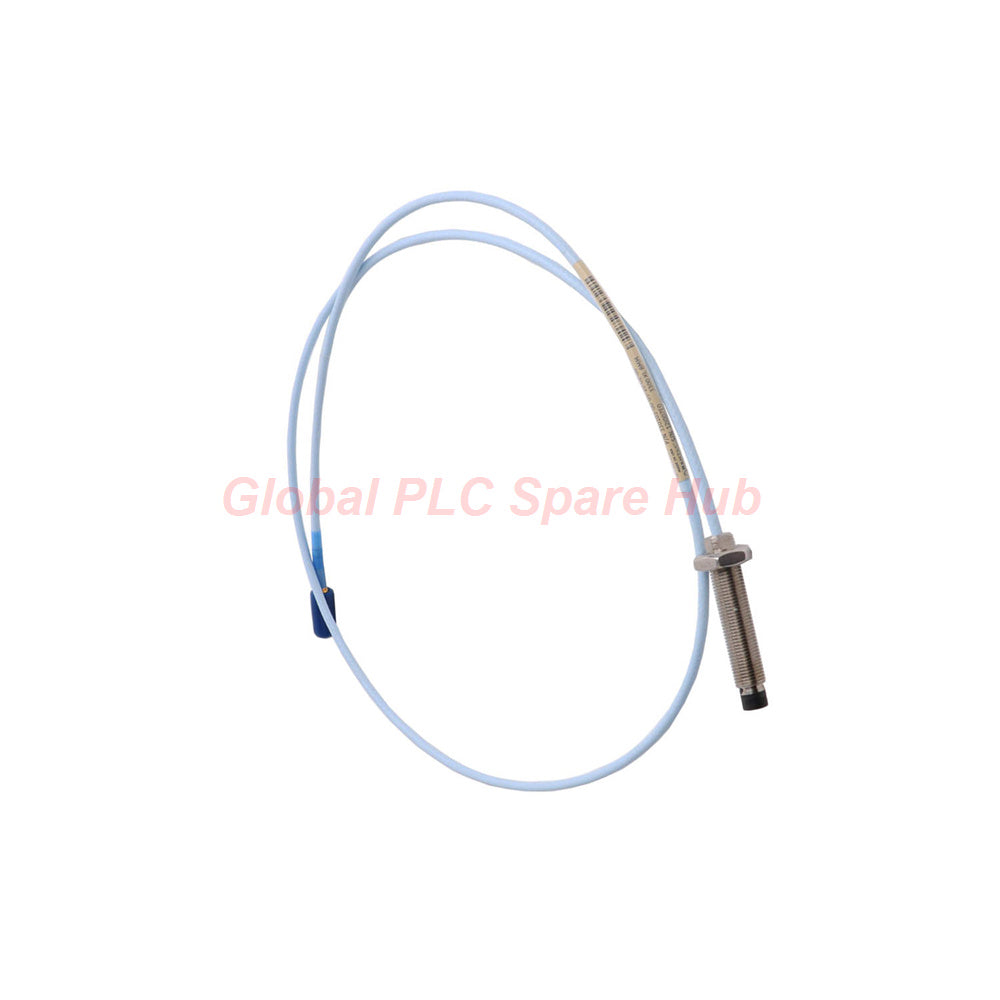

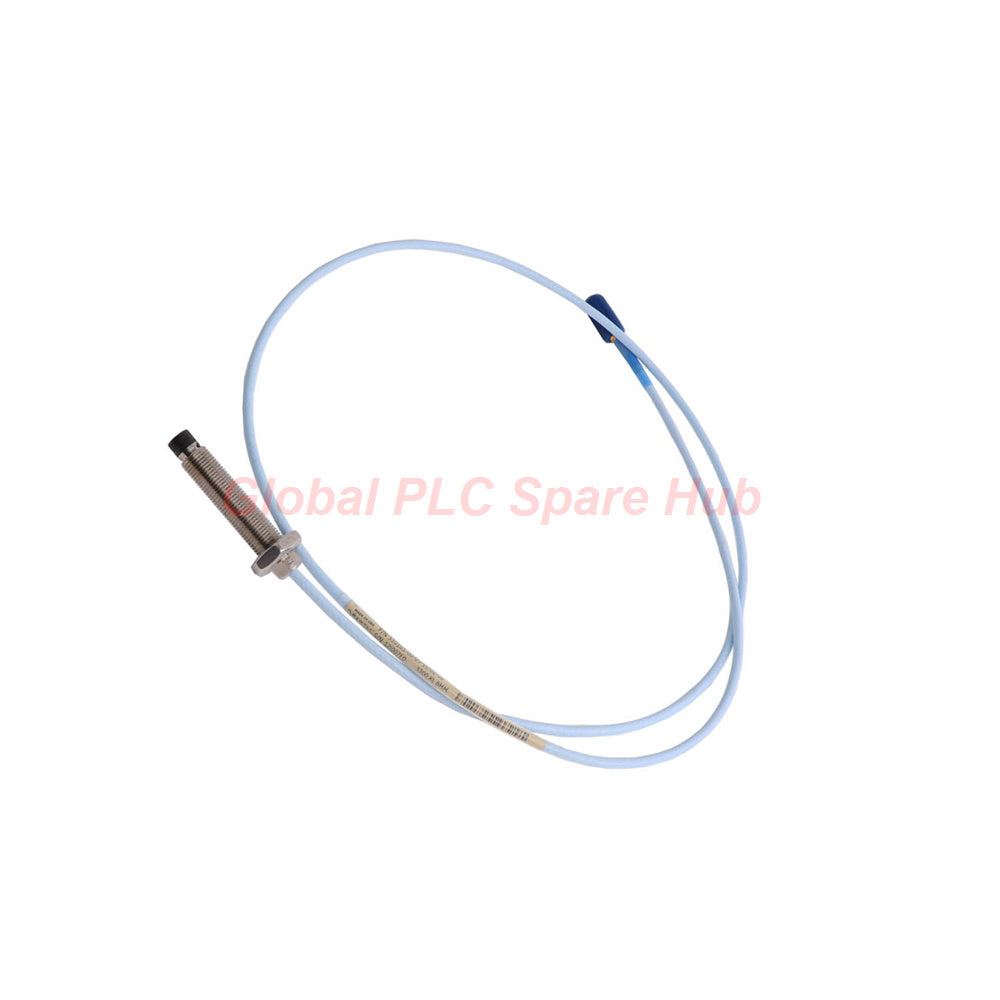

330707-00-62-10-01-00 Bently Nevada 3300 XL 11 mm Proximity Probe

330707-00-62-10-01-00 330707 Bently Nevada 3300 XL 11 mm Proximity Probe Sensor Unit

The 330707-00-62-10-01-00 assembly, part of the advanced 3300 XL 11 mm proximity probe line manufactured by Bently Nevada, is engineered to measure dynamic and static distance shifts between a shaft journal and its bearing housing. By utilizing eddy-current technology, this rugged probe translates gap variations into precise voltage signals for vibration analysis, position tracking, and machinery protection systems.

Configuration Breakdown & Model Suffix Structure

• Full Part Number: 330707-00-62-10-01-00
• Unthreaded Length Option (-00): 0.0 inches (full thread configuration up to tip)
• Overall Case Length Option (-62): 6.2 inches total probe case length
• Total Length Option (-10): 1.0 metre (3.3 feet) cable span
• Connector & Cable Option (-01): Miniature coaxial ClickLoc connector with connector protector and standard cable
• Agency Approval Option (-00): Standard configuration without specialized hazardous location options

Specifications & Technical Parameters

• Brand: Bently Nevada
• Product Family: 3300 XL Series
• Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
• Case Material: AISI 304 stainless steel (SST) housing
• Thread Specification: 5/8-18 UNF with 0.938 in maximum thread engagement
• Cable Construction: 75 Ω triaxial FEP-insulated cable
• DC Resistance: 5.9 ± 0.5 ohms from center conductor to outer conductor
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping Weight: 0.17 kg

Mechanical Installation & Torque Guidelines

• Maximum Case Torque: Rated up to 45.2 N·m (400 in·lb)
• Recommended Case Torque: 15.2 N·m (133 in·lb) for 5/8-18 thread cases
• Connector Torque: Finger-tight recommended; 0.565 N·m (5 in·lb) maximum limit
• Minimum Bend Radius: 25.4 mm (1.0 in) for safe cable routing without armor

Targeted Equipment & Industrial Application Scenarios

• Primary Applications: Hydroelectric turbine generator shafts, heavy industrial steam turbines, and multi-stage centrifugal compressors.
• Supported Machinery: Large rotating equipment requiring high-linearity radial vibration, thrust position, and shaft eccentricity measurements.

Diagnostic Capabilities & Measurement Performance

• Captures high-frequency radial vibration patterns and shaft centerline positions, identifying journal orbit distortions, oil whirl, and unbalance early.
• Delivers continuous sub-micron displacement feedback directly to monitoring racks without signal distortion or phase lag.

Logistics, Packaging, and Warranty Provisions

• Packaging Standard: Factory-sealed anti-static packaging to protect sensitive probe tips and connectors during transport.
• Global Fulfillment: Rapid dispatch within 24 to 48 hours via trusted couriers including FedEx, UPS, and DHL.
• Warranty Terms: Backed by a comprehensive 12-month factory warranty covering material defects and manufacturing anomalies.

Frequently Asked Questions

Question: What precautions are required when installing the 330707-00-62-10-01-00 probe in sub-zero environments?

Answer: Exposing the probe tip and Viton O-ring seal to temperatures below -34°C (-30°F) during installation may cause premature failure of the differential pressure seal.

Question: Why is maintaining the specified 15.2 N·m recommended torque critical for the 5/8-18 case thread?

Answer: Proper torque prevents case distortion while ensuring solid mechanical coupling with the machine housing to maintain accurate high-frequency vibration response.

Question: What buying considerations should engineers evaluate when replacing a 330707 series probe?

Answer: Verify the exact case length, unthreaded barrel dimensions, and total system length matching your existing proximitor sensor calibration and extension cable setup.

Question: How does the ClickLoc miniature coaxial connector protect signal integrity during plant operation?

Answer: The ClickLoc mechanism locks securely to prevent loosening under continuous structural vibration while protecting the inner conductor from moisture and dust ingress.

Question: What is the significance of the 5.9 ohm DC resistance specification for this probe assembly?

Answer: Monitoring loop resistance confirms that the triaxial FEP-insulated cable has not suffered internal conductor breakage or short-circuiting during routing.

Global PLC Spare HUB's Insight

Field engineers frequently encounter high-frequency noise spikes when probe extension cables run parallel to high-voltage motor feeds. When installing the 330707-00-62-10-01-00 probe, routing the 75-ohm triaxial cable through dedicated metallic conduit and ensuring clean, unpainted mounting surfaces eliminates ground loops. This practice stabilizes the initial gap voltage, ensuring that vibration monitors record true mechanical displacement without electrical interference.
