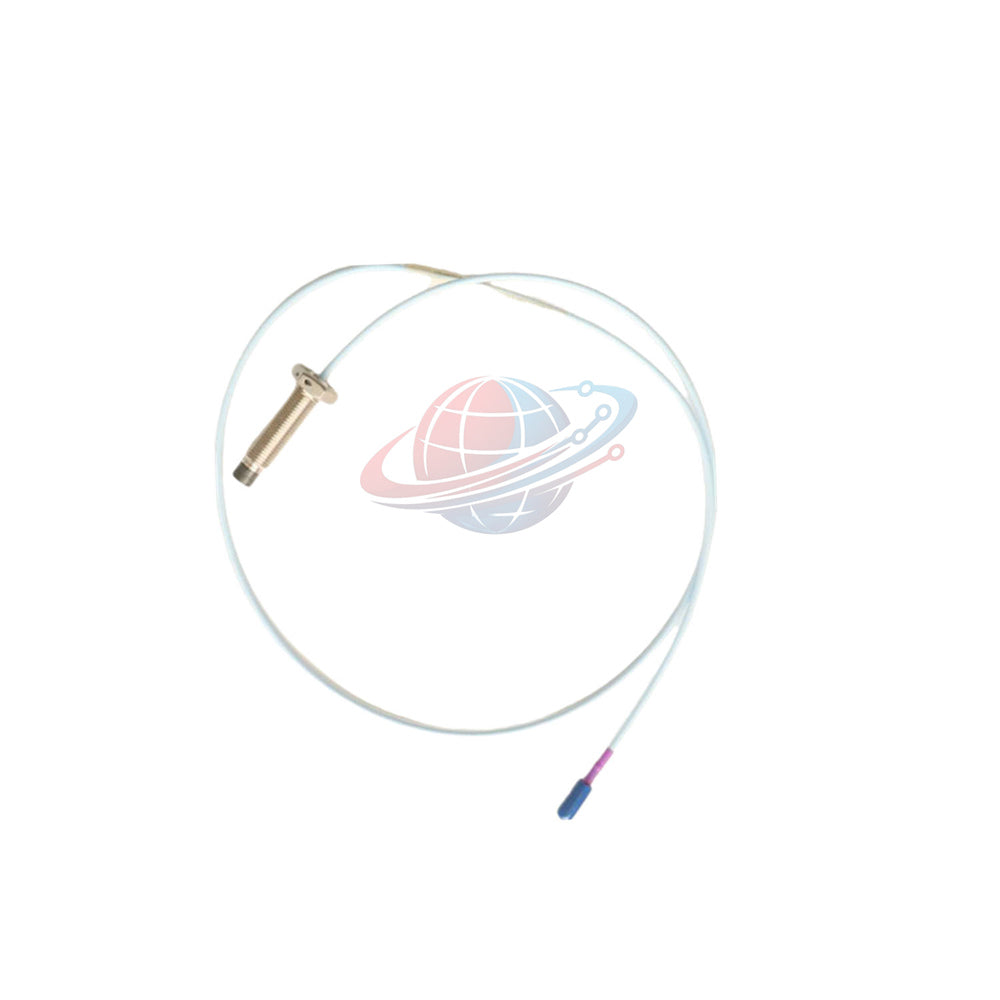

330703-000-050-10-01-00 Bently Nevada 3300 XL Probe 11mm Vibration Sensor

Product Engineering Overview

330703-000-050-10-01-00 is a high-performance proximity probe from the 3300 XL 11 mm series. It is designed for accurate shaft vibration and position measurement. The probe delivers stable output under demanding industrial conditions.

This model features a metric thread and compact structure. It ensures reliable operation in rotating machinery monitoring systems. Engineers select it for precision diagnostics and long-term stability.

Configuration Breakdown

• Model Structure: 330703-000-050-10-01-00
• • 330703
    • 3300 XL 11 mm probe, M14x1.5 thread, non-armored
  • 000
    • Unthreaded length: 0 mm
  • 050
    • Overall case length: 50 mm
  • 10
    • Total cable length: 1.0 meter
  • 01
    • Miniature coaxial ClickLoc connector with protector
  • 00
    • No agency approval required

Measurement and Electrical Performance

• Probe Resistance: 5.9 ± 0.5 Ω
• Magnetic Field Sensitivity: stable up to 300 Gauss
• Signal Output Stability: consistent across variable gaps
• Cable Type: 75 Ω triaxial FEP insulated
• Measurement Accuracy: optimized for vibration monitoring

Material and Mechanical Design

• Probe tip uses PPS for durability.
• Probe case constructed from AISI 304 stainless steel.
• Thread size M14x1.5 ensures secure mounting.
• Connector includes protective design for reliability.
• Robust cable insulation supports harsh environments.

Environmental and Operating Conditions

• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Temperature Classification: supports T1 to T5 ranges
• Humidity Resistance: suitable for industrial environments
• Mechanical Stability: maintains performance under stress

Installation Guidelines

• Apply recommended torque during installation.
• Ensure correct thread engagement depth.
• Maintain appropriate probe gap for measurement.
• Avoid excessive cable bending.
• Verify environmental compatibility before use.

Application Scope

• Steam and gas turbine monitoring
• Compressor shaft position detection
• Industrial pump vibration analysis
• High-speed rotating equipment
• Process plant condition monitoring

Diagnostics Capability

• Detects shaft displacement variations
• Supports predictive maintenance programs
• Provides stable signal under dynamic conditions
• Enables early fault detection
• Maintains accuracy over long-term operation

Global PLC Spare HUB’s Insight

The 330703-000-050-10-01-00 probe is engineered for high-precision monitoring. It ensures consistent signal quality and mechanical durability. Engineers rely on this model for critical machinery diagnostics.

It integrates efficiently with industrial monitoring systems requiring accurate displacement measurement.

Warranty and Shipping

• 12-month warranty for operational confidence
• Dispatch within 24 to 48 hours
• Shipping via FedEx, UPS, or DHL
• Secure packaging for global delivery

FAQ

• How to select the correct probe size?
• Choose based on installation space and measurement requirements.
• What affects probe signal stability?
• Proper gap setting and stable mounting conditions are critical.
• Can this probe handle high temperatures?
• Yes, it operates within a wide industrial temperature range.
• Why is connector protection important?
• It prevents damage and ensures reliable signal transmission.
• What should be checked before commissioning?
• Verify wiring, mounting torque, and environmental conditions.
