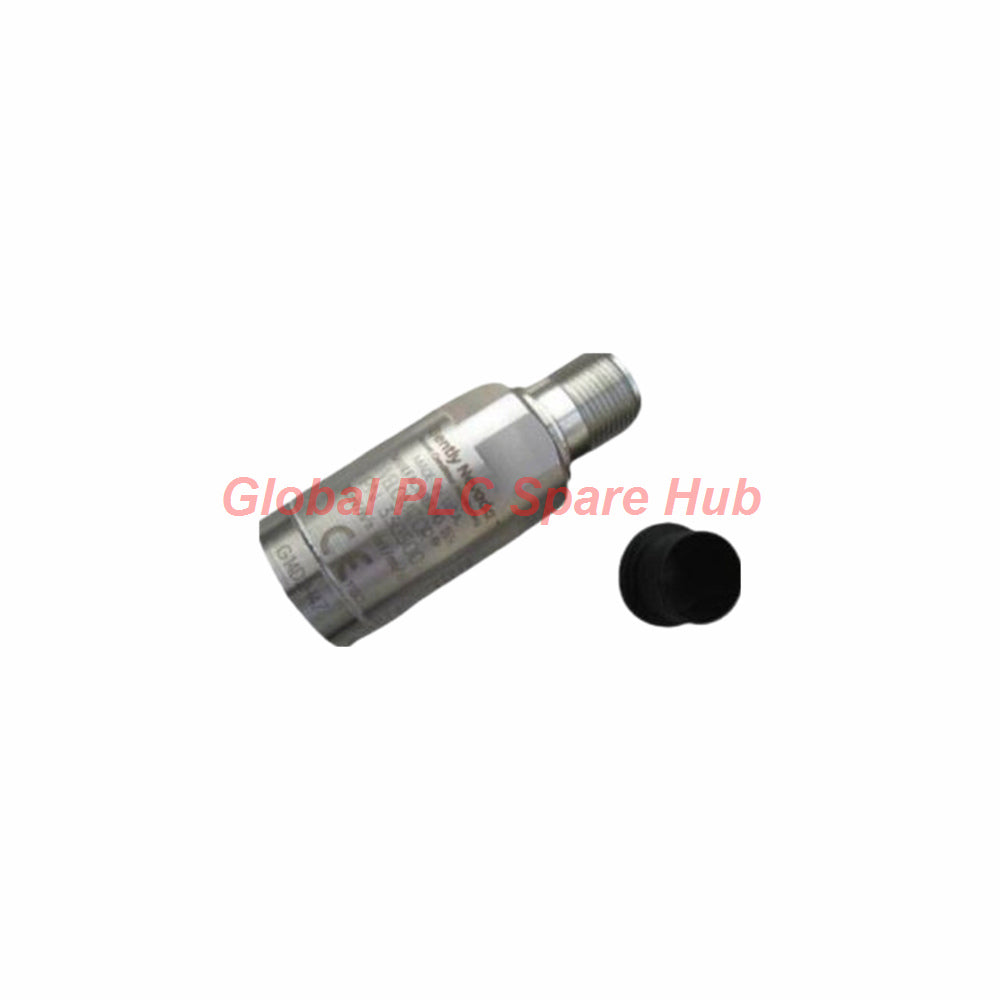

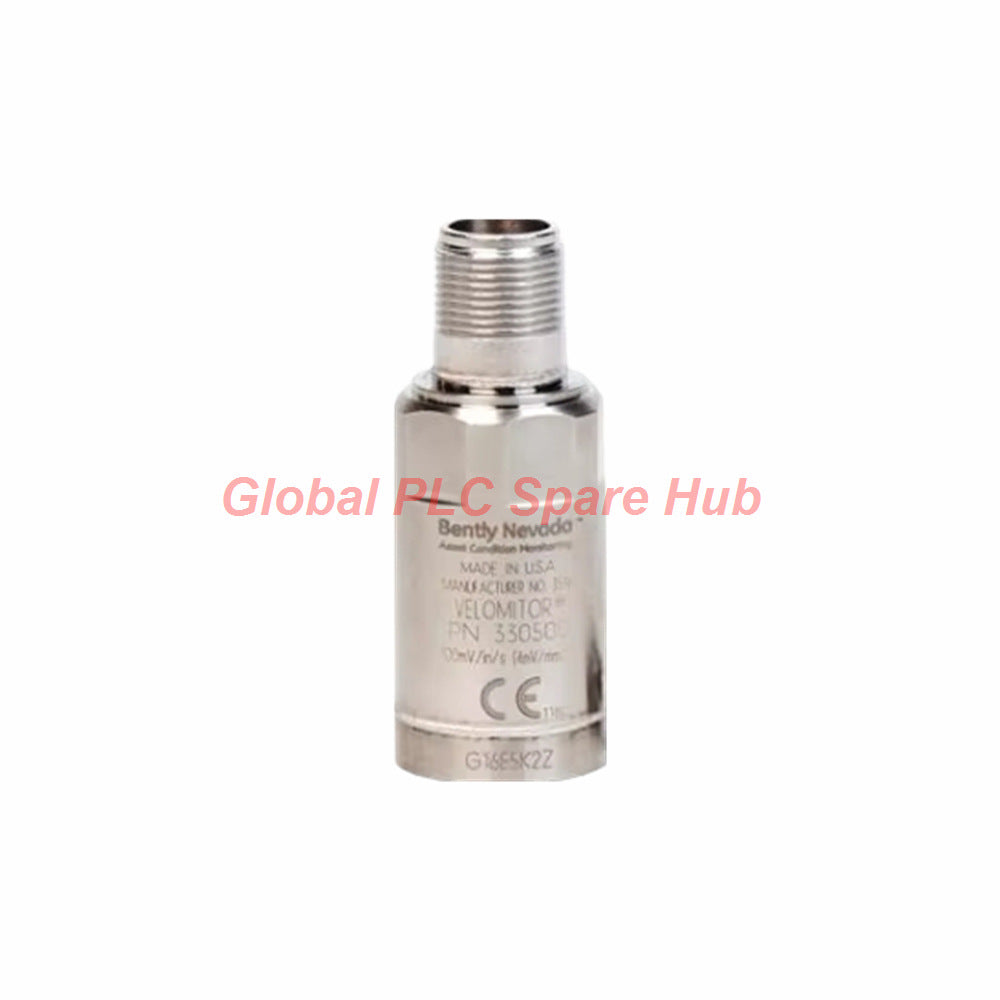

330500-00-02 Bently Nevada Velomitor Piezo-Velocity Vibration Sensor

Engineering Overview & Measurement Principle

The 330500-00-02 is an industrial-grade piezoelectric velocity transducer engineered by Bently Nevada within the widely deployed Velomitor Piezo-velocity Sensor series. Designed to measure absolute vibration on machinery casings, the 330500-00-02 combines the rugged reliability of solid-state piezoelectric sensing with internal signal integration, delivering accurate velocity output signals for critical rotating equipment monitoring.

Part Number Configuration Breakdown

Core Technical & Mechanical Specifications

Installation, Mounting, and Wiring Protocol

• Mount the sensor firmly onto a flat, spot-faced machine casing surface to ensure high-frequency vibration coupling.
• Apply the manufacturer-specified mounting torque of 32 to 46 kg•cm (24 to 40 in-lb) max using a calibrated wrench to prevent casing distortion.

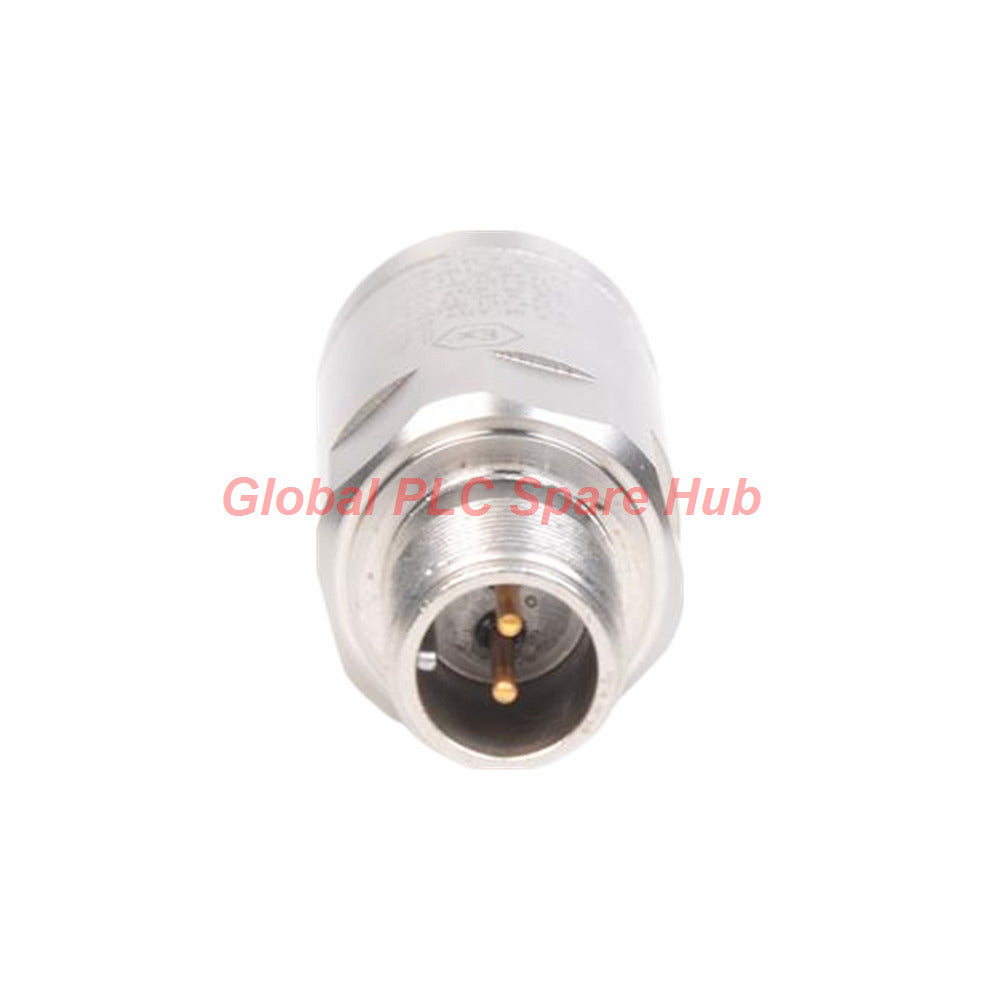

• Connect a shielded two-conductor cable to the hermetically-sealed 2-pin Mil-C-5015 connector, ensuring Pin A connects to signal positive and Pin B to signal return.
• Route signal cables away from high-voltage AC power conduits to maintain low broadband noise floors across long cable runs up to 305 meters.

Signal Diagnostics & Preventive Maintenance

• Verify output bias voltage reads -12 ±3.0 VDC referenced to Pin A during routine channel checks to confirm internal amplifier health.
• Inspect the 2-pin Mil-C-5015 connector periodically for moisture ingress, thread corrosion, or pin oxidation.
• Monitor broadband noise levels (nominal 0.004 mm/s rms) to detect loose mounting studs or degraded cable shielding.
• Check hazardous area grounding paths to ensure case isolation is maintained according to ATEX installation drawings.

Model Selection Comparison & Technical Guidance

When engineering casing vibration monitoring systems, selecting the correct mounting thread and hazardous area approval suffix is critical for seamless integration. For applications requiring alternative mounting thread configurations or regional hazardous certifications, review the 330500-07-01 sensor variant, which provides customized adapter options suited for specific turbine casing studs.

Global Logistics, Express Delivery & Warranty Terms

• Includes one genuine 330500-00-02 piezo-velocity sensor packaged in protective industrial casing.
• Dispatched worldwide within 24 to 48 hours of order confirmation.
• Shipped securely via premier express carriers including FedEx, UPS, and DHL.
• Backed by a dependable 12-month operational performance warranty.

Target Equipment & Industrial Application Sites

• Large industrial steam, gas, and hydro turbines requiring absolute casing vibration tracking.
• Centrifugal and axial compressors operating in explosive petrochemical environments.
• Heavy-duty industrial fans, blowers, and large electric motor bearings.
• Critical gearbox housings subject to high-frequency mechanical shock and vibration.

Global PLC Spare HUB's Insight

Casing velocity measurements on high-speed rotating machines require sensors with high resonant frequencies to reject spurious background noise. In a recent power plant turbine overhaul, deploying the 330500-00-02 Velomitor provided crystal-clear velocity data above 4.5 Hz, successfully identifying structural resonance issues before they caused unplanned outages.

Frequently Asked Questions

Why is case isolation important for the 330500-00-02 sensor installation?

• Case isolation prevents ground loops and electrical interference from contaminating the low-level velocity signal when the sensor is mounted directly on electrically noisy machine frames.

What precautions should be taken when routing signal cables over long distances?

• While the sensor supports cable runs up to 305 meters (1,000 feet) without signal degradation, installers must use twisted-pair shielded cable and maintain proper grounding to prevent electromagnetic noise pickup.

How does hazardous area approval impact the installation of this sensor?

• The -00-02 suffix includes ATEX approvals, requiring all field wiring and barrier connections to strictly follow certified installation drawings for explosive atmospheres.

What troubleshooting steps should I follow if the output bias voltage drifts outside normal limits?

• Measure the DC voltage between Pin A and Pin B; if the voltage deviates significantly from -12 VDC, inspect the cabling for short circuits or internal sensor damage caused by severe mechanical shock.

What buying considerations are most critical when replacing older velocity transducers?

• Always verify the mounting thread geometry, frequency response range, and hazardous area classification to ensure full electrical and mechanical compatibility with your existing monitoring rack.
