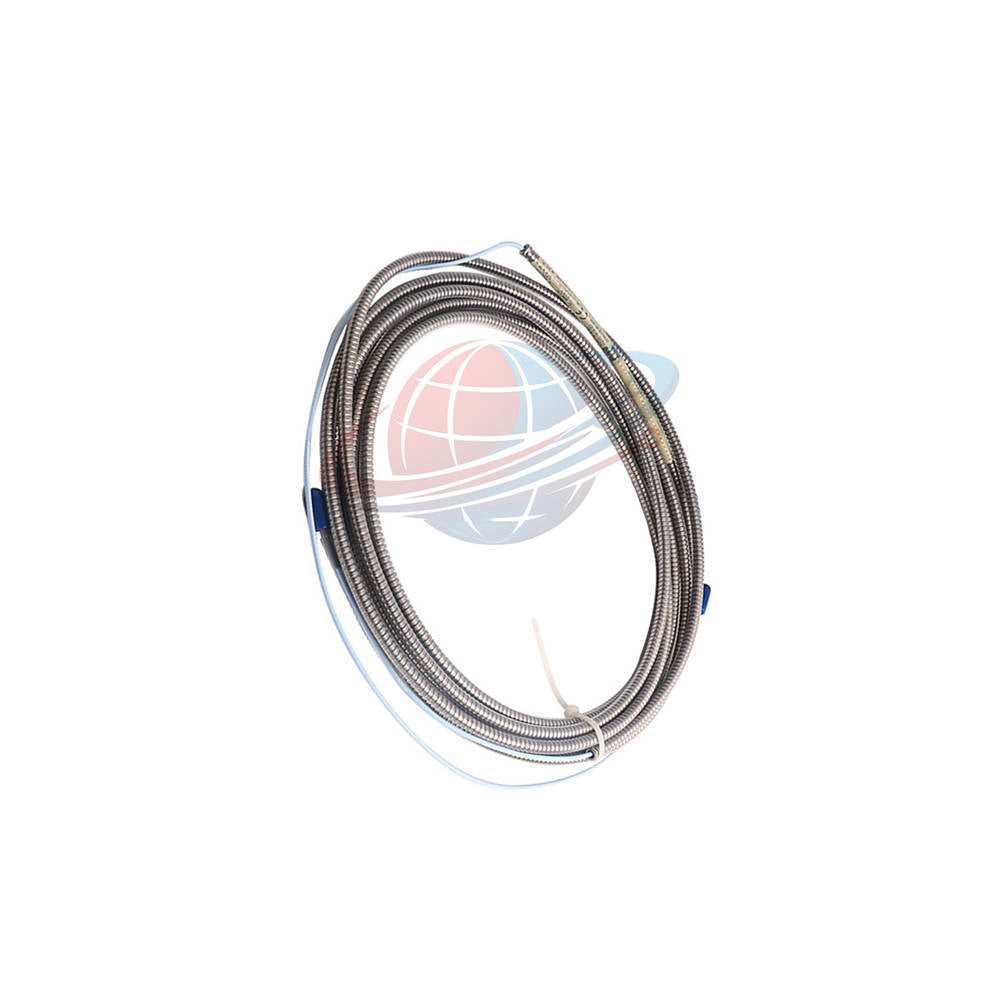

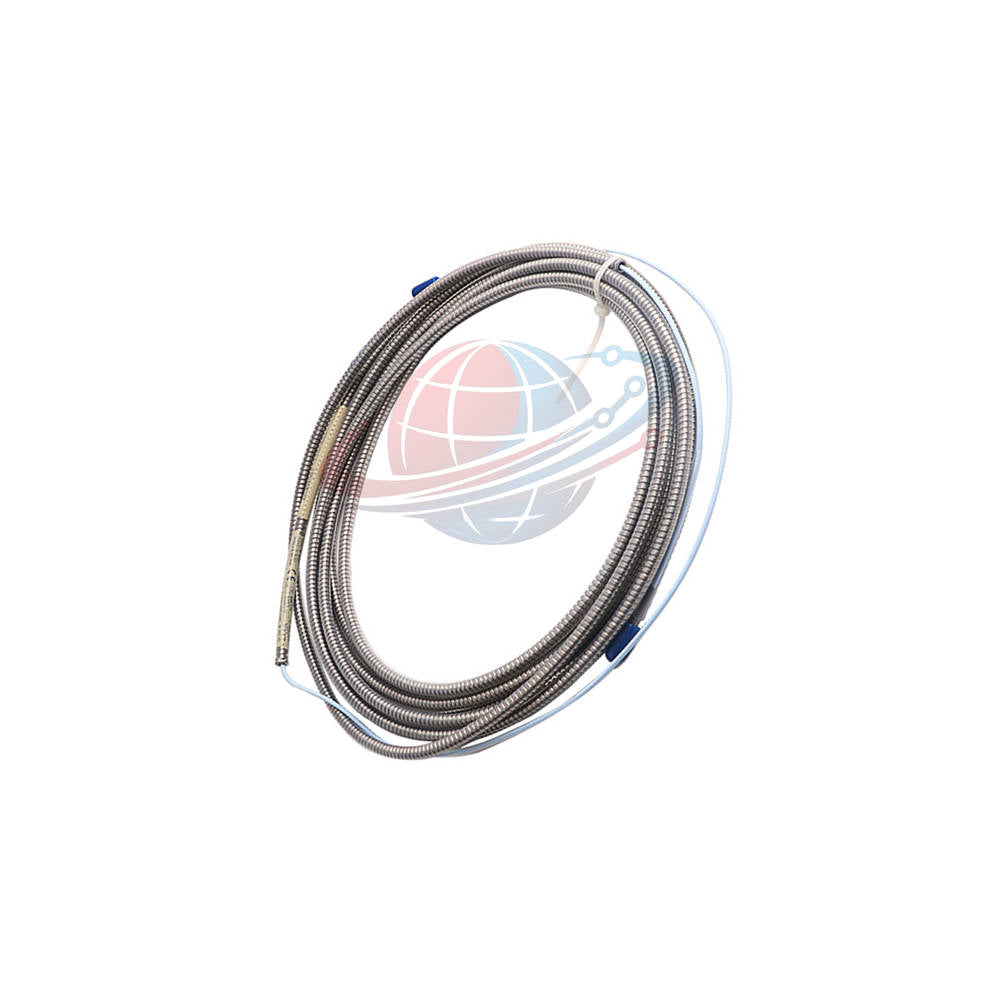

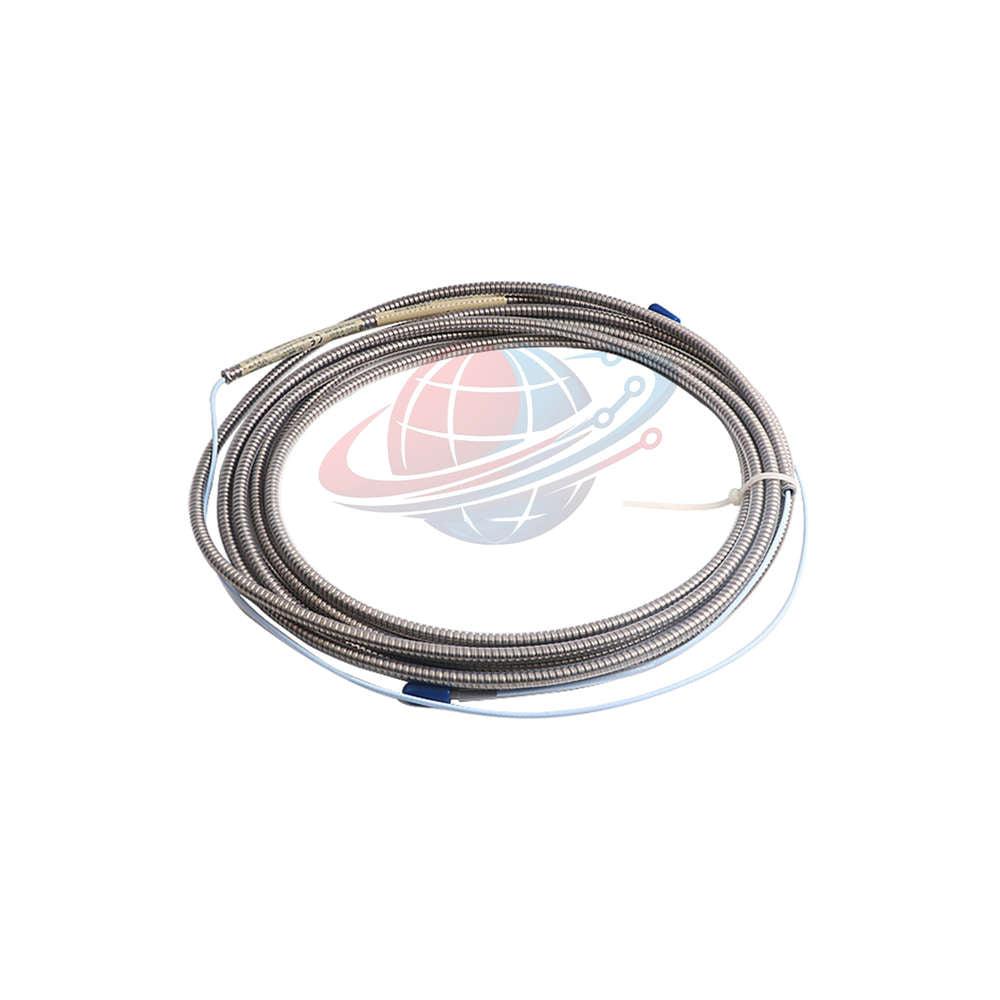

330130-030-03-00 Bently Nevada 3300 XL Armored Extension Cable

330130-030-03-00 Product Overview

The 330130-030-03-00 is a high-performance 3.0-meter armored extension cable engineered for the Bently Nevada 3300 XL 8 mm proximity transducer system. Designed to transmit high-frequency eddy-current signals between non-contacting probes and Proximitor sensors, this cable incorporates gold-plated ClickLoc connectors and protective stainless steel armor. Its physical construction maintains signal phase stability across harsh industrial environments subject to vibration, mechanical abrasion, and oil exposure.

330130-030-03-00 Model Code Breakdown

Bently Nevada 3300 XL Series Extension Cable Framework:

• Base Model: 330130 — 3300 XL Extension Cable System
  • Cable Length Option [-030]: 3.0 meters (9.8 feet) total length.
  • Armor & Protection Option [-03]: Stainless steel armored cable with pre-installed connector protector.
  • Agency Approval Option [-00]: Standard unapproved option (No hazardous area approvals required).

Technical Specifications & System Dynamics

1. Basic Identification & Compatibility

• Manufacturer: Bently Nevada (Made in U.S.A.)
• Part Number: 330130-030-03-00
• Product Series: 3300 XL Proximity Transducer System
• Supported Sensors: Standard 3300 XL 8 mm, 3300 8 mm, and 3300 5 mm proximity probes.

2. Electrical & Performance Limits

3. Mechanical & Environmental Resilience

• Armor Cable Weight: 103 g/m (1.5 oz/ft); total assembly net weight approximately 0.618 kg.
• Connector Architecture: Gold-plated ClickLoc positive-locking connectors resistant to surface oxidation.
• Cable Pull Strength: Patented CableLoc construction providing 330 N (75 lbf) mechanical pull resistance.
• Environmental Humidity: < 3% Average Scale Factor (ASF) shift after 56 days at 93% humidity per IEC 68-2-3.
• Mechanical Protection: Flexible metallic armor shielding guards internal coaxial lines against impact and pinch points.

Compatible Machinery & Target Applications

The 330130-030-03-00 cable is built for heavy-duty rotating machinery monitoring where physical abrasion from casing hardware or personnel foot traffic is present. Common installations include:

• Heavy industrial steam turbines and utility gas turbine bearing housings.
• High-pressure multi-stage centrifugal compressors and boiler feed pumps.
• Large gearbox input/output shaft radial vibration and axial thrust measurements.
• Draft fans, induction motors, and hydro-generator shaft position monitoring loops.

Diagnostic Capabilities & Troubleshooting

Maintaining exact loop resistance is critical for 3300 XL system calibration. Field engineers can perform static diagnostic checks directly across the 330130-030-03-00 connector terminals using a precision Digital Multimeter:

• Center Conductor Resistance (RCORE): Measure resistance between center pins at both ends. Values exceeding 0.76 Ω indicate internal wire strand fractures or end-pin oxidation.
• Shield Conductor Resistance (RJACKET): Measure outer shield continuity. Readings over 0.24 Ω confirm shield mechanical fatigue or loose ClickLoc crimp contacts.
• Capacitance Insulation Test: Core-to-shield capacitance must stay within nominal 69.9 pF/m limits. Sharp rises indicate moisture ingress within unsealed connector boots.

Model Comparison & Selection Advice

Selecting the correct extension cable requires balancing total system electrical length against physical routing constraints. Below is a direct comparison between the 3-meter armored unit and a longer unarmored variant:

Engineering Advice: Never alter cable length by cutting or splicing! The total length of the probe plus the 330130-030-03-00 extension cable must match the calibrated system length of the Proximitor sensor (typically 5 meters or 10 meters combined). Mismatched cable lengths cause severe scale factor errors and corrupt radial vibration amplitude readings.

Global PLC Spare HUB's Insight & Field Experience

In turbomachinery retrofits, connector contamination remains the primary root cause of spurious vibration trips. During an overhaul at a power station, engineers reported intermittent -24 Vdc supply rail pull-down on a Bently Nevada monitoring rack. Our field inspection identified that technicians used supplied silicone tape instead of molded connector protectors inside a turbine bearing housing flooded with hot turbine oil. The oil degraded the tape, penetrated the ClickLoc shell, and shorted signal pins. We replaced the line with an armored 330130-030-03-00 cable equipped with factory connector protectors. We strongly advise using hard connector protectors whenever connections reside inside oil-rich machine enclosures.

Logistics & Commercial Terms

• Warranty Period: Full 12-month factory defect coverage.
• Order Processing: Standard 24-48 hour fast dispatch from ready warehouse stock.
• Global Express Shipping: Worldwide door-to-door delivery via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: How does the ClickLoc connector mechanism prevent signal loss during high machine vibration?

A: ClickLoc connectors feature gold-plated contact surfaces and a positive-locking tactile mechanism that prevents threaded mechanical back-off under high acceleration forces.

Q: Can I use silicone wrapping tape instead of the pre-installed connector protector on this armored model?

A: Silicone tape is supplied with cables, but we advise against using it in environments exposed to turbine lube oil or synthetic lubricants, as hydrocarbons degrade silicone seals over time.

Q: What happens if the supply voltage drops more positive than -23.5 Vdc at the Proximitor terminals?

A: Supplying voltage above -23.5 Vdc restricts the maximum dynamic range of the eddy-current driver circuit, compressing the linear measuring span below the rated 2.0 mm specification.

Q: What cable parameters must be checked if dynamic vibration readings display harmonic distortion?

A: Measure the RJACKET shield resistance and core capacitance. A loose armor crimp or degraded center core resistance (exceeding 0.76 Ω) will introduce high-frequency phase delays.

Q: Is the 330130-030-03-00 extension cable interchangeable with non-XL 3300 series probes?

A: Yes, it accepts standard 3300 5 mm, 3300 8 mm, and 3300 XL 8 mm probes. However, full system accuracy tolerances only apply when all loop components belong to the 3300 XL product family.
