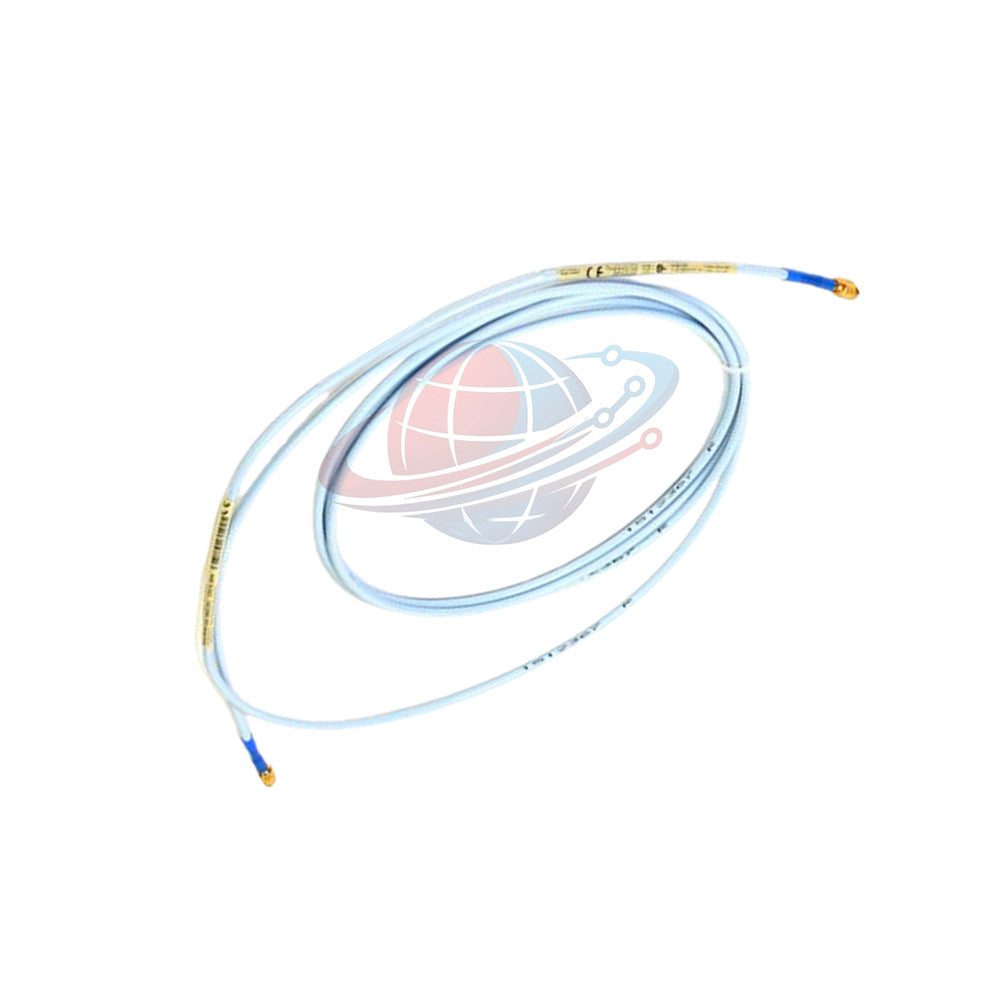

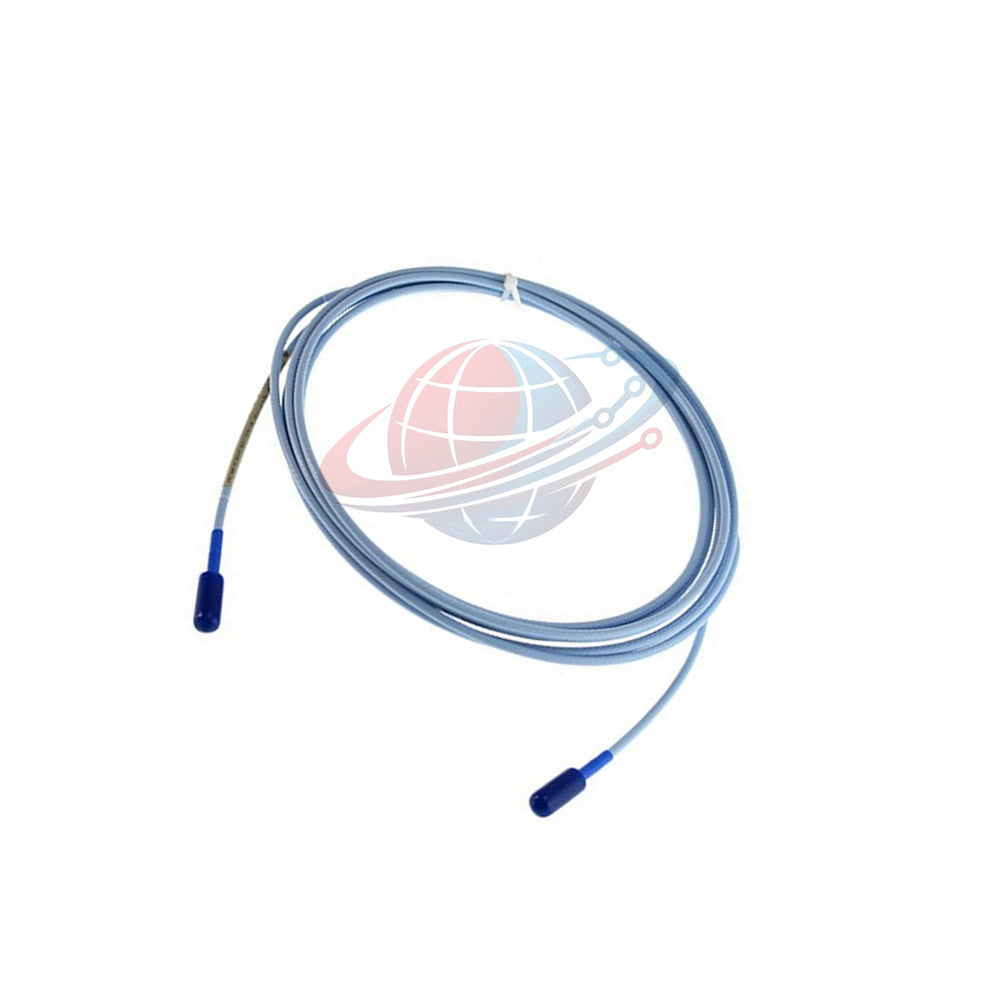

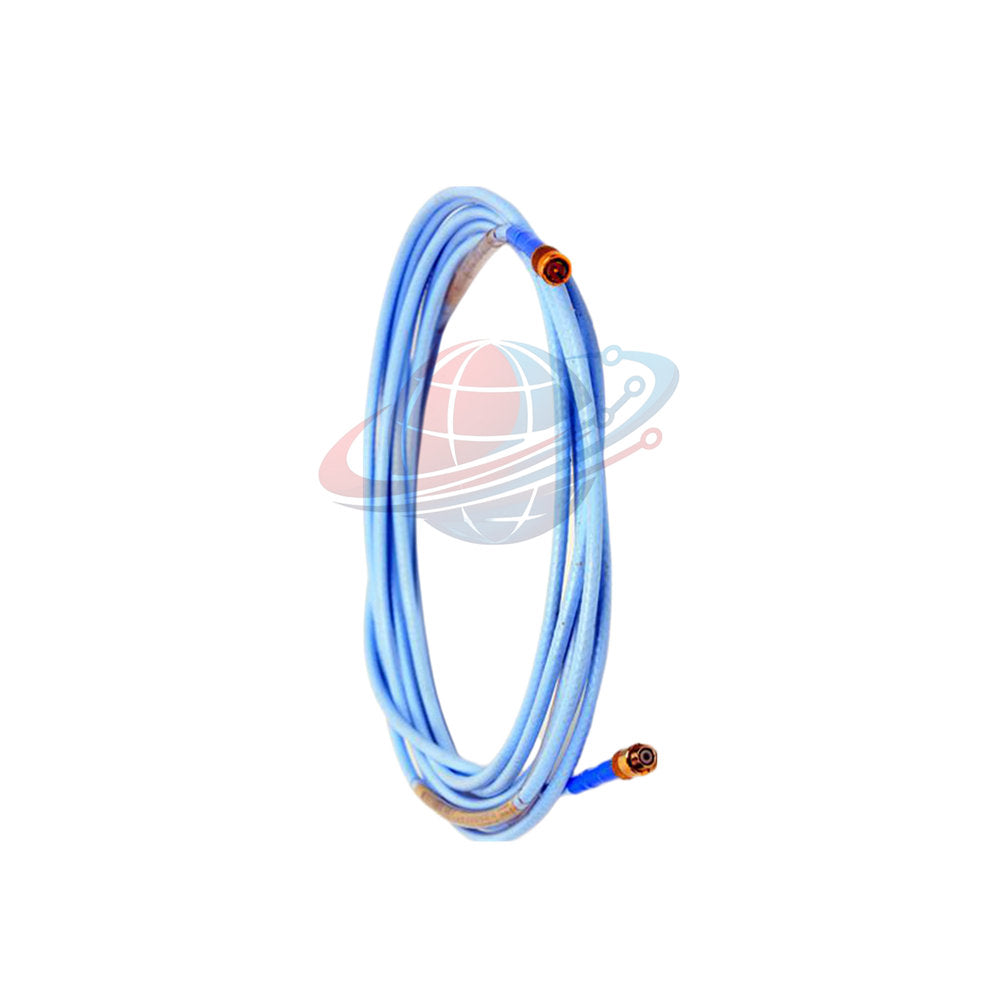

330130-045-02-00 4.5 Meter Proximity Extension Cable Bently Nevada Series

Engineering Overview & Configuration Architecture

The 330130-045-02-00 manufactured by Bently Nevada is a precision-engineered extension cable designed for the 3300 XL eddy-current transducer framework. Serving as a crucial link between the 8 mm proximity probe and the proximitor sensor, this 4.5-meter assembly ensures minimal signal attenuation across high-frequency vibration monitoring loops. Patented CableLoc and TipLoc manufacturing methodologies guarantee high mechanical pull strength and structural integrity under severe industrial operating conditions.

Technical Parameter Specification Matrix

• Brand: Bently Nevada
• Product Series: 3300 XL
• Model / Part Number: 330130-045-02-00
• Component Type: Proximity Transducer Extension Cable
• Standard Cable Length: 4.5 meters (14.8 feet)
• Conductor DC Resistance: Center-to-center R_{CORE} =0.99 ± 0.15Ω
• Jacket DC Resistance: Outer-to-outer R_{JACKET} = 0.30 ± 0.06Ω
• Distributed Capacitance: 69.9pF/m (21.3pF/ft) typical
• Weight Specification: Standard cable format at 34 g/m (0.4 oz/ft), total mass 0.204 kg

Installation & Deployment Guidelines

• Verify system power requirements, ensuring the proximitor receives between -17.5 Vdc and -26 Vdc.
• Utilize 3-conductor shielded triad cable (16 to 24 AWG) for field wiring extensions up to 305 meters (1,000 feet).
• Apply the included silicone tape as an alternative connector protector only when the environment is completely free of turbine oil exposure.
• Route extension cables away from high-power motor feeds to prevent electromagnetic noise coupling into the low-level signal path.

Diagnostic Capabilities & System Maintenance

• Monitor DC gap voltage output levels, ensuring operating linear range remains within -1 to -17 Vdc ($0.25$ to $2.3$ mm target distance).
• Inspect connector interfaces periodically for moisture accumulation or resistance drift caused by thermal cycling.
• Perform routine insulation resistance checks to verify that shield grounding integrity remains uncompromised across the plant lifecycle.

Logistics, Fulfillment & Warranty Terms

• Warranty Coverage: Comprehensive 12-month manufacturer warranty included on all units.
• Processing Speed: Expedited 24 to 48-hour order dispatch for stock inventory items.
• Global Carriers: Secure, trackable express transit managed via FedEx, UPS, and DHL.

Global PLC Spare HUB's Insight & Target Applications

• Target Equipment: Steam turbines, heavy-duty gas compressors, centrifugal pumps, and hydro-generator shafts monitored by Bently Nevada rack systems.
• Application Scenarios: Deployed extensively in power generation plants and petrochemical processing units requiring precise shaft vibration and radial displacement tracking.
• Engineering Insight: Global PLC Spare HUB technical teams highlight that sudden increases in extension cable capacitance or signal rolloff typically stem from crushed coaxial jackets rather than internal conductor fatigue. Always verify physical cable radius constraints during cabinet layout changes.

Model Selection & Cross-Reference Comparison

• Alternative Configuration: Compare with 330130-040-13-00, which features a shorter 4.0-meter span and specialized hazardous area approval option codes tailored for tight cabinet retrofits.

Expert Technical FAQ

• Question: Why is silicone tape not recommended for connections exposed to turbine oil?
  Answer: Turbine oil breaks down the adhesive and material composition of standard silicone tape, compromising the moisture barrier and causing signal degradation.
• Question: What is the maximum recommended field wiring distance between the proximitor sensor and the monitor?
  Answer: The maximum recommended field wiring length is 305 meters (1,000 feet) using 3-conductor shielded triad cable.
• Question: How does changing input supply voltage affect the transducer linear range?
  Answer: Operating at a supply voltage more positive than -23.5 Vdc can significantly compress the active linear range of the measurement system.
• Question: What selection criteria should engineers check before substituting extension cable lengths?
  Answer: Total system calibration relies on fixed electrical length matching; altering cable lengths without recalibrating the proximitor can introduce systemic calibration errors.
• Question: What does a typical DC resistance measurement of $0.99$ ohms signify?
  Answer: It confirms that the center conductor continuity across the 4.5-meter path is healthy and free from internal micro-fractures.
