330103-00-15-50-02-00 Bently Nevada Probe | 3300 XL 8mm M10 Sensor Kit

Product Overview

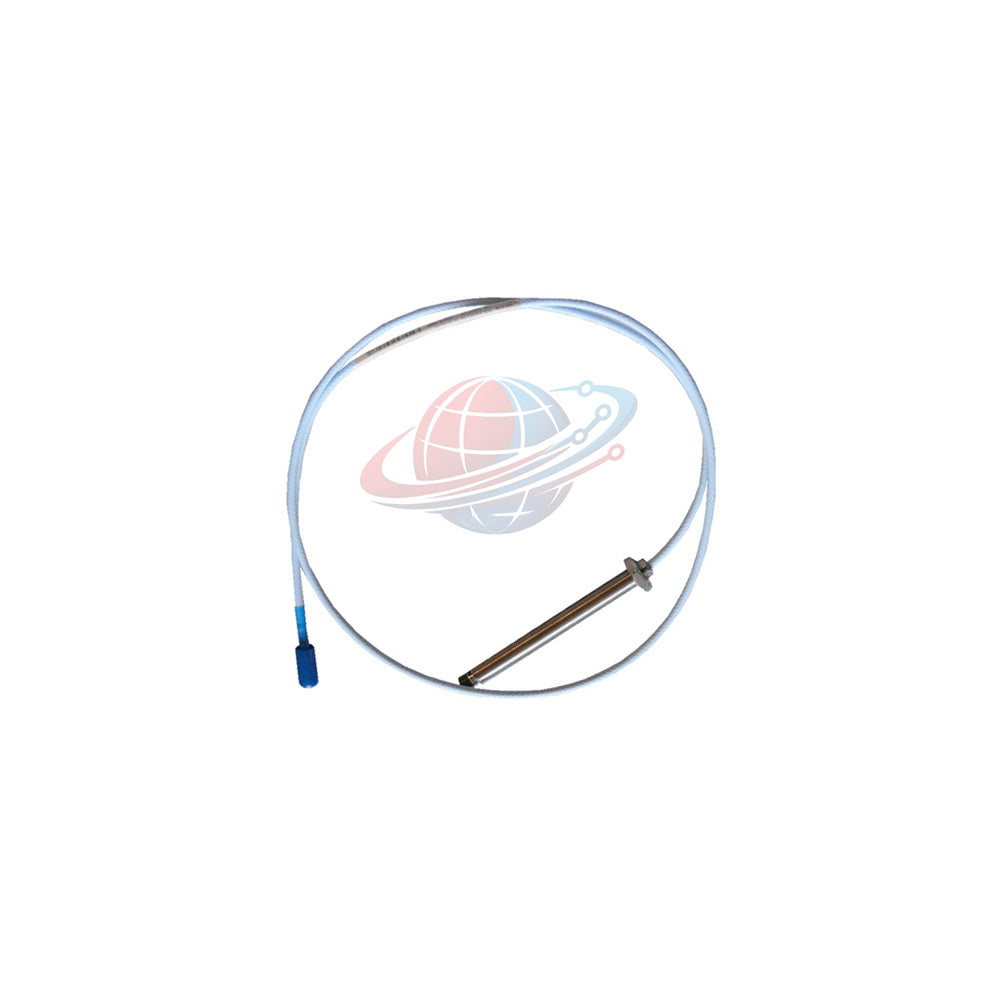

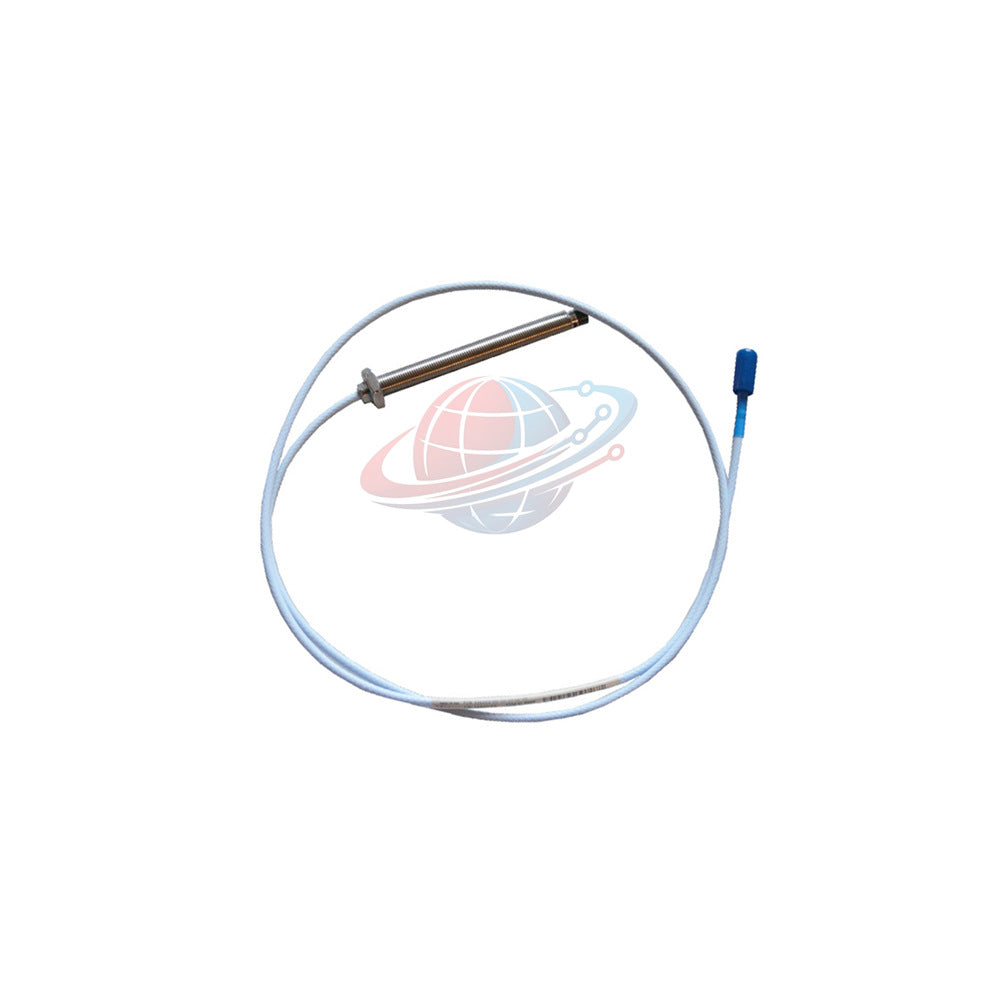

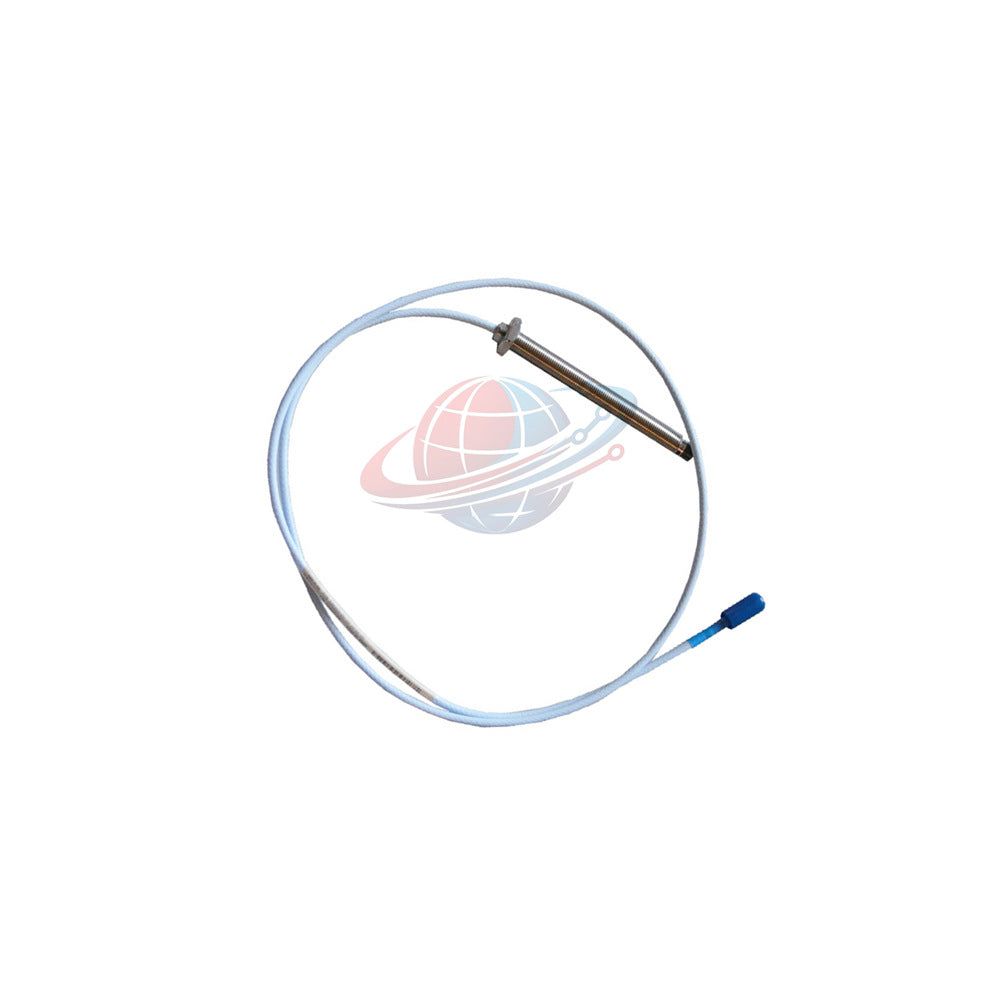

The 330103-00-15-50-02-00 is an industrial-grade eddy current proximity transducer. It belongs to the high-performance Bently Nevada 3300 XL 8 mm series. This metric-threaded sensor measures static and dynamic shaft displacement on critical rotating machinery.

Engineered without external armor, the 330103-00-15-50-02-00 features an integrated 5.0-meter coaxial cable. This design terminates in a standard miniature coaxial ClickLoc connector. It provides reliable, high-accuracy gap measurements for machinery protection systems.

Global PLC Spare HUB's Insight

Our senior instrumentation specialists have analyzed the Bently Nevada 330103-00-15-50-02-00 under continuous-duty industrial scenarios. Unlike standard 1-meter or 2-meter probes that require intermediate extension cables near the machine case, this integrated 5-meter configuration runs directly to your local junction box. Eliminating an intermediate connection point reduces signal attenuation and prevents moisture ingress failures.

We emphasize that this 5-meter probe is tuned exclusively for use with a 5-meter Proximitor sensor. Using it with a 9-meter driver will cause severe calibration skewing and invalid system scale factors (ASF). The unarmored design makes cable routing simpler in tight conduits, but you should use adequate cable support to prevent jacket wear.

Part Number Configuration Breakdown

The exact specification profile of the 330103-00-15-50-02-00 is decoded using the following structured system logic:

• Base Part Number: 330103 (3300 XL 8 mm Probe, M10 x 1 Thread, Unarmored)
•   └── Unthreaded Length Suffix: -00 (0 mm minimum unthreaded length; fully threaded body)
•   └── Overall Case Length Suffix: -15 (150 mm total case length)
•   └── Total Length Suffix: -50 (5.0 Meters / 16.4 Feet total cable length)
•   └── Connector Type Suffix: -02 (Miniature coaxial ClickLoc connector, standard cable)
•   └── Agency Approval Suffix: -00 (No hazardous area approvals required)

Technical Specifications Table

Target Equipment & Applications

The 330103-00-15-50-02-00 is built for critical machinery monitoring, including:

• Steam and gas turbine bearing housing relative vibration
• Centrifugal compressor radial shaft vibration and rotor thrust position
• High-pressure boiler feed water pump shaft displacement
• Gearbox input/output shaft radial runout diagnostics

Model Comparison & Technical Selection Guide

To assist in your engineering review, the table below compares our stocked probe to another common configuration. We recommend confirming your machine casing clearance and cable routing depth before making a selection.

Diagnostics & System Troubleshooting

A failing sensor link can lead to false trips or missed events. The 330103-00-15-50-02-00 provides precise analog voltage feedback back to your rack. A steady change in DC bias voltage indicates shaft babbitt wear or thrust movement. Dynamic AC voltage components reveal real-time vibration amplitude, orbital paths, and phase reference anomalies.

Global Logistics & Warranty Terms

• 12-Month Quality Warranty: Global PLC Spare HUB provides a full 12-month quality replacement guarantee on this probe.
• Fast Warehousing Dispatch: All orders are securely packed and shipped within 24 to 48 hours.
• International Air Express: We ship worldwide using DHL, FedEx, and UPS with tracking provided.

Frequently Asked Questions (FAQ)

How do I test the internal coil of a 330103-00-15-50-02-00 probe using a multimeter?
Set your multimeter to measure resistance. Connect one lead to the center pin of the ClickLoc connector and the other to the outer shell. A healthy 5-meter probe must read between 8.23 Ohms and 9.23 Ohms. A reading near zero indicates a short, while an infinite reading indicates an open circuit.

What occurs if I connect this 5-meter probe to a 9-meter Proximitor sensor?
The Proximitor sensor will fail to calibrate correctly. Because a 9-meter driver expects a combined probe and extension cable length of 9 meters, using a 5-meter probe without an extension cable shifts the impedance curve. This shift degrades calibration linearity and creates inaccurate scale factors.

Can I expose the probe tip to sub-zero temperatures safely?
While the standard operating range goes down to -52 °C, exposing the assembly to temperatures below -34 °C (-30 °F) can harden the internal Viton O-ring. This hardening may compromise the high-pressure differential seal, leading to process fluid leaks through the case.

How do I set the correct physical gap during field installation of this M10 probe?
First, mount the probe until the tip makes light contact with the target shaft, then back it out approximately 1.27 mm (equivalent to 1.27 turns of the M10x1 thread). Next, power up the Proximitor sensor and monitor the DC output. Adjust the probe position until the voltage reads exactly -9.0 Vdc before tightening the locknuts.

Why is the unarmored cable option preferred over the armored version?
Unarmored cables are more flexible and have a smaller overall outer diameter. This makes them much easier to route through tight, complex conduit bends. However, they should only be used where the routing path provides adequate physical protection from mechanical impacts.
