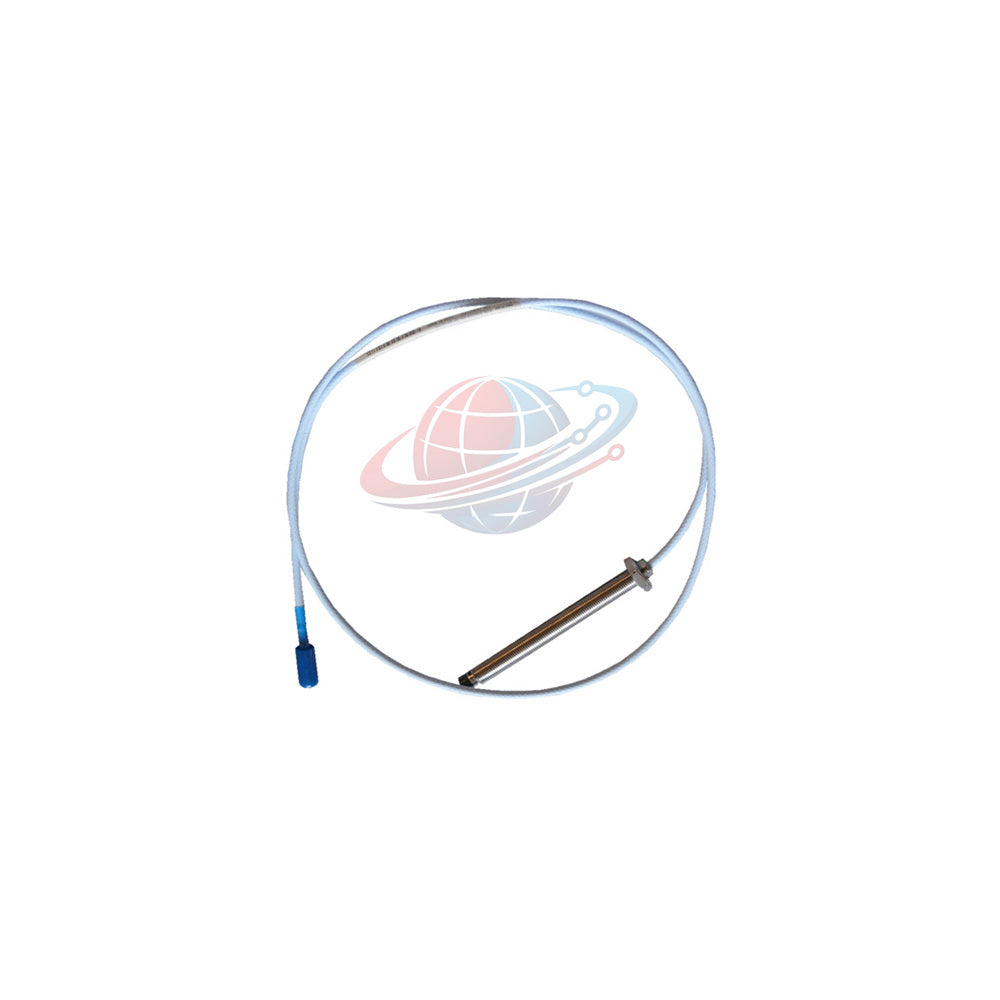

330103-00-04-15-02-CN Bently Nevada 3300 XL Probe 8mm Vibration Sensor

Product Engineering Overview

330103-00-04-15-02-CN is a precision proximity probe from the 3300 XL 8 mm series. It is designed for accurate shaft vibration and displacement monitoring. The probe delivers stable performance in industrial environments.

This model uses a compact metric thread design. It supports high-resolution measurement and robust mechanical durability. Engineers apply it in rotating machinery diagnostics.

Configuration Breakdown

• Model Structure: 330103-00-04-15-02-CN
• • 330103
    • 3300 XL 8 mm probe, M10x1 thread, non-armored
  • 00
    • Unthreaded length: 0 mm
  • 04
    • Overall case length: 40 mm
  • 15
    • Total cable length: 1.5 meters
  • 02
    • Miniature coaxial ClickLoc connector
  • CN
    • Country-specific approval configuration

Measurement Performance

• Linear Range: 2 mm measurement span
• Initial Measurement Point: 0.25 mm from target
• Recommended Gap: 1.27 mm (-9 Vdc reference)
• Output Range: approximately -1 to -17 Vdc
• Probe Resistance: 7.73 ± 0.50 Ω
• Frequency Stability: suitable for high-speed monitoring

Material and Structural Design

• Probe tip uses PPS for thermal and chemical resistance.
• Probe case constructed from stainless steel.
• Sealed with Viton O-ring for pressure isolation.
• Flexible coaxial cable ensures signal integrity.
• Compact body supports tight installation spaces.

Environmental and Electrical Characteristics

• Operating Temperature: -52°C to +177°C standard
• Extended Temperature: up to +218°C probe tip
• Humidity Resistance: stable under 93% humidity
• Field Wiring Distance: up to 305 meters
• Minimum Bend Radius: 25.4 mm

Installation Guidelines

• Ensure proper thread engagement during mounting.
• Maintain recommended probe gap for accuracy.
• Use shielded cables for long-distance wiring.
• Avoid excessive bending of probe cable.
• Verify environmental conditions before installation.

Application Scope

• Steam and gas turbine monitoring
• Compressor shaft vibration analysis
• Industrial pump diagnostics
• High-speed rotating machinery
• Process plant condition monitoring

Diagnostics Capability

• Detects shaft displacement variations
• Supports predictive maintenance strategies
• Provides stable signal under dynamic conditions
• Enables early fault identification
• Maintains accuracy over extended operation

Global PLC Spare HUB’s Insight

The 330103-00-04-15-02-CN probe is optimized for industrial reliability. It provides consistent measurement performance across demanding environments. Engineers prefer this model for precision vibration monitoring tasks.

It integrates seamlessly with monitoring systems requiring stable signal output and compact installation.
