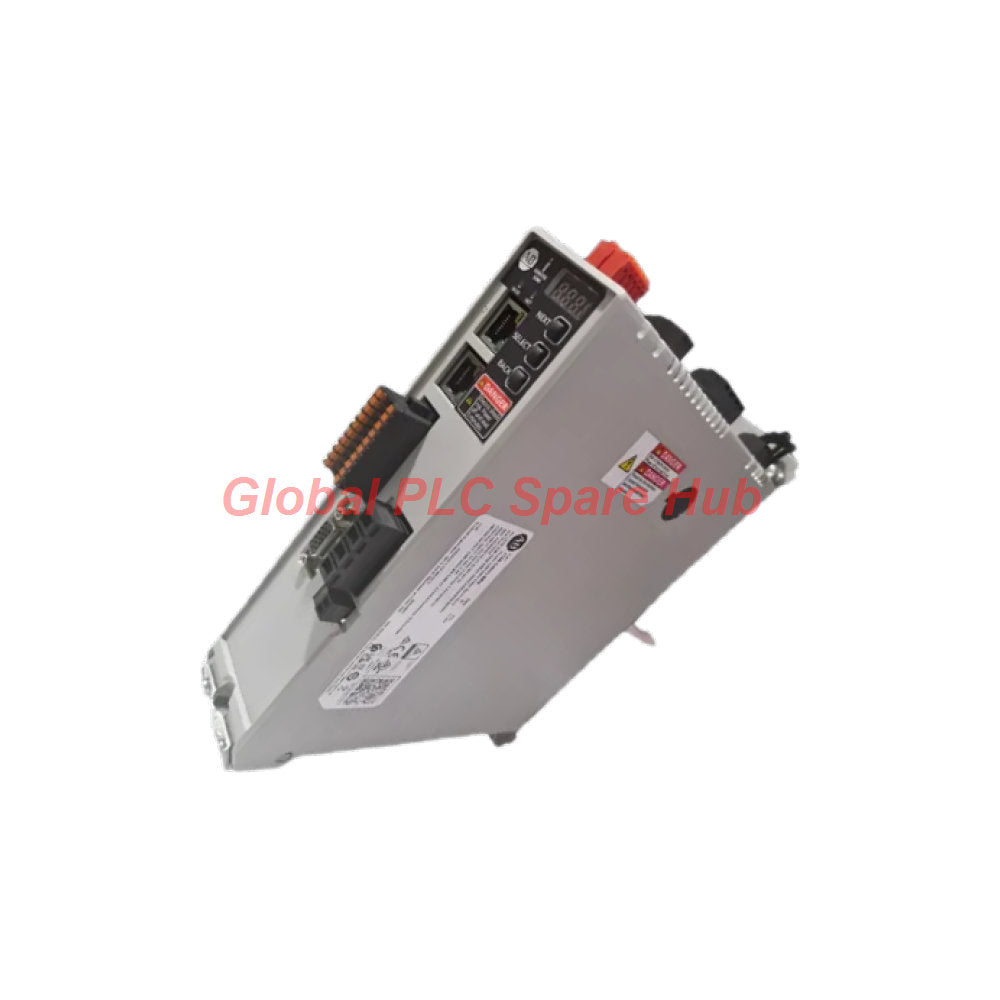

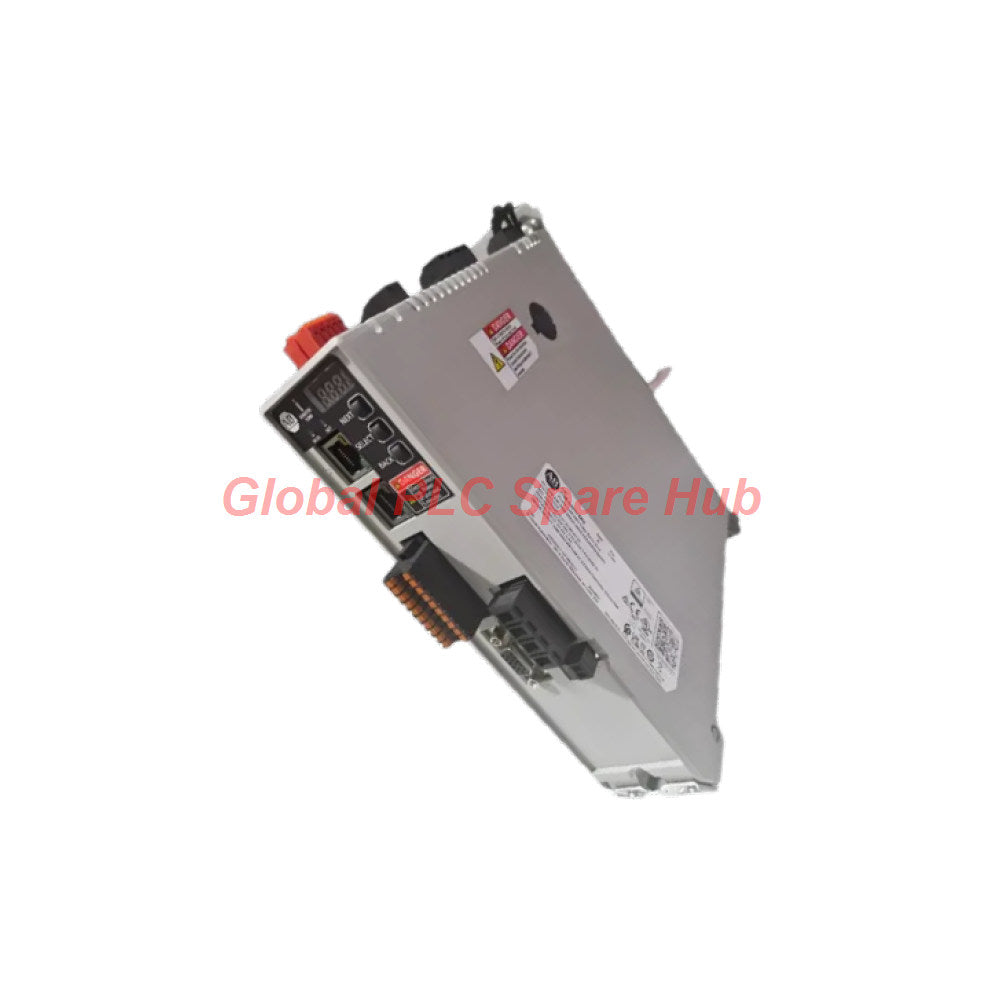

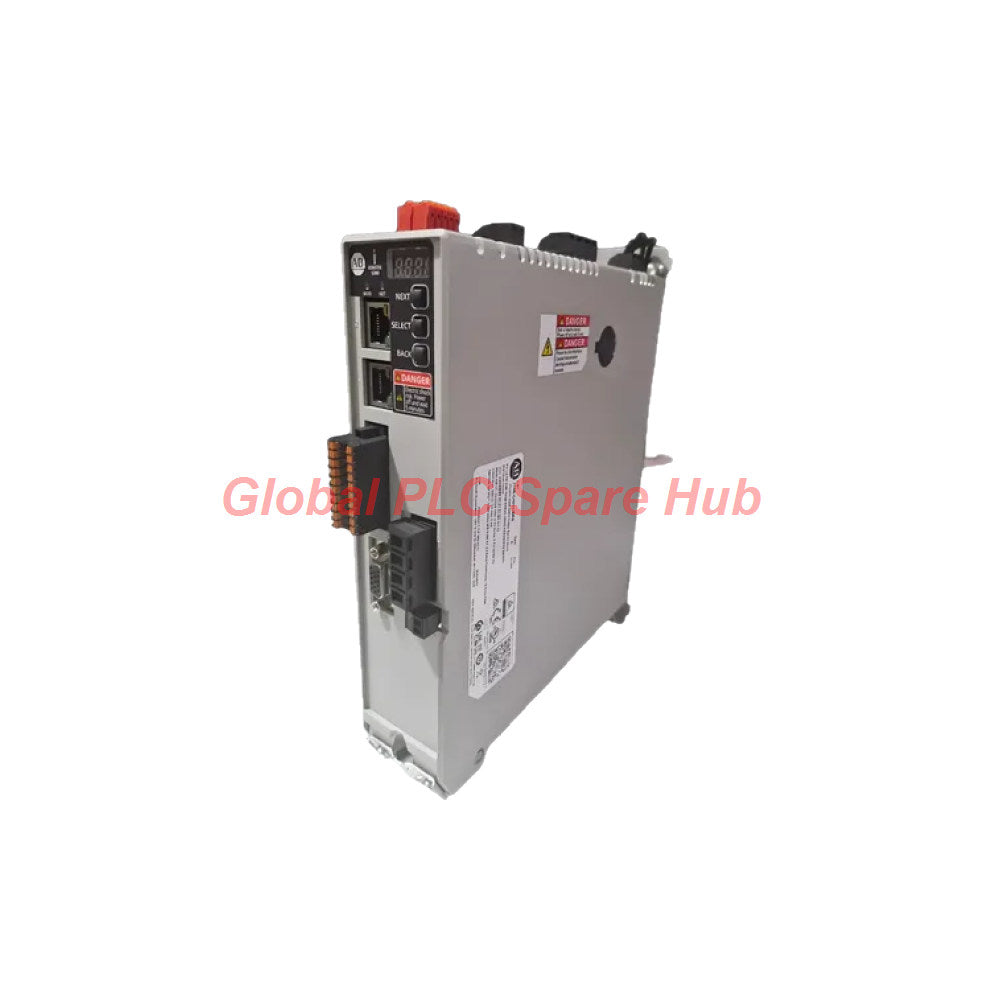

2198-C4015-ERS Allen Bradley Kinetix 5300 AC Servo Drive

Allen Bradley Kinetix 5300 | AC Servo Drive

The 2198-C4015-ERS is an Allen Bradley servo drive in the Kinetix 5300 product family. It supports motion-control applications that require coordinated motor operation and EtherNet/IP communication. The drive accepts three-phase AC input within the specified 400 V class range. Its continuous output power rating is 2.78 kW, with a continuous current rating of 5.2 A RMS and a peak output current rating of 18.0 A RMS. Engineers should verify motor compatibility, system configuration, and the applicable Rockwell Automation documentation before installation.

01 | Product Identity

Manufacturer	Allen Bradley (Rockwell Automation)
Model / Part Number	2198-C4015-ERS
Product Family	Kinetix 5300
Product Type	AC Servo Drive
Communication Protocol	EtherNet/IP
UPC	191326677622
Listed Weight	1.28 kg (2.81 lb)

02 | Electrical and Motion Ratings

Input Voltage	342–528 V AC, three-phase
Voltage Class	400 V class
Input Frequency	50/60 Hz
Continuous Output Power	2.78 kW
Continuous Output Current	5.2 A RMS
Peak Output Current	18.0 A RMS
Network Interface	EtherNet/IP
Specified Wire Range	24–12 AWG
Wire Strip Length	8 mm
Specified Terminal Torque	0.5–0.6 N·m

Electrical Selection Note: Confirm whether each wire and torque specification applies to the intended terminal. Follow the manufacturer's wiring diagrams and terminal-specific instructions. The peak current rating does not represent a continuous operating allowance. Verify overload duration, duty cycle, and motor requirements using the official drive documentation.

03 | Application Fit and Motion-System Integration

The Kinetix 5300 family supports servo-based motion control in compatible industrial automation systems. The drive can suit applications requiring controlled acceleration, deceleration, speed, and position. - Packaging Machinery: Coordinate indexing, product handling, and synchronized movement. - Assembly Equipment: Control servo axes in automated assembly and positioning stations. - Material Handling: Support motion control in compatible transfer, feeding, and handling mechanisms. - Automated Production Lines: Integrate servo motion with controller-based sequencing and EtherNet/IP communication. - Precision Positioning Equipment: Support repeatable movement where the selected motor and control architecture meet application requirements. Confirm the motor model, feedback interface, mechanical load, and required motion performance before selecting this drive.

04 | System Configuration and Compatibility Checklist

Use the following checklist when selecting a replacement or planning a new installation.

Configuration Item	Engineering Check
Drive Identification	Match the complete catalog number, including the ERS suffix.
Supply Network	Confirm three-phase voltage and available fault-current requirements.
Motor Compatibility	Verify motor ratings, feedback type, and supported combinations.
Load Requirements	Compare continuous and peak current demand with the application profile.
Controller Integration	Confirm controller support, firmware requirements, and EtherNet/IP configuration.
Network Design	Review topology, addressing, and real-time communication requirements.
Installation Space	Check mounting, cooling, spacing, and enclosure requirements.
Protection	Verify grounding, branch-circuit protection, and applicable safety requirements.

Replacement Guidance: Do not assume that two drives are interchangeable because they belong to the same series. Compare the full catalog number, motor compatibility, firmware requirements, and system configuration.

05 | Installation and Commissioning Procedure

Before Power-Up 1. Verify the drive catalog number and electrical ratings. 2. Isolate the power supply and confirm the equipment is safe to handle. 3. Inspect the enclosure, connectors, terminals, and mounting points. 4. Confirm the specified wire range and terminal preparation requirements. 5. Check grounding, protective devices, and cable routing. 6. Verify the motor and feedback connections against the approved wiring diagram. Commissioning Checks 1. Confirm the supply voltage falls within the specified range. 2. Check controller recognition and EtherNet/IP communication. 3. Verify the motor configuration and feedback settings. 4. Review drive parameters and fault history before enabling motion. 5. Perform approved low-risk motion tests under controlled conditions. 6. Confirm direction, speed, positioning response, and stopping behavior. 7. Record final parameters and commissioning results. Use the manufacturer's prescribed procedures for discharge time and DC bus voltage verification. Never assume the drive is safe immediately after disconnecting AC power.

06 | Diagnostics and Fault Isolation

A servo-axis fault can originate in the power supply, motor circuit, feedback system, network, configuration, or mechanical load. Use drive diagnostics to isolate the cause before replacing hardware. - Power-Related Faults: Measure the supply at approved test points and compare it with the permitted input range. - Communication Faults: Check EtherNet/IP link status, controller connectivity, addressing, and network diagnostics. - Motor or Feedback Faults: Inspect connectors and cable condition, then review the corresponding drive fault information. - Overload Conditions: Compare actual load demand with the drive and motor ratings. - Positioning Errors: Review command and feedback values, mechanical binding, tuning parameters, and load inertia. - Recurring Trips: Record fault codes and timestamps to identify patterns during acceleration, deceleration, or steady operation. Field Example: A servo axis trips during acceleration but runs normally at low speed. An engineer reviews the fault history, checks the mechanical load, and compares acceleration demand with the motor and drive ratings. This helps distinguish an application overload from a wiring or configuration problem.

07 | Global PLC Spare HUB's Insight

For servo-drive selection, engineers should evaluate the complete axis rather than output power alone. Supply conditions, motor characteristics, peak torque demand, feedback compatibility, and controller integration all affect system performance. The 2198-C4015-ERS lists 2.78 kW continuous output power and 5.2 A RMS continuous current. Its 18.0 A RMS peak rating requires comparison with the application's transient load profile and permitted overload duration. During replacement, record the original drive parameters and fault history before removing the unit. Confirm the motor and network configuration before restoring motion. This approach reduces avoidable commissioning delays and helps technicians identify configuration differences early.

08 | Maintenance and Operational Reliability

- Inspect terminals and connectors according to the scheduled maintenance plan. - Keep cooling passages clear and maintain the specified enclosure conditions. - Review recurring faults rather than repeatedly resetting the drive. - Inspect motor and feedback cables for mechanical wear or connector damage. - Back up validated drive parameters before approved maintenance activities. - Check network diagnostics after controller, switch, or firmware changes. - Document replacement details and post-maintenance test results. Follow the equipment manual for inspection intervals and environmental limits. The supplied specifications do not establish an operating temperature range or independent certification details.

09 | Packaging, Shipping, and Warranty

- Product: Allen Bradley Kinetix 5300 AC Servo Drive. - Part Number: 2198-C4015-ERS. - Quantity: Confirm the quoted quantity before ordering. - Packaging: Protective packaging suitable for transport; confirm the supplied package contents with the seller. - Warranty: 12 months, subject to the seller's written warranty terms. - Shipping Options: FedEx, UPS, and DHL, subject to destination and service availability. - Dispatch Target: 24–48 hours after order confirmation, subject to stock availability and order processing. Contact Global PLC Spare HUB for a quotation, availability confirmation, and assistance with drive selection.
