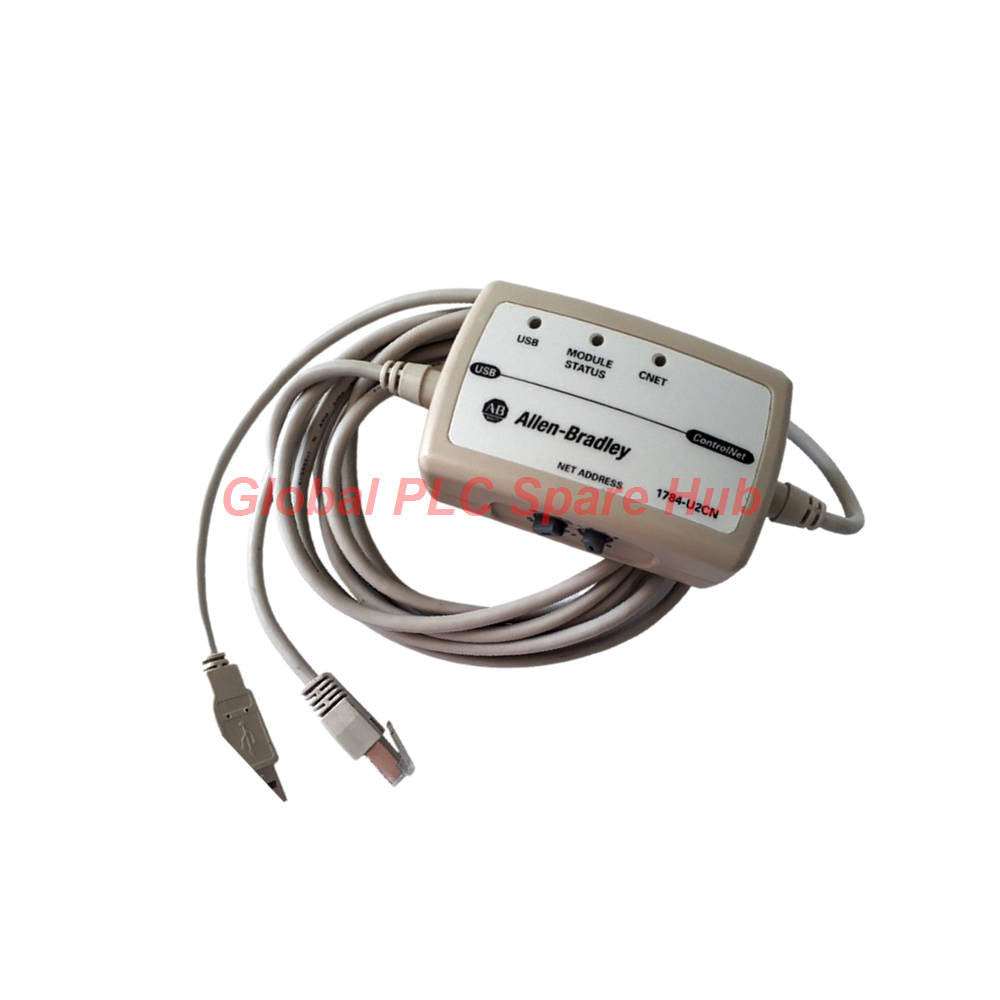

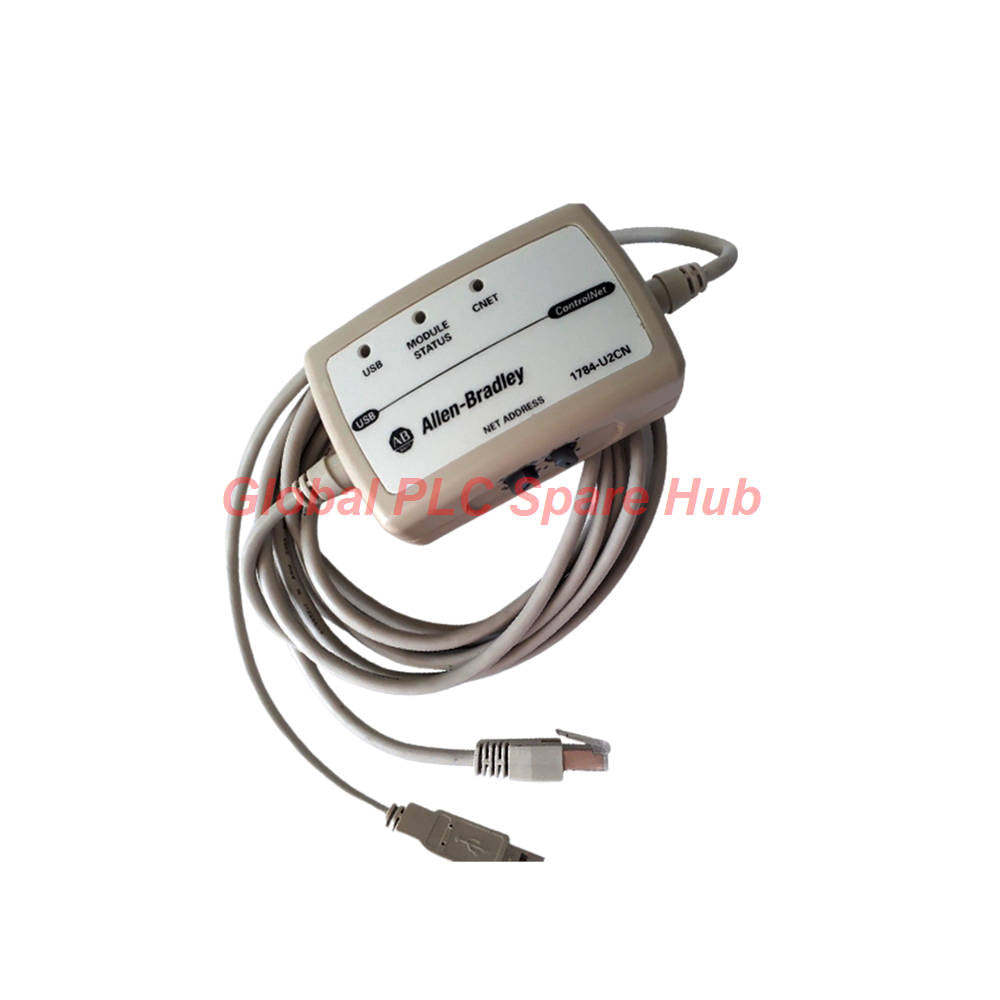

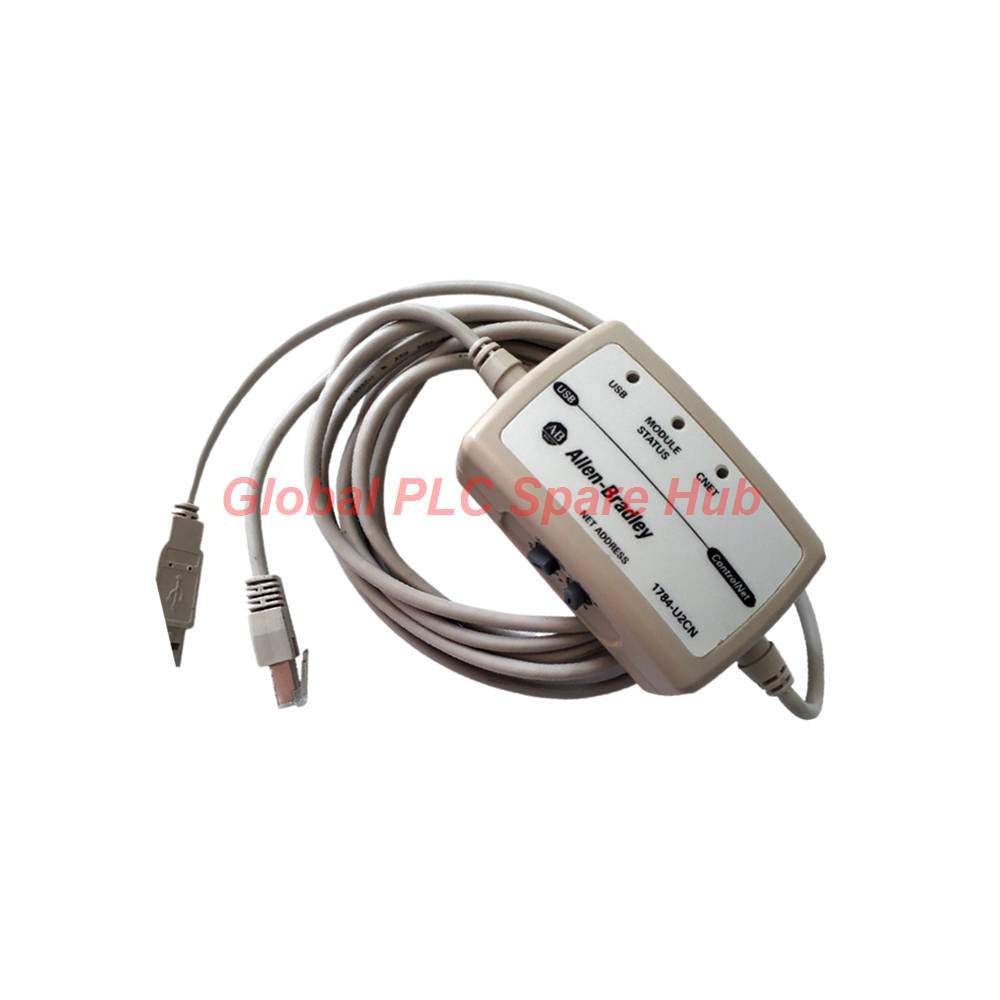

1784-U2CN Rockwell Automation ControlNet USB Communication Cable

Engineering Overview & Network Architecture

The Allen-Bradley 1784-U2CN is an advanced USB-to-ControlNet interface cable engineered to bridge field computers directly with deterministic industrial automation networks. Built for PLC-5 and associated control ecosystems, this hardware removes legacy serial conversion bottlenecks by leveraging high-speed USB architecture. The physical assembly integrates dual end connectors with a centralized node address configuration switch. Technicians rely on this tool for seamless online programming, firmware updates, and real-time diagnostic polling across distributed control loops.

Core Technical Parameters

Hardware Deployment & Diagnostic Indicators

Deploying the 1784-U2CN requires careful adherence to electrostatic discharge (ESD) precautions to safeguard internal circuitry. The integrated diagnostic LED array provides instant operational feedback:

• USB Status LED: Glows solid green when properly configured; flashes actively during active data transmission streams.
• Module Status LED: Indicates internal hardware health and initialization sequence states.
• Network Status LED: Reflects real-time health and token-passing traffic on the connected ControlNet ring.

Compatible Devices & Target Applications

• Primary Controllers: Interfaces directly with Allen-Bradley PLC-5, ControlLogix, and GuardLogix processors via ControlNet tap drops.
• Programming Workstations: Connects field engineering laptops running RSLogix 5, RSLogix 5000, or Studio 5000 software suites.
• Commissioning Tasks: Ideal for initial node commissioning, loop tuning, firmware flashing, and live network auditing.
• Troubleshooting Nodes: Deployed by maintenance teams to isolate communication faults on high-speed industrial peer-to-peer networks.

Logistics, Shipping & Warranty Terms

• Fulfillment & Dispatch: Rapid 24-48 hour global shipping fulfillment.
• Preferred Carriers: Secure transit handled via enterprise logistics partners including FedEx, UPS, and DHL.
• Quality Assurance: Backed by a standard 12-month warranty covering manufacturing integrity and hardware reliability.

Global PLC Spare HUB's Insight

• Field Engineering Tip: Always set your rotary node address switches prior to plugging the USB interface into your laptop to prevent bus configuration conflicts.
• Preventative Practice: Store the unit in an anti-static bag when not in use, as field-level electrostatic discharge remains the primary cause of premature internal transceiver failure.

Frequently Asked Questions

• Q: Can the 1784-U2CN cable be submerged or used in wet washdown environments?
  A: No, the assembly carries an IP30 enclosure rating and features basic insulation, meaning it is not water-resistant and must be kept in dry control rooms or protected cabinets.
• Q: What causes the USB status LED to transition from a steady green to a blinking state?
  A: A steady green light confirms successful driver configuration with no traffic, while a blinking pattern indicates active packet transmission between the PC and the network.
• Q: Does the 1784-U2CN require an auxiliary external power supply to function?
  A: It draws its primary operational power directly from the computer USB port at 5.25V DC (225 mA) and draws 70 mA from the 24V ControlNet line.
• Q: What buying criteria should I evaluate when selecting a replacement programming cable?
  A: Ensure your application requires a direct USB bridge rather than a serial-to-ControlNet card, verify agency certifications (cULus, CE), and purchase from verified suppliers offering full 12-month warranties.
• Q: How does altitude impact the operational limits of this communication cable?
  A: The hardware operates safely up to an altitude of 2000 meters without thermal or electrical derating; installations above this threshold require environmental review.
