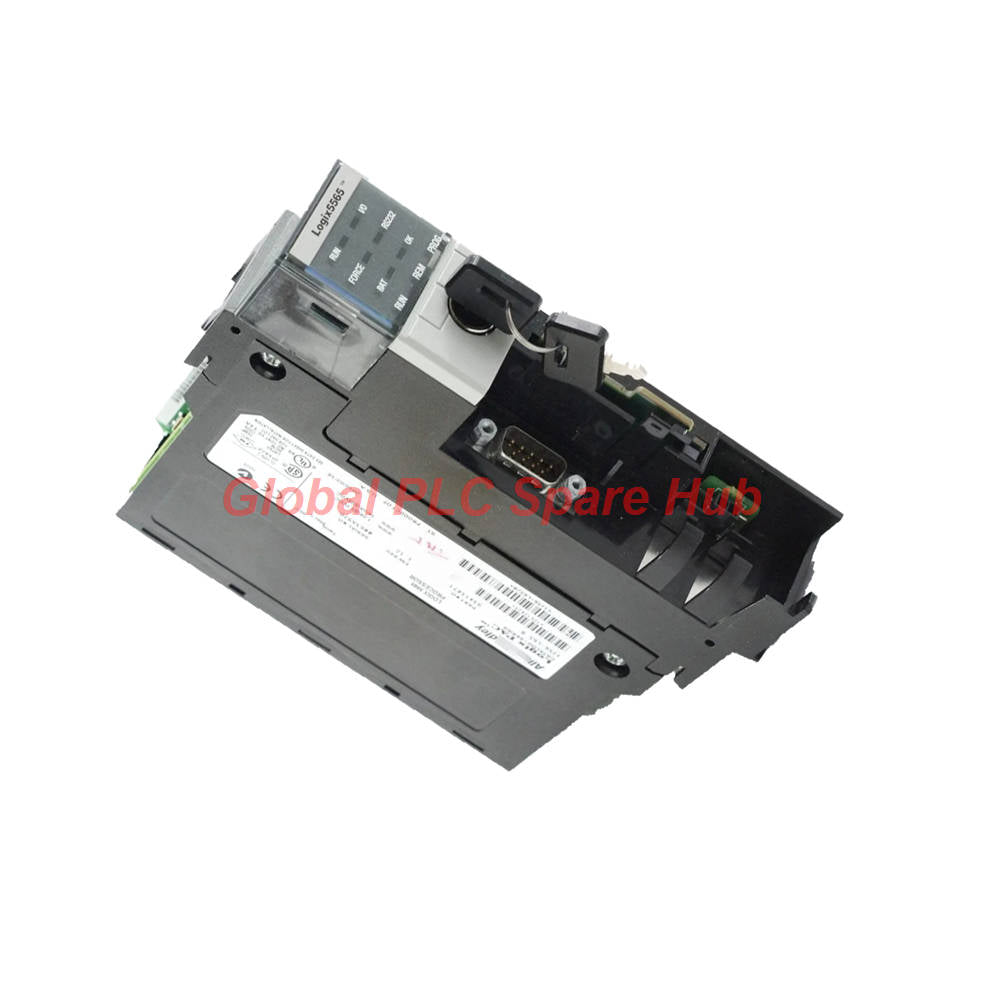

1756-L65 Allen-Bradley ControlLogix Processor | Buy CPU Module

1756-L65 Allen-Bradley ControlLogix 32MB Controller Architecture

Engineered for large-scale, high-performance process and discrete manufacturing automation, the 1756-L65 is a flagship Series B programmable automation controller from the Allen-Bradley ControlLogix 5560 family by Rockwell Automation. Equipped with a robust 32 MB user memory pool and 478 KB of dedicated I/O memory, this powerful CPU module manages up to 128,000 total digital I/O points and 4,000 analog points. Designed to slot smoothly into universal ControlLogix chassis such as the 1756-A7, 1756-A13, or 1756-A17, it delivers dependable execution across complex multi-tasking industrial environments.

Comprehensive Technical Specifications & Operational Metrics

• Manufacturer / Brand / Series: Rockwell Automation / Allen-Bradley / ControlLogix Series B
• Part Number & Module Type: 1756-L65 (Central Processing Unit Processor Module)
• User Memory & I/O Capacity: 32 MB total user memory (logic and data); 478 KB I/O memory
• Maximum I/O Handling: Up to 128,000 digital I/O and 4,000 analog I/O points
• Backplane Current Draw: 1200 mA at 5.1 VDC and 14 mA at 24 VDC
• Power & Thermal Dissipation: 3.5 Watts operational power loss; 11.9 BTU/hour thermal output
• Isolation & Voltage Testing: 30 V continuous isolation voltage; type-tested at 720 VDC for 60 seconds
• Task Capabilities: Supports up to 32 independent tasks, 100 programs per task, and comprehensive event-triggered tasks
• Environmental Ratings: Operating temperature 0°C to 60°C; Storage temperature -40°C to 85°C; 5% to 95% non-condensing humidity

Global PLC Spare HUB's Insight & Field Experience

When deploying legacy processor replacements like the 1756-L65 into existing plant networks, Global PLC Spare HUB field engineers recommend auditing total project memory utilization and scan time variations. Because the 1756-L65 features a massive 32 MB user memory footprint, loading large, unoptimized legacy code structures can occasionally yield slightly slower scan cycles compared to smaller L6x models. Always verify that your backup lithium battery (strictly 1756-BA2) is fresh and properly seated to prevent volatile memory loss during scheduled power maintenance windows.

Installation, Hardware Compatibility & Expansion Guidelines

• Chassis Compatibility: Fully compatible with standard ControlLogix rack architectures including 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 backplanes.
• Nonvolatile Memory Option: Optional nonvolatile storage is supported exclusively via the 128 MB CompactFlash 1756-CF128 memory card.
• Integrated Motion & Networks: Supports SERCOS interface motion control, CIP Motion over EtherNet/IP, and multi-network bridging across ControlNet, DeviceNet, DH+, and remote I/O lines.
• Programming Languages: Fully supports standard IEC 61131-3 languages including Relay Ladder Logic, Structured Text, Function Block Diagrams, and Sequential Function Charts (SFC).

Advanced Diagnostics & System Fault Detection

• Controller Connections: Manages up to 250 active controller connections simultaneously across diverse industrial network modules.
• Built-in Serial Port: Features an onboard RS-232 communication port supporting ASCII, DF1 full/half-duplex, DF1 radio modem, DH-485, and Modbus via logic protocols.
• Diagnostic Reporting: Automatically logs major/minor faults, watchdog timeouts, and battery degradation directly into the Studio 5000 / RSLogix 5000 controller diagnostic buffer.

Target Equipment & Typical Industrial Application Scenarios

• Automotive Assembly Plants: Coordinating high-speed robotic welding cells and synchronous transfer lines over EtherNet/IP and ControlNet networks.
• Continuous Process Refineries: Managing large-scale distributed control loops, redundant safety interlocks, and multi-node DCS data acquisition.
• Power Generation Facilities: Overseeing turbine auxiliary controls, fuel management systems, and high-density analog sensor telemetry.

Global Logistics, Warranty & Procurement Guidelines

• Express Freight Carriers: Prompt international dispatch handled securely through trusted global couriers including FedEx, UPS, and DHL.
• Fulfillment Speed: Standard orders are processed, tested, and dispatched within 24 to 48 hours.
• Quality Assurance Guarantee: Backed by an industry-standard 12-month warranty covering all structural and electronic functional defects.

Frequently Asked Questions

Q: Can I use any generic lithium replacement battery in the 1756-L65 controller?

A: No, the 1756-L65 requires the specific 1756-BA2 lithium battery model to maintain volatile RAM memory during power outages safely.

Q: What is the maximum CompactFlash card size supported for nonvolatile memory backup?

A: The controller exclusively supports the 128 MB CompactFlash memory card designated as model 1756-CF128 for nonvolatile storage backups.

Q: How many total controller connections can this processor handle across active networks?

A: The 1756-L65 is engineered to support a maximum of 250 active controller-to-controller and HMI connections simultaneously.

Q: What causes a noticeable scan time increase when migrating code from a smaller ControlLogix processor?

A: Larger memory allocations (32 MB) and complex task structuring can introduce minor scan execution variance; optimizing routine execution and task priorities resolves this.

Q: Purchasing Guidance: What system power supply factors should I check before installing a replacement 1756-L65 module?

A: Verify that your rack power supply can handle the 1200 mA current draw at 5.1 VDC demanded by the processor without exceeding total backplane wattage capacity.
