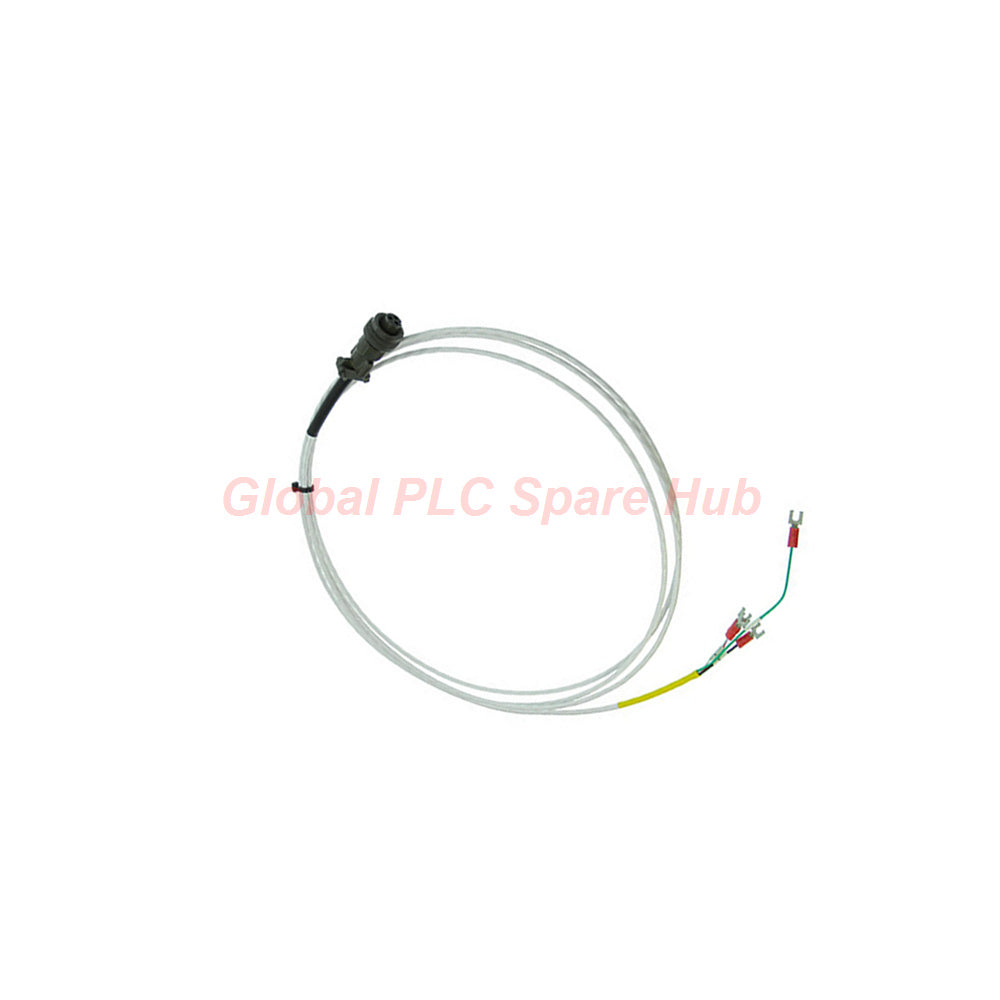

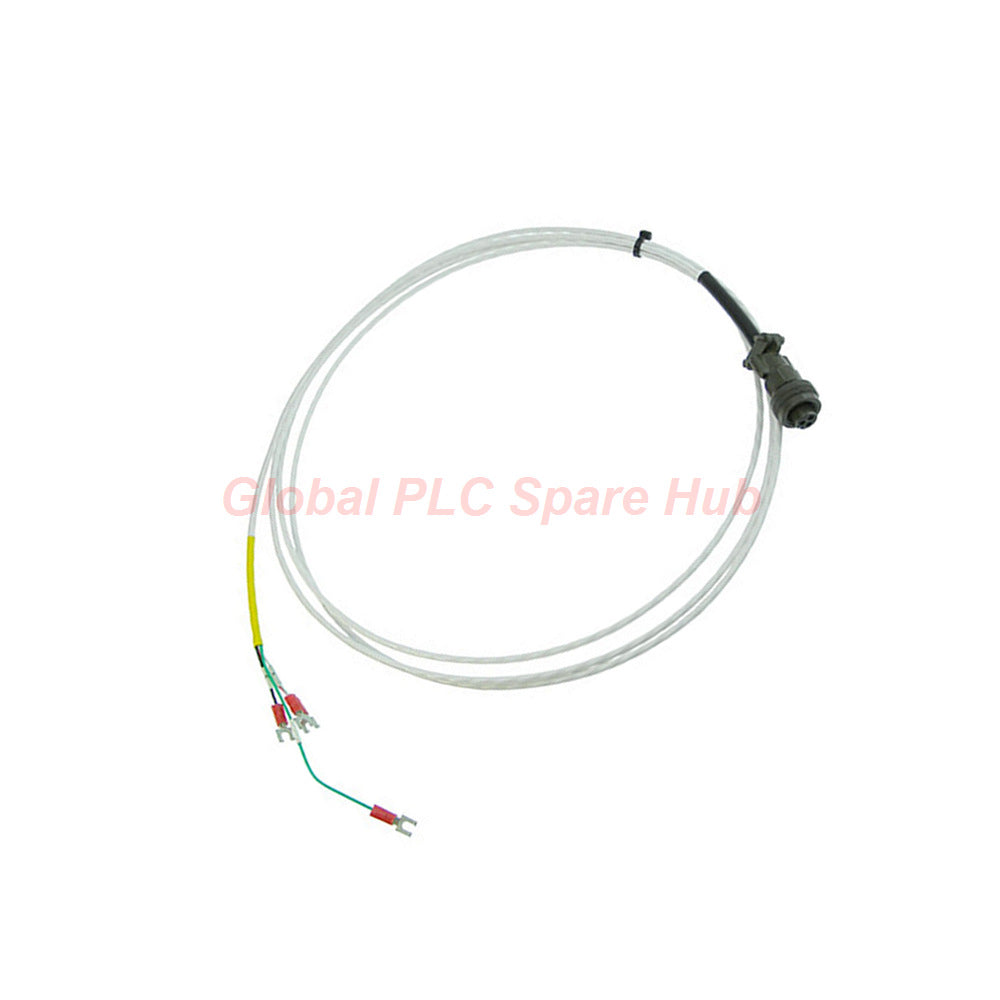

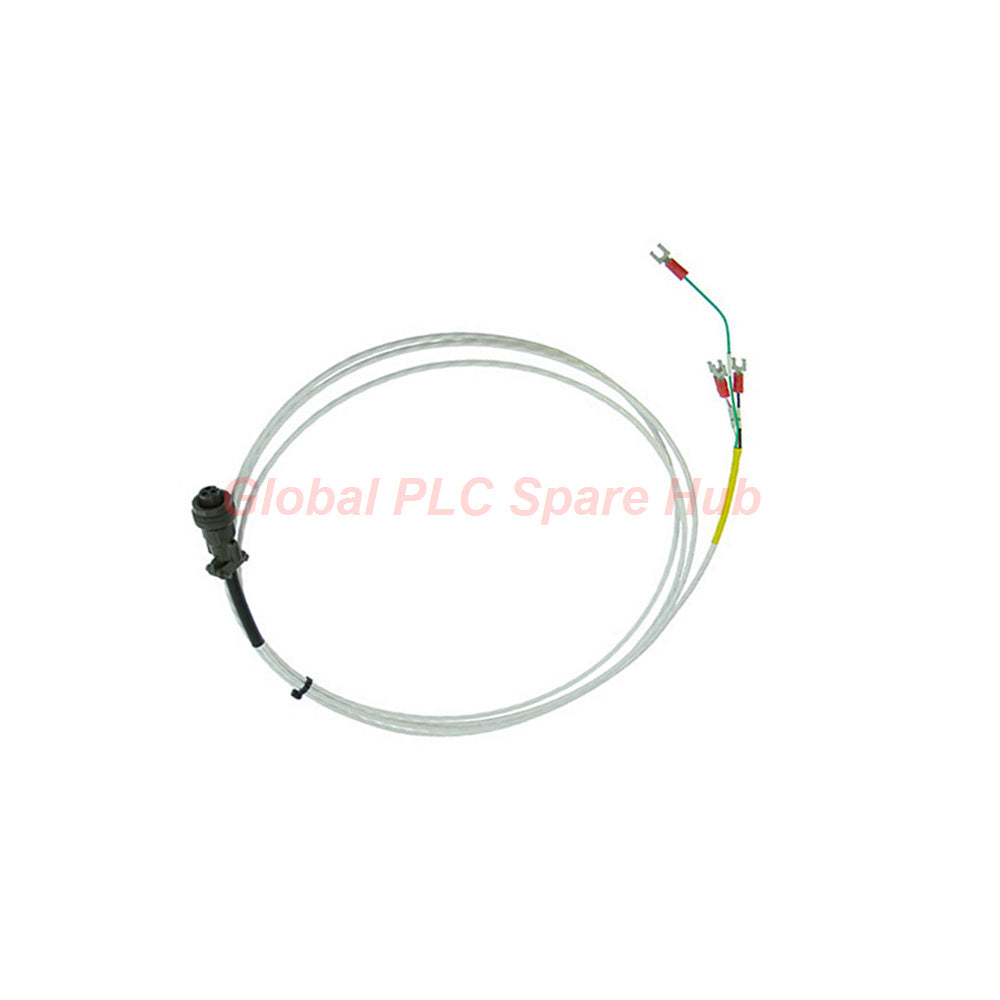

Bently Nevada 16710-23 Armored Interconnect Cable

The 16710-23 is a premium armored interconnect cable designed by Bently Nevada for high-reliability vibration and displacement monitoring. Featuring a 23-foot length and ruggedized protective shielding, this cable ensures signal purity between proximity probes and monitoring systems. The inclusion of integrated armor makes it a superior choice for harsh industrial environments where mechanical durability is as critical as electrical accuracy.

Global PLC Spare HUB Insight

Field engineers prefer the 16710-23 when deploying instrumentation in high-traffic or debris-prone machine areas. The 3-conductor shielded 22 AWG design significantly reduces electromagnetic interference (EMI), ensuring that sensitive millivolt signals from vibration sensors remain stable. This cable is a staple for maintaining the integrity of 3300/3500 series protection systems, providing a long-term solution for complex machine-train monitoring.

Application Focus: Gas turbine vibration analysis, centrifugal compressor displacement monitoring, and critical hydroelectric generator health tracking.

Configuration Breakdown

The part number 16710-23 specifies the following mechanical and electrical standards:

• Base Model: 16710 (Armored Interconnect Cable)
• Length (-23): 23 feet (approx. 7 meters)
• Conductors: 3-conductor shielded, 22 AWG (0.5 mm²)
• Probe End: 3-socket plug connector
• Monitor End: Industrial terminal lugs

Technical Specifications

• Manufacturer: Bently Nevada
• Product Type: Interconnect Cable with Armor
• Conductor Gauge: 22 AWG (0.5 mm²)
• Cable Length Range: 3.0 ft (0.9 m) to 99 ft (30 m)
• Protection: Integrated flexible metal conduit (armor)
• Shielding: Continuous foil/braid combination for EMI noise reduction

Model Selection & Compatibility

Ensure the correct cable length to maintain signal fidelity in your monitoring loop:

• 16710-23: 23 ft cable for standard field-to-cabinet runs.
• 16710-32: 32 ft version for extended reach in large-scale monitoring racks.

Shipping & Quality Guarantee

• Dispatch: Rapid processing and shipping within 24-48 hours.
• Logistics: Reliable global delivery via FedEx, UPS, or DHL.
• Warranty: All units are backed by a comprehensive 12-month performance guarantee.

Expert FAQ

Q: Why is the armor on the 16710-23 cable so important?
A: The integrated armor acts as a mechanical shield against crushing, abrasion, and chemical damage, preventing failure of the delicate internal signal conductors in active machine zones.

Q: Can I trim the cable length if it is too long?
A: We recommend ordering the exact length required (e.g., 23ft). Trimming in the field can compromise the weatherproofing and shielding integrity of the armored assembly.

Q: How does this cable help reduce signal noise?
A: The combination of 3-conductor internal shielding and the mechanical armored jacket provides a multi-layer defense against EMI, essential for sensitive proximity probe inputs.

Q: What is the benefit of the terminal lugs on the monitor end?
A: Terminal lugs provide a low-resistance, vibration-proof connection to monitor terminal blocks, preventing the loosening often associated with plain wire connections.

Q: Selection Guide: When should I choose an armored cable?
A: Choose an armored version if the cable path runs through areas with foot traffic, overhead cranes, or proximity to abrasive industrial debris.
