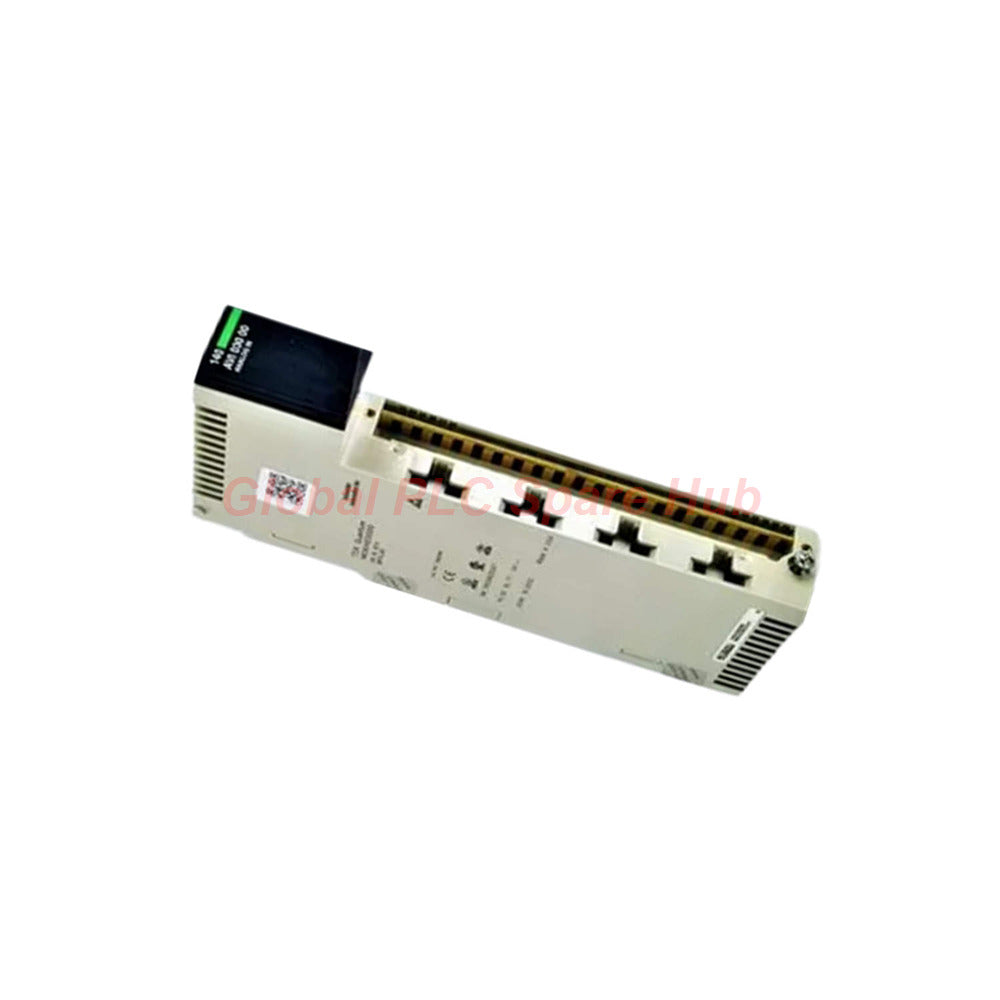

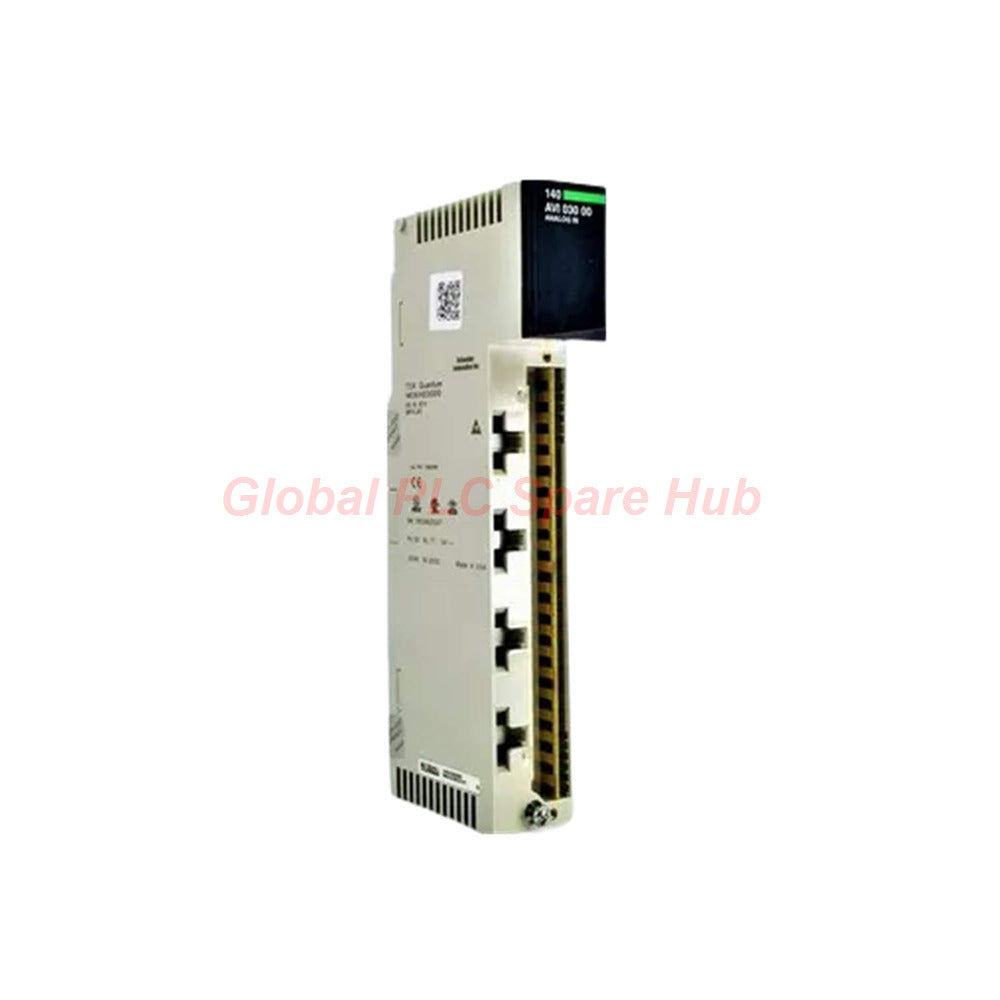

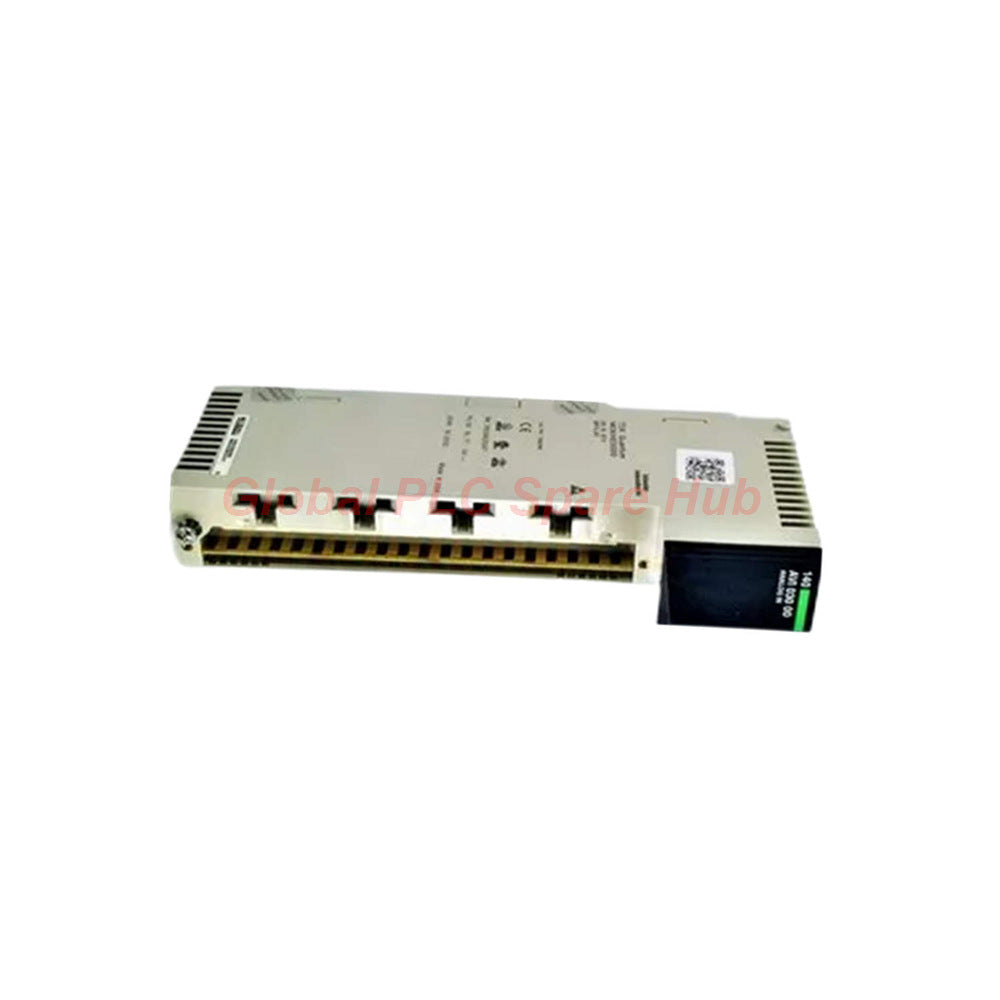

140AVI03000 Schneider Modicon Quantum 8-Channel Multirange Analog Input

Global PLC Spare HUB's Insight

The Schneider Electric 140AVI03000 stands as a high-performance cornerstone of the Modicon Quantum automation platform. This 8-channel differential input module is engineered for versatile signal processing, handling both bipolar and unipolar current/voltage ranges with an impressive 16-bit resolution. What sets the 140AVI03000 apart for instrumentation engineers is its exceptional absolute accuracy of +/- 0.03% and a rapid 10ms update time, making it ideal for high-speed PID loops and precise process monitoring. Its robust isolation (500 Vrms) and single-pole low-pass filtering ensure that signal integrity remains uncompromised even in electrically noisy industrial environments. Whether you are maintaining a legacy Quantum installation or optimizing a complex analog front-end, this module delivers the authoritative reliability required for mission-critical applications.

Technical Performance Matrix

• Brand: Schneider Electric
• Model: 140AVI03000
• Series: Modicon Quantum
• Channel Count: 8 Differential Inputs
• Signal Support:
  • Current: 0...20 mA, 4...20 mA, +/- 20 mA
  • Voltage: +/- 10 V, +/- 5 V, 0...10 V, 0...5 V, 1...5 V
• Resolution: 16 bits
• Accuracy: +/- 0.03% (Absolute)
• Update Speed: 10 ms (Across all channels)
• Isolation: 500 Vrms AC (Channels to Bus)
• Bus Current: 280 mA
• Max Operating Altitude: 5000 m

Engineering Applications & Deployment

• Power Generation: High-accuracy monitoring of turbine feedback and thermal sensors.
• Chemical Processing: Precise control of flow meters and pressure transmitters in unipolar/bipolar modes.
• Oil & Gas Infrastructure: Reliable data acquisition for remote pump stations and valve positioning.
• Water Treatment: Scaling for diverse 4...20mA sensor arrays with integrated loop monitoring.

Diagnostic & Fault Management

• Visual Status: 18 individual LEDs provide immediate feedback on bus activity, external faults, and per-channel health.
• Safety Logic: Integrated detection for "Broken Wire" on 4...20 mA loops and "Overtacking Scale" for 1...5 V signals.
• EMI Resilience: Certified to IEC 801-3 (10 V/m) for stability in high-electromagnetic field zones.
• Hardware Self-Test: Continuous monitoring of internal circuitry and communication integrity with the Quantum backplane.

Global Logistics & Quality Assurance

• Warranty Policy: Includes a full 12-month quality guarantee.
• Global Shipping: Priority express delivery via FedEx, UPS, and DHL.
• Dispatch Window: Orders processed and shipped within 24-48 hours.
• Packing: Original industrial-grade packaging, professionally inspected before dispatch.

Selection & Buying Guide

• Addressing Check: This module occupies 9 input words on the Quantum backplane; verify your CPU's I/O mapping capacity.
• Legacy Migration: Ensure your software configuration (Concept or ProWORX) supports the 16-bit resolution scaling for this specific hardware.
• Loop Integrity: We recommend utilizing the built-in broken wire diagnostic for any safety-critical 4-20mA process loops.

Professional FAQ

How does the differential input design benefit the 140AVI03000 in long-distance wiring?

Differential inputs significantly improve common-mode rejection (>80 dB), effectively cancelling out electrical noise picked up over long cable runs.

Can I mix voltage and current signals on the same module?

Yes, each of the 8 channels can be configured independently for different bipolar or unipolar signal types via the PLC software configuration.

What is the significance of the 1.024 scaling factor in the measurements?

This provides an over-range safety margin beyond the nominal scale, allowing the DCS to detect sensor saturation or calibration drift before clipping occurs.

What should I check if the red "External Fault" LED is illuminated?

This typically indicates a loss of field power or a wiring fault (such as a broken loop) detected by the module's diagnostic logic.

Is this module compatible with Modicon M580 systems?

It is a Quantum series module. While M580 can control it via an X80 drop (CRA module), verify that your RIO drop hardware is compatible with Quantum modules.
