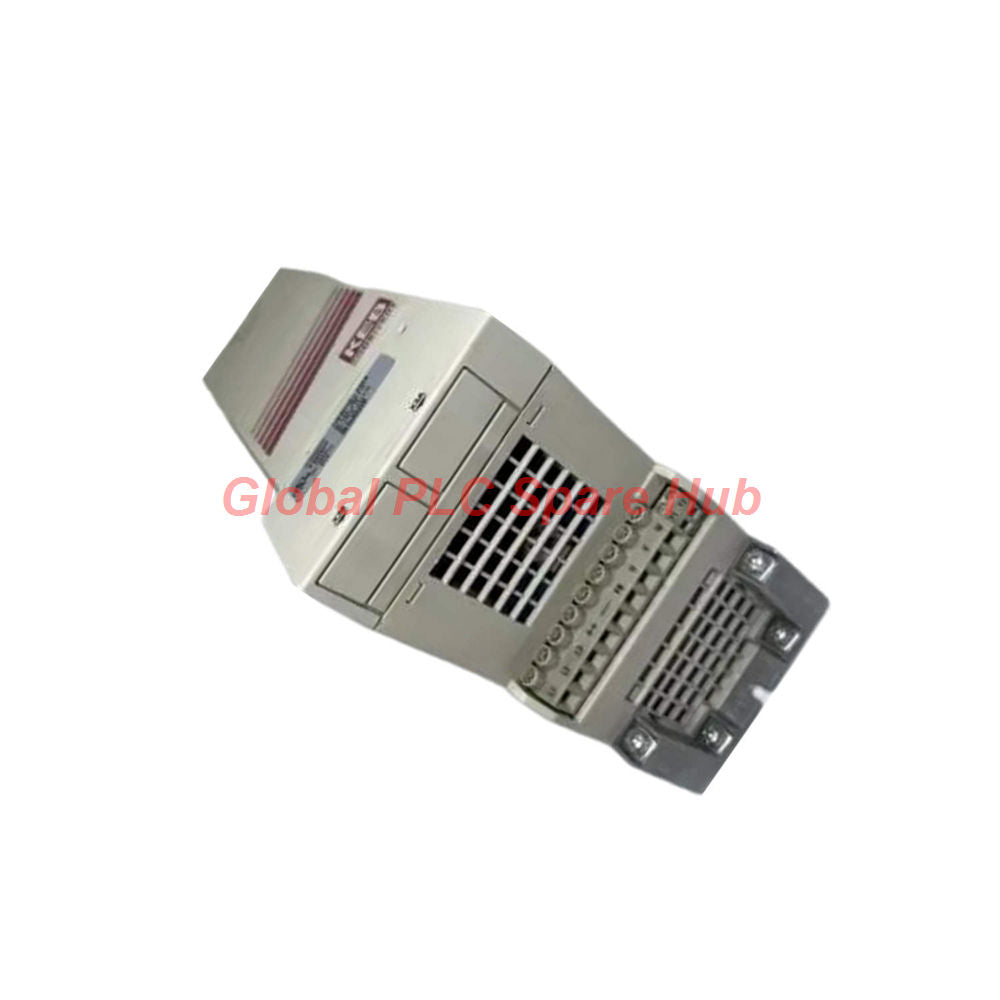

10F5H1D-3A0A KEB Combivert F5 Multi 2.2kW Drive | High-Performance Inverter

Engineering Performance Overview

The 10F5H1D-3A0A KEB Combivert F5 Multi frequency inverter redefines precision motor control for industrial automation environments. Built on an advanced hardware architecture, this 2.2kW drive delivers a rated output current of 5.8A under a 400V three-phase supply. Engineered for both open-loop and closed-loop control paradigms, the 10F5H1D-3A0A accommodates synchronous and asynchronous motors with exceptional dynamic response, featuring a robust 216% overload capacity per minute.

Core Technical Architecture & Specifications

Mechanical Integration & Deployment Guide

• Panel Installation: Mount the IP20 chassis securely within a temperature-controlled electrical cabinet, maintaining adequate vertical clearance for natural convection airflow.
• Feedback Card Insertion: Select and slot the appropriate feedback card (Resolver, Sin/Cos, or absolute encoder) into the multi-axis slot prior to applying main power.
• Shielded Cabling: Terminate motor and encoder cables using EMC-compliant ground brackets to prevent high-frequency switching noise interference.

Commissioning, Diagnostics & Protection Suite

• Real-Time Diagnostic Tracking: Monitor internal bus voltages, thermal loads, and output currents via integrated diagnostic registers to preemptively spot motor stator anomalies.
• Transient Overload Management: Leverage the 216% momentary overload headroom to handle high-inertia startup profiles without tripping.
• Decentralized Logic Processing: Utilize built-in drive actuator programming to execute rapid positioning tasks independently, minimizing PLC scan load.

Global PLC Spare HUB's Insight

Deploying high-frequency inverters in fast-cycling packaging lines requires rigid torque stability. Senior automation engineers at Global PLC Spare HUB note that pairing the 10F5A1D-3A0A with a high-resolution absolute encoder unlocks precise electronic gearing capabilities, eliminating mechanical backlash issues common in traditional gearboxes.

Target Equipment & Industrial Application Scenarios

• Precision Positioning Machinery: CNC tool spindle drives, automated storage and retrieval systems (AS/RS), and flying shear mechanisms.
• Material Handling Lines: Synchronized conveyor belts, sorting modules, and high-speed rotary index tables.
• Process Control Pumps: Closed-loop flow regulation systems requiring continuous speed and torque optimization.

Commercial Terms, Logistics & Warranty

• Logistics Dispatch: Fast global delivery channels via FedEx, UPS, and DHL with dispatch secured within 24 to 48 hours.
• Quality Assurance: Fully backed by a comprehensive 12-month warranty protecting against material and manufacturing defects.

Engineering FAQ & Selection Guidance

Q: What criteria should guide my selection between the F5 Compact and the F5 Multi series for a retrofit project?
A: Choose the F5 Multi series when your application demands closed-loop vector control, advanced positioning loops, or specialized feedback cards like EnDat and Hiperface, which are not natively supported by basic compact variants.

Q: How does the integrated braking unit behave during emergency stop deceleration ramps?
A: The internal braking chopper switches excess regenerative energy from the DC bus into an external braking resistor, preventing over-voltage trips during rapid motor deceleration.

Q: Can the drive maintain accurate speed regulation without an external encoder installed?
A: Yes. By configuring KEB's Sensorless Motor Management (SMM), the drive estimates rotor flux and slip parameters to deliver stable open-loop speed regulation for standard asynchronous motors.

Q: What proactive steps minimize communication timeouts when using Modbus RTU on the F5 Multi?
A: Ensure proper 120-ohm termination resistors are installed at both ends of the RS485 physical bus line and verify that baud rate and parity settings match across all network nodes.

Q: How do environmental temperature spikes impact the continuous output rating of this 2.2kW inverter?
A: Operating the unit in ambient temperatures exceeding the +45°C limit requires applying a de-rating factor to the output current to prevent premature thermal degradation of the internal power semiconductors.
