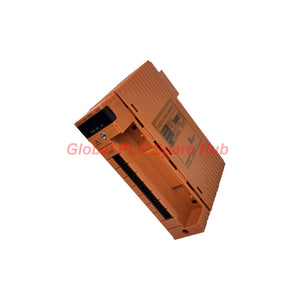

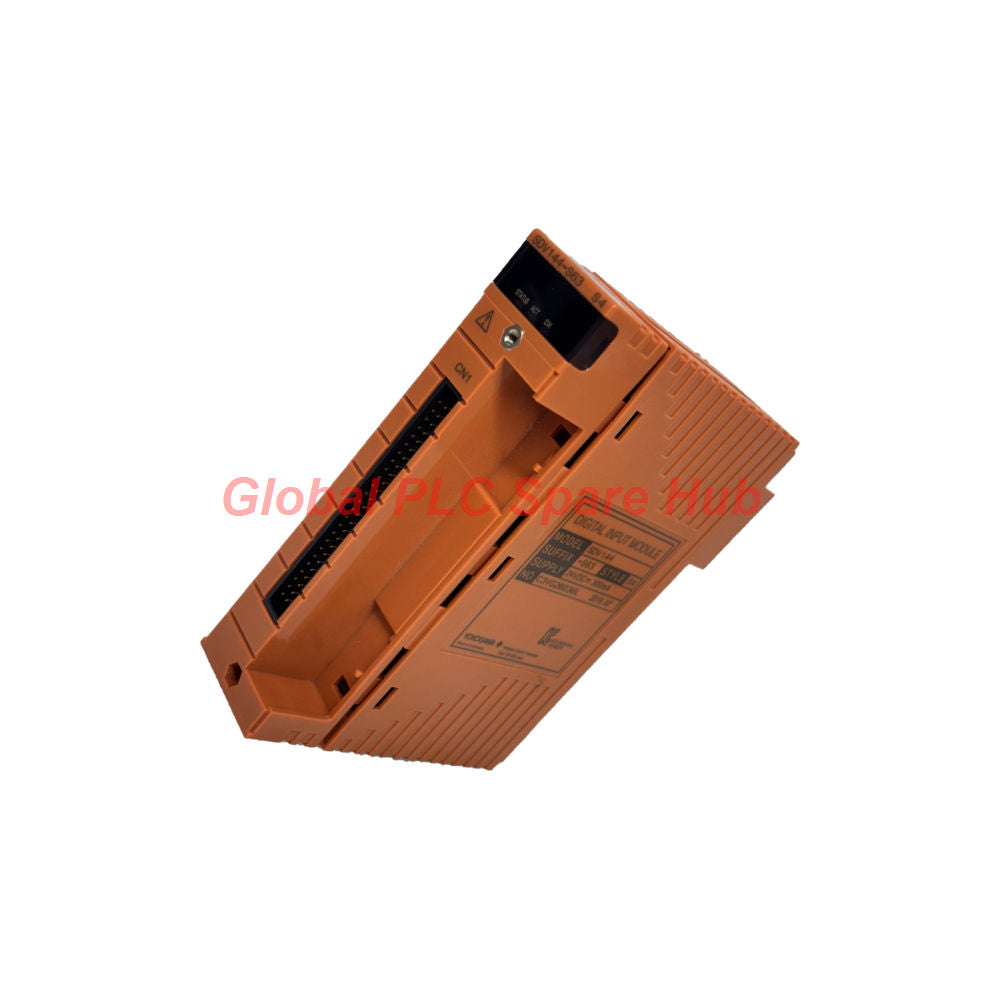

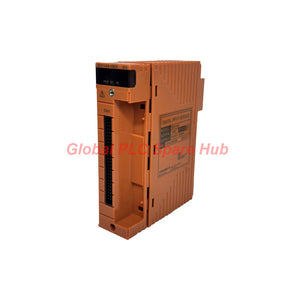

Yokogawa SDV144 Series SDV144-S63 Isolated Digital Input Module

Yokogawa SDV144-S63 Digital Input Module Overview

The Yokogawa SDV144-S63 is a 16-channel digital input module designed for industrial control systems. It belongs to the SDV144 series and accepts 24 V DC contact signals. Its module isolation helps separate input circuits from the system side. The module supports reliable contact-state acquisition in distributed control system (DCS) applications. The SDV144-S63 accepts voltage-free contact inputs and detects ON or OFF states through defined resistance thresholds. Its maximum input response time is 40 ms. Engineers can use these characteristics when designing contact monitoring, interlock logic, and equipment status acquisition.

Key Technical Specifications

Manufacturer	Yokogawa
Model	SDV144-S63
Series	SDV144
Product Type	Digital Input Module
Input Configuration	16 channels, module isolation
Input Signal	Voltage-free contact
ON-State Resistance	1 kΩ maximum
OFF-State Resistance	100 kΩ minimum
Input Current	6 mA ±20% at 24 V DC and 0 Ω input resistance
Contact Rating	24 V DC (+20% / −10%), 10 mA or greater
External Power Supply	24 V DC (+20% / −10%)
External Supply Capacity	200 mA
Maximum Permissible Input Voltage	30.0 V DC instantaneous
Input Response Time	40 ms maximum
Withstand Voltage	2 kV AC for one minute between input signals and the system, with all 16 input lines connected collectively
Current Consumption	5 V DC: 290 mA maximum; 24 V DC: 140 mA maximum
External Connection	Pressure clamp terminal, MIL cable, or dedicated AKB331 signal cable
Weight	Approximately 0.36 kg with pressure clamp terminal or MIL cable; approximately 0.41 kg with signal cable interface adapter
Specified Temperature Range	−20 to +70 °C for suffix code 3
Environmental Specification	ISA Standard G3 as indicated by suffix code 3

Important: The supplied specifications do not state a measurement range, frequency response, sensitivity, linearity, or resolution. These parameters do not apply directly to this contact-input module in the same way they apply to analog measurement devices.

Model and Suffix Code Identification

• SDV144: 16-channel digital input module with module isolation and 24 V DC contact inputs.
• S: Standard type.
• 6: Signal cable interface adapter included, without explosion protection.
• 3: ISA Standard G3 environmental specification and a temperature range of −20 to +70 °C.

Confirm the complete model code before ordering. The suffix determines the interface configuration and environmental requirements.

Core Functions and Diagnostic Capabilities

The Yokogawa SDV144-S63 acquires discrete contact states for control logic and equipment monitoring. Its 16 input channels allow engineers to consolidate multiple status signals within one module.

• Contact-state monitoring: Detects dry-contact ON and OFF conditions using specified resistance thresholds.
• Interlock input acquisition: Supplies contact-state information for permissive conditions and sequence logic.
• Equipment status monitoring: Supports monitoring of auxiliary contacts, limit switches, and relay contacts.
• Electrical isolation: Module isolation helps separate input circuits from the system side.
• Signal troubleshooting: Resistance thresholds and response-time specifications help engineers evaluate field wiring and switching behavior.

The module does not independently identify every field fault. Engineers should combine controller diagnostics, wiring checks, and contact measurements to locate signal problems.

Typical Industrial Applications

• Distributed control systems: Collects discrete status signals from process equipment.
• Pump and compressor monitoring: Reads auxiliary contacts, running-status relays, and local limit switches.
• Valve control systems: Acquires open and closed limit-switch feedback for sequence verification.
• Industrial machinery: Monitors equipment permissives, door contacts, and operating-state signals.
• Process interlocks: Supplies discrete input states for controller-based operating sequences.

Installation Guide

1. Verify the model: Confirm the complete SDV144-S63 code and the required interface adapter.
2. Check compatibility: Verify the installed system, module mounting arrangement, and supported connection hardware against Yokogawa documentation.
3. Isolate power: Follow site procedures before installing or removing the module or connecting field wiring.
4. Inspect field contacts: Confirm that the contact circuit meets the specified resistance and contact-rating requirements.
5. Verify external power: Maintain the specified 24 V DC supply within its permitted tolerance and capacity.
6. Connect field wiring: Use the appropriate pressure clamp terminal, MIL cable, or dedicated AKB331 signal cable.
7. Inspect connections: Check terminal security, cable routing, polarity where applicable, and separation from electrical noise sources.
8. Test input states: Operate each field contact and confirm the corresponding state in the control system.

Use the applicable Yokogawa installation manual for terminal assignments, mounting requirements, and system-specific procedures.

Commissioning and Maintenance Recommendations

• Input resistance: Investigate contact resistance above 1 kΩ when an ON signal fails to register.
• OFF-state verification: Check for leakage paths when an open contact does not meet the 100 kΩ minimum OFF-state requirement.
• Supply stability: Measure the external 24 V DC supply under operating load.
• Response testing: Confirm that the application tolerates the module's maximum 40 ms input response time.
• Connection inspection: Check for loose terminals, damaged cable insulation, corrosion, and incorrect interface hardware.
• Environmental checks: Keep the installation within the specified temperature range and assess suitability for the site's contamination conditions.

Field example: A valve-open signal intermittently disappears during commissioning. First, inspect the limit-switch contact and terminal tightness. Then measure the closed-contact resistance and verify the external 24 V DC supply. If the signal remains unstable, check cable leakage and controller-side configuration before replacing the module.

Compatibility and Selection Notes

The SDV144-S63 suits systems that require 16-channel, 24 V DC voltage-free contact acquisition. However, mechanical fit alone does not establish system compatibility.

• Verify the target Yokogawa system supports the SDV144 module and its specific suffix configuration.
• Confirm that the installed base, signal cable interface adapter, and field wiring match the required hardware.
• Check that field contacts meet the ON/OFF resistance thresholds and contact-rating requirements.
• Do not assume direct compatibility with analog input channels or modules that require powered voltage signals.
• Confirm environmental suitability and explosion-protection requirements before selecting the S63 configuration.

Selection guidance: Choose this module when the application requires dry-contact acquisition rather than analog current or voltage measurement. If the installation requires explosion protection, verify the correct model configuration instead of assuming the S63 suffix meets that requirement.

Environmental and Compliance Information

The suffix code 3 specifies ISA Standard G3 environmental conditions and an operating temperature range of −20 to +70 °C, according to the supplied information. The available specifications do not identify a separate certification number or confirm hazardous-area approval. The suffix code 6 explicitly indicates a configuration without explosion protection. Review the manufacturer's documentation for the installation's applicable compliance requirements.

Packaging and Delivery

• Product: Yokogawa SDV144-S63 digital input module.
• Interface accessories: Confirm the signal cable interface adapter, terminal hardware, and cables against the purchase configuration.
• Packaging: Packaging contents depend on the confirmed order configuration.
• Shipping methods: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch target: Orders are generally prepared for shipment within 24–48 hours after order confirmation, subject to stock and payment verification.
• Warranty: 12-month warranty, subject to the seller's written warranty terms.

Contact Global PLC Spare HUB to confirm stock, exact suffix configuration, included accessories, delivery timing, and warranty coverage before ordering.

Global PLC Spare HUB's Insight

From an engineering perspective, the most important selection criteria are input type, contact resistance, response time, and system compatibility. The SDV144-S63 is designed for discrete contact acquisition, not precision analog measurement. During troubleshooting, engineers should distinguish field-contact problems from module or controller problems. A contact with excessive closed-state resistance can prevent reliable ON-state detection. Leakage across an open contact can also cause incorrect state interpretation. For replacement projects, record the original module code, interface arrangement, wiring details, and controller configuration before removing the installed unit. This process reduces commissioning delays and helps prevent suffix-related ordering errors.

Frequently Asked Questions

1. What signals can the Yokogawa SDV144-S63 accept?

The module accepts voltage-free contact signals across 16 input channels. The specified ON-state resistance is 1 kΩ maximum, while the OFF-state resistance is 100 kΩ minimum.

2. Can I use this module for a 4–20 mA transmitter?

No. This module is designed for discrete contact signals rather than analog current measurement. Select a compatible analog input module for a 4–20 mA transmitter.

3. What should I check if an input remains OFF with a closed contact?

Measure the closed-contact resistance first. Check terminal tightness, cable continuity, and the external 24 V DC supply. If these checks pass, verify controller configuration and module compatibility.

4. How should I select a replacement for an installed SDV144 module?

Match the full model code, including all suffixes. Verify the interface adapter, cable type, system support, environmental rating, and explosion-protection requirements before placing an order.

5. Does the SDV144-S63 provide explosion protection?

No. The supplied suffix definition identifies code 6 as a configuration without explosion protection. Select a suitably approved configuration when the installation requires hazardous-area protection.

6. What does the 40 ms response time mean during commissioning?

The module's input response time is 40 ms maximum. Applications requiring faster event detection should evaluate the complete system response, including field contacts, controller processing, and communication timing.

7. What information should I provide when requesting a quotation?

Provide the complete SDV144-S63 model code, required quantity, destination country, and interface requirements. Include a photograph of the nameplate when possible to help verify the configuration.

Request a Quote

For pricing, availability, and replacement guidance, contact Global PLC Spare HUB with your required quantity and complete model number. Our team can help verify the module configuration, review connection requirements, and coordinate shipping options through FedEx, UPS, or DHL.
